APKT10 Cutter

90-degree shoulder milling cutters for APKT10 inserts

APKT10 Cutter
$0.00 INC GST $0.00 EX GST Price available on request
SKU
APKT10

Key features

  • Designed for APKT10 two-corner positive milling inserts
  • 90-degree entry angle for shoulder milling
  • Suitable for square shoulder and slot milling
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Square shoulder capability

A 90-degree entry angle supports accurate shoulder milling and slot milling operations.

APKT10 insert platform

Designed specifically for APKT10 two-corner positive inserts within the YG-1 milling system.

Body format choice

End mill and shell mill formats provide connection options for different machine setups.

Add APKT10 Cutter to comparison

View Comparison
  • Overview
  • Specifications
  • Reviews
Product Description

YG-1 APKT10 cutters are 90-degree shoulder milling cutters designed for two-corner positive APKT10 inserts. These indexable cutter bodies machine square shoulders and slots using APKT10 insert compatibility. Positive APKT geometry supports lower cutting force within the YG-1 shoulder milling system. The family includes end mill and shell mill cutter body formats. Available connection styles include Weldon, cylindrical and shell mill configurations for suitable machine setups. Select the required body diameter, insert count and connection configuration for the machining task. APKT10 screw options are specified for smaller and larger cutter diameter groups.

  • Designed for APKT10 two-corner positive milling inserts
  • 90-degree entry angle for shoulder milling
  • Suitable for square shoulder and slot milling
  • Positive insert system supports lower cutting force
  • End mill and shell mill cutter body formats

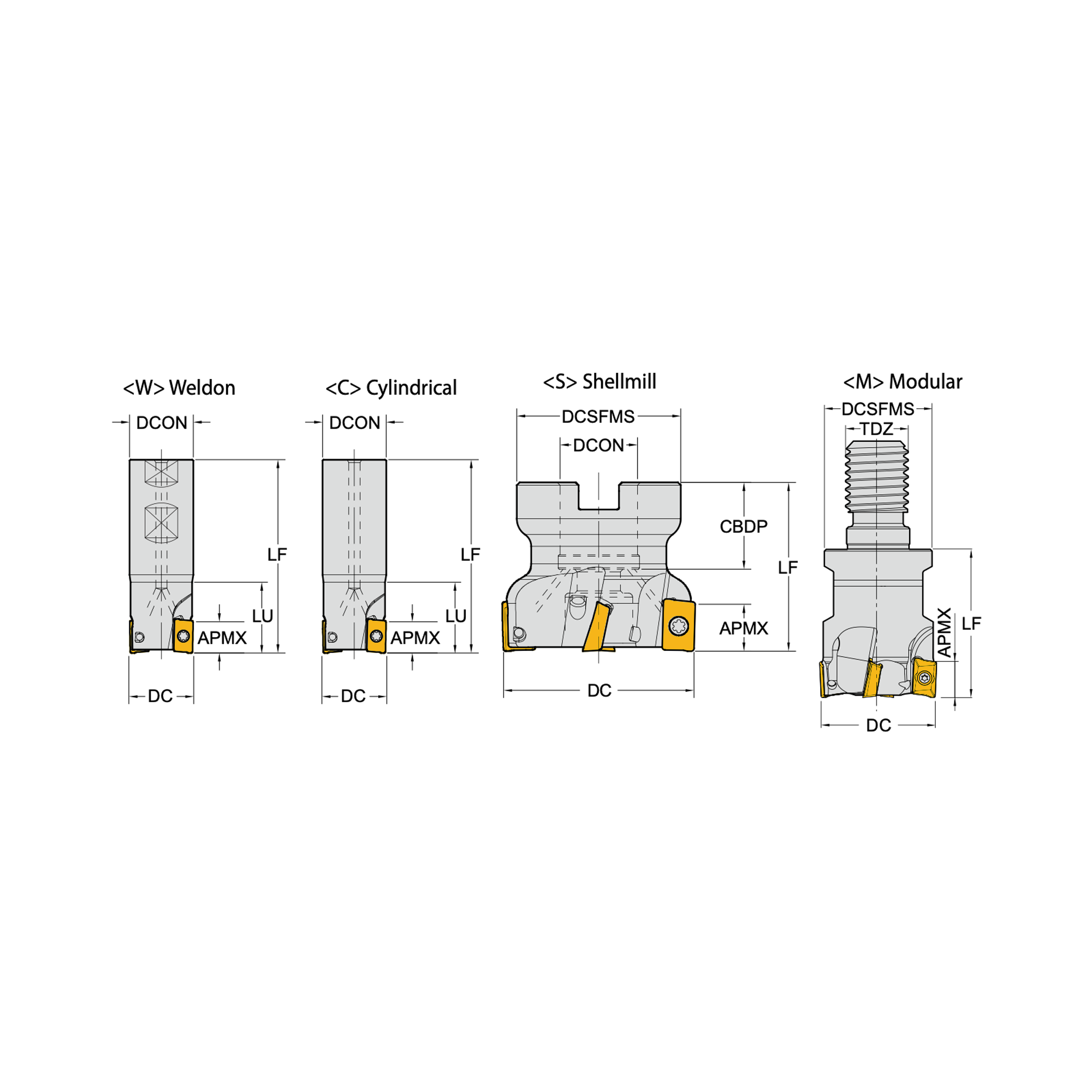

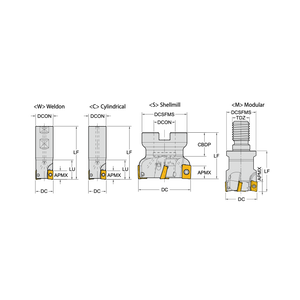

  • Weldon cylindrical and shell mill connection options
Product Data

No specifications available.

EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Effective Length Connection Size Maximum Cutting Depth Connection Type 17000082 E90-APKT10-D16Z2W16-L85 O 2 16 85 16 10 Weldon 17000083 E90-APKT10-D16Z2C16-L100 O 2 16 100 16 10 Cylindrical 17000084 E90-APKT10-D20Z3W20-L90 O 3 20 90 20 10 Weldon 17000085 E90-APKT10-D20Z3C20-L120 O 3 20 120 20 10 Cylindrical 17000086 E90-APKT10-D30Z4C25-L120 O 4 30 120 25 10 Cylindrical 17000087 F90-APKT10-D40Z4S16 O 4 40 40 16 10 Shell Mill 17000088 F90-APKT10-D50Z7S22 O 7 50 40 22 10 Shell Mill 17000122 E90-APKT10-D30Z4C25-L100 O 4 30 100 25 10 Cylindrical 17000154 E90-APKT10-D16Z2C16-L150 O 2 16 150 16 10 Cylindrical 17000186 E90-APKT10-D25Z3C25-L120 O 3 25 120 25 10 Cylindrical 17000215 F90-APKT10-D50Z6S22 O 6 50 40 22 10 Shell Mill 17000270 E90-APKT10-D20Z3C20-L200 O 3 20 200 20 10 Cylindrical 17000461 E90-APKT10-D20Z3W20-L100 O 3 20 100 20 10 Weldon 17000472 F90-APKT10-D40Z5S16 O 5 40 40 16 10 Shell Mill 17000532 E90-APKT10-D16Z2C16-L120 O 2 16 120 16 10 Cylindrical 17000533 E90-APKT10-D16Z2C16-L200 O 2 16 200 16 10 Cylindrical 17000534 E90-APKT10-D20Z2C20-L250 O 2 20 250 20 10 Cylindrical 17000535 E90-APKT10-D20Z3C20-L100 O 3 20 100 20 10 Cylindrical 17000536 E90-APKT10-D20Z3C20-L150 O 3 20 150 20 10 Cylindrical 17000537 E90-APKT10-D25Z3C25-L100 O 3 25 100 25 10 Cylindrical 17000538 E90-APKT10-D32Z4C25-L100 O 4 32 100 25 10 Cylindrical 17000539 E90-APKT10-D32Z4C25-L150-WOC X 4 32 150 25 10 Cylindrical 17000540 E90-APKT10-D12Z1W16-L100 O 1 12 100 16 10 Weldon 17000541 E90-APKT10-D14Z1W16-L100 O 1 14 100 16 10 Weldon 17000542 E90-APKT10-D16Z2W16-L100 O 2 16 100 16 10 Weldon 17000543 E90-APKT10-D18Z2W16-L100 O 2 18 100 16 10 Weldon 17000544 E90-APKT10-D22Z3W20-L100 O 3 22 100 20 10 Weldon 17000545 E90-APKT10-D25Z3W25-L100 O 3 25 100 25 10 Weldon 17000546 E90-APKT10-D25Z4W25-L100 O 4 25 100 25 10 Weldon 17000547 E90-APKT10-D32Z4W32-L150-WOC X 4 32 150 32 10 Weldon 17000548 F90-APKT10-D63Z7S22 O 7 63 40 22 10 Shell Mill 17000549 F90-APKT10-D80Z8S27 O 8 80 50 27 10 Shell Mill 17000550 F90-APKT10-D100Z9S32 O 9 100 50 32 10 Shell Mill 17000551 M90-APKT10-D16Z2M08 O 2 16 30 M08 10 Modular 17000552 M90-APKT10-D20Z3M10 O 3 20 30 M10 10 Modular 17000553 M90-APKT10-D25Z3M12 O 3 25 35 M12 10 Modular 17000554 M90-APKT10-D32Z4M16 O 4 32 35 M16 10 Modular 17000555 M90-APKT10-D40Z5M16 O 5 40 43 M16 10 Modular 17000556 M90-APKT10-D42Z5M16 O 5 42 43 M16 10 Modular 17000573 E90-APKT10-D25AP37Z208W25-L105 O 2 25 105 25 37 Weldon 17000574 E90-APKT10-D32AP46Z315W32-L115 O 3 32 115 32 46 Weldon 17000575 E90-APKT10-D40AP55Z318W32-L130 O 3 40 130 32 55 Weldon
EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Effective Length Connection Size Maximum Cutting Depth Connection Type 17000082 E90-APKT10-D16Z2W16-L85 O 2 16 85 16 10 Weldon 17000083 E90-APKT10-D16Z2C16-L100 O 2 16 100 16 10 Cylindrical 17000084 E90-APKT10-D20Z3W20-L90 O 3 20 90 20 10 Weldon 17000085 E90-APKT10-D20Z3C20-L120 O 3 20 120 20 10 Cylindrical 17000086 E90-APKT10-D30Z4C25-L120 O 4 30 120 25 10 Cylindrical 17000087 F90-APKT10-D40Z4S16 O 4 40 40 16 10 Shell Mill 17000088 F90-APKT10-D50Z7S22 O 7 50 40 22 10 Shell Mill 17000122 E90-APKT10-D30Z4C25-L100 O 4 30 100 25 10 Cylindrical 17000154 E90-APKT10-D16Z2C16-L150 O 2 16 150 16 10 Cylindrical 17000186 E90-APKT10-D25Z3C25-L120 O 3 25 120 25 10 Cylindrical 17000215 F90-APKT10-D50Z6S22 O 6 50 40 22 10 Shell Mill 17000270 E90-APKT10-D20Z3C20-L200 O 3 20 200 20 10 Cylindrical 17000461 E90-APKT10-D20Z3W20-L100 O 3 20 100 20 10 Weldon 17000472 F90-APKT10-D40Z5S16 O 5 40 40 16 10 Shell Mill 17000532 E90-APKT10-D16Z2C16-L120 O 2 16 120 16 10 Cylindrical 17000533 E90-APKT10-D16Z2C16-L200 O 2 16 200 16 10 Cylindrical 17000534 E90-APKT10-D20Z2C20-L250 O 2 20 250 20 10 Cylindrical 17000535 E90-APKT10-D20Z3C20-L100 O 3 20 100 20 10 Cylindrical 17000536 E90-APKT10-D20Z3C20-L150 O 3 20 150 20 10 Cylindrical 17000537 E90-APKT10-D25Z3C25-L100 O 3 25 100 25 10 Cylindrical 17000538 E90-APKT10-D32Z4C25-L100 O 4 32 100 25 10 Cylindrical 17000539 E90-APKT10-D32Z4C25-L150-WOC X 4 32 150 25 10 Cylindrical 17000540 E90-APKT10-D12Z1W16-L100 O 1 12 100 16 10 Weldon 17000541 E90-APKT10-D14Z1W16-L100 O 1 14 100 16 10 Weldon 17000542 E90-APKT10-D16Z2W16-L100 O 2 16 100 16 10 Weldon 17000543 E90-APKT10-D18Z2W16-L100 O 2 18 100 16 10 Weldon 17000544 E90-APKT10-D22Z3W20-L100 O 3 22 100 20 10 Weldon 17000545 E90-APKT10-D25Z3W25-L100 O 3 25 100 25 10 Weldon 17000546 E90-APKT10-D25Z4W25-L100 O 4 25 100 25 10 Weldon 17000547 E90-APKT10-D32Z4W32-L150-WOC X 4 32 150 32 10 Weldon 17000548 F90-APKT10-D63Z7S22 O 7 63 40 22 10 Shell Mill 17000549 F90-APKT10-D80Z8S27 O 8 80 50 27 10 Shell Mill 17000550 F90-APKT10-D100Z9S32 O 9 100 50 32 10 Shell Mill 17000551 M90-APKT10-D16Z2M08 O 2 16 30 M08 10 Modular 17000552 M90-APKT10-D20Z3M10 O 3 20 30 M10 10 Modular 17000553 M90-APKT10-D25Z3M12 O 3 25 35 M12 10 Modular 17000554 M90-APKT10-D32Z4M16 O 4 32 35 M16 10 Modular 17000555 M90-APKT10-D40Z5M16 O 5 40 43 M16 10 Modular 17000556 M90-APKT10-D42Z5M16 O 5 42 43 M16 10 Modular 17000573 E90-APKT10-D25AP37Z208W25-L105 O 2 25 105 25 37 Weldon 17000574 E90-APKT10-D32AP46Z315W32-L115 O 3 32 115 32 46 Weldon 17000575 E90-APKT10-D40AP55Z318W32-L130 O 3 40 130 32 55 Weldon
