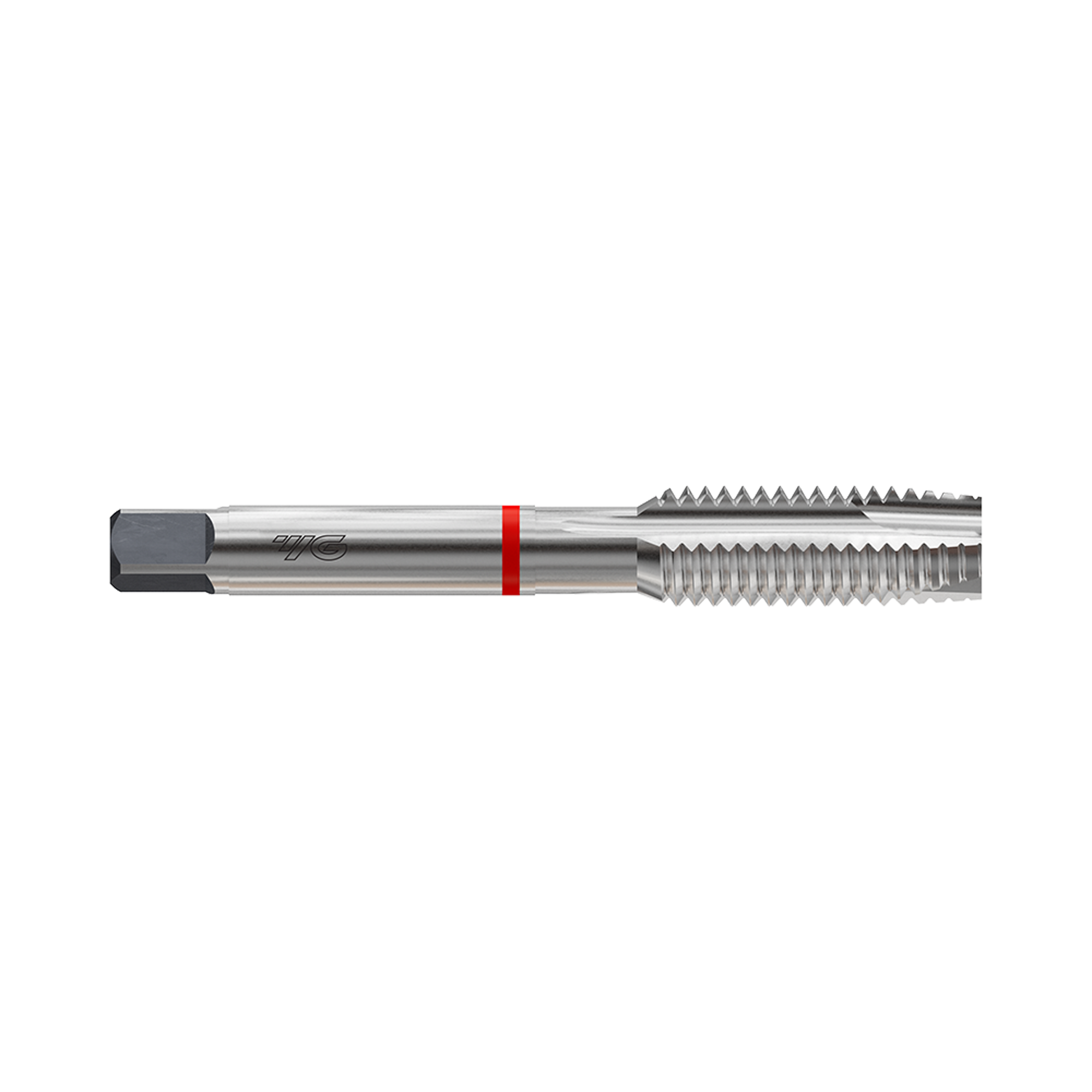

COMBO JIS I-TYPE Spiral Point Bright (T2829)

New

COMBO JIS I-TYPE Spiral Point Bright (T2829)

Product Code: T2829

Quantity

Buy Local

Product Data

Workpiece Material	P M K N
Operation	Blind Drilling
Surface Treatment	Bright
Thread Angle	60
Thread Class	YH
Thread Form	5P
Thread Shape	M/MF
Tool Material	HSS-E

Made in South Korea

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add COMBO JIS I-TYPE Spiral Point Bright (T2829) to comparison

View Comparison

Specifications Operation Work Material

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size No. of Flute T2829A45 M33 3.5 51 145 145 25 19 4 T2829A63 M33 2 45 145 145 25 19 4 T2829A74 M33 1.5 45 145 145 25 19 4 T2829B35 M36 4 57 155 155 28 21 4 T2829B44 M36 3 57 155 155 28 21 4 T2829B53 M36 2 45 155 155 28 21 4 T2829K51 M1.7 0.35 8 36 36 3 2.5 2 T2829N44 M26 2 45 125 125 20 15 4 T2829N44 M26 2 45 125 125 20 15 4 T2829N53 M26 1 45 125 125 20 15 4 T2829N53 M26 1 45 125 125 20 15 4 T2829051 M1.2 0.25 5.5 32 32 3 2.5 2 T2829071 M1.4 0.3 8 34 34 3 2.5 2 T2829072 M1.4 0.3 8 34 34 3 2.5 2 T2829112 M1.8 0.35 8 36 36 3 2.5 2 T2829132 M2 0.4 9.5 40 40 3 2.5 2 T2829132 M2 0.4 9.5 40 40 3 2.5 2 T2829152 M2.2 0.45 9.5 42 42 3 2.5 2 T2829152 M2.2 0.45 9.5 42 42 3 2.5 2 T2829172 M2.5 0.45 9.5 44 44 3 2.5 2 T2829172 M2.5 0.45 9.5 44 44 3 2.5 2 T2829192 M2.3 0.4 9.5 42 42 3 2.5 2 T2829192 M2.3 0.4 9.5 42 42 3 2.5 2 T2829202-C M3 0.5 11 46 46 4 3.2 3 T2829202-C M3 0.5 11 46 46 4 3.2 3 T2829203-C M3 0.5 11 46 46 4 3.2 3 T2829204-C M3 0.5 11 46 46 4 3.2 3 T2829212-C M3 0.35 11 46 46 4 3.2 3 T2829212-C M3 0.35 11 46 46 4 3.2 3 T2829222-C M3.5 0.6 13 48 48 4 3.2 3 T2829222-C M3.5 0.6 13 48 48 4 3.2 3 T2829232-C M3.5 0.35 13 48 48 4 3.2 3 T2829232-C M3.5 0.35 13 48 48 4 3.2 3 T2829242-C M4 0.7 13 52 52 5 4 3 T2829242-C M4 0.7 13 52 52 5 4 3 T2829251-C M4 0.5 13 52 52 5 4 3 T2829252-C M4 0.5 13 52 52 5 4 3 T2829252-C M4 0.5 13 52 52 5 4 3 T2829262-C M4.5 0.75 13 55 55 5 4 3 T2829262-C M4.5 0.75 13 55 55 5 4 3 T2829272-C M4.5 0.5 13 55 55 5 4 3 T2829272-C M4.5 0.5 13 55 55 5 4 3 T2829282-C M5 0.8 16 60 60 5.5 4.5 3 T2829282-C M5 0.8 16 60 60 5.5 4.5 3 T2829283-C M5 0.8 16 60 60 5.5 4.5 3 T2829291-C M5 0.5 16 60 60 5.5 4.5 3 T2829292-C M5 0.5 16 60 60 5.5 4.5 3 T2829292-C M5 0.5 16 60 60 5.5 4.5 3 T2829302-C M5.5 0.5 16 60 60 5.5 4.5 3 T2829302-C M5.5 0.5 16 60 60 5.5 4.5 3 T2829312-C M6 1 19 62 62 6 4.5 3 T2829312-C M6 1 19 62 62 6 4.5 3 T2829313-C M6 1 19 62 62 6 4.5 3 T2829322-C M6 0.75 19 62 62 6 4.5 3 T2829322-C M6 0.75 19 62 62 6 4.5 3 T2829332-C M6 0.5 19 62 62 6 4.5 3 T2829332-C M6 0.5 19 62 62 6 4.5 3 T2829342-C M7 1 19 65 65 6.2 5 3 T2829342-C M7 1 19 65 65 6.2 5 3 T2829352-C M7 0.75 19 65 65 6.2 5 3 T2829352-C M7 0.75 19 65 65 6.2 5 3 T2829363-C M8 1.25 22 70 70 6.2 5 3 T2829363-C M8 1.25 22 70 70 6.2 5 3 T2829373-C M8 1 22 70 70 6.2 5 3 T2829373-C M8 1 22 70 70 6.2 5 3 T2829383-C M8 0.75 22 70 70 6.2 5 3 T2829383-C M8 0.75 22 70 70 6.2 5 3 T2829393-C M9 1.25 22 72 72 7 5.5 3 T2829393-C M9 1.25 22 72 72 7 5.5 3 T2829403-C M9 1 22 72 72 7 5.5 3 T2829403-C M9 1 22 72 72 7 5.5 3 T2829413-C M9 0.75 22 72 72 7 5.5 3 T2829413-C M9 0.75 22 72 72 7 5.5 3 T2829423-C M10 1.5 24 75 75 7 5.5 3 T2829423-C M10 1.5 24 75 75 7 5.5 3 T2829433-C M10 1.25 24 75 75 7 5.5 3 T2829433-C M10 1.25 24 75 75 7 5.5 3 T2829443-C M10 1 24 75 75 7 5.5 3 T2829443-C M10 1 24 75 75 7 5.5 3 T2829453-C M10 0.75 24 75 75 7 5.5 3 T2829453-C M10 0.75 24 75 75 7 5.5 3 T2829463-C M11 1.5 25 80 80 8 6 3 T2829463-C M11 1.5 25 80 80 8 6 3 T2829473-C M11 1 25 80 80 8 6 3 T2829473-C M11 1 25 80 80 8 6 3 T2829483-C M11 0.75 25 80 80 8 6 3 T2829483-C M11 0.75 25 80 80 8 6 3 T2829492 M2.6 0.45 9.5 44 44 3 2.5 2 T2829492 M2.6 0.45 9.5 44 44 3 2.5 2 T2829504-C M12 1.75 29 82 82 8.5 6.5 3 T2829504-C M12 1.75 29 82 82 8.5 6.5 3 T2829513-C M12 1.5 29 82 82 8.5 6.5 3 T2829513-C M12 1.5 29 82 82 8.5 6.5 3 T2829523-C M12 1.25 29 82 82 8.5 6.5 3 T2829523-C M12 1.25 29 82 82 8.5 6.5 3 T2829533-C M12 1 29 82 82 8.5 6.5 3 T2829533-C M12 1 29 82 82 8.5 6.5 3 T2829544 M14 2 30 88 88 10.5 8 3 T2829544 M14 2 30 88 88 10.5 8 3 T2829553 M14 1.5 30 88 88 10.5 8 3 T2829553 M14 1.5 30 88 88 10.5 8 3 T2829554 M14 1.5 30 88 88 10.5 8 3 T2829563 M14 1.25 30 88 88 10.5 8 3 T2829563 M14 1.25 30 88 88 10.5 8 3 T2829573 M14 1 30 88 88 10.5 8 3 T2829573 M14 1 30 88 88 10.5 8 3 T2829583 M15 1.5 30 90 90 10.5 8 3 T2829583 M15 1.5 30 90 90 10.5 8 3 T2829593 M15 1 30 90 90 10.5 8 3 T2829593 M15 1 30 90 90 10.5 8 3 T2829604 M16 2 32 95 95 12.5 10 3 T2829604 M16 2 32 95 95 12.5 10 3 T2829613 M16 1.5 32 95 95 12.5 10 3 T2829613 M16 1.5 32 95 95 12.5 10 3 T2829623 M16 1 32 95 95 12.5 10 3 T2829623 M16 1 32 95 95 12.5 10 3 T2829654 M18 2.5 37 100 100 14 11 3 T2829654 M18 2.5 37 100 100 14 11 3 T2829664 M18 2 37 100 100 14 11 3 T2829664 M18 2 37 100 100 14 11 3 T2829674 M18 1.5 37 100 100 14 11 3 T2829674 M18 1.5 37 100 100 14 11 3 T2829675 M18 1.5 37 100 100 14 11 3 T2829683 M18 1 37 100 100 14 11 3 T2829683 M18 1 37 100 100 14 11 3 T2829704 M20 2.5 37 105 105 15 12 3 T2829704 M20 2.5 37 105 105 15 12 3 T2829705 M20 2.5 37 105 105 15 12 3 T2829714 M20 2 37 105 105 15 12 3 T2829714 M20 2 37 105 105 15 12 3 T2829724 M20 1.5 37 105 105 15 12 3 T2829724 M20 1.5 37 105 105 15 12 3 T2829733 M20 1 37 105 105 15 12 3 T2829733 M20 1 37 105 105 15 12 3 T2829735 M20 1 37 105 105 15 12 3 T2829744 M22 2.5 38 115 115 17 13 3 T2829744 M22 2.5 38 115 115 17 13 3 T2829754 M22 2 38 115 115 17 13 3 T2829754 M22 2 38 115 115 17 13 3 T2829764 M22 1.5 38 115 115 17 13 3 T2829764 M22 1.5 38 115 115 17 13 3 T2829773 M22 1 38 115 115 17 13 3 T2829773 M22 1 38 115 115 17 13 3 T2829784 M24 3 45 120 120 19 15 3 T2829784 M24 3 45 120 120 19 15 3 T2829794 M24 2 45 120 120 19 15 3 T2829794 M24 2 45 120 120 19 15 3 T2829804 M24 1.5 45 120 120 19 15 3 T2829804 M24 1.5 45 120 120 19 15 3 T2829813 M24 1 45 120 120 19 15 3 T2829813 M24 1 45 120 120 19 15 3 T2829824 M25 2 45 125 125 19 15 3 T2829824 M25 2 45 125 125 19 15 3 T2829834 M25 1.5 45 125 125 19 15 3 T2829834 M25 1.5 45 125 125 19 15 3 T2829854 M26 1.5 45 125 125 20 15 4 T2829854 M26 1.5 45 125 125 20 15 4 T2829864 M27 3 45 130 130 20 15 4 T2829864 M27 3 45 130 130 20 15 4 T2829874 M27 2 45 130 130 20 15 4 T2829874 M27 2 45 130 130 20 15 4 T2829884 M27 1.5 45 130 130 20 15 4 T2829884 M27 1.5 45 130 130 20 15 4 T2829904 M28 2 45 130 130 21 17 4 T2829904 M28 2 45 130 130 21 17 4 T2829914 M28 1.5 45 130 130 21 17 4 T2829914 M28 1.5 45 130 130 21 17 4 T2829945 M30 3.5 48 135 135 23 17 4 T2829945 M30 3.5 48 135 135 23 17 4 T2829954 M30 3 48 135 135 23 17 4 T2829954 M30 3 48 135 135 23 17 4 T2829964 M30 2 48 135 135 23 17 4 T2829964 M30 2 48 135 135 23 17 4 T2829974 M30 1.5 48 135 135 23 17 4 T2829974 M30 1.5 48 135 135 23 17 4 T2829983 M30 1 48 135 135 23 17 4 T2829983 M30 1 48 135 135 23 17 4

Operation

Blind Drilling

Good Great Excellent

N Plastic

Great

Good Great Excellent
