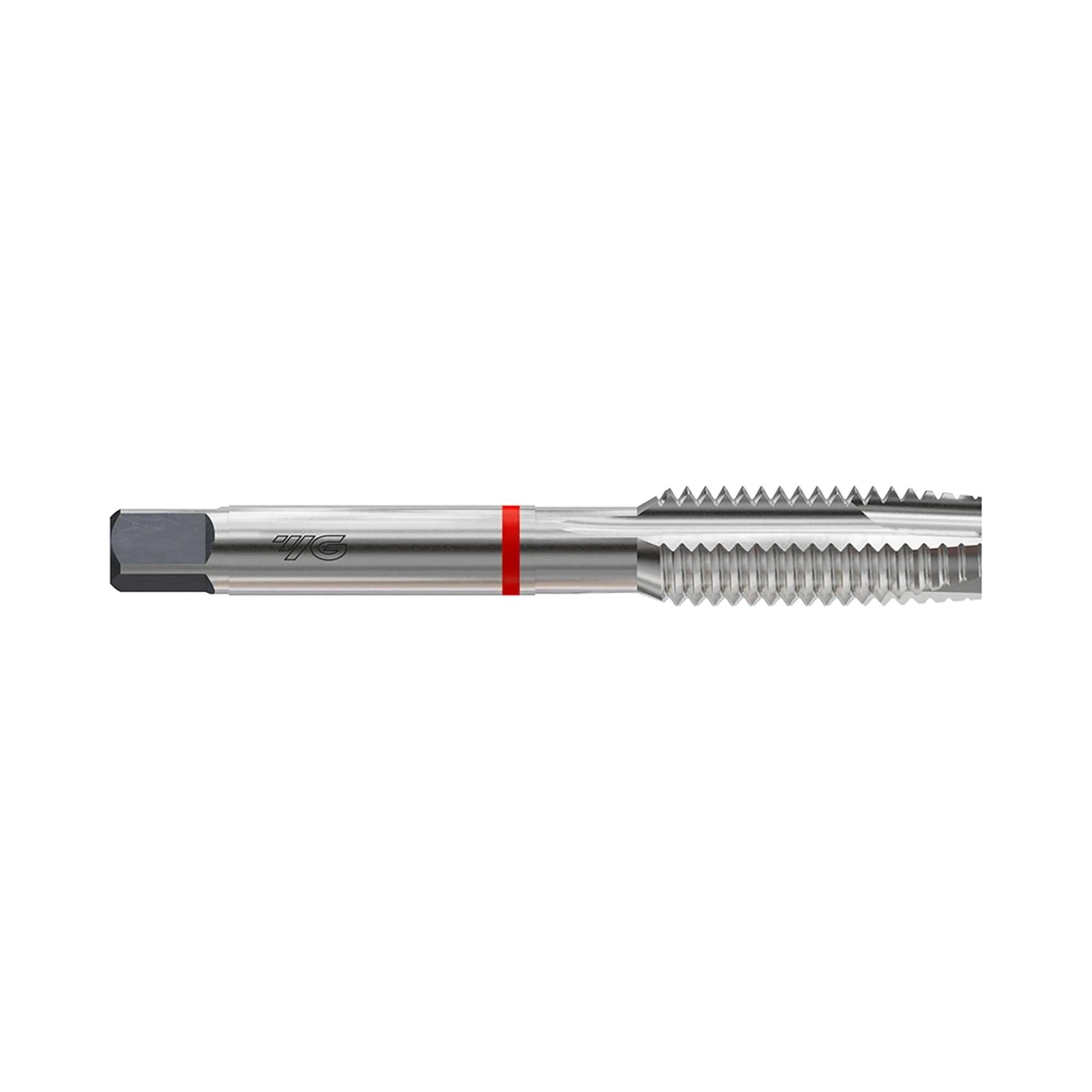

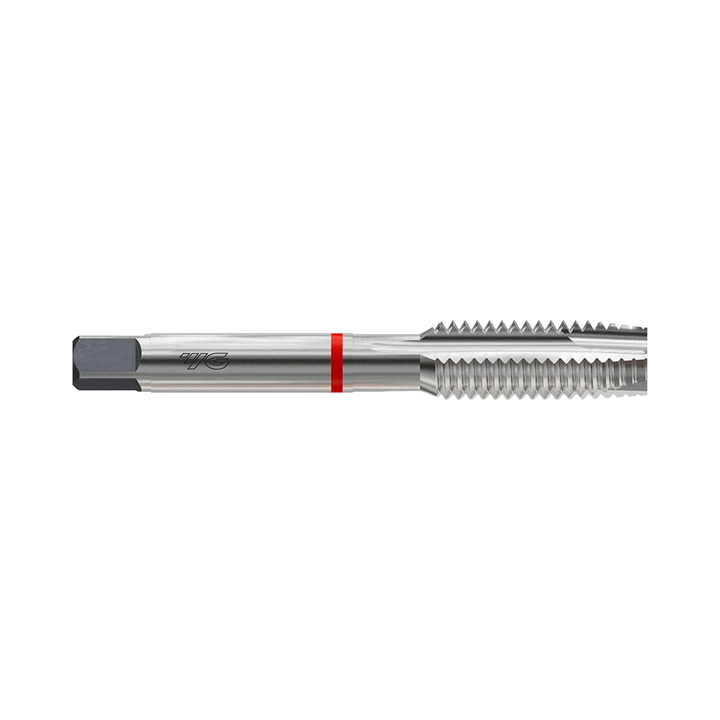

COMBO JIS I-TYPE Spiral Point Bright (T2849)

COMBO JIS I-TYPE Spiral Point Bright (T2849)
$0.00 INC GST $0.00 EX GST Price available on request
SKU
T2849
P M K N
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add COMBO JIS I-TYPE Spiral Point Bright (T2849) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
Product Data
Workpiece Material P M K N
Operation Blind Drilling
Surface Treatment Bright
Thread Angle 60
Thread Class YH
Thread Form 5P
Thread Shape UNC, UNF
Tool Material HSS-E

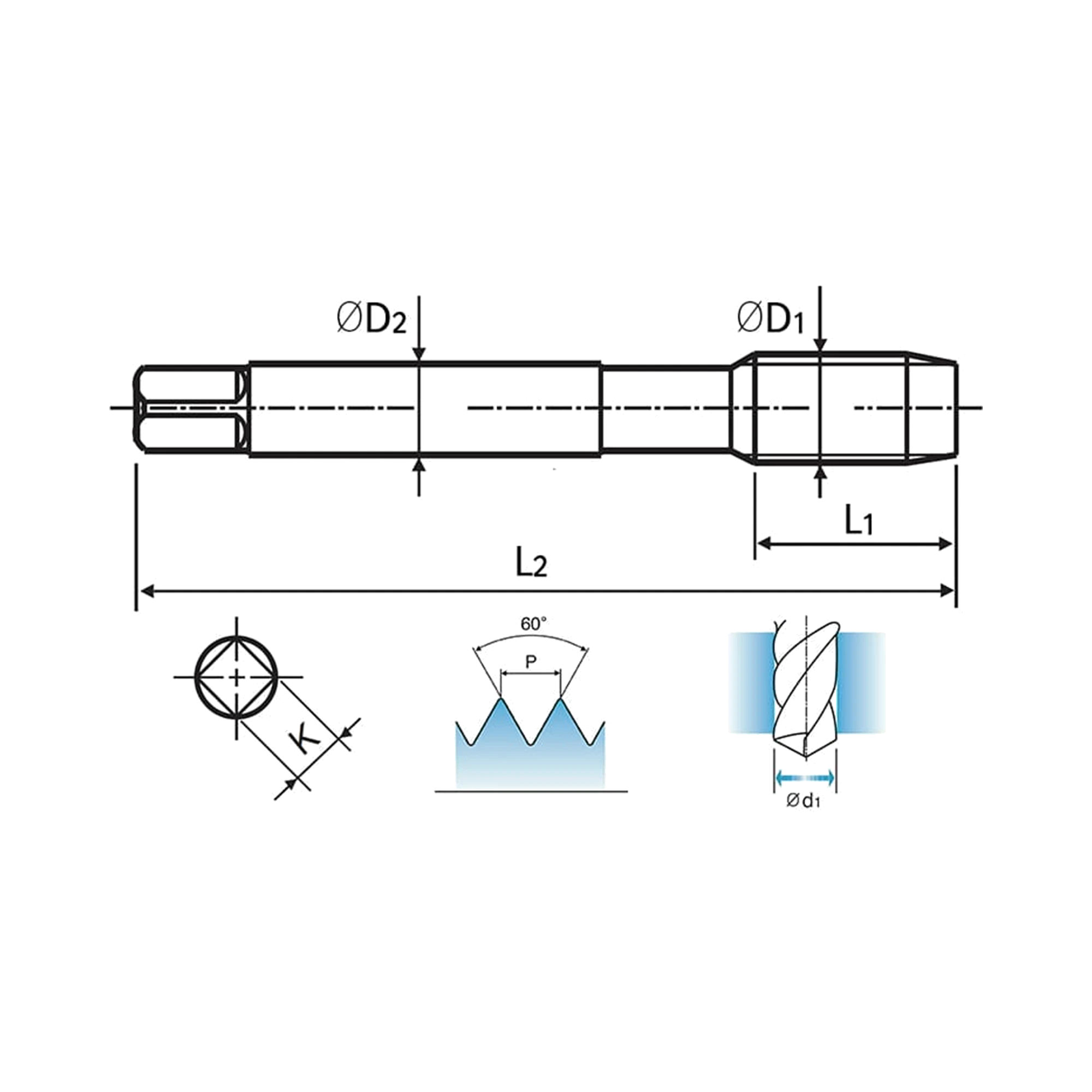

EDP No. Size TPI Thread Length Overall Length Neck Length Shank Diameter Square Size No. of Flute T2849081 #2 56 9.5 42 42 3 2.5 2 T2849081 #2 56 9.5 42 42 3 2.5 2 T2849082 #2 56 9.5 42 42 3 2.5 2 T2849101 #2 64 9.5 42 42 3 2.5 2 T2849101 #2 64 9.5 42 42 3 2.5 2 T2849121 #3 48 9.5 44 44 3 2.5 2 T2849121 #3 48 9.5 44 44 3 2.5 2 T2849122 #3 48 9.5 44 44 3 2.5 2 T2849141 #3 56 9.5 44 44 3 2.5 2 T2849141 #3 56 9.5 44 44 3 2.5 2 T2849162 #4 40 9.5 44 44 3 2.5 2 T2849162 #4 40 9.5 44 44 3 2.5 2 T2849182 #4 48 9.5 44 44 3 2.5 2 T2849182 #4 48 9.5 44 44 3 2.5 2 T2849202-C #5 40 11 46 46 4 3.2 3 T2849202-C #5 40 11 46 46 4 3.2 3 T2849222-C #5 44 11 46 46 4 3.2 3 T2849222-C #5 44 11 46 46 4 3.2 3 T2849242-C #6 32 13 48 48 4 3.2 3 T2849242-C #6 32 13 48 48 4 3.2 3 T2849262-C #6 40 13 48 48 4 3.2 3 T2849262-C #6 40 13 48 48 4 3.2 3 T2849282-C #8 32 13 52 52 5 4 3 T2849282-C #8 32 13 52 52 5 4 3 T2849302-C #8 36 13 52 52 5 4 3 T2849302-C #8 36 13 52 52 5 4 3 T2849322-C #10 24 16 60 60 5.5 4.5 3 T2849322-C #10 24 16 60 60 5.5 4.5 3 T2849342-C #10 32 16 60 60 5.5 4.5 3 T2849342-C #10 32 16 60 60 5.5 4.5 3 T2849362-C #12 24 16 60 60 5.5 4.5 3 T2849362-C #12 24 16 60 60 5.5 4.5 3 T2849382-C #12 28 16 60 60 5.5 4.5 3 T2849382-C #12 28 16 60 60 5.5 4.5 3 T2849402-C 1/4 20 19 62 62 6 4.5 3 T2849402-C 1/4 20 19 62 62 6 4.5 3 T2849422-C 1/4 28 19 62 62 6 4.5 3 T2849422-C 1/4 28 19 62 62 6 4.5 3 T2849442-C 5/16 18 22 68 68 6.1 5 3 T2849443-C 5/16 18 22 68 68 6.1 5 3 T2849443-C 5/16 18 22 68 68 6.1 5 3 T2849462-C 5/16 24 22 68 68 6.1 5 3 T2849462-C 5/16 24 22 68 68 6.1 5 3 T2849482-C 3/8 16 24 75 75 7 5.5 3 T2849483-C 3/8 16 24 75 75 7 5.5 3 T2849483-C 3/8 16 24 75 75 7 5.5 3 T2849502-C 3/8 24 24 75 75 7 5.5 3 T2849502-C 3/8 24 24 75 75 7 5.5 3 T2849522-C 7/16 14 25 80 80 8 6 3 T2849523-C 7/16 14 25 80 80 8 6 3 T2849523-C 7/16 14 25 80 80 8 6 3 T2849543-C 7/16 20 25 80 80 8 6 3 T2849543-C 7/16 20 25 80 80 8 6 3 T2849562-C 1/2 13 29 85 85 9 7 3 T2849563-C 1/2 13 29 85 85 9 7 3 T2849563-C 1/2 13 29 85 85 9 7 3 T2849583-C 1/2 20 29 85 85 9 7 3 T2849583-C 1/2 20 29 85 85 9 7 3 T2849602 9/16 12 30 90 90 10.5 8 3 T2849603 9/16 12 30 90 90 10.5 8 3 T2849603 9/16 12 30 90 90 10.5 8 3 T2849623 9/16 18 30 90 90 10.5 8 3 T2849623 9/16 18 30 90 90 10.5 8 3 T2849642 5/8 11 32 95 95 12 9 3 T2849643 5/8 11 32 95 95 12 9 3 T2849643 5/8 11 32 95 95 12 9 3 T2849663 5/8 18 32 95 95 12 9 3 T2849663 5/8 18 32 95 95 12 9 3 T2849703 3/4 10 37 105 105 14 11 3 T2849703 3/4 10 37 105 105 14 11 3 T2849722 3/4 16 37 105 105 14 11 3 T2849723 3/4 16 37 105 105 14 11 3 T2849723 3/4 16 37 105 105 14 11 3 T2849744 7/8 9 38 115 115 17 13 3 T2849744 7/8 9 38 115 115 17 13 3 T2849763 7/8 14 38 115 115 17 13 3 T2849763 7/8 14 38 115 115 17 13 3 T2849784 1" 8 45 125 125 20 15 3 T2849784 1" 8 45 125 125 20 15 3 T2849803 1" 12 45 125 125 20 15 3 T2849803 1" 12 45 125 125 20 15 3
Blind Drilling
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
P High Alloyed

Great

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
N Aluminium

Great

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
N Plastic

Great

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Size TPI Thread Length Overall Length Neck Length Shank Diameter Square Size No. of Flute T2849081 #2 56 9.5 42 42 3 2.5 2 T2849081 #2 56 9.5 42 42 3 2.5 2 T2849082 #2 56 9.5 42 42 3 2.5 2 T2849101 #2 64 9.5 42 42 3 2.5 2 T2849101 #2 64 9.5 42 42 3 2.5 2 T2849121 #3 48 9.5 44 44 3 2.5 2 T2849121 #3 48 9.5 44 44 3 2.5 2 T2849122 #3 48 9.5 44 44 3 2.5 2 T2849141 #3 56 9.5 44 44 3 2.5 2 T2849141 #3 56 9.5 44 44 3 2.5 2 T2849162 #4 40 9.5 44 44 3 2.5 2 T2849162 #4 40 9.5 44 44 3 2.5 2 T2849182 #4 48 9.5 44 44 3 2.5 2 T2849182 #4 48 9.5 44 44 3 2.5 2 T2849202-C #5 40 11 46 46 4 3.2 3 T2849202-C #5 40 11 46 46 4 3.2 3 T2849222-C #5 44 11 46 46 4 3.2 3 T2849222-C #5 44 11 46 46 4 3.2 3 T2849242-C #6 32 13 48 48 4 3.2 3 T2849242-C #6 32 13 48 48 4 3.2 3 T2849262-C #6 40 13 48 48 4 3.2 3 T2849262-C #6 40 13 48 48 4 3.2 3 T2849282-C #8 32 13 52 52 5 4 3 T2849282-C #8 32 13 52 52 5 4 3 T2849302-C #8 36 13 52 52 5 4 3 T2849302-C #8 36 13 52 52 5 4 3 T2849322-C #10 24 16 60 60 5.5 4.5 3 T2849322-C #10 24 16 60 60 5.5 4.5 3 T2849342-C #10 32 16 60 60 5.5 4.5 3 T2849342-C #10 32 16 60 60 5.5 4.5 3 T2849362-C #12 24 16 60 60 5.5 4.5 3 T2849362-C #12 24 16 60 60 5.5 4.5 3 T2849382-C #12 28 16 60 60 5.5 4.5 3 T2849382-C #12 28 16 60 60 5.5 4.5 3 T2849402-C 1/4 20 19 62 62 6 4.5 3 T2849402-C 1/4 20 19 62 62 6 4.5 3 T2849422-C 1/4 28 19 62 62 6 4.5 3 T2849422-C 1/4 28 19 62 62 6 4.5 3 T2849442-C 5/16 18 22 68 68 6.1 5 3 T2849443-C 5/16 18 22 68 68 6.1 5 3 T2849443-C 5/16 18 22 68 68 6.1 5 3 T2849462-C 5/16 24 22 68 68 6.1 5 3 T2849462-C 5/16 24 22 68 68 6.1 5 3 T2849482-C 3/8 16 24 75 75 7 5.5 3 T2849483-C 3/8 16 24 75 75 7 5.5 3 T2849483-C 3/8 16 24 75 75 7 5.5 3 T2849502-C 3/8 24 24 75 75 7 5.5 3 T2849502-C 3/8 24 24 75 75 7 5.5 3 T2849522-C 7/16 14 25 80 80 8 6 3 T2849523-C 7/16 14 25 80 80 8 6 3 T2849523-C 7/16 14 25 80 80 8 6 3 T2849543-C 7/16 20 25 80 80 8 6 3 T2849543-C 7/16 20 25 80 80 8 6 3 T2849562-C 1/2 13 29 85 85 9 7 3 T2849563-C 1/2 13 29 85 85 9 7 3 T2849563-C 1/2 13 29 85 85 9 7 3 T2849583-C 1/2 20 29 85 85 9 7 3 T2849583-C 1/2 20 29 85 85 9 7 3 T2849602 9/16 12 30 90 90 10.5 8 3 T2849603 9/16 12 30 90 90 10.5 8 3 T2849603 9/16 12 30 90 90 10.5 8 3 T2849623 9/16 18 30 90 90 10.5 8 3 T2849623 9/16 18 30 90 90 10.5 8 3 T2849642 5/8 11 32 95 95 12 9 3 T2849643 5/8 11 32 95 95 12 9 3 T2849643 5/8 11 32 95 95 12 9 3 T2849663 5/8 18 32 95 95 12 9 3 T2849663 5/8 18 32 95 95 12 9 3 T2849703 3/4 10 37 105 105 14 11 3 T2849703 3/4 10 37 105 105 14 11 3 T2849722 3/4 16 37 105 105 14 11 3 T2849723 3/4 16 37 105 105 14 11 3 T2849723 3/4 16 37 105 105 14 11 3 T2849744 7/8 9 38 115 115 17 13 3 T2849744 7/8 9 38 115 115 17 13 3 T2849763 7/8 14 38 115 115 17 13 3 T2849763 7/8 14 38 115 115 17 13 3 T2849784 1" 8 45 125 125 20 15 3 T2849784 1" 8 45 125 125 20 15 3 T2849803 1" 12 45 125 125 20 15 3 T2849803 1" 12 45 125 125 20 15 3

Combo Tap
