(SGED27) CRX S, 2Flute Ball Nose Rip Processing End Mill for Copper (Diamond Coated)
DLC-coated ball nose end mill for copper
- SKU
- SGED2700502
Key features
- Solid-carbide ball nose end mill with two flutes
- DLC coating for copper and copper-alloy machining
- Extended neck supports access around workpiece features
Made in South Korea
Purpose-built for copper
Designed for copper, copper alloys and selected non-ferrous materials.
Accurate ball-nose profiling
Tight radius tolerances support detailed contours and controlled finishing.
Extended-neck access
Extended-neck geometry reaches around workpiece features during detailed milling.

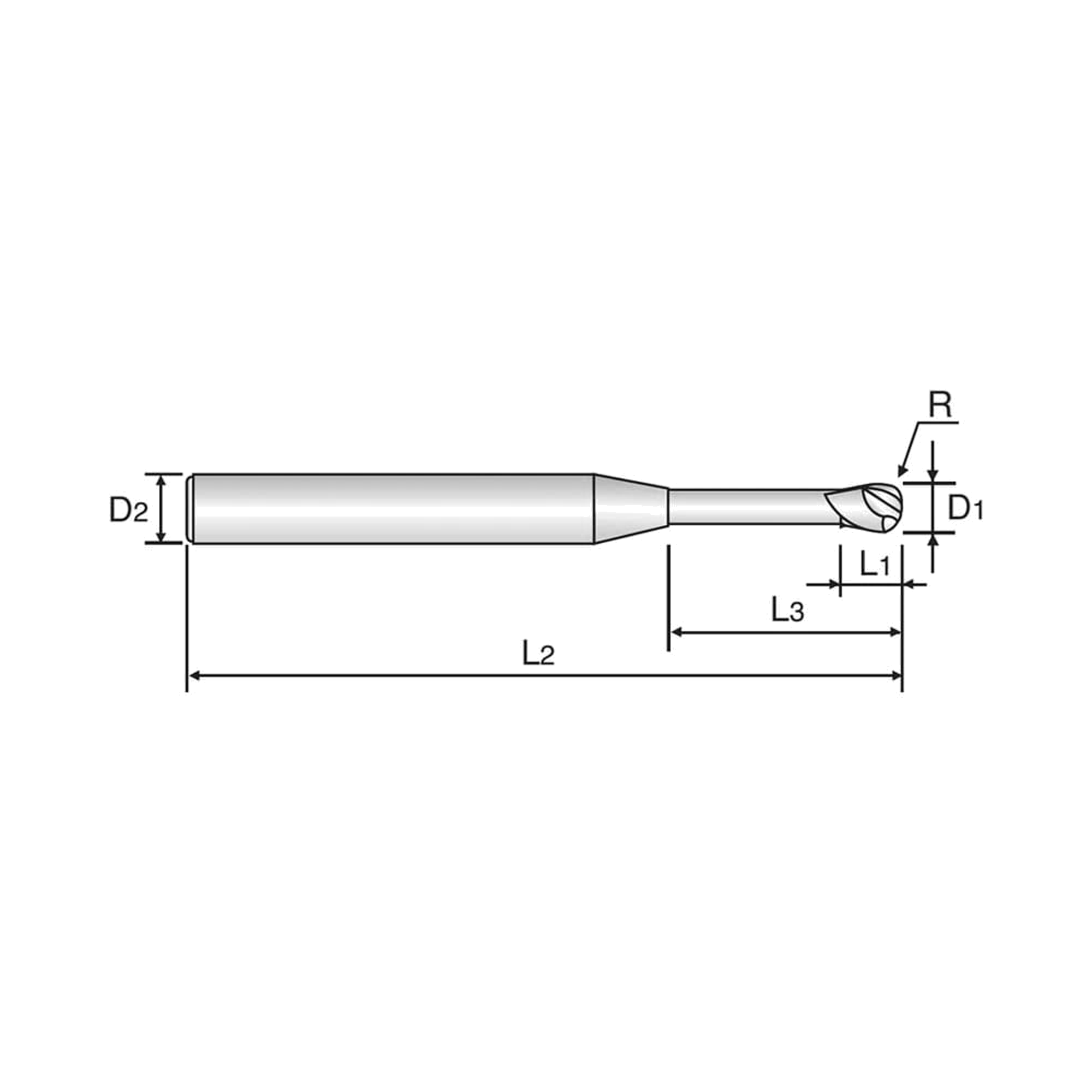

| SKU | Mill Diameter (mm) | Ball Nose Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SGED2700502 | 0.5 | R0.25 | 45.0 | 4.0 | 0.5 | 2.0 | 0.45 | 1-2 Weeks | $158.50 | ||
| SGED2700602 | 0.6 | R0.3 | 45.0 | 4.0 | 0.6 | 2.0 | 0.55 | 1-2 Weeks | $158.50 | ||
| SGED2700804 | 0.8 | R0.4 | 45.0 | 4.0 | 0.8 | 4.0 | 0.75 | 1-2 Weeks | $126.50 | ||
| SGED2701004 | 1 | R0.5 | 45.0 | 4.0 | 1.0 | 4.0 | 0.95 | 1-2 Weeks | $119.00 | ||
| SGED2701506 | 1.5 | R0.75 | 45.0 | 4.0 | 1.5 | 6.0 | 1.45 | 1-2 Weeks | $84.90 | ||
| SGED2702006 | 2 | R1.0 | 45.0 | 4.0 | 3.0 | 6.0 | 1.95 | 1-2 Weeks | $80.50 | ||
| SGED2703012 | 3 | R1.5 | 50.0 | 6.0 | 4.0 | 10.0 | 2.85 | 1-2 Weeks | $165.30 | ||
| SGED2704010 | 4 | R2.0 | 50.0 | 6.0 | 5.0 | 12.0 | 3.85 | 1-2 Weeks | $165.30 | ||
| SGED2706020 | 6 | R3.0 | 60.0 | 6.0 | 8.0 | 20.0 | 5.85 | 1-2 Weeks | $168.50 | ||
| SGED2708020 | 8 | R4.0 | 70.0 | 8.0 | 10.0 | 20.0 | 7.7 | 1-2 Weeks | $189.00 | ||
| SGED2710025 | 10 | R5.0 | 80.0 | 10.0 | 12.0 | 25.0 | 9.7 | 1-2 Weeks | $257.50 | ||
| SGED2712025 | 12 | R6.0 | 80.0 | 12.0 | 14.0 | 25.0 | 11.7 | 1-2 Weeks | $341.40 |
Add (SGED27) CRX S, 2Flute Ball Nose Rip Processing End Mill for Copper (Diamond Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews

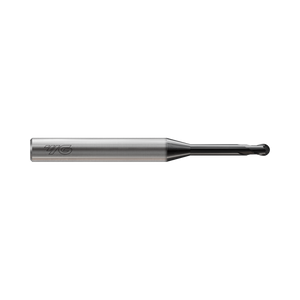

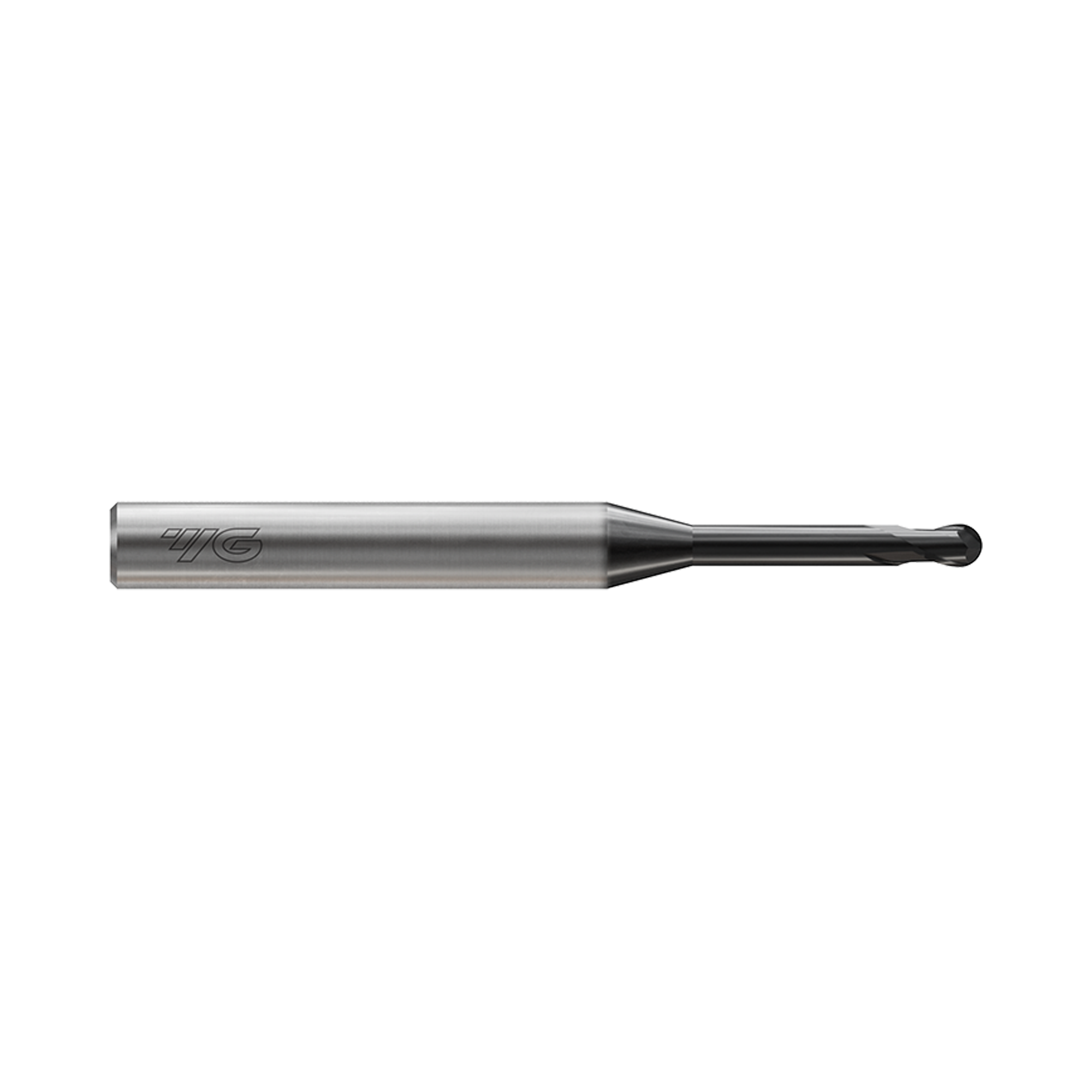

YG-1 CRX S SGED27 is a solid-carbide, two-flute ball nose end mill with DLC coating. It is designed for machining copper, copper alloys, soft graphite, reinforced plastics and non-ferrous materials. The extended-neck geometry provides reach around workpiece features in detailed milling applications. A 30° helix and plain shank provide the defined configuration throughout the SGED27 series. Mirror-finished cutting edges support excellent surface roughness, while tight radius tolerances support accurate ball-nose profiling. Available ball radii run from R0.25 to R6.0, with a two-step taper neck below R0.5. The series suits copper machining where controlled finishes and precise radius geometry are required.
- Solid-carbide ball nose end mill with two flutes
- DLC coating for copper and copper-alloy machining
- Extended neck supports access around workpiece features
- 30° helix and plain shank configuration
- Mirror-finished cutting edges support excellent surface roughness
- Ball radius range from R0.25 to R6.0
No specifications available.
