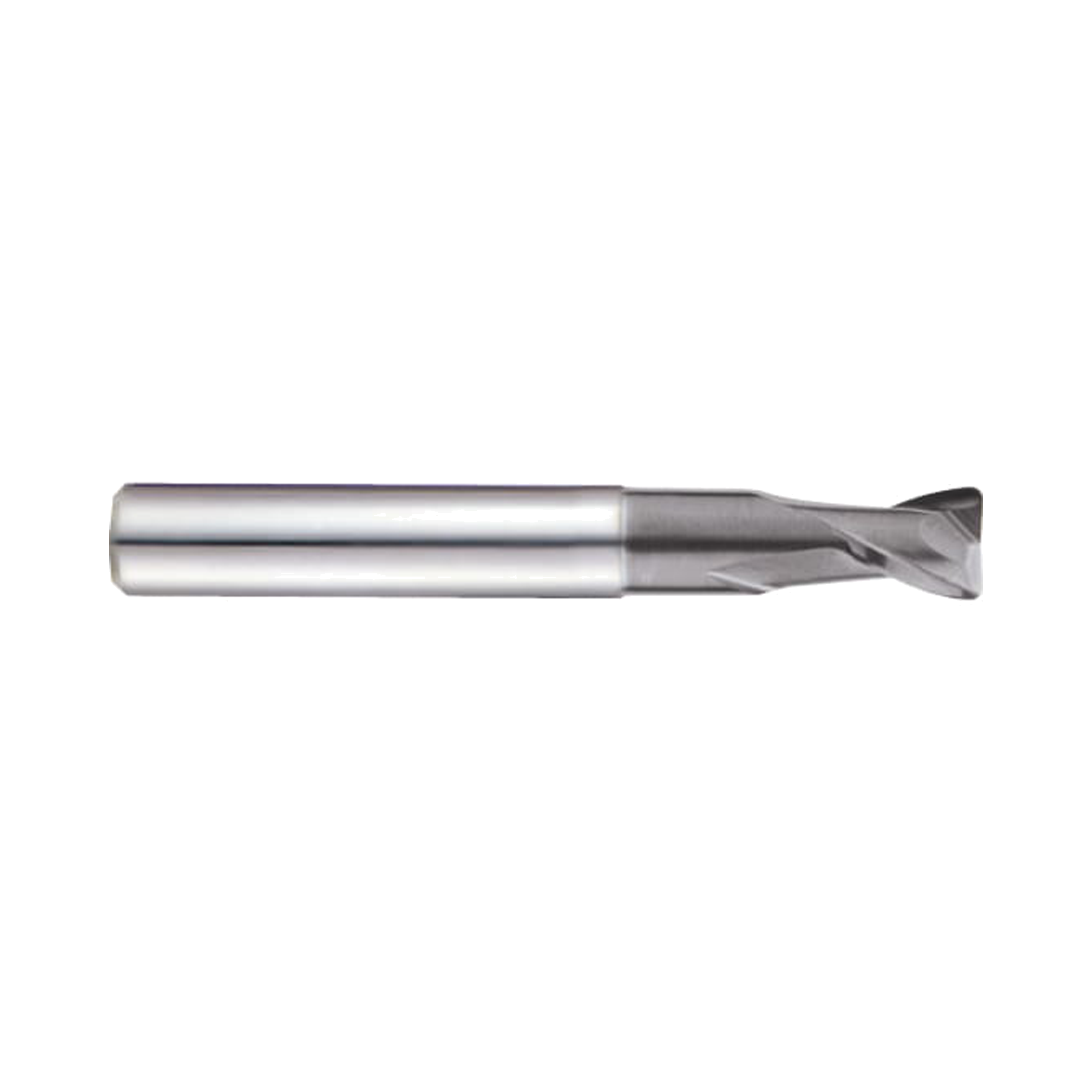

(SGED29) CRX S, 2Flute Corner Radius Rip Processing End Mill for Copper (Diamond Coated)
DLC-Coated Extended-Neck Corner Radius End MillCode: SGED290100104
-
Key Features
- Solid-carbide two-flute corner radius end mill
- DLC coating for copper and related non-ferrous materials
- Mirror Face cutting edges support excellent surface roughness
Made in South Korea
Copper-focused cutting
Designed for copper, copper alloys and affiliated non-ferrous materials.
Refined surface finish
Mirror Face cutting edges support excellent surface roughness in milling applications.
Extended-neck access
The extended-neck form supports cutter access beyond the shank.

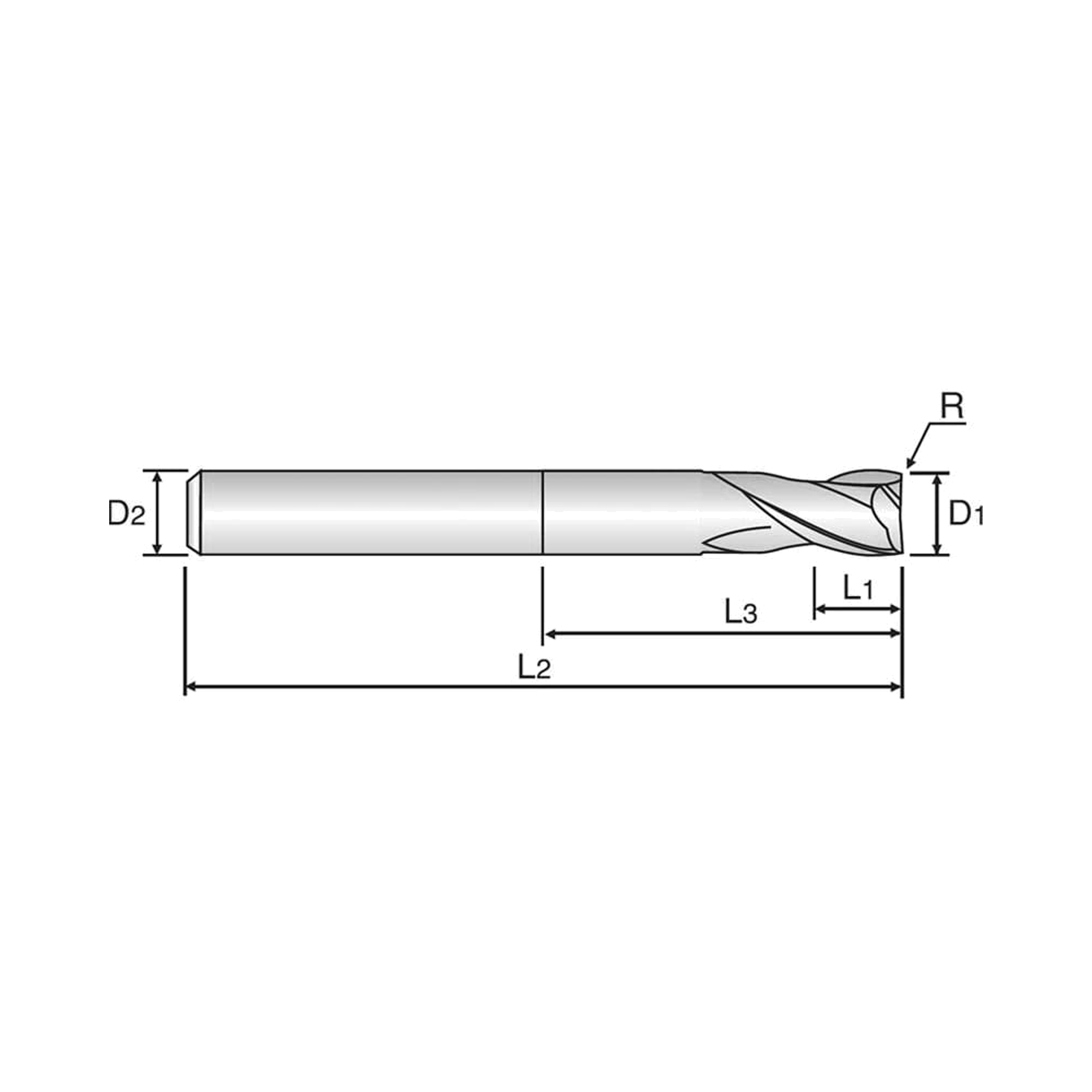

| SKU | Mill Diameter (mm) | Corner Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SGED290100104 | 1 | R0.1 | 45.0 | 4.0 | 1.5 | 4.0 | 0.95 | 5 days | $94.40 | ||
| SGED290150106 | 1.5 | R0.1 | 45.0 | 4.0 | 2.3 | 6.0 | 1.45 | 5 days | $94.40 | ||
| SGED290200208 | 2 | R0.2 | 45.0 | 4.0 | 3.0 | 8.0 | 1.95 | 5 days | $90.90 | ||
| SGED290300210 | 3 | R0.2 | 50.0 | 6.0 | 4.5 | 10.0 | 2.85 | 5 days | $100.10 | ||
| SGED290400212 | 4 | R0.2 | 50.0 | 6.0 | 6.0 | 12.0 | 3.85 | 5 days | $140.30 | ||
| SGED290600320 | 6 | R0.3 | 60.0 | 6.0 | 9.0 | 20.0 | 5.85 | 5 days | $153.30 | ||
| SGED290800325 | 8 | R0.3 | 65.0 | 8.0 | 12.0 | 25.0 | 7.7 | 5 days | $159.20 | ||
| SGED291000530 | 10 | R0.5 | 70.0 | 10.0 | 15.0 | 30.0 | 9.7 | 5 days | $201.20 | ||
| SGED291200532 | 12 | R0.5 | 80.0 | 12.0 | 18.0 | 32.0 | 11.7 | 5 days | $314.20 |
Add (SGED29) CRX S, 2Flute Corner Radius Rip Processing End Mill for Copper (Diamond Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 CRX S SGED29 is a solid-carbide two-flute corner radius end mill with DLC coating and extended neck. It is designed for milling copper, copper alloys, soft graphite, reinforced plastics, and associated non-ferrous materials. Mirror Face cutting edges support excellent surface roughness for refined milling operations. Thirty-degree helix geometry and a plain shank suit stable general milling setups. Listed variants provide 1 to 12 mm cutter diameters and R0.1 to R0.5 corner radii. The extended-neck design distinguishes this series where cutter access beyond the shank is required. Matched shank diameters range from 4 to 12 mm throughout selected product variants.
- Solid-carbide two-flute corner radius end mill
- DLC coating for copper and related non-ferrous materials
- Mirror Face cutting edges support excellent surface roughness
- Extended neck provides access beyond the shank
- 30° helix with a plain shank configuration
- Matched sizes cover 1 to 12 mm diameters with R0.1 to R0.5 radii
