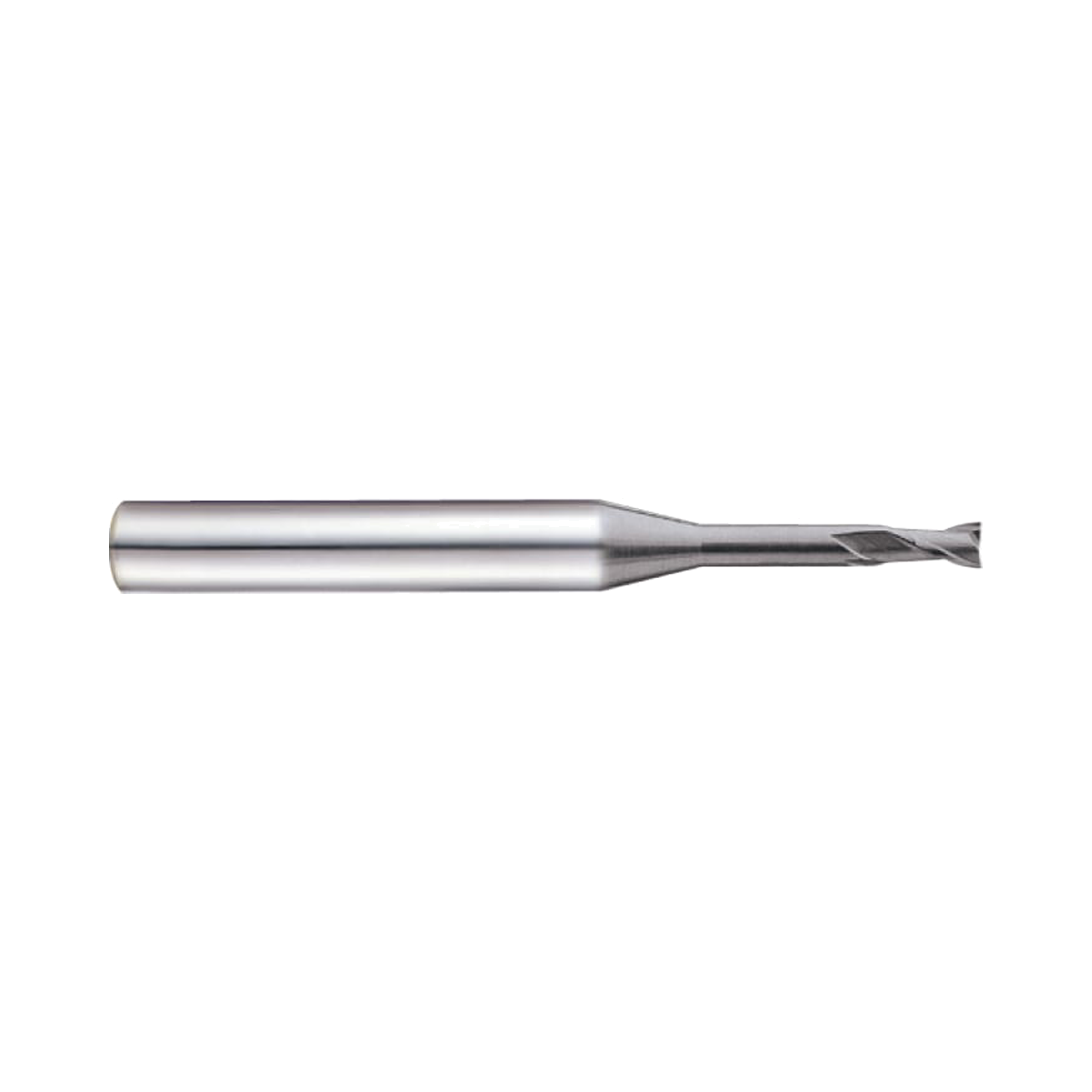

(SGED30) CRX S, 2Flute Rip Processing End Mill for Copper (Diamond Coated)

Diamond-Coated Long-Neck End Mill for Copper
  • $112.64INC GST $102.40 EX GST
(SGED30) CRX S, 2Flute Rip Processing End Mill for Copper (Diamond Coated)
(SGED30) CRX S, 2Flute Rip Processing End Mill for Copper (Diamond Coated)

(SGED30) CRX S, 2Flute Rip Processing End Mill for Copper (Diamond Coated)

Diamond-Coated Long-Neck End Mill for Copper
  • $112.64INC GST $102.40 EX GST

Code: SGED3000502

N
Mill Diameter (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Length below shank (mm)Neck dia. (mm)Stock Price Qty Add
SGED30005020.545.04.00.72.00.45 5 days $102.40
SGED30006020.645.04.00.92.00.55 5 days $102.40
SGED30008040.845.04.01.24.00.75 5 days $93.20
SGED3001004145.04.01.54.00.95 5 days $83.40
SGED30015061.545.04.02.36.01.45 5 days $83.40
SGED3002008245.04.03.08.01.95 5 days $80.40
SGED3003008350.06.04.58.02.85 5 days $123.70
SGED3004010450.06.06.010.03.85 5 days $123.70
SGED3006020660.06.08.020.05.85 5 days $135.20
SGED3008020870.08.012.020.07.7 5 days $144.50
SGED30100251080.010.015.025.09.7 5 days $206.10
SGED30120251280.012.018.025.011.7 5 days $291.20

Add (SGED30) CRX S, 2Flute Rip Processing End Mill for Copper (Diamond Coated) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

The SGED30 series CRX-S milling cutters range from 1-12mm diameter and have a plain shank. They give excellent performance machining on copper, copper alloys, soft graphites, wrought or abrasive aluminium, CFRP/GFRP (glass and carbon reinforced plastic) and abrasive plastics. The DLC coated nanograin carbide has superior anti-adhesion properties.

  • Nanograin Carbide Substrate
  • Diamond-like Carbon coating with anti-adhesion properties
  • Up to 4 times the tool life of TiAlN coated tools
  • Excellent chip control on long chipping materials
  • Self lubrication in dry wear conditions
  • For high speed machining of copper, wrought aluminium, high silicon aluminium, abrasive plastics, soft graphite, carbon fibre and glass fibre
Product Data
Workpiece Material N
Cutting Shape Square
Helix Angle Square 30
Length Extended Neck
No. Flutes 2
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment DLC
Tool Material Carbide
Flutes 2
Helix Angle 30°
Cutting Edge Shape SQUARE
Size Min D0.5
Size Max D12.0
Length

EXTENDED NECK
Coating DLC

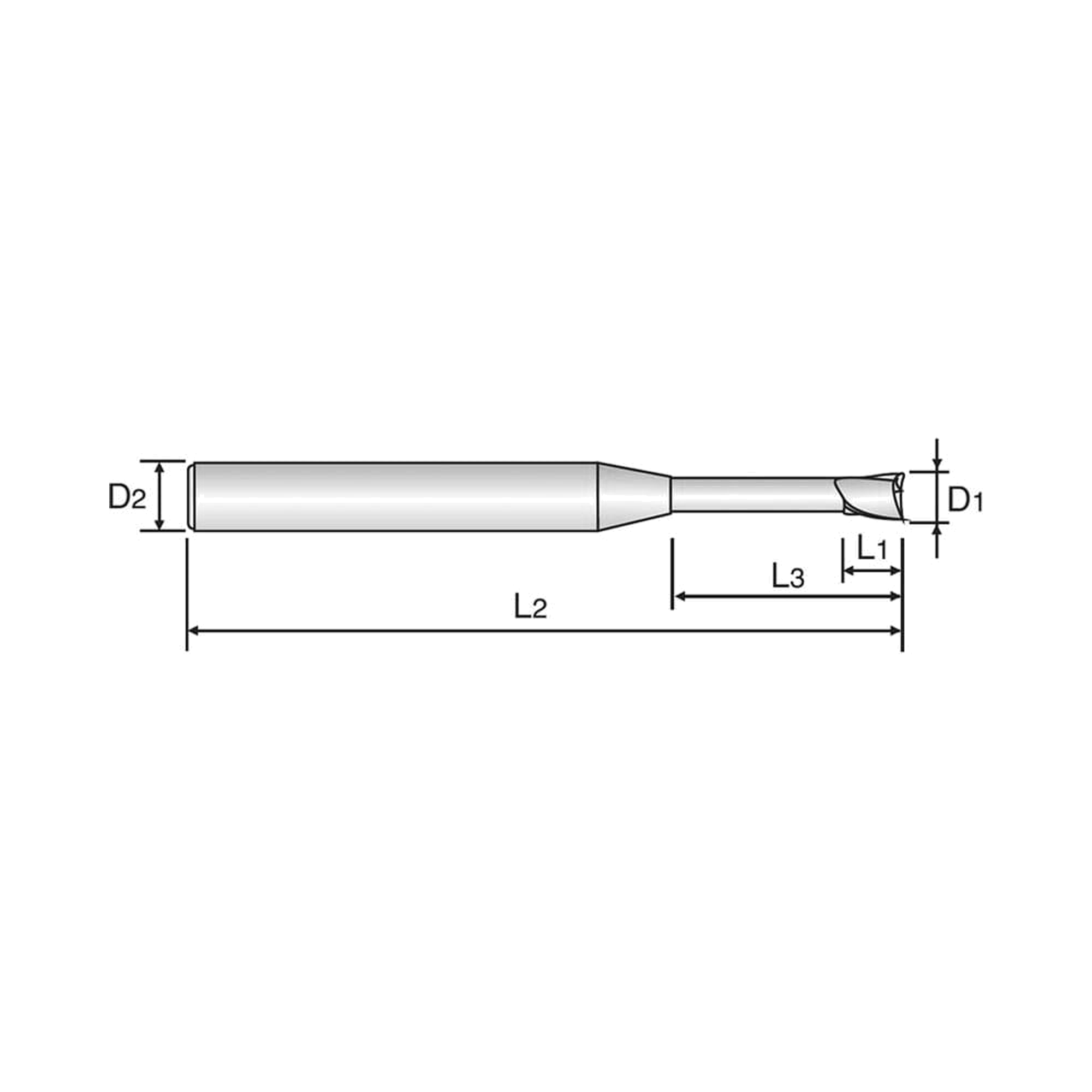

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SGED3000502 0.5 4 0.7 45 0~-0.012 h5 2 SGED3000504 0.5 4 0.7 45 0~-0.012 h5 2 SGED3000608 0.6 4 0.9 45 0~-0.012 h5 2 SGED3000610 0.6 4 0.9 45 0~-0.012 h5 2 SGED3000804 0.8 4 1.2 45 0~-0.012 h5 2 SGED3000806 0.8 4 1.2 45 0~-0.012 h5 2 SGED3000808 0.8 4 1.2 45 0~-0.012 h5 2 SGED3000810 0.8 4 1.2 45 0~-0.012 h5 2 SGED3000812 0.8 4 1.2 45 0~-0.012 h5 2 SGED3001006 1 4 1.5 45 0~-0.012 h5 2 SGED3001008 1 4 1.5 45 0~-0.012 h5 2 SGED3001010 1 4 1.5 45 0~-0.012 h5 2 SGED3001012 1 4 1.5 45 0~-0.012 h5 2 SGED3001506 1.5 4 2.3 45 0~-0.012 h5 2 SGED3001508 1.5 4 2.3 45 0~-0.012 h5 2 SGED3001510 1.5 4 2.3 45 0~-0.012 h5 2 SGED3001512 1.5 4 2.3 45 0~-0.012 h5 2 SGED3001516 1.5 4 2.3 50 0~-0.012 h5 2 SGED3002008 2 4 3 45 0~-0.012 h5 2 SGED3002010 2 4 3 45 0~-0.012 h5 2 SGED3002012 2 4 3 45 0~-0.012 h5 2 SGED3002016 2 4 3 50 0~-0.012 h5 2 SGED3003008 3 6 4.5 50 0~-0.012 h5 2 SGED3003010 3 6 4.5 50 0~-0.012 h5 2 SGED3003012 3 6 4.5 50 0~-0.012 h5 2 SGED3004012 4 6 6 50 0~-0.012 h5 2 SGED3004016 4 6 6 60 0~-0.012 h5 2 SGED3004020 4 6 6 60 0~-0.012 h5 2 SGED3004025 4 6 6 60 0~-0.012 h5 2 SGED3006020 6 6 8 60 0~-0.012 h5 2 SGED3008020 8 8 12 70 0~-0.015 h5 2 SGED3010025 10 10 15 80 0~-0.015 h5 2 SGED3012025 12 12 18 80 0~-0.015 h5 2 SGED3012030 12 12 18 80 0~-0.015 h5 2
Side Milling
Small Part
Slotting
Die Sinking
Facing
N Aluminium

Great

Good Great Excellent
N Copper

Excellent

Good Great Excellent
P

Low alloy steel

Excellent Excellent
HRc
10
HB
180
N

Aluminium. wrought

Good Good
HRc
HB
60100
N

Copper. bronze. brass

Excellent Excellent
HRc
HB
90100
N

Non-metallics

Good Good
HRc
HB
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SGED3000502 0.5 4 0.7 45 0~-0.012 h5 2 SGED3000504 0.5 4 0.7 45 0~-0.012 h5 2 SGED3000608 0.6 4 0.9 45 0~-0.012 h5 2 SGED3000610 0.6 4 0.9 45 0~-0.012 h5 2 SGED3000804 0.8 4 1.2 45 0~-0.012 h5 2 SGED3000806 0.8 4 1.2 45 0~-0.012 h5 2 SGED3000808 0.8 4 1.2 45 0~-0.012 h5 2 SGED3000810 0.8 4 1.2 45 0~-0.012 h5 2 SGED3000812 0.8 4 1.2 45 0~-0.012 h5 2 SGED3001006 1 4 1.5 45 0~-0.012 h5 2 SGED3001008 1 4 1.5 45 0~-0.012 h5 2 SGED3001010 1 4 1.5 45 0~-0.012 h5 2 SGED3001012 1 4 1.5 45 0~-0.012 h5 2 SGED3001506 1.5 4 2.3 45 0~-0.012 h5 2 SGED3001508 1.5 4 2.3 45 0~-0.012 h5 2 SGED3001510 1.5 4 2.3 45 0~-0.012 h5 2 SGED3001512 1.5 4 2.3 45 0~-0.012 h5 2 SGED3001516 1.5 4 2.3 50 0~-0.012 h5 2 SGED3002008 2 4 3 45 0~-0.012 h5 2 SGED3002010 2 4 3 45 0~-0.012 h5 2 SGED3002012 2 4 3 45 0~-0.012 h5 2 SGED3002016 2 4 3 50 0~-0.012 h5 2 SGED3003008 3 6 4.5 50 0~-0.012 h5 2 SGED3003010 3 6 4.5 50 0~-0.012 h5 2 SGED3003012 3 6 4.5 50 0~-0.012 h5 2 SGED3004012 4 6 6 50 0~-0.012 h5 2 SGED3004016 4 6 6 60 0~-0.012 h5 2 SGED3004020 4 6 6 60 0~-0.012 h5 2 SGED3004025 4 6 6 60 0~-0.012 h5 2 SGED3006020 6 6 8 60 0~-0.012 h5 2 SGED3008020 8 8 12 70 0~-0.015 h5 2 SGED3010025 10 10 15 80 0~-0.015 h5 2 SGED3012025 12 12 18 80 0~-0.015 h5 2 SGED3012030 12 12 18 80 0~-0.015 h5 2
