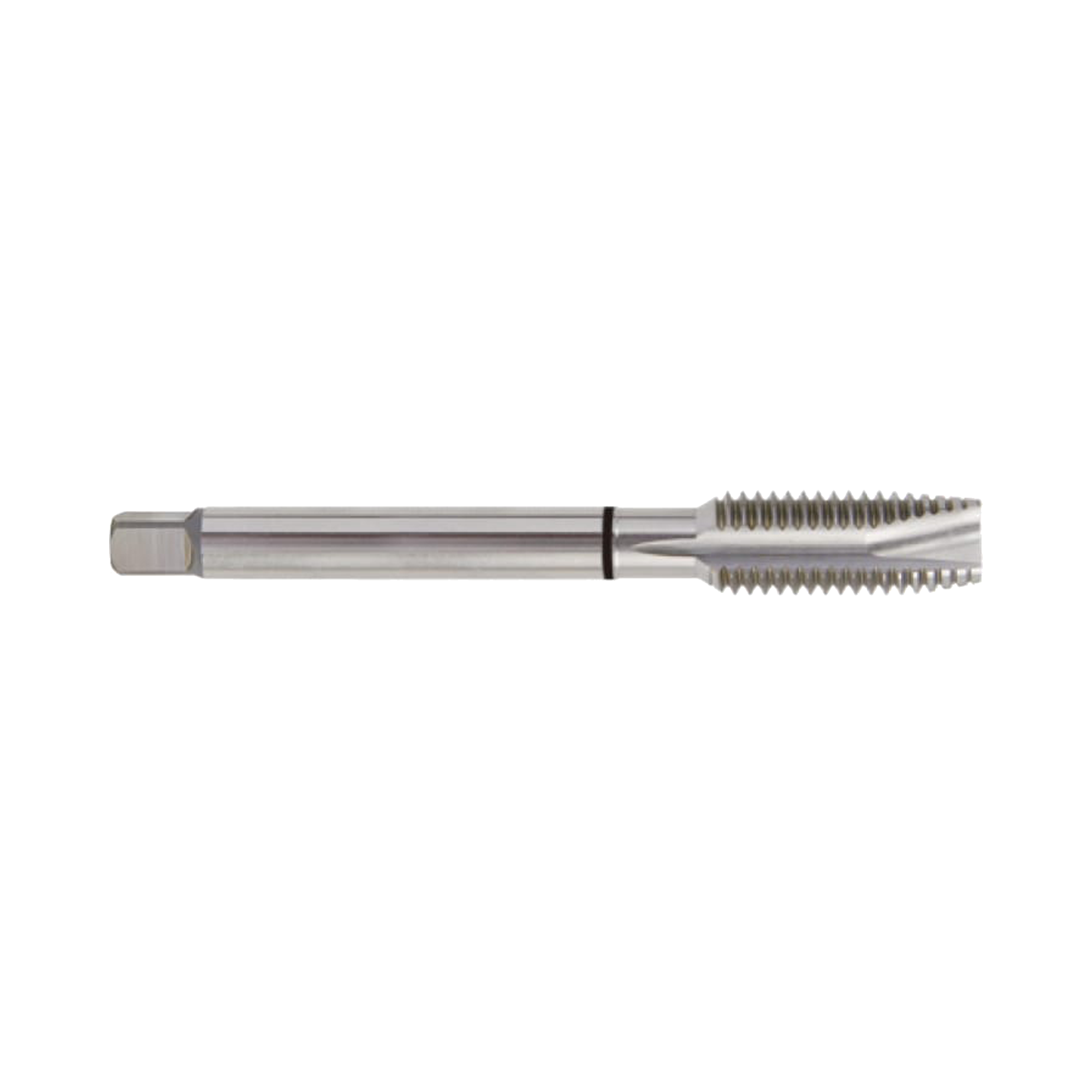

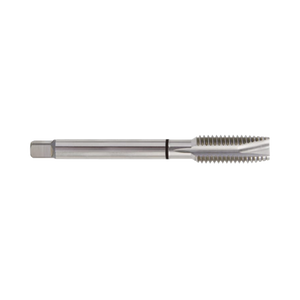

(TC445) HSS-E (M35) Metric Gun Point Long Shank Combo Tap for Multi Purpose
Long-shank HSS-E spiral point combo tap
- SKU
- TC445206
Key features
- HSS-E construction with a bright finish
- Spiral point geometry for multi-purpose machine tapping
- ISO Metric Coarse thread form to DIN 13
Made in South Korea
Extended reach
Long-shank construction provides a longer tool format for access-focused tapping setups
Defined metric threads
Produces ISO Metric Coarse threads conforming to DIN 13
Useful size selection
Ten listed sizes cover M3 × 0.5 through M20 × 2.5
| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC445206 | M3 | 0.5 | 11.0 | 100.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.5 | 1-2 Weeks | $48.80 | ||
| TC445246 | M4 | 0.7 | 13.0 | 125.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.3 | 1-2 Weeks | $48.80 | ||
| TC445286 | M5 | 0.8 | 15.0 | 140.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 4.2 | Low stock | $50.80 | ||
| TC445316 | M6 | 1 | 17.0 | 160.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 5.0 | Low stock | $52.60 | ||
| TC445366 | M8 | 1.25 | 20.0 | 180.0 | 35.0 | 6.0 | 4.9 | 8.0 | 3 | 6.8 | Low stock | $81.60 | ||
| TC445426 | M10 | 1.5 | 22.0 | 200.0 | 39.0 | 7.0 | 5.5 | 8.0 | 3 | 8.5 | 1-2 Weeks | $82.60 | ||
| TC445506 | M12 | 1.75 | 24.0 | 220.0 | 44.0 | 9.0 | 7.0 | 10.0 | 3 | 10.2 | 1-2 Weeks | $136.40 | ||
| TC445546 | M14 | 2 | 26.0 | 220.0 | 44.0 | 11.0 | 9.0 | 12.0 | 3 | 12.0 | 1-2 Weeks | $161.00 | ||
| TC445606 | M16 | 2 | 27.0 | 220.0 | 44.0 | 12.0 | 9.0 | 12.0 | 3 | 14.0 | 1-2 Weeks | $203.10 | ||
| TC445706 | M20 | 2.5 | 32.0 | 280.0 | 54.0 | 16.0 | 12.0 | 15.0 | 4 | 17.5 | 1-2 Weeks | $278.10 |
Add (TC445) HSS-E (M35) Metric Gun Point Long Shank Combo Tap for Multi Purpose to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 TC445 is a long-shank HSS-E metric spiral point combo tap for multi-purpose threading. It produces ISO Metric Coarse threads conforming to DIN 13 for general machine-tapping work. The bright finish and spiral point geometry define this specialised machine tap configuration. Long-shank construction distinguishes this tool from conventional standard-length machine tap configurations. The series is offered from M3 × 0.5 through M20 × 2.5. Listed thread lengths range from 11 mm to 32 mm across the range. Overall lengths span 100 mm to 280 mm, varying by selected thread size. Each listed option has three or four flutes according to its size.
- HSS-E construction with a bright finish
- Spiral point geometry for multi-purpose machine tapping
- ISO Metric Coarse thread form to DIN 13
- Long-shank design for extended tool reach
- M3 × 0.5 to M20 × 2.5 size range
- Three or four flutes according to size
No specifications available.
