(TD874) HSS-E (M35) UNF Gun Point Combo Tap for Multi Purpose (TiN Coated)

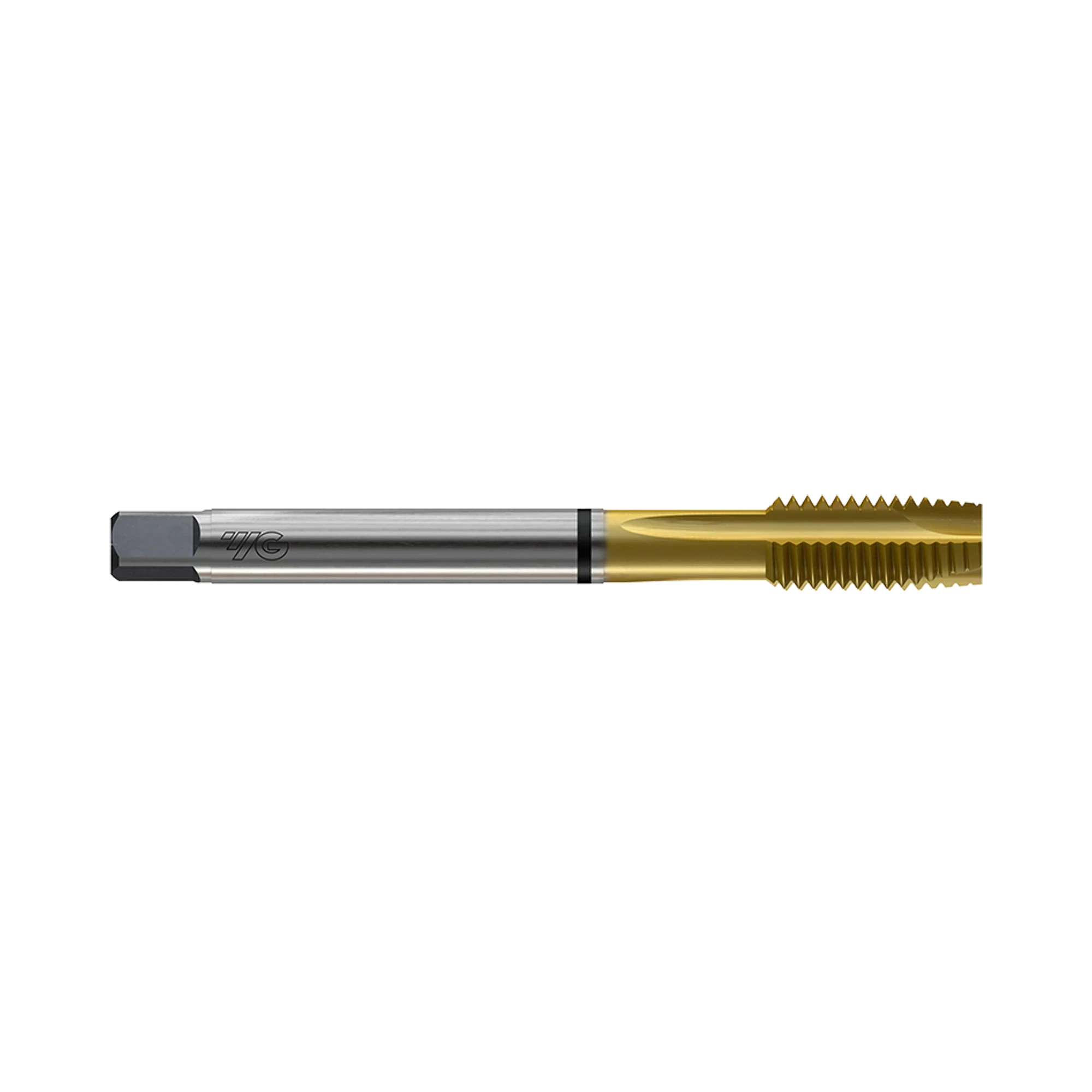

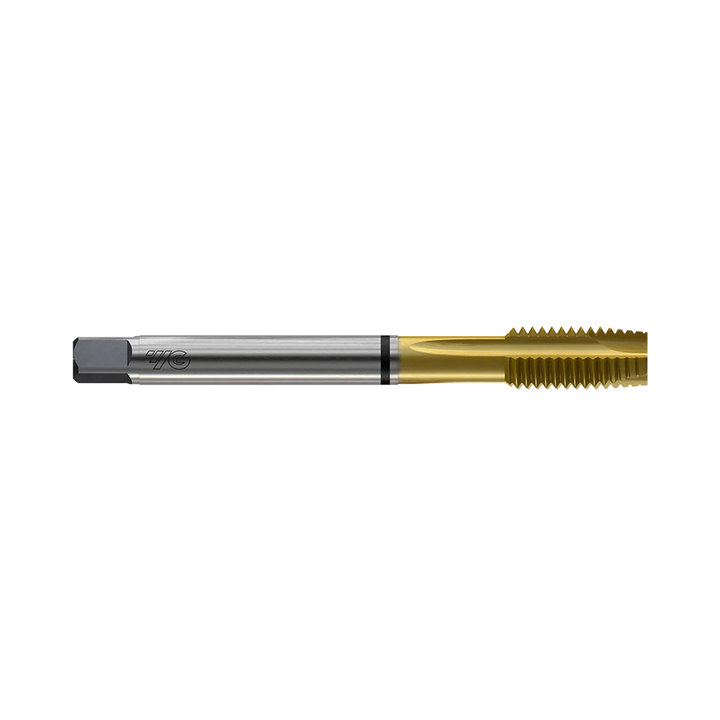

TiN-coated HSS-E UNF spiral point combo tap
- SKU
- TD874382
Key features
- TiN-coated HSS-E spiral point combo tap
- UNF Unified Fine thread range from #4–48 to 1–12
- Spiral point geometry for through-hole machine tapping
Made in South Korea
Through-hole threading
Spiral point geometry supports machine tapping in through-hole UNF applications.
Unified Fine range
Covers common UNF sizes from #4–48 through to 1–12.
Controlled thread form
2B tolerance, B thread form and 60° angle support defined UNF threads.
| SKU | Size | TPI | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TD874382 | #12 | 28UNF | 16.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 4.7 | 1-2 Weeks | $64.20 | ||
| TD874342 | #10 | 32UNF | 15.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 4.1 | 1-2 Weeks | $65.20 | ||
| TD874302 | #8 | 36UNF | 13.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.5 | 1-2 Weeks | $64.20 | ||
| TD874262 | #6 | 40UNF | 12.0 | 56.0 | 20.0 | 4.0 | 3.0 | 6.0 | 3 | 3.0 | 1-2 Weeks | $63.60 | ||
| TD874222 | #5 | 44UNF | 11.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.7 | 1-2 Weeks | $63.60 | ||
| TD874182 | #4 | 48UNF | 11.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.4 | 1-2 Weeks | $78.00 | ||
| TD874422 | 1/4 | 28UNF | 17.0 | 80.0 | 30.0 | 7.0 | 5.5 | 8.0 | 3 | 5.5 | 1-2 Weeks | $64.20 | ||
| TD874462 | 5/16 | 24UNF | 17.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 3 | 6.9 | 1-2 Weeks | $72.30 | ||
| TD874502 | 3/8 | 24UNF | 18.0 | 100.0 | 39.0 | 9.0 | 7.0 | 10.0 | 3 | 8.5 | 1-2 Weeks | $86.00 | ||
| TD874542 | 7/16 | 20UNF | 22.0 | 100.0 | 40.0 | 8.0 | 6.2 | 9.0 | 3 | 9.9 | 1-2 Weeks | $103.90 | ||
| TD874582 | 1/2 | 20UNF | 22.0 | 100.0 | 40.0 | 9.0 | 7.0 | 10.0 | 3 | 11.5 | 1-2 Weeks | $104.90 | ||
| TD874622 | 9/16 | 18UNF | 22.0 | 100.0 | 40.0 | 11.0 | 9.0 | 12.0 | 3 | 12.9 | 1-2 Weeks | $117.00 | ||
| TD874662 | 5/8 | 18UNF | 22.0 | 100.0 | 40.0 | 12.0 | 9.0 | 12.0 | 3 | 14.5 | 1-2 Weeks | $146.00 | ||
| TD874722 | 3/4 | 16UNF | 25.0 | 110.0 | 44.0 | 14.0 | 11.0 | 14.0 | 4 | 17.5 | 1-2 Weeks | $210.70 | ||
| TD874762 | 7/8 | 14UNF | 26.0 | 125.0 | 50.0 | 18.0 | 14.5 | 17.0 | 4 | 20.5 | 1-2 Weeks | $247.70 | ||
| TD874802 | 1 | 12UNF | 28.0 | 140.0 | 54.0 | 20.0 | 16.0 | 19.0 | 4 | 23.25 | 1-2 Weeks | $316.70 |
Add (TD874) HSS-E (M35) UNF Gun Point Combo Tap for Multi Purpose (TiN Coated) to comparison
View Comparison- Overview
- Specifications
- Work Material
- Reviews
YG-1 TD874 is a TiN-coated HSS-E UNF spiral point combo tap for multi-purpose machine tapping. Its spiral point design makes this machine tap suited to through-hole UNF threading applications. It provides Unified Fine thread sizes from #4–48 UNF through to 1–12 UNF. TD874 combines 2B thread tolerance, B thread form and a 60° thread angle.
Smaller sizes #4 to 3/8 use DIN 371 shanks, while 7/16 to 1 use DIN 374. The TiN coating distinguishes the TD874 series within YG-1’s multi-purpose combo tap range. Special tap geometry is designed for correct thread profiles and long tool life.
- TiN-coated HSS-E spiral point combo tap
- UNF Unified Fine thread range from #4–48 to 1–12
- Spiral point geometry for through-hole machine tapping
- 2B thread tolerance with B thread form
- 60° thread angle
- DIN 371 and DIN 374 shank standards
No specifications available.
Work materials
VDI 3323 recommendations for this tool.
Steel
10 gradesCast iron
4 gradesStainless steel
3 gradesNon-ferrous materials
4 gradesVDI grade reference21 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Good | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Excellent | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Excellent | 300 | 32 |
| 9 | PLow-alloy steel | Excellent | 350 | 38 |
| 10 | PHigh-alloy and tool steel | Good | 200 | 15 |
| 12 | MStainless steel | Excellent | 200 | 15 |
| 13 | MStainless steel | Excellent | 240 | 23 |
| 14 | MStainless steel | Excellent | 180 | 10 |
| 15 | KGrey cast iron | Excellent | 180 | 10 |
| 16 | KGrey cast iron | Excellent | 260 | 26 |
| 17 | KNodular cast iron | Excellent | 160 | 3 |
| 18 | KNodular cast iron | Excellent | 250 | 25 |
| 23 | NCast aluminium | Excellent | 75 | - |
| 26 | NCopper, bronze and brass | Excellent | 110 | - |
| 27 | NCopper, bronze and brass | Excellent | 90 | - |
| 28 | NCopper, bronze and brass | Excellent | 100 | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
