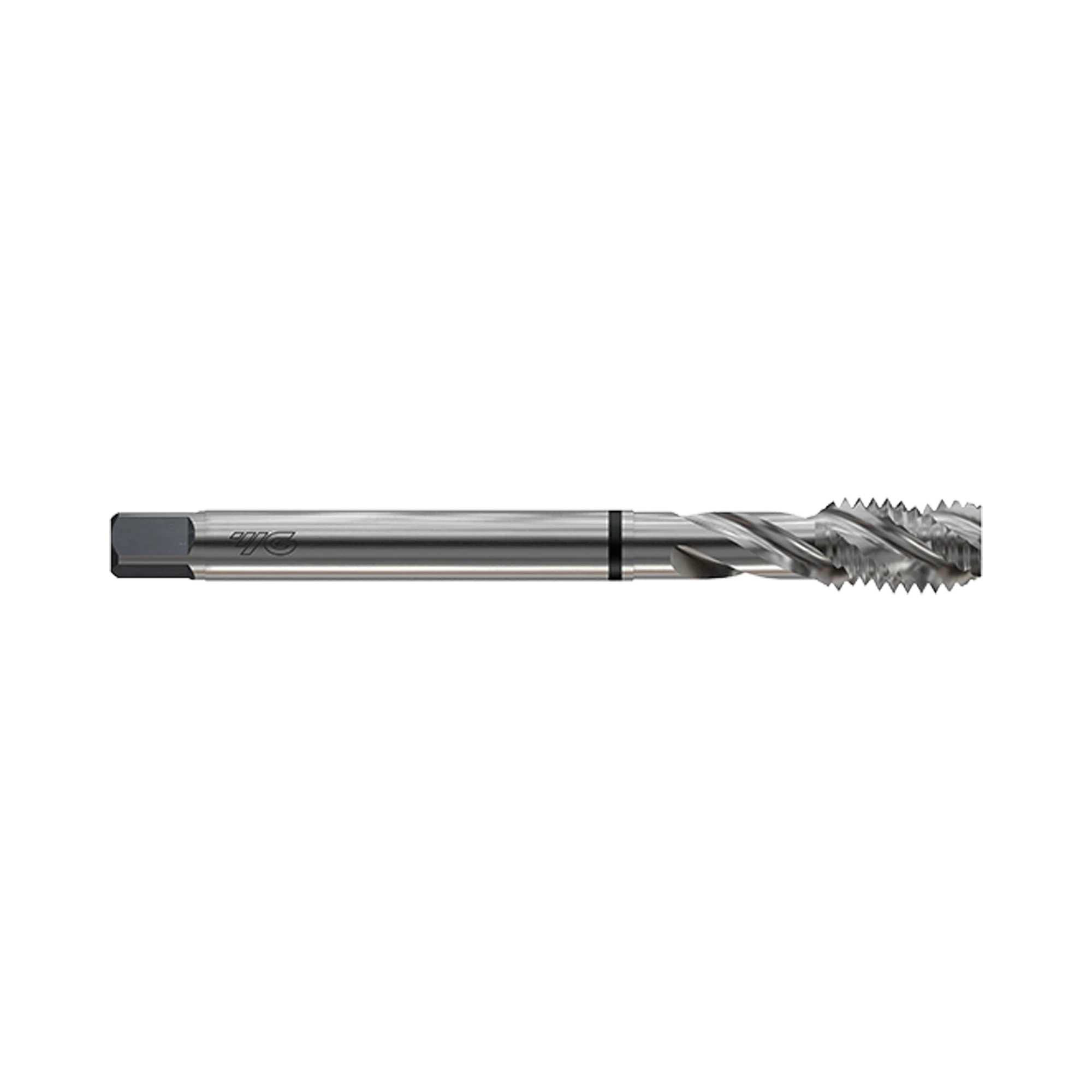

DIN371/DIN376 COMBO Spiral Flute Bright (TC804-IC)

  • $51.37INC GST $46.70 EX GST
DIN371/DIN376 COMBO Spiral Flute Bright (TC804-IC)
DIN371/DIN376 COMBO Spiral Flute Bright (TC804-IC)

DIN371/DIN376 COMBO Spiral Flute Bright (TC804-IC)

  • $51.37INC GST $46.70 EX GST

Code: TC804316IC

P M K N
Code
Pitch (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUCodePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)Stock Price Qty Add
TC804316ICM6110.080.030.06.04.98.035.0 Quantity unavailable $46.70
TC804366ICM81.2513.090.035.08.06.29.036.8 Low stock $62.10
TC804426ICM101.515.0100.039.010.08.011.038.5 5 days $73.20
TC804506ICM121.7518.0110.044.09.07.010.0310.2 5 days $94.60
TC804546ICM14220.0110.044.011.09.012.0312.0 5 days $86.60
TC804606ICM16220.0110.044.012.09.012.0314.0 5 days $98.90
TC804656ICM182.525.0125.050.014.011.014.0415.5 5 days $131.10

Add DIN371/DIN376 COMBO Spiral Flute Bright (TC804-IC) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • For using multi-purpose and correct thread profiles & long tool life due to special tap geometry.
  • YG-1 company has a patent.
  • With Internal Coolant
Product Data
Workpiece Material P M K N
Helix Angle Square 40
Operation Blind Drilling
Surface Treatment Bright
Thread Angle 60
Thread Class 6H
Thread Form C
Thread Shape M
Tool Material HSS-E
Tool Standard DIN 371-376
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TC804316IC M6 1 10 80 30 6 4.9 8 3 TC804316IC M6 1 10 80 30 6 4.9 8 3 TC804366IC M8 1.25 13 90 35 8 6.2 9 3 TC804366IC M8 1.25 13 90 35 8 6.2 9 3 TC804426IC M10 1.5 15 100 39 10 8 11 3 TC804426IC M10 1.5 15 100 39 10 8 11 3 TC804506IC M12 1.75 18 110 44 9 7 10 3 TC804506IC M12 1.75 18 110 44 9 7 10 3 TC804546IC M14 2 20 110 44 11 9 12 3 TC804546IC M14 2 20 110 44 11 9 12 3 TC804606IC M16 2 20 110 44 12 9 12 3 TC804606IC M16 2 20 110 44 12 9 12 3 TC804656IC M18 2.5 25 125 50 14 11 14 4 TC804656IC M18 2.5 25 125 50 14 11 14 4 TC804706IC M20 2.5 25 140 54 16 12 15 4 TC804706IC M20 2.5 25 140 54 16 12 15 4 TC804746IC M22 2.5 25 140 140 18 14.5 17 4 TC804786IC M24 3 30 160 160 18 14.5 17 4 TC804946IC M30 3.5 35 180 180 22 18 21 4
Blind Drilling
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
P High Alloyed

Great

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
N Aluminium

Great

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
N Plastic

Great

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TC804316IC M6 1 10 80 30 6 4.9 8 3 TC804316IC M6 1 10 80 30 6 4.9 8 3 TC804366IC M8 1.25 13 90 35 8 6.2 9 3 TC804366IC M8 1.25 13 90 35 8 6.2 9 3 TC804426IC M10 1.5 15 100 39 10 8 11 3 TC804426IC M10 1.5 15 100 39 10 8 11 3 TC804506IC M12 1.75 18 110 44 9 7 10 3 TC804506IC M12 1.75 18 110 44 9 7 10 3 TC804546IC M14 2 20 110 44 11 9 12 3 TC804546IC M14 2 20 110 44 11 9 12 3 TC804606IC M16 2 20 110 44 12 9 12 3 TC804606IC M16 2 20 110 44 12 9 12 3 TC804656IC M18 2.5 25 125 50 14 11 14 4 TC804656IC M18 2.5 25 125 50 14 11 14 4 TC804706IC M20 2.5 25 140 54 16 12 15 4 TC804706IC M20 2.5 25 140 54 16 12 15 4 TC804746IC M22 2.5 25 140 140 18 14.5 17 4 TC804786IC M24 3 30 160 160 18 14.5 17 4 TC804946IC M30 3.5 35 180 180 22 18 21 4

Excision is now the exclusive distributor of YG-1 in Australia & New Zealand
