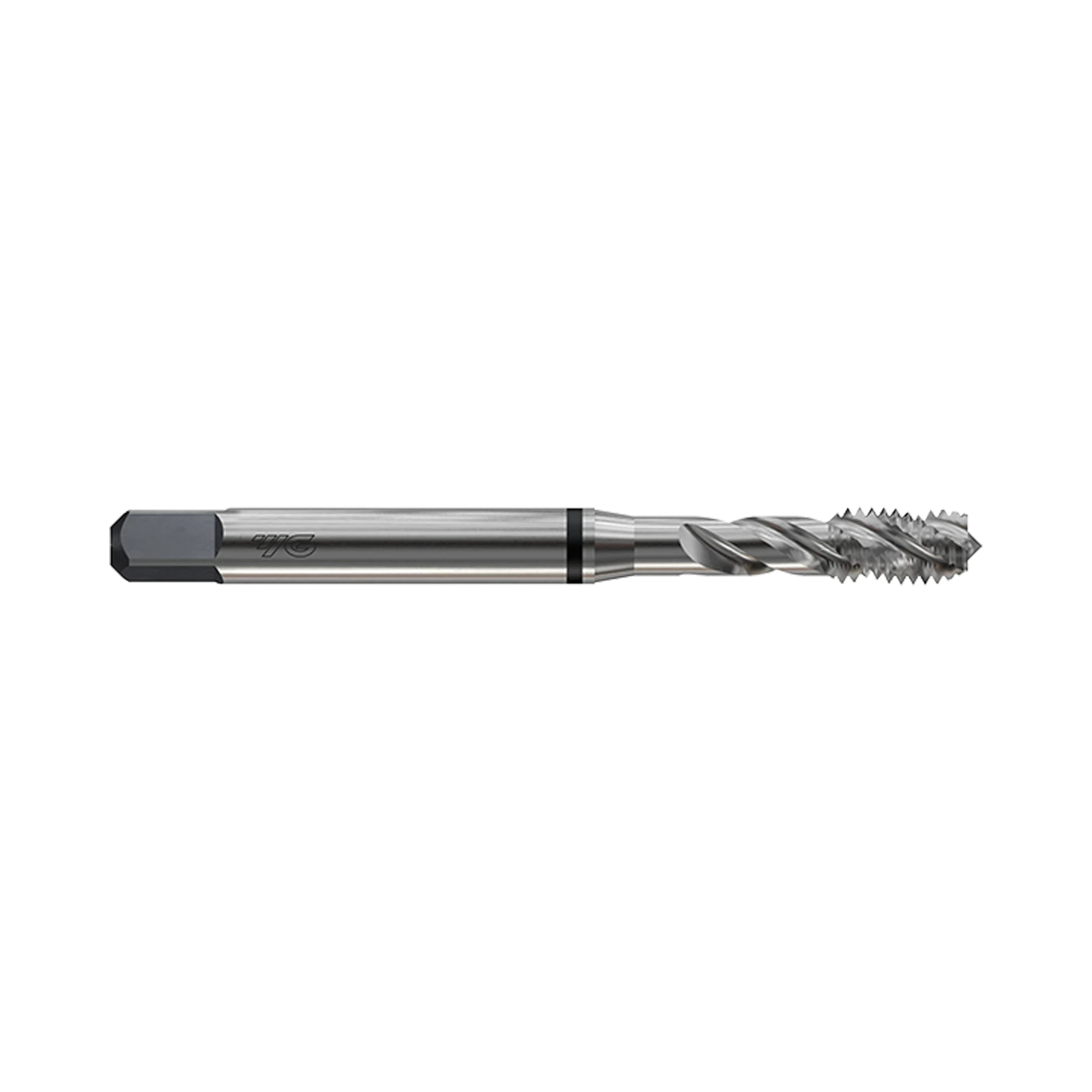

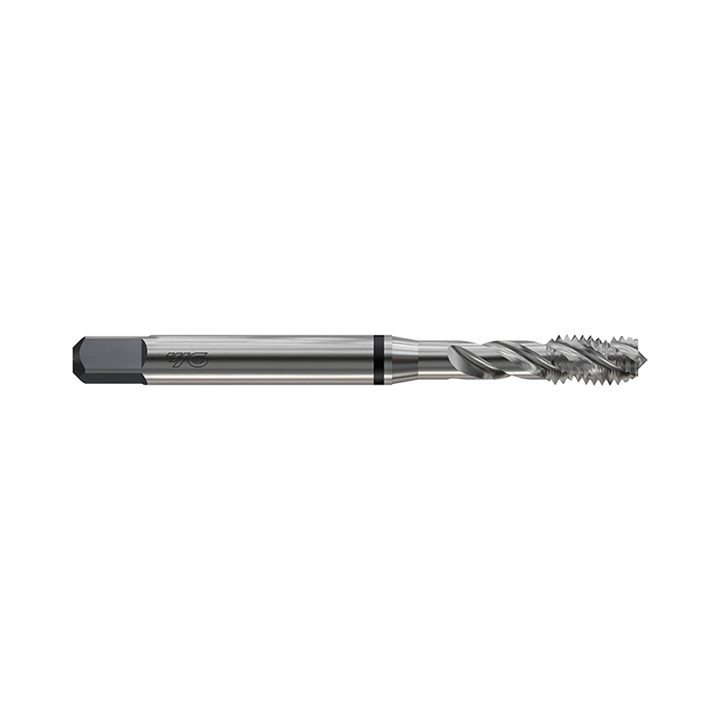

(TC824) HSS-E (M35) UNC Spiral Flute Combo Tap for Multi Purpose
Code: TC824162
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.

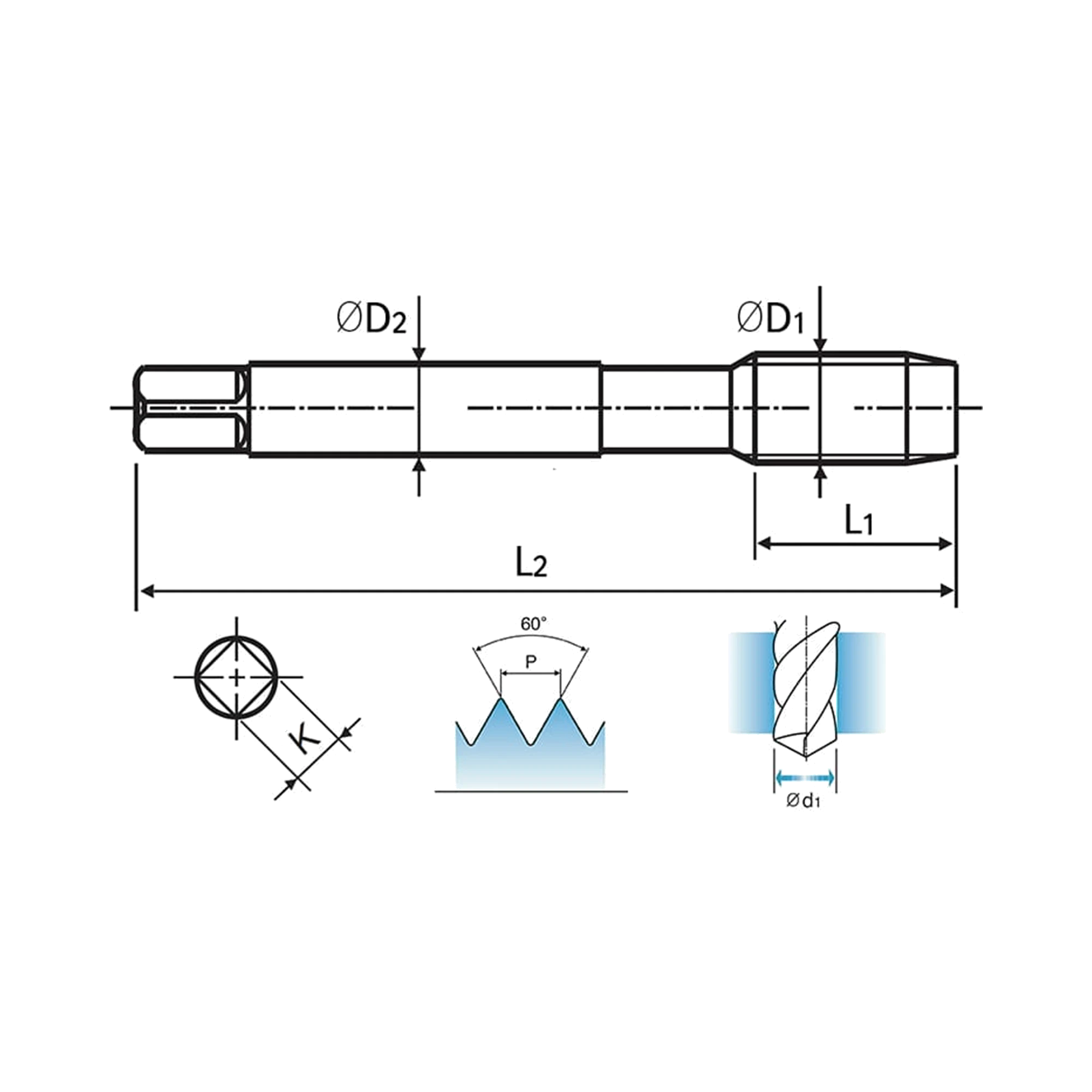

| SKU | Size | TPI | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Thickness (mm) | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC824162 | #4 | 40UNC | 6.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | - | 2.3 | 5 days | $31.80 | ||
| TC824202 | #5 | 40UNC | 7.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | - | 2.6 | 5 days | $25.50 | ||
| TC824242 | #6 | 32UNC | 7.0 | 56.0 | 20.0 | 4.0 | 3.0 | 6.0 | 3 | - | 2.85 | 5 days | $27.30 | ||
| TC824282 | #8 | 32UNC | 8.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | - | 3.5 | 5 days | $25.50 | ||
| TC824322 | #10 | 24UNC | 10.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | - | 3.9 | In stock | $27.30 | ||
| TC824362 | #12 | 24UNC | 10.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | - | 4.5 | 5 days | $26.30 | ||
| TC824402 | 1/4 | 20UNC | 13.0 | 80.0 | 30.0 | 7.0 | 5.5 | 8.0 | 3 | 54.0 | 5.2 | 5 days | $26.30 | ||
| TC824442 | 5/16 | 18UNC | 14.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 3 | 54.0 | 6.6 | 5 days | $35.40 | ||
| TC824482 | 3/8 | 16UNC | 16.0 | 100.0 | 39.0 | 9.0 | 7.0 | 10.0 | 3 | 60.0 | 8.0 | 5 days | $41.10 | ||
| TC824522 | 7/16 | 14UNC | 17.0 | 100.0 | 40.0 | 8.0 | 6.2 | 9.0 | 3 | 60.0 | 9.4 | 5 days | $55.40 | ||
| TC824562 | 1/2 | 13UNC | 20.0 | 110.0 | 44.0 | 9.0 | 7.0 | 10.0 | 3 | 70.0 | 10.75 | 5 days | $55.40 | ||
| TC824602 | 9/16 | 12UNC | 20.0 | 110.0 | 44.0 | 11.0 | 9.0 | 12.0 | 3 | 70.0 | 12.25 | 5 days | $74.20 | ||
| TC824642 | 5/8 | 11UNC | 22.0 | 110.0 | 44.0 | 12.0 | 9.0 | 12.0 | 3 | 80.0 | 13.5 | Low stock | $87.20 | ||
| TC824702 | 3/4 | 10UNC | 25.0 | 125.0 | 50.0 | 14.0 | 11.0 | 14.0 | 4 | 80.0 | 16.5 | Low stock | $153.30 | ||
| TC824742 | 7/8 | 9UNC | 27.0 | 140.0 | 54.0 | 18.0 | 14.5 | 17.0 | 4 | 85.0 | 19.5 | 5 days | $183.10 | ||
| TC824782 | 1 | 8UNC | 30.0 | 160.0 | 60.0 | 20.0 | 16.0 | 19.0 | 4 | 85.0 | 22.25 | 5 days | $242.80 |
Add (TC824) HSS-E (M35) UNC Spiral Flute Combo Tap for Multi Purpose to comparison
View Comparison- Overview
- Specifications
- Operation
- Work Material
- Reviews
Product Description
- For using multi-purpose and correct thread profiles & long tool life due to special tap geometry.
- YG-1 company has a patent.
Product Data
| Workpiece Material | P M K N |
| Helix Angle | Square 40 |
| Operation | Blind Drilling |
| Surface Treatment | Bright |
| Thread Angle | 60 |
| Thread Class | 2B |
| Thread Form | C |
| Thread Shape | UNC |
| Tool Material | HSS-E |
| Tool Standard | DIN 371-376 |
Blind Drilling
Carbon Steels
Excellent
Good
Great
Excellent
Alloy Steels
Excellent
Good
Great
Excellent
Structural Steels
Great
Good
Great
Excellent
Mild & Free Machining
Excellent
Good
Great
Excellent
High Alloyed
Great
Good
Great
Excellent
Stainless Steels
Great
Good
Great
Excellent
Cast Iron
Great
Good
Great
Excellent
Aluminium
Great
Good
Great
Excellent
Bronze
Excellent
Good
Great
Excellent
Copper
Excellent
Good
Great
Excellent
Plastic
Great
Good
Great
Excellent
No VDI recommendations set for this product.
