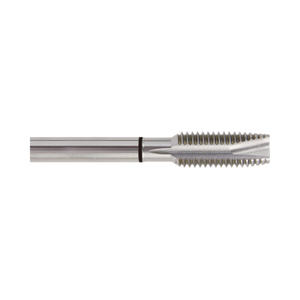

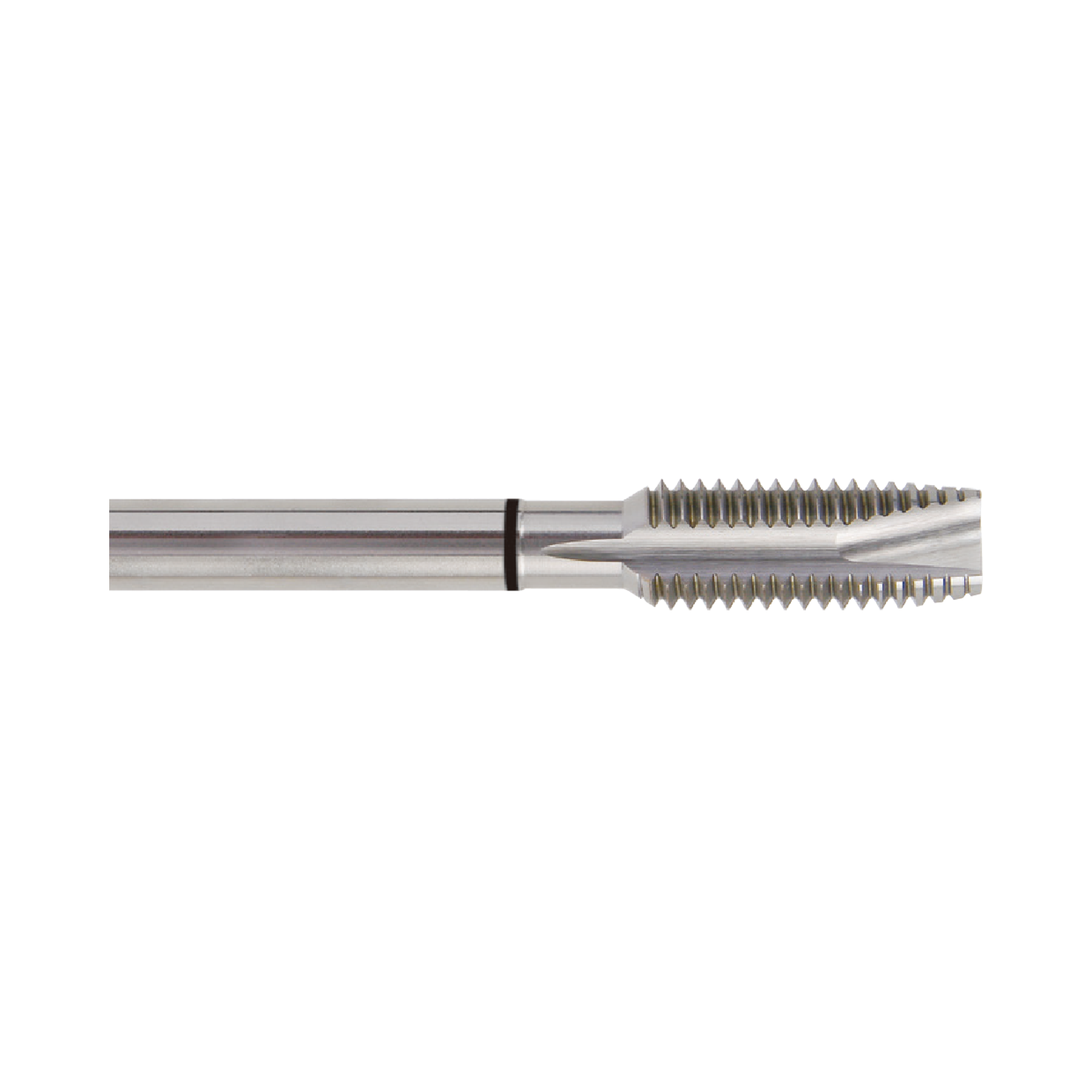

DIN371/DIN376 COMBO Spiral Point Bright (TC814)

  • $36.30INC GST $33.00 EX GST
DIN371/DIN376 COMBO Spiral Point Bright (TC814)
DIN371/DIN376 COMBO Spiral Point Bright (TC814)
New

DIN371/DIN376 COMBO Spiral Point Bright (TC814)

  • $36.30INC GST $33.00 EX GST

Code: TC814136

P M K N
    Key Features
  • Metric Coarse Universal Machine Tap
  • HSS-E (M35) with 5% Cobalt
  • DIN371 and DIN376 COMBO shank
Size
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add DIN371/DIN376 COMBO Spiral Point Bright (TC814) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

YG-1 TC814 DIN371/DIN376 COMBO Spiral Point Bright taps deliver reliable, universal machine tapping. Uncoated Bright Finish HSS-E (M35) with 5% Cobalt provides durable cutting performance. Suitable for Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Aluminium and Non-Ferrous. Spiral point geometry drives chips forward for through holes and stable cutting. A patented design limits over feeding and reduces premature tap failure, while bright finish resists swarf adhesion.

  • Metric Coarse Universal Machine Tap
  • HSS-E (M35) with 5% Cobalt
  • DIN371 and DIN376 COMBO shank
  • Spiral point for through holes
  • Bright finish reduces swarf adhesion
Product Data
Workpiece Material P M K N
Operation Blind Drilling
Surface Treatment Bright
Thread Angle 60
Thread Class 6H
Thread Form B
Thread Shape M
Tool Material HSS-E
Tool Standard DIN 371-376
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TC814136 M2 0.4 8 45 13 2.8 2.1 5 3 TC814136 M2 0.4 8 45 13 2.8 2.1 5 3 TC814156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TC814156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TC814176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TC814176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TC814196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TC814196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TC814206 M3 0.5 11 56 18 3.5 2.7 6 3 TC814206 M3 0.5 11 56 18 3.5 2.7 6 3 TC814226 M3.5 0.6 12 56 20 4 3 6 3 TC814226 M3.5 0.6 12 56 20 4 3 6 3 TC814246 M4 0.7 13 63 21 4.5 3.4 6 3 TC814246 M4 0.7 13 63 21 4.5 3.4 6 3 TC814266 M4.5 0.75 14 70 25 6 4.9 8 3 TC814266 M4.5 0.75 14 70 25 6 4.9 8 3 TC814286 M5 0.8 15 70 25 6 4.9 8 3 TC814286 M5 0.8 15 70 25 6 4.9 8 3 TC814316 M6 1 17 80 30 6 4.9 8 3 TC814316 M6 1 17 80 30 6 4.9 8 3 TC814346 M7 1 17 80 30 7 5.5 8 3 TC814346 M7 1 17 80 30 7 5.5 8 3 TC814366 M8 1.25 20 90 35 8 6.2 9 3 TC814366 M8 1.25 20 90 35 8 6.2 9 3 TC814396 M9 1.25 20 90 35 9 7 10 3 TC814396 M9 1.25 20 90 35 9 7 10 3 TC814426 M10 1.5 22 100 39 10 8 11 3 TC814426 M10 1.5 22 100 39 10 8 11 3 TC814466 M11 1.5 22 100 40 8 6.2 9 3 TC814466 M11 1.5 22 100 40 8 6.2 9 3 TC814496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TC814496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TC814506 M12 1.75 24 110 44 9 7 10 3 TC814506 M12 1.75 24 110 44 9 7 10 3 TC814546 M14 2 26 110 44 11 9 12 3 TC814546 M14 2 26 110 44 11 9 12 3 TC814606 M16 2 27 110 44 12 9 12 3 TC814606 M16 2 27 110 44 12 9 12 3 TC814656 M18 2.5 30 125 50 14 11 14 4 TC814656 M18 2.5 30 125 50 14 11 14 4 TC814706 M20 2.5 32 140 54 16 12 15 4 TC814706 M20 2.5 32 140 54 16 12 15 4 TC814746 M22 2.5 32 140 54 18 14.5 17 4 TC814746 M22 2.5 32 140 54 18 14.5 17 4 TC814786 M24 3 34 160 60 18 14.5 17 4 TC814786 M24 3 34 160 60 18 14.5 17 4 TC814866 M27 3 36 160 60 20 16 19 4 TC814866 M27 3 36 160 60 20 16 19 4 TC814946 M30 3.5 40 180 70 22 18 21 4 TC814946 M30 3.5 40 180 70 22 18 21 4
Blind Drilling
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
P High Alloyed

Great

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
N Aluminium

Great

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
N Plastic

Great

Good Great Excellent
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TC814136 M2 0.4 8 45 13 2.8 2.1 5 3 TC814136 M2 0.4 8 45 13 2.8 2.1 5 3 TC814156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TC814156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TC814176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TC814176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TC814196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TC814196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TC814206 M3 0.5 11 56 18 3.5 2.7 6 3 TC814206 M3 0.5 11 56 18 3.5 2.7 6 3 TC814226 M3.5 0.6 12 56 20 4 3 6 3 TC814226 M3.5 0.6 12 56 20 4 3 6 3 TC814246 M4 0.7 13 63 21 4.5 3.4 6 3 TC814246 M4 0.7 13 63 21 4.5 3.4 6 3 TC814266 M4.5 0.75 14 70 25 6 4.9 8 3 TC814266 M4.5 0.75 14 70 25 6 4.9 8 3 TC814286 M5 0.8 15 70 25 6 4.9 8 3 TC814286 M5 0.8 15 70 25 6 4.9 8 3 TC814316 M6 1 17 80 30 6 4.9 8 3 TC814316 M6 1 17 80 30 6 4.9 8 3 TC814346 M7 1 17 80 30 7 5.5 8 3 TC814346 M7 1 17 80 30 7 5.5 8 3 TC814366 M8 1.25 20 90 35 8 6.2 9 3 TC814366 M8 1.25 20 90 35 8 6.2 9 3 TC814396 M9 1.25 20 90 35 9 7 10 3 TC814396 M9 1.25 20 90 35 9 7 10 3 TC814426 M10 1.5 22 100 39 10 8 11 3 TC814426 M10 1.5 22 100 39 10 8 11 3 TC814466 M11 1.5 22 100 40 8 6.2 9 3 TC814466 M11 1.5 22 100 40 8 6.2 9 3 TC814496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TC814496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TC814506 M12 1.75 24 110 44 9 7 10 3 TC814506 M12 1.75 24 110 44 9 7 10 3 TC814546 M14 2 26 110 44 11 9 12 3 TC814546 M14 2 26 110 44 11 9 12 3 TC814606 M16 2 27 110 44 12 9 12 3 TC814606 M16 2 27 110 44 12 9 12 3 TC814656 M18 2.5 30 125 50 14 11 14 4 TC814656 M18 2.5 30 125 50 14 11 14 4 TC814706 M20 2.5 32 140 54 16 12 15 4 TC814706 M20 2.5 32 140 54 16 12 15 4 TC814746 M22 2.5 32 140 54 18 14.5 17 4 TC814746 M22 2.5 32 140 54 18 14.5 17 4 TC814786 M24 3 34 160 60 18 14.5 17 4 TC814786 M24 3 34 160 60 18 14.5 17 4 TC814866 M27 3 36 160 60 20 16 19 4 TC814866 M27 3 36 160 60 20 16 19 4 TC814946 M30 3.5 40 180 70 22 18 21 4 TC814946 M30 3.5 40 180 70 22 18 21 4

Excision is now the exclusive distributor of YG-1 in Australia & New Zealand

View the range

YG-1 Threading

You Might Also Like

New

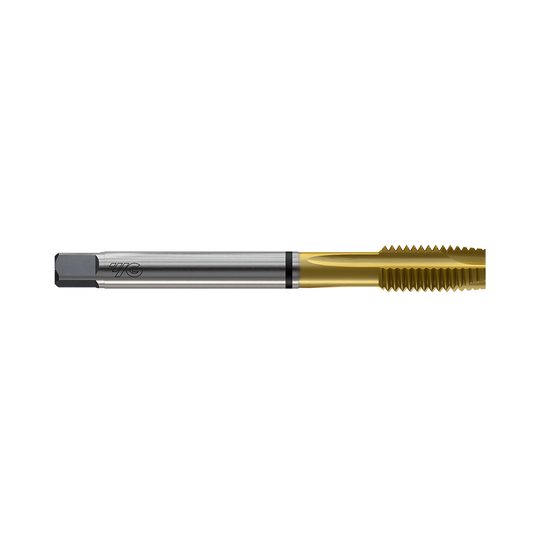

DIN371/DIN374 COMBO Spiral Point TiN (TD874) DIN371/DIN374 COMBO Spiral Point TiN (TD874)

DIN371/DIN374 COMBO Spiral Point TiN (TD874)

Multi-Purpose TiN-Coated Gun Tap
From $69.96INC GST
From $63.60 EX GST
Available in Size
#4 #5 #6 +13
5 days
YG-1 LEGEND FORM B YG-1 LEGEND UNF YG-1 LEGEND 60° YG-1 LEGEND TiN YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-374
Add to Cart
View Comparison
New

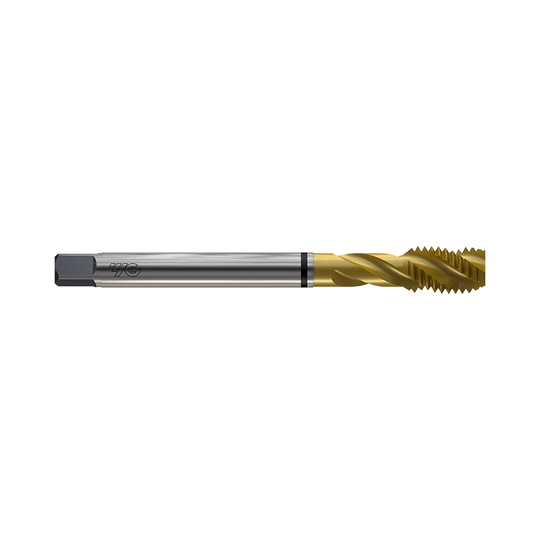

DIN371/DIN374 COMBO Spiral Flute TiN (TD864) DIN371/DIN374 COMBO Spiral Flute TiN (TD864)

DIN371/DIN374 COMBO Spiral Flute TiN (TD864)

Multi-Purpose TiN-Coated Spiral Tap
From $73.04INC GST
From $66.40 EX GST
Available in Size
#4 #5 #6 +13
In stock
YG-1 LEGEND FORM C YG-1 LEGEND UNF YG-1 LEGEND 60° YG-1 LEGEND TiN YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-374 YG-1 LEGEND HELIX SQUARE 40
Add to Cart
View Comparison
New
DIN374 COMBO Spiral Point TiN (TD854) DIN374 COMBO Spiral Point TiN (TD854)

DIN374 COMBO Spiral Point TiN (TD854)

From $55.44INC GST
From $50.40 EX GST
Available in Size
M4 M5 M6 +14
Low stock
YG-1 LEGEND 6H YG-1 LEGEND FORM B YG-1 LEGEND MF YG-1 LEGEND 60° YG-1 LEGEND TiN YG-1 LEGEND HSS-E YG-1 LEGEND DIN 374
Add to Cart
View Comparison
New
DIN374 COMBO Spiral Flute TiN (TD844) DIN374 COMBO Spiral Flute TiN (TD844)

DIN374 COMBO Spiral Flute TiN (TD844)

Metric Fine TiN-Coated Spiral Tap
From $55.99INC GST
From $50.90 EX GST
Available in Size
M4 M5 M6 +14
5 days
YG-1 LEGEND 6H YG-1 LEGEND FORM C YG-1 LEGEND MF YG-1 LEGEND 60° YG-1 LEGEND TiN YG-1 LEGEND HSS-E YG-1 LEGEND DIN 374 YG-1 LEGEND HELIX SQUARE 40
Add to Cart
View Comparison
New
DIN371/DIN376 COMBO Spiral Point TiN (TD834) DIN371/DIN376 COMBO Spiral Point TiN (TD834)

DIN371/DIN376 COMBO Spiral Point TiN (TD834)

UNC TiN-Coated Gun Tap
From $38.94INC GST
From $35.40 EX GST
Available in Size
#4 #5 #6 +13
Low stock
YG-1 LEGEND FORM B YG-1 LEGEND UNC YG-1 LEGEND 60° YG-1 LEGEND TiN YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376
Add to Cart
View Comparison
New
DIN371/DIN376 COMBO Spiral Flute TiN (TD824) DIN371/DIN376 COMBO Spiral Flute TiN (TD824)

DIN371/DIN376 COMBO Spiral Flute TiN (TD824)

UNC TiN-Coated Spiral Tap
From $39.71INC GST
From $36.10 EX GST
Available in Size
#4 #5 #6 +13
In stock
YG-1 LEGEND FORM C YG-1 LEGEND UNC YG-1 LEGEND 60° YG-1 LEGEND TiN YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376 YG-1 LEGEND HELIX SQUARE 40
Add to Cart
View Comparison
New
DIN371/DIN376 COMBO Spiral Point TiN (TD814) DIN371/DIN376 COMBO Spiral Point TiN (TD814)

DIN371/DIN376 COMBO Spiral Point TiN (TD814)

Metric TiN-Coated Gun Tap
From $44.22INC GST
From $40.20 EX GST
Available in Size
M2 M2.2 M2.3 +22
In stock
YG-1 LEGEND 6H YG-1 LEGEND FORM B YG-1 LEGEND MF YG-1 LEGEND 60° YG-1 LEGEND TiN YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376
Add to Cart
View Comparison
New
DIN371/DIN376 COMBO Spiral Flute TiN (TD804) DIN371/DIN376 COMBO Spiral Flute TiN (TD804)

DIN371/DIN376 COMBO Spiral Flute TiN (TD804)

Metric TiN-Coated Spiral Tap
From $46.42INC GST
From $42.20 EX GST
Available in Size
M2 M2.3 M2.2 +22
In stock
YG-1 LEGEND 6H YG-1 LEGEND FORM C YG-1 LEGEND MF YG-1 LEGEND 60° YG-1 LEGEND TiN YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376 YG-1 LEGEND HELIX SQUARE 40
Add to Cart
View Comparison
New

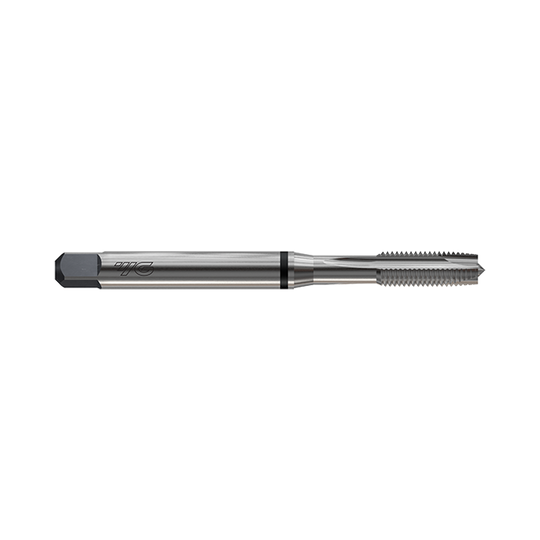

DIN371/DIN374 COMBO Spiral Point Bright (TC874) DIN371/DIN374 COMBO Spiral Point Bright (TC874)
