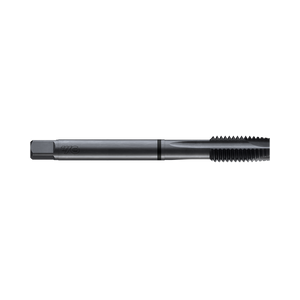

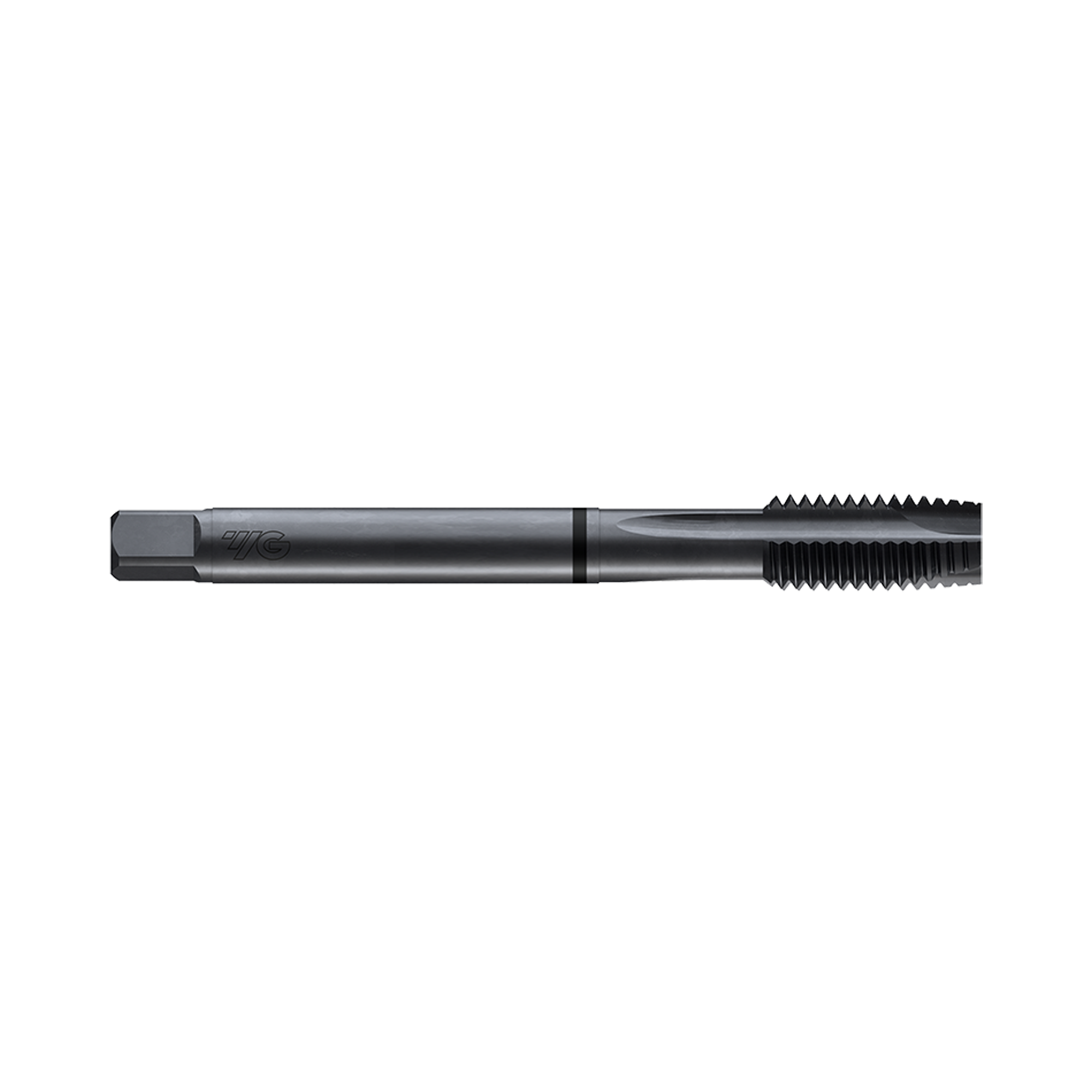

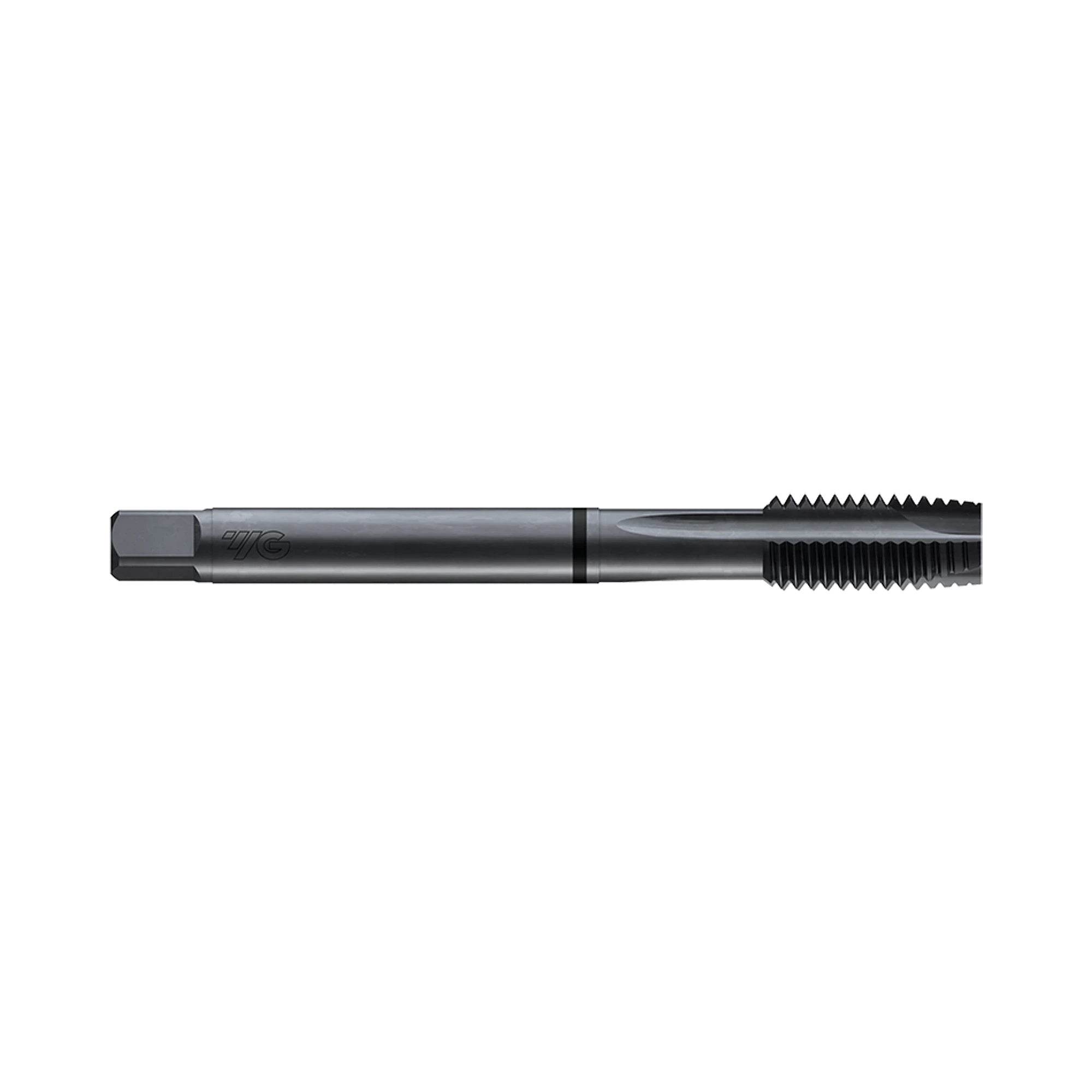

DIN371/DIN376 COMBO Spiral Point Steam Homo (TB814)

  • $33.00INC GST $30.00 EX GST
DIN371/DIN376 COMBO Spiral Point Steam Homo (TB814)
DIN371/DIN376 COMBO Spiral Point Steam Homo (TB814)

DIN371/DIN376 COMBO Spiral Point Steam Homo (TB814)

  • $33.00INC GST $30.00 EX GST

Code: TB814316

P M K N
Size
Pitch (mm)
Loading stock…
Buy Local
Minimum order: $100.00
$100.00 to go
Spend $100.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)Stock Price Qty Add
TB814316M6117.080.030.06.04.98.035.0 5 days $30.00
TB814366M81.2520.090.035.08.06.29.036.8 5 days $34.90

Add DIN371/DIN376 COMBO Spiral Point Steam Homo (TB814) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • For using multi-purpose and correct thread profiles & long tool life due to special tap geometry.
  • YG-1 company has a patent.
Product Data
Workpiece Material P M K N
Operation Blind Drilling
Surface Treatment Steam Oxide Coating
Thread Angle 60
Thread Class 6H
Thread Form B
Thread Shape M
Tool Material HSS-E
Tool Standard DIN 371-376
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB814136 M2 0.4 8 45 13 2.8 2.1 5 3 TB814156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TB814176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TB814196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TB814206 M3 0.5 11 56 18 3.5 2.7 6 3 TB814226 M3.5 0.6 12 56 20 4 3 6 3 TB814246 M4 0.7 13 63 21 4.5 3.4 6 3 TB814266 M4.5 0.75 14 70 25 6 4.9 8 3 TB814286 M5 0.8 15 70 25 6 4.9 8 3 TB814316 M6 1 17 80 30 6 4.9 8 3 TB814346 M7 1 17 80 30 7 5.5 8 3 TB814366 M8 1.25 20 90 35 8 6.2 9 3 TB814396 M9 1.25 20 90 35 9 7 10 3 TB814426 M10 1.5 22 100 39 10 8 11 3 TB814466 M11 1.5 22 100 40 8 6.2 9 3 TB814496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TB814506 M12 1.75 24 110 44 9 7 10 3 TB814546 M14 2 26 110 44 11 9 12 3 TB814606 M16 2 27 110 44 12 9 12 3 TB814656 M18 2.5 30 125 50 14 11 14 4 TB814706 M20 2.5 32 140 54 16 12 15 4 TB814746 M22 2.5 32 140 54 18 14.5 17 4 TB814786 M24 3 34 160 60 18 14.5 17 4 TB814866 M27 3 36 160 60 20 16 19 4 TB814946 M30 3.5 40 180 70 22 18 21 4
Blind Drilling
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
P High Alloyed

Great

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
N Aluminium

Great

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
N Plastic

Great

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB814136 M2 0.4 8 45 13 2.8 2.1 5 3 TB814156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TB814176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TB814196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TB814206 M3 0.5 11 56 18 3.5 2.7 6 3 TB814226 M3.5 0.6 12 56 20 4 3 6 3 TB814246 M4 0.7 13 63 21 4.5 3.4 6 3 TB814266 M4.5 0.75 14 70 25 6 4.9 8 3 TB814286 M5 0.8 15 70 25 6 4.9 8 3 TB814316 M6 1 17 80 30 6 4.9 8 3 TB814346 M7 1 17 80 30 7 5.5 8 3 TB814366 M8 1.25 20 90 35 8 6.2 9 3 TB814396 M9 1.25 20 90 35 9 7 10 3 TB814426 M10 1.5 22 100 39 10 8 11 3 TB814466 M11 1.5 22 100 40 8 6.2 9 3 TB814496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TB814506 M12 1.75 24 110 44 9 7 10 3 TB814546 M14 2 26 110 44 11 9 12 3 TB814606 M16 2 27 110 44 12 9 12 3 TB814656 M18 2.5 30 125 50 14 11 14 4 TB814706 M20 2.5 32 140 54 16 12 15 4 TB814746 M22 2.5 32 140 54 18 14.5 17 4 TB814786 M24 3 34 160 60 18 14.5 17 4 TB814866 M27 3 36 160 60 20 16 19 4 TB814946 M30 3.5 40 180 70 22 18 21 4
