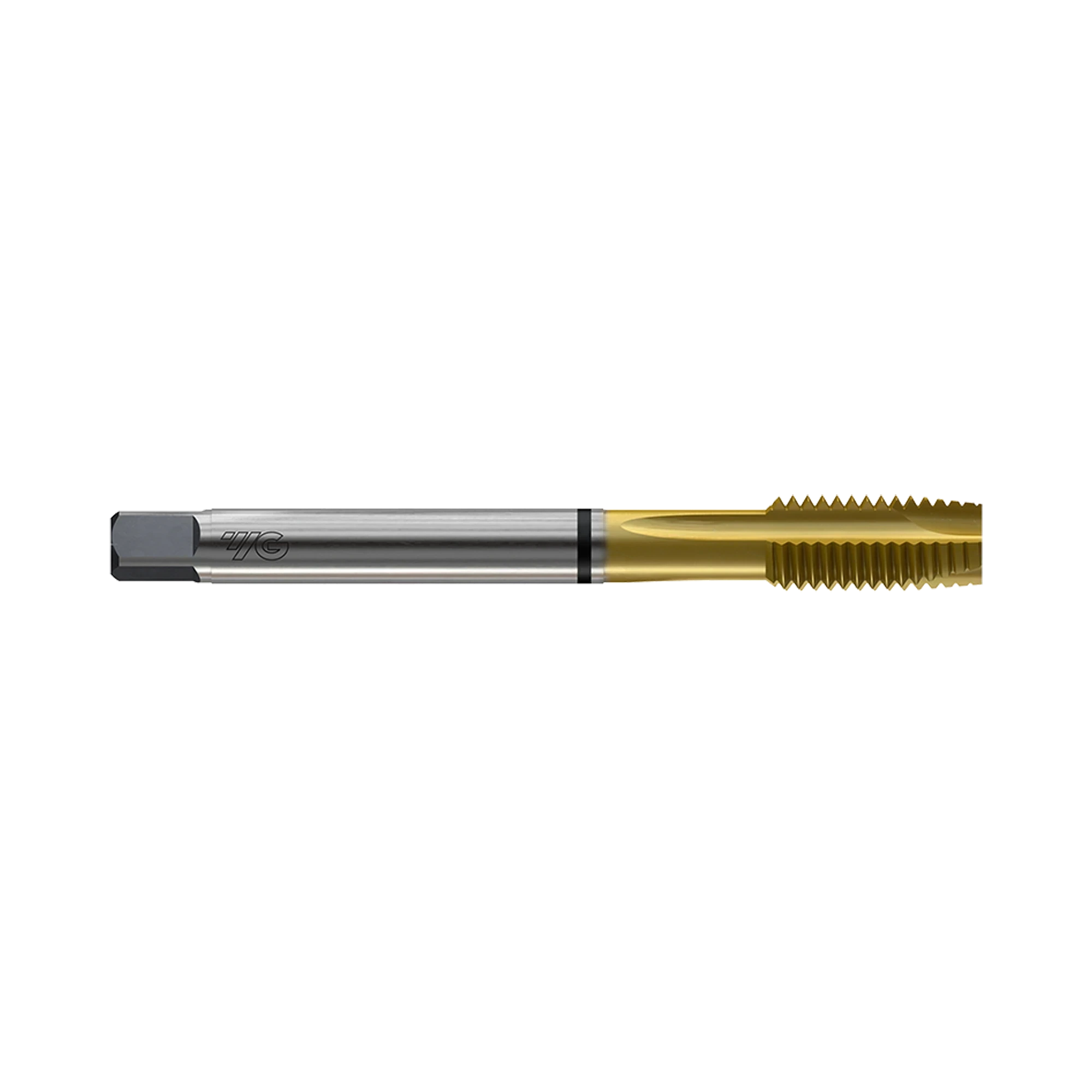

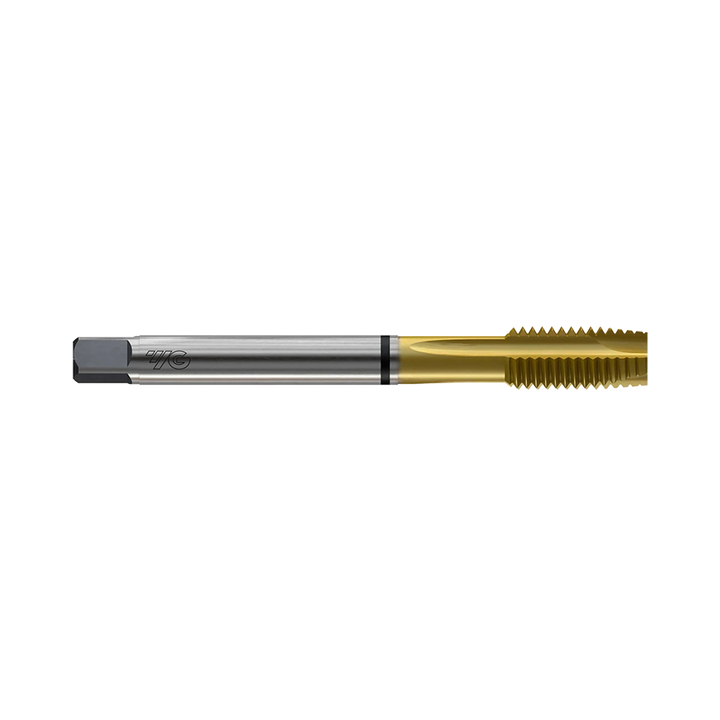

(TD834) HSS-E (M35) UNC Gun Point Combo Tap for Multi Purpose (TiN Coated)
UNC TiN-Coated Gun TapCode: TD834162
-
Key Features
- UNC Universal Machine Tap
- HSS-E (M35) 5% Cobalt substrate
- Spiral point geometry for through holes
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.

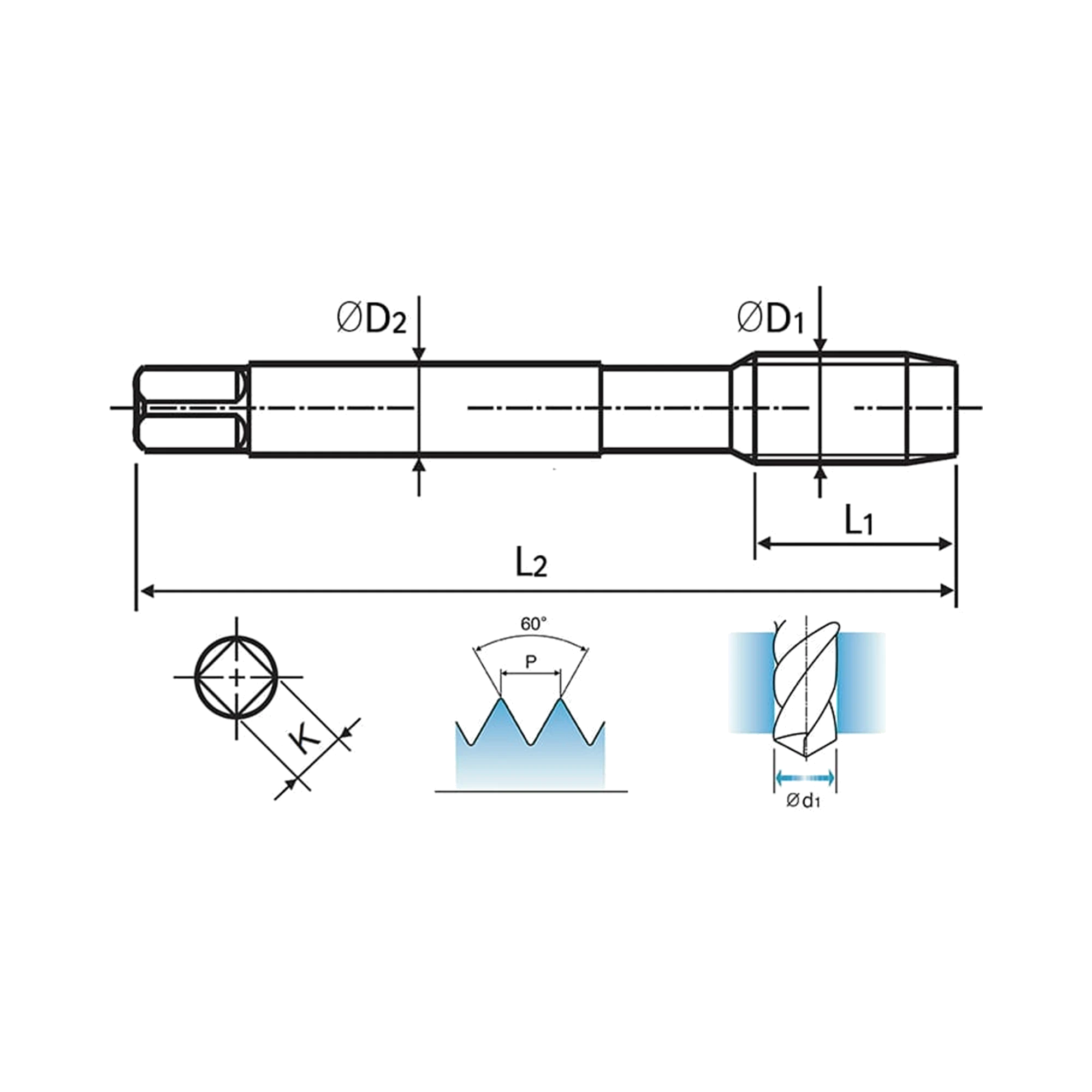

| SKU | Size | TPI | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TD834162 | #4 | 40UNC | 11.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.3 | 5 days | $43.20 | ||
| TD834202 | #5 | 40UNC | 11.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.6 | 5 days | $35.40 | ||
| TD834242 | #6 | 32UNC | 12.0 | 56.0 | 20.0 | 4.0 | 3.0 | 6.0 | 3 | 2.85 | 5 days | $39.10 | ||
| TD834282 | #8 | 32UNC | 13.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.5 | 5 days | $36.00 | ||
| TD834322 | #10 | 24UNC | 15.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 3.9 | 5 days | $37.00 | ||
| TD834362 | #12 | 24UNC | 16.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 4.5 | 5 days | $37.00 | ||
| TD834402 | 1/4 | 20UNC | 17.0 | 80.0 | 30.0 | 7.0 | 5.5 | 8.0 | 3 | 5.2 | 5 days | $37.00 | ||
| TD834442 | 5/16 | 18UNC | 20.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 3 | 6.6 | 5 days | $48.60 | ||
| TD834482 | 3/8 | 16UNC | 22.0 | 100.0 | 39.0 | 8.0 | 7.0 | 10.0 | 3 | 8.0 | 5 days | $59.60 | ||
| TD834522 | 7/16 | 14UNC | 22.0 | 100.0 | 40.0 | 8.0 | 6.2 | 9.0 | 3 | 9.4 | 5 days | $77.80 | ||
| TD834562 | 1/2 | 13UNC | 25.0 | 110.0 | 44.0 | 9.0 | 7.0 | 10.0 | 3 | 10.75 | 5 days | $80.40 | ||
| TD834602 | 9/16 | 12UNC | 26.0 | 110.0 | 44.0 | 11.0 | 9.0 | 12.0 | 3 | 12.25 | 5 days | $96.70 | ||
| TD834642 | 5/8 | 11UNC | 27.0 | 110.0 | 44.0 | 12.0 | 9.0 | 12.0 | 3 | 13.5 | 5 days | $117.30 | ||
| TD834702 | 3/4 | 10UNC | 30.0 | 125.0 | 50.0 | 14.0 | 11.0 | 14.0 | 4 | 16.5 | In stock | $175.70 | ||
| TD834782 | 1 | 8UNC | 36.0 | 160.0 | 60.0 | 20.0 | 16.0 | 19.0 | 4 | 22.25 | 5 days | $306.50 |
Add (TD834) HSS-E (M35) UNC Gun Point Combo Tap for Multi Purpose (TiN Coated) to comparison
View Comparison- Overview
- Specifications
- Operation
- Work Material
- Reviews
Product Description
TD834 DIN371/DIN376 COMBO Spiral Point TiN tap forms correct UNC thread profiles across varied materials. HSS-E (M35) substrate with spiral point geometry suits through holes and efficient chip evacuation. TiN coating improves life, while YG-1 patented design helps prevent over feeding and premature failure.
- UNC Universal Machine Tap
- HSS-E (M35) 5% Cobalt substrate
- Spiral point geometry for through holes
- TiN coating improves tool life
- General purpose: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Aluminium, Non-Ferrous
Product Data
| Workpiece Material | P M K N |
| Operation | Blind Drilling |
| Surface Treatment | Titanium Nitride Coating |
| Thread Angle | 60 |
| Thread Class | 2B |
| Thread Form | B |
| Thread Shape | UNC |
| Tool Material | HSS-E |
| Tool Standard | DIN 371-376 |
Blind Drilling
Carbon Steels
Excellent
Good
Great
Excellent
Alloy Steels
Excellent
Good
Great
Excellent
Structural Steels
Great
Good
Great
Excellent
Mild & Free Machining
Excellent
Good
Great
Excellent
High Alloyed
Great
Good
Great
Excellent
Stainless Steels
Great
Good
Great
Excellent
Cast Iron
Great
Good
Great
Excellent
Aluminium
Great
Good
Great
Excellent
Bronze
Excellent
Good
Great
Excellent
Copper
Excellent
Good
Great
Excellent
Plastic
Great
Good
Great
Excellent
No VDI recommendations set for this product.
