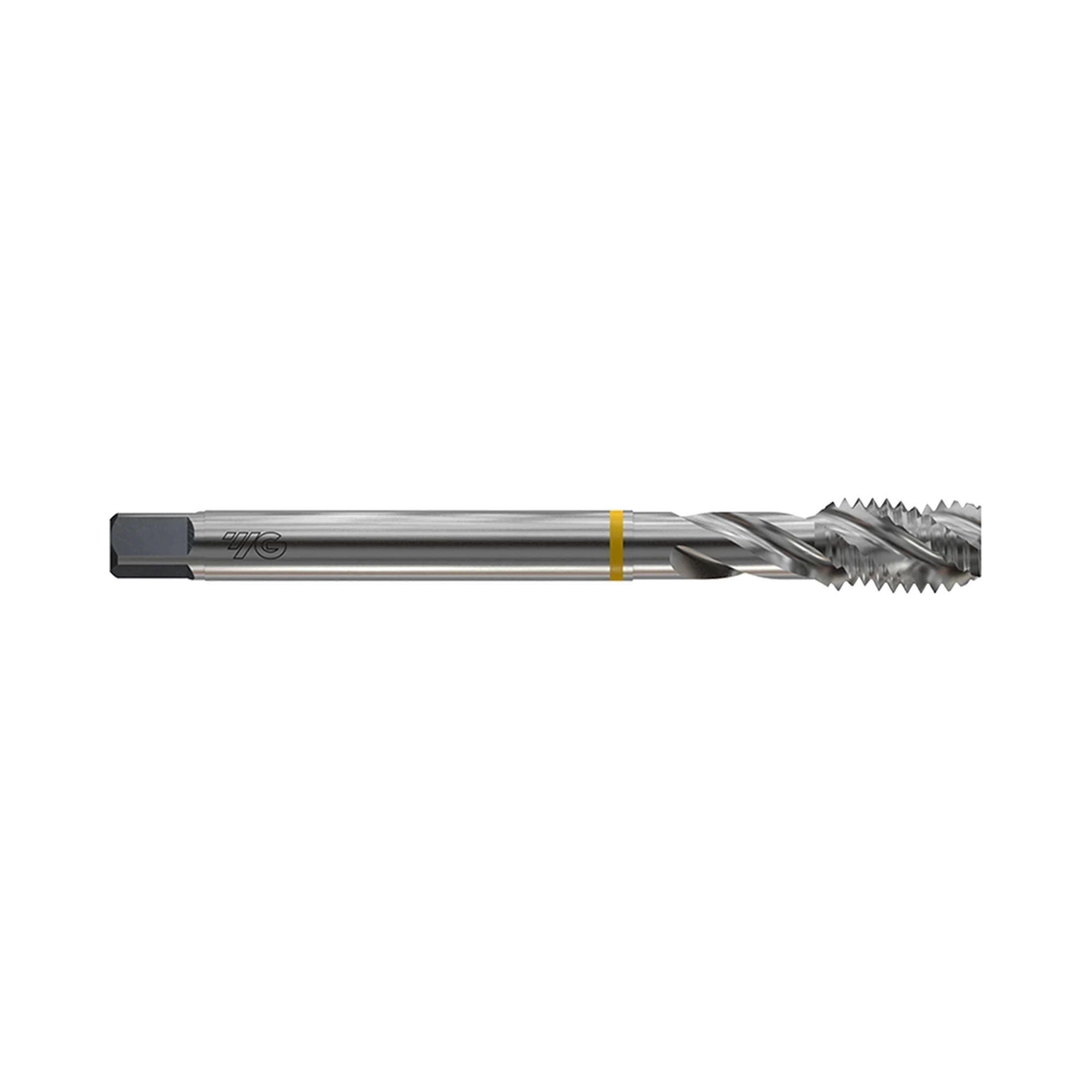

(TC711) HSS-E (M35) Metric Spiral Flute for General Purpose
Bright HSS-E spiral flute tap for blind holes
- SKU
- TC711136
Key features
- Bright HSS-E metric spiral flute machine tap
- Special flute geometry supports excellent chip evacuation
- Suitable for tapping blind holes
Made in South Korea
Blind-hole chip control
Special flute geometry supports effective chip evacuation in blind-hole tapping applications.
Metric coarse threading
Produces ISO metric coarse internal threads for general machine tapping work.
DIN shank coverage
DIN 371 and DIN 376 forms cover the TC711 metric size range.
| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC711136 | M2 | 0.4 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.6 | In stock | $31.30 | ||
| TC711176 | M2.5 | 0.45 | 9.0 | 50.0 | 15.0 | 2.8 | 2.1 | 5.0 | 3 | 2.05 | In stock | $31.50 | ||
| TC711206 | M3 | 0.5 | 6.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.5 | In stock | $24.10 | ||
| TC711226 | M3.5 | 0.6 | 7.0 | 56.0 | 20.0 | 4.0 | 3.0 | 6.0 | 3 | 2.9 | 1-2 Weeks | $30.90 | ||
| TC711246 | M4 | 0.7 | 7.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.3 | In stock | $24.10 | ||
| TC711266 | M4.5 | 0.75 | 8.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 3.8 | In stock | $29.10 | ||
| TC711286 | M5 | 0.8 | 8.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 4.2 | In stock | $25.70 | ||
| TC711316 | M6 | 1.0 | 10.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 5.0 | In stock | $25.70 | ||
| TC711346 | M7 | 1.0 | 10.0 | 80.0 | 30.0 | 7.0 | 5.5 | 8.0 | 3 | 6.0 | 1-2 Weeks | $30.00 | ||
| TC711366 | M8 | 1.25 | 13.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 3 | 6.8 | In stock | $26.40 | ||
| TC711426 | M10 | 1.5 | 15.0 | 100.0 | 39.0 | 10.0 | 8.0 | 11.0 | 3 | 8.5 | In stock | $35.20 | ||
| TC711506 | M12 | 1.75 | 18.0 | 110.0 | 44.0 | 9.0 | 7.0 | 10.0 | 3 | 10.2 | In stock | $40.30 | ||
| TC711546 | M14 | 2.0 | 20.0 | 110.0 | 44.0 | 11.0 | 9.0 | 12.0 | 3 | 12.0 | In stock | $47.30 | ||
| TC711606 | M16 | 2.0 | 20.0 | 110.0 | 44.0 | 12.0 | 9.0 | 12.0 | 3 | 14.0 | Low stock | $53.70 | ||
| TC711656 | M18 | 2.5 | 25.0 | 125.0 | 50.0 | 14.0 | 11.0 | 14.0 | 4 | 15.5 | In stock | $77.60 | ||
| TC711706 | M20 | 2.5 | 25.0 | 140.0 | 54.0 | 16.0 | 12.0 | 15.0 | 4 | 17.5 | In stock | $83.60 | ||
| TC711746 | M22 | 2.5 | 25.0 | 140.0 | 54.0 | 18.0 | 14.5 | 17.0 | 4 | 19.5 | Low stock | $103.70 | ||
| TC711786 | M24 | 3.0 | 30.0 | 160.0 | 60.0 | 18.0 | 14.5 | 17.0 | 4 | 21.0 | In stock | $125.90 | ||
| TC711866 | M27 | 3.0 | 30.0 | 160.0 | 60.0 | 20.0 | 16.0 | 19.0 | 4 | 24.0 | Low stock | $167.40 | ||
| TC711946 | M30 | 3.5 | 35.0 | 180.0 | 70.0 | 22.0 | 18.0 | 21.0 | 4 | 26.5 | In stock | $214.10 |
Add (TC711) HSS-E (M35) Metric Spiral Flute for General Purpose to comparison
View Comparison- Overview
- Work Material
- Reviews
YG-1 TC711 is a bright HSS-E metric spiral flute machine tap designed for blind-hole threading. Its special flute geometry supports excellent chip evacuation when producing ISO metric coarse internal threads. This general-purpose tap series uses DIN 371 shanks from M2 to M10. DIN 376 shanks cover larger sizes from M11 to M30 within the series. Listed shop variants cover M2 to M30 thread sizes with metric coarse pitches. Select the SKU matched to the required nominal diameter and pitch. The bright finish provides the surface treatment specified for the TC711 range. It is intended for general machine tapping applications requiring controlled chip removal in blind holes.
- Bright HSS-E metric spiral flute machine tap
- Special flute geometry supports excellent chip evacuation
- Suitable for tapping blind holes
- Produces ISO metric coarse internal threads
- DIN 371 shanks from M2 to M10
- DIN 376 shanks from M11 to M30
| Surface Treatment | Bright |
| Tool Material | HSS-E |
Work materials
VDI 3323 recommendations for this tool.
Steel
8 gradesCast iron
2 gradesStainless steel
2 gradesNon-ferrous materials
6 gradesVDI grade reference18 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Good | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Good | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Good | 300 | 32 |
| 12 | MStainless steel | Good | 200 | 15 |
| 13 | MStainless steel | Good | 240 | 23 |
| 17 | KNodular cast iron | Excellent | 160 | 3 |
| 18 | KNodular cast iron | Excellent | 250 | 25 |
| 21 | NWrought aluminium | Good | 60 | - |
| 23 | NCast aluminium | Good | 75 | - |
| 24 | NCast aluminium | Good | 90 | - |
| 25 | NCast aluminium | Excellent | 130 | - |
| 26 | NCopper, bronze and brass | Good | 110 | - |
| 28 | NCopper, bronze and brass | Excellent | 100 | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
