New

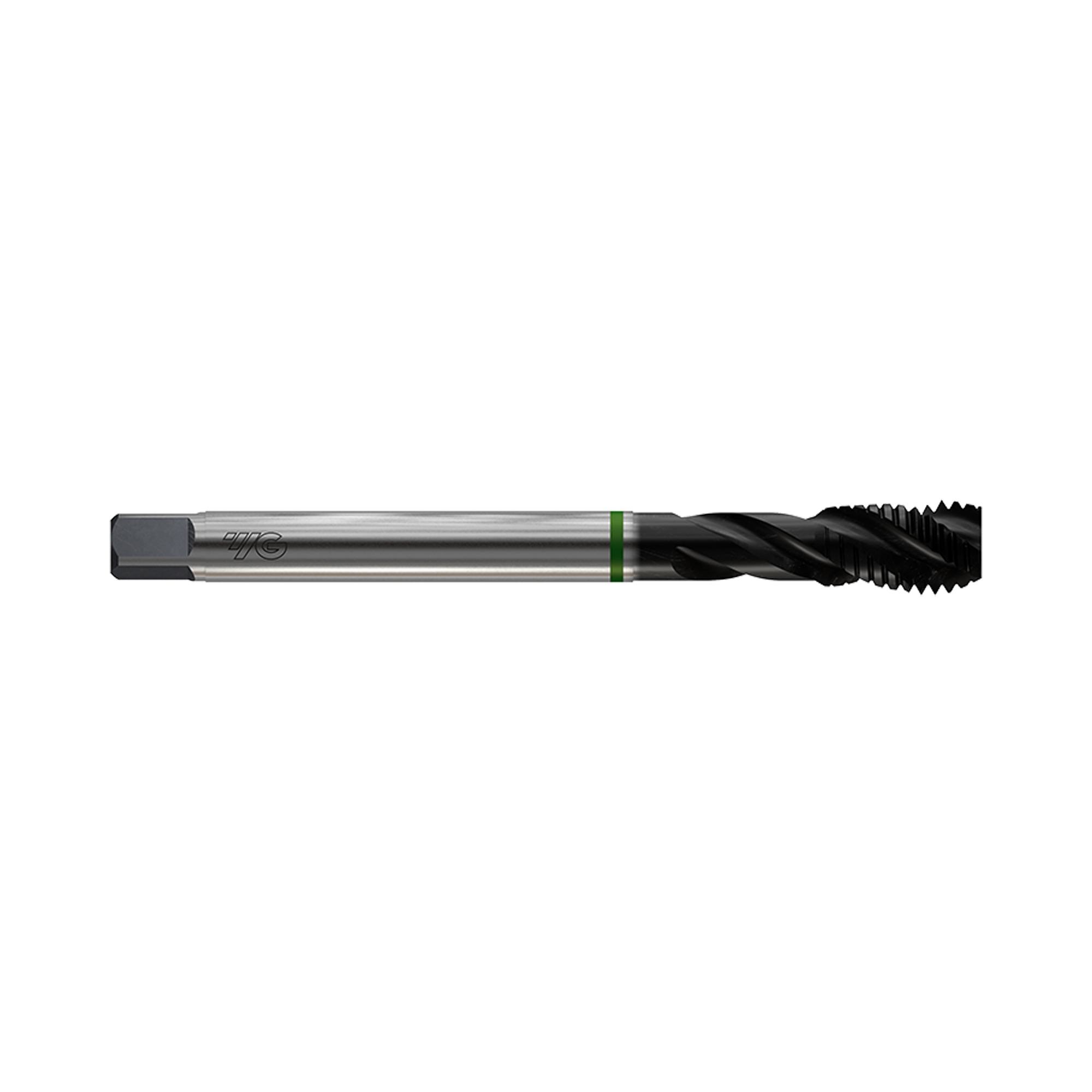

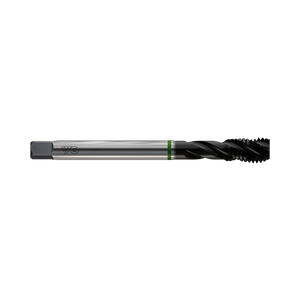

DIN371/DIN376 Spiral Flute Hardslick Recessed Thread (TCH14)

  • $39.05INC GST $35.50 EX GST
DIN371/DIN376 Spiral Flute Hardslick Recessed Thread (TCH14)
DIN371/DIN376 Spiral Flute Hardslick Recessed Thread (TCH14)
New

DIN371/DIN376 Spiral Flute Hardslick Recessed Thread (TCH14)

  • $39.05INC GST $35.50 EX GST

Code: TCH14136

P M
Size
Pitch (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add DIN371/DIN376 Spiral Flute Hardslick Recessed Thread (TCH14) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • With recessed threads for machine tapping of deep blind holes.
  • Suitable for tapping blind holes due to special flute geometry and excellent chip evacuation.
Product Data
Workpiece Material P M
Helix Angle Square 40
Operation Blind Drilling
Thread Angle 60
Thread Class 6H
Thread Form C
Thread Shape M
Tool Material HSS-E
Tool Standard DIN 371-376
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TCH14136 M2 0.4 8 45 13 2.8 2.1 5 3 TCH14156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TCH14176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TCH14196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TCH14206 M3 0.5 6 56 18 3.5 2.7 6 3 TCH14226 M3.5 0.6 7 56 20 4 3 6 3 TCH14246 M4 0.7 7 63 21 4.5 3.4 6 3 TCH14266 M4.5 0.75 8 70 25 6 4.9 8 3 TCH14286 M5 0.8 8 70 25 6 4.9 8 3 TCH14316 M6 1 10 80 30 6 4.9 8 3 TCH14346 M7 1 10 80 30 7 5.5 8 3 TCH14366 M8 1.25 13 90 35 8 6.2 9 3 TCH14396 M9 1.25 13 90 35 9 7 10 3 TCH14426 M10 1.5 15 100 39 10 8 11 3 TCH14466 M11 1.5 17 100 40 8 6.2 9 3 TCH14496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TCH14506 M12 1.75 18 110 44 9 7 10 3 TCH14546 M14 2 20 110 44 11 9 12 3 TCH14606 M16 2 20 110 44 12 9 12 3 TCH14656 M18 2.5 25 125 50 14 11 14 4 TCH14706 M20 2.5 25 140 54 16 12 15 4 TCH14746 M22 2.5 25 140 54 18 14.5 17 4 TCH14786 M24 3 30 160 60 18 14.5 17 4 TCH14866 M27 3 30 160 60 20 16 19 4 TCH14946 M30 3.5 35 180 70 22 18 21 4
Blind Drilling
P Carbon Steels

Great

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TCH14136 M2 0.4 8 45 13 2.8 2.1 5 3 TCH14156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TCH14176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TCH14196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TCH14206 M3 0.5 6 56 18 3.5 2.7 6 3 TCH14226 M3.5 0.6 7 56 20 4 3 6 3 TCH14246 M4 0.7 7 63 21 4.5 3.4 6 3 TCH14266 M4.5 0.75 8 70 25 6 4.9 8 3 TCH14286 M5 0.8 8 70 25 6 4.9 8 3 TCH14316 M6 1 10 80 30 6 4.9 8 3 TCH14346 M7 1 10 80 30 7 5.5 8 3 TCH14366 M8 1.25 13 90 35 8 6.2 9 3 TCH14396 M9 1.25 13 90 35 9 7 10 3 TCH14426 M10 1.5 15 100 39 10 8 11 3 TCH14466 M11 1.5 17 100 40 8 6.2 9 3 TCH14496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TCH14506 M12 1.75 18 110 44 9 7 10 3 TCH14546 M14 2 20 110 44 11 9 12 3 TCH14606 M16 2 20 110 44 12 9 12 3 TCH14656 M18 2.5 25 125 50 14 11 14 4 TCH14706 M20 2.5 25 140 54 16 12 15 4 TCH14746 M22 2.5 25 140 54 18 14.5 17 4 TCH14786 M24 3 30 160 60 18 14.5 17 4 TCH14866 M27 3 30 160 60 20 16 19 4 TCH14946 M30 3.5 35 180 70 22 18 21 4
