(TB313) HSS-E (M35) Metric Spiral Flute for Hardened

Metric spiral flute taps for blind holes

(TB313) HSS-E (M35) Metric Spiral Flute for Hardened
$17.38 INC GST $15.80 EX GST
SKU
TB313206
Work materials
PMN

Key features

  • Special flute geometry supports blind-hole tapping and chip evacuation
  • HSS-E metric coarse-thread machine tap
  • Vap finish with R40 geometry
Tool material HSS-E
Size
Pitch (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Clear blind-hole tapping

Special flute geometry supports efficient chip evacuation where clearance below the thread is limited.

Suitable steel coverage

Recommended for high-alloy and tool steels, with good suitability for hardened steel.

Metric thread range

Supplied variants cover common ISO metric coarse threads from M3 × 0.5 to M16 × 2.0.

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)CAD filesStock Price Qty Add
TB313206M30.56.056.018.03.52.76.032.5STEPDXF 1-2 Weeks $15.80
TB313246M40.77.063.021.04.53.46.033.3– 1-2 Weeks $15.80
TB313316M61.010.080.030.06.04.98.035.0– 1-2 Weeks $16.40
TB313366M81.2513.090.035.08.06.29.036.8– 1-2 Weeks $21.10
TB313426M101.515.0100.039.010.08.011.038.5– 1-2 Weeks $25.50
TB313506M121.7518.0110.044.09.07.010.0310.2– Low stock $34.00
TB313606M162.020.0110.044.012.09.012.0314.0– 1-2 Weeks $56.20

Add (TB313) HSS-E (M35) Metric Spiral Flute for Hardened to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

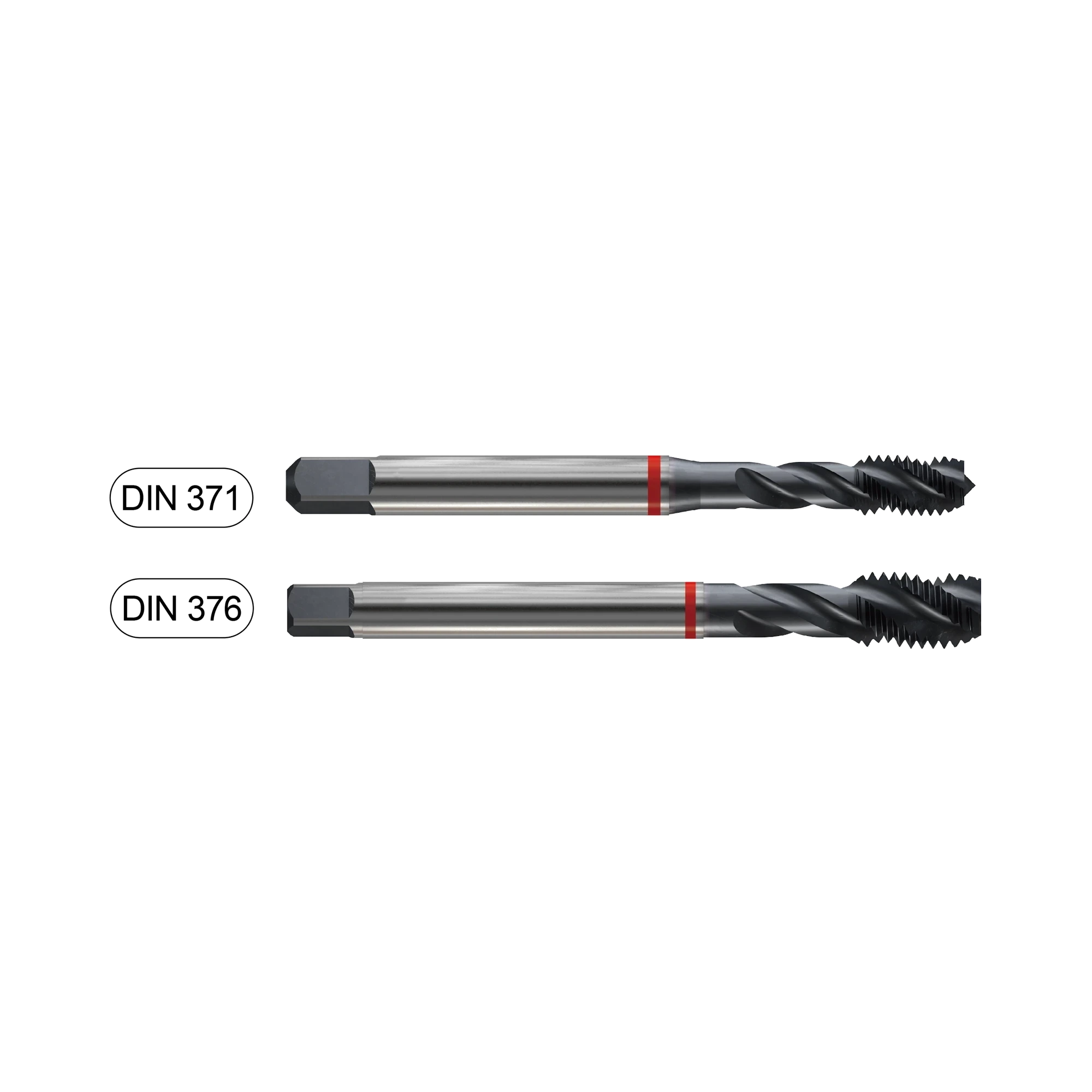

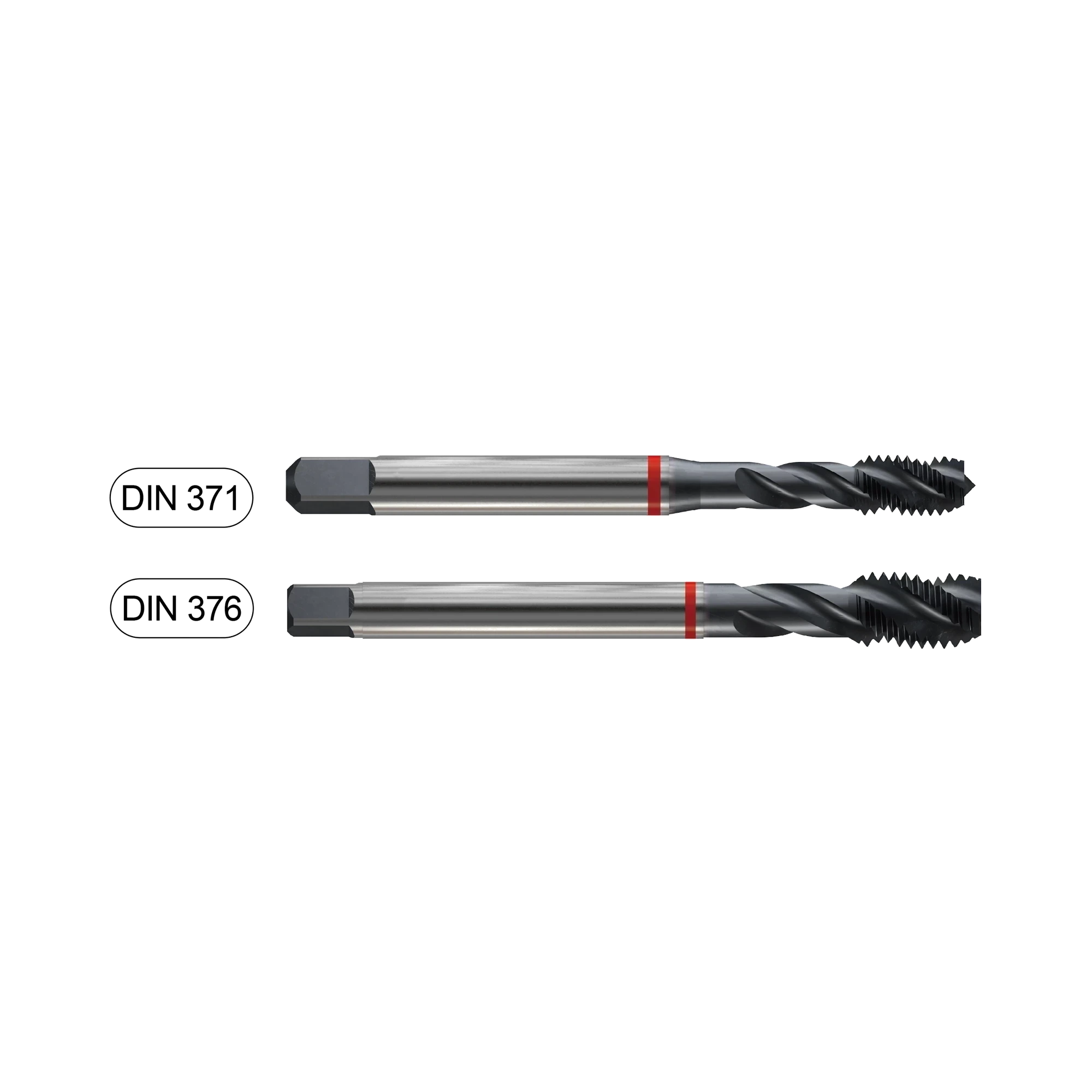

YG-1 TB313 is a metric spiral flute machine tap with special flute geometry for blind holes. Designed for ISO metric coarse threads to DIN 13, it evacuates chips efficiently from restricted holes. Its HSS-E material and Vap finish support tapping in the listed recommended materials. The series is rated excellent for high-alloy and tool steels, and good for hardened steel.

DIN 371 and DIN 376 forms cover the supplied M3 × 0.5 through M16 × 2.0 variants. A C 6H tolerance and 60° thread angle suit specified ISO metric coarse threads. The spiral flute moves chips away from the cutting zone below threaded depth.

  • Special flute geometry supports blind-hole tapping and chip evacuation
  • HSS-E metric coarse-thread machine tap
  • Vap finish with R40 geometry
  • Excellent recommendation for high-alloy and tool steels
  • Good recommendation for hardened steel
  • DIN 371 and DIN 376 forms with C 6H tolerance
Product Data
Tool Material HSS-E
EDP No. Size Pitch ThreadClass Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB313136 M2 0.4 6H 8 45 13 2.8 2.1 5 3 TB313156 M2.2 0.45 6H 8 45 13 2.8 2.1 5 3 TB313176 M2.5 0.45 6H 9 50 15 2.8 2.1 5 3 TB313196 * M2.3 0.4 6H 8 45 13 2.8 2.1 5 3 TB313206 M3 0.5 6H 6 56 18 3.5 2.7 6 3 TB313226 M3.5 0.6 6H 7 56 20 4 3 6 3 TB313246 M4 0.7 6H 7 63 21 4.5 3.4 6 3 TB313266 M4.5 0.75 6H 8 70 25 6 4.9 8 3 TB313286 M5 0.8 6H 8 70 25 6 4.9 8 3 TB313316 M6 1 6H 10 80 30 6 4.9 8 3 TB313346 M7 1 6H 10 80 30 7 5.5 8 3 TB313366 M8 1.25 6H 13 90 35 8 6.2 9 3 TB313396 M9 1.25 6H 13 90 35 9 7 10 3 TB313426 M10 1.5 6H 15 100 39 10 8 11 3 TB313466 M11 1.5 6H 17 100 40 8 6.2 9 3 TB313496 * M2.6 0.45 6H 9 50 15 2.8 2.1 5 3 TB313506 M12 1.75 6H 18 110 44 9 7 10 3 TB313546 M14 2 6H 20 110 44 11 9 12 3 TB313606 M16 2 6H 20 110 44 12 9 12 3 TB313656 M18 2.5 6H 25 125 50 14 11 14 4 TB313706 M20 2.5 6H 25 140 54 16 12 15 4 TB313746 M22 2.5 6H 25 140 54 18 14.5 17 4 TB313786 M24 3 6H 30 160 60 18 14.5 17 4 TB313866 M27 3 6H 30 160 60 20 16 19 4 TB313946 M30 3.5 6H 35 180 70 22 18 21 4

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

3 grades
Low-alloy steel
ExcellentVDI 9
GoodVDI 7–8

Non-ferrous materials

1 grade
Copper, bronze and brass
GoodVDI 26

Stainless steel

1 grade
Stainless steel
GoodVDI 14
VDI grade reference5 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
7PLow-alloy steelGood27529
8PLow-alloy steelGood30032
9PLow-alloy steelExcellent35038
14MStainless steelGood18010
26NCopper, bronze and brassGood110-

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

EDP No. Size Pitch ThreadClass Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB313136 M2 0.4 6H 8 45 13 2.8 2.1 5 3 TB313156 M2.2 0.45 6H 8 45 13 2.8 2.1 5 3 TB313176 M2.5 0.45 6H 9 50 15 2.8 2.1 5 3 TB313196 * M2.3 0.4 6H 8 45 13 2.8 2.1 5 3 TB313206 M3 0.5 6H 6 56 18 3.5 2.7 6 3 TB313226 M3.5 0.6 6H 7 56 20 4 3 6 3 TB313246 M4 0.7 6H 7 63 21 4.5 3.4 6 3 TB313266 M4.5 0.75 6H 8 70 25 6 4.9 8 3 TB313286 M5 0.8 6H 8 70 25 6 4.9 8 3 TB313316 M6 1 6H 10 80 30 6 4.9 8 3 TB313346 M7 1 6H 10 80 30 7 5.5 8 3 TB313366 M8 1.25 6H 13 90 35 8 6.2 9 3 TB313396 M9 1.25 6H 13 90 35 9 7 10 3 TB313426 M10 1.5 6H 15 100 39 10 8 11 3 TB313466 M11 1.5 6H 17 100 40 8 6.2 9 3 TB313496 * M2.6 0.45 6H 9 50 15 2.8 2.1 5 3 TB313506 M12 1.75 6H 18 110 44 9 7 10 3 TB313546 M14 2 6H 20 110 44 11 9 12 3 TB313606 M16 2 6H 20 110 44 12 9 12 3 TB313656 M18 2.5 6H 25 125 50 14 11 14 4 TB313706 M20 2.5 6H 25 140 54 16 12 15 4 TB313746 M22 2.5 6H 25 140 54 18 14.5 17 4 TB313786 M24 3 6H 30 160 60 18 14.5 17 4 TB313866 M27 3 6H 30 160 60 20 16 19 4 TB313946 M30 3.5 6H 35 180 70 22 18 21 4
