(TY313) HSS-E (M35) Metric Spiral Flute for Hardened Steel (TiAlN Coated)
TiAlN-coated HSS-E spiral flute taps for hardened steel
- SKU
- TY313136
Key features
- TiAlN-coated HSS-E construction
- R40 spiral flute for blind-hole tapping
- C chamfer lead configuration
Made in South Korea
Blind-hole control
Special flute geometry supports chip evacuation when tapping blind holes.
Hardened-steel focus
TY313 is part of the YG TAP HARDENED series for hardened steel applications.
Useful metric coverage
Metric coarse thread sizes extend from M2 × 0.4 to M30 × 3.5.
| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TY313136 | M2 | 0.4 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.6 | 1-2 Weeks | - | ||
| TY313156 | M2.2 | 0.45 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.75 | 1-2 Weeks | - | ||
| TY313176 | M2.5 | 0.45 | 9.0 | 50.0 | 15.0 | 2.8 | 2.1 | 5.0 | 3 | 2.05 | 1-2 Weeks | - | ||
| TY313496 | M2.6 | 0.45 | 9.0 | 50.0 | 15.0 | 2.8 | 2.1 | 5.0 | 3 | 2.1 | 1-2 Weeks | - | ||
| TY313206 | M3 | 0.5 | 6.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.5 | 1-2 Weeks | - | ||
| TY313226 | M3.5 | 0.6 | 7.0 | 56.0 | 20.0 | 4.0 | 3.0 | 6.0 | 3 | 2.9 | 1-2 Weeks | - | ||
| TY313246 | M4 | 0.7 | 7.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.3 | 1-2 Weeks | - | ||
| TY313266 | M4.5 | 0.75 | 8.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 3.7 | 1-2 Weeks | - | ||
| TY313286 | M5 | 0.8 | 8.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 4.2 | 1-2 Weeks | - | ||
| TY313316 | M6 | 1.0 | 10.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 5.0 | 1-2 Weeks | - | ||
| TY313346 | M7 | 1.0 | 10.0 | 80.0 | 30.0 | 7.0 | 5.5 | 8.0 | 3 | 6.0 | 1-2 Weeks | - | ||
| TY313366 | M8 | 1.25 | 13.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 3 | 6.8 | 1-2 Weeks | - | ||
| TY313426 | M10 | 1.5 | 15.0 | 100.0 | 39.0 | 10.0 | 8.0 | 11.0 | 3 | 8.5 | Low stock | $63.09 | ||
| TY313506 | M12 | 1.75 | 18.0 | 110.0 | 44.0 | 9.0 | 7.0 | 10.0 | 3 | 10.2 | In stock | $67.10 | ||
| TY313546 | M14 | 2.0 | 20.0 | 110.0 | 44.0 | 11.0 | 9.0 | 12.0 | 3 | 12.0 | 1-2 Weeks | - | ||
| TY313606 | M16 | 2.0 | 20.0 | 110.0 | 44.0 | 12.0 | 9.0 | 12.0 | 3 | 14.0 | In stock | $80.20 | ||
| TY313656 | M18 | 2.5 | 25.0 | 125.0 | 50.0 | 14.0 | 11.0 | 14.0 | 4 | 15.5 | 1-2 Weeks | - | ||
| TY313706 | M20 | 2.5 | 25.0 | 140.0 | 54.0 | 16.0 | 12.0 | 15.0 | 4 | 17.5 | 1-2 Weeks | - | ||
| TY313786 | M24 | 3.0 | 30.0 | 160.0 | 60.0 | 18.0 | 14.5 | 17.0 | 4 | 21.0 | 1-2 Weeks | - | ||
| TY313946 | M30 | 3.5 | 35.0 | 180.0 | 70.0 | 22.0 | 18.0 | 21.0 | 4 | 26.5 | 1-2 Weeks | - |
Add (TY313) HSS-E (M35) Metric Spiral Flute for Hardened Steel (TiAlN Coated) to comparison
View Comparison- Overview
- Work Material
- Reviews

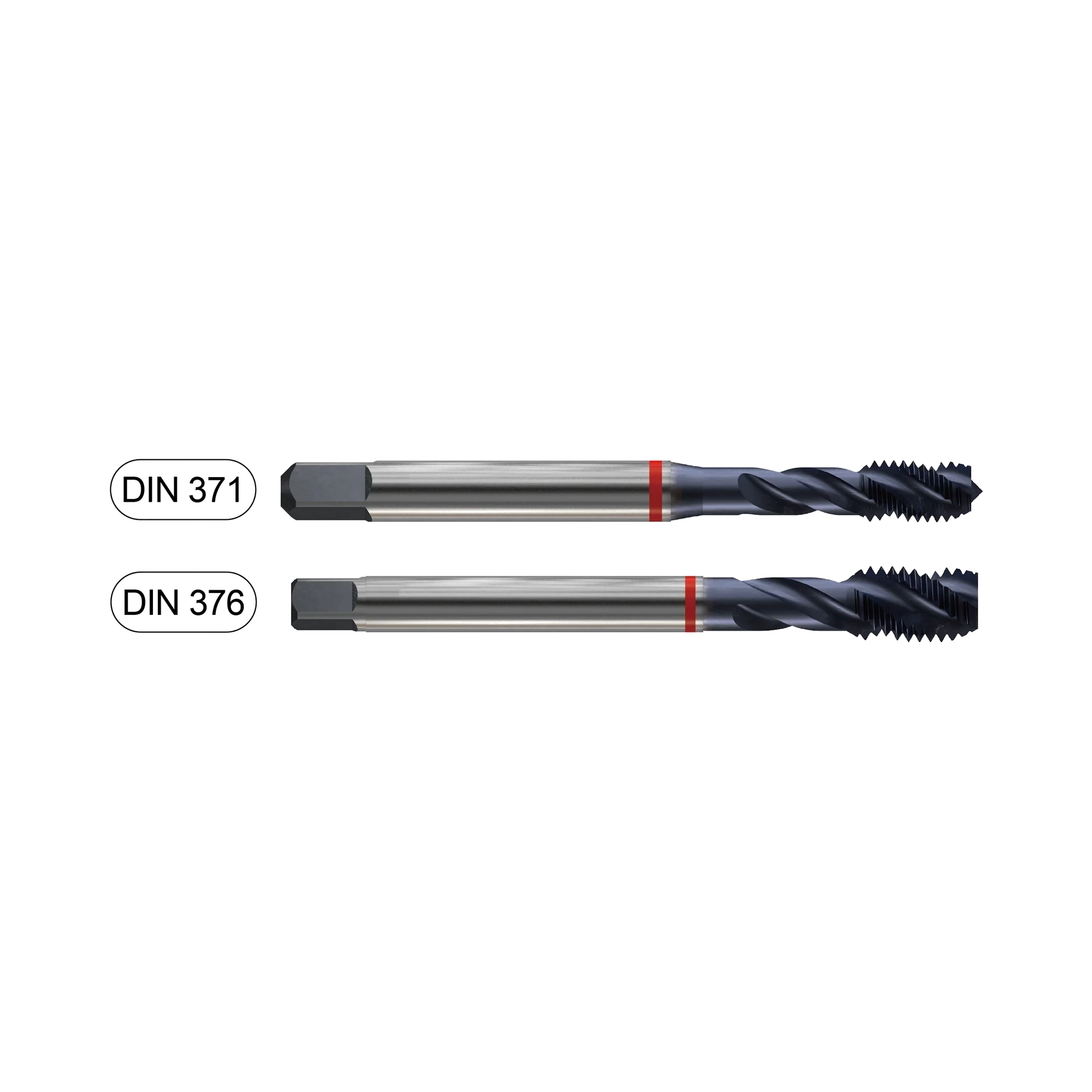

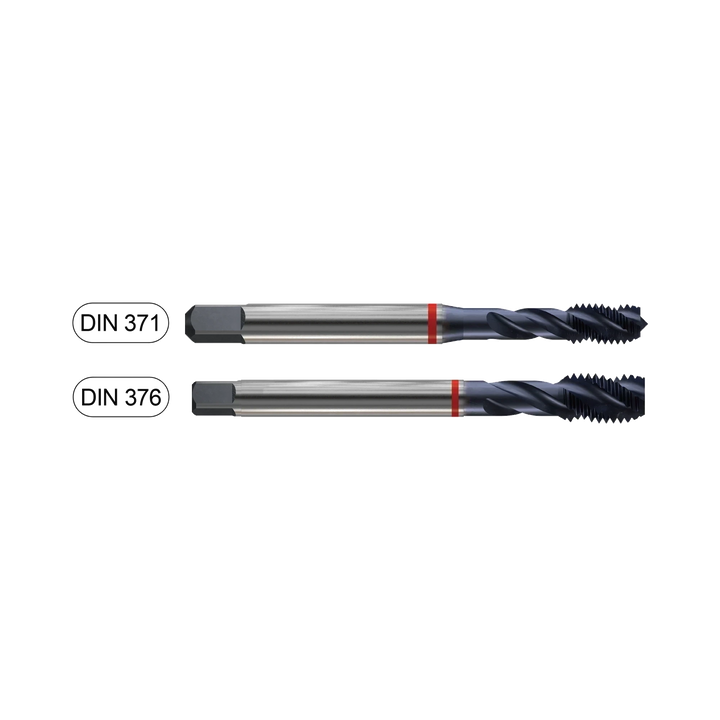

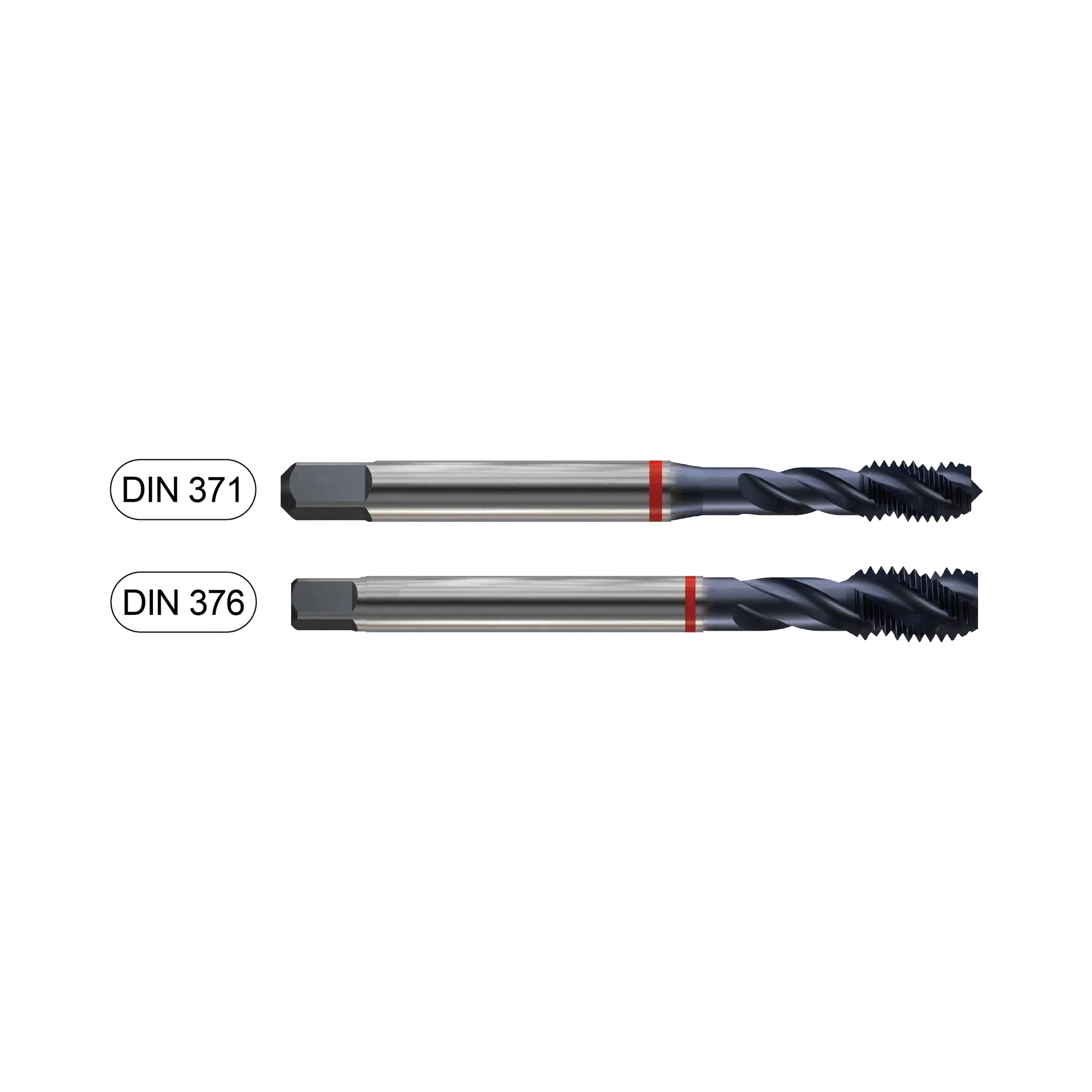

YG-1 TY313 is a TiAlN-coated HSS-E metric spiral flute machine tap for hardened steel. It cuts metric coarse internal threads in blind holes, using special flute geometry for chip evacuation. An R40 spiral flute and C chamfer lead support controlled tapping to a maximum 2.5xD depth. The TY313 family covers M2 × 0.4 through M30 × 3.5 metric coarse thread sizes.
Models from M2 to M10 follow DIN 371, while M12 to M30 use DIN 376. TiAlN coating complements the HSS-E construction for dedicated hardened-steel threading applications. The design provides a practical choice for machine tapping hardened steels where blind-hole chip removal matters.
- TiAlN-coated HSS-E construction
- R40 spiral flute for blind-hole tapping
- C chamfer lead configuration
- Maximum 2.5xD blind-hole depth
- Metric coarse sizes from M2 × 0.4 to M30 × 3.5
- DIN 371 and DIN 376 tap standards
| Surface Treatment | Titanium Aluminium Nitride Coating |
| Tool Material | HSS-E |
Work materials
VDI 3323 recommendations for this tool.
Steel
3 gradesNon-ferrous materials
1 gradeStainless steel
1 gradeVDI grade reference5 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 7 | PLow-alloy steel | Good | 275 | 29 |
| 8 | PLow-alloy steel | Good | 300 | 32 |
| 9 | PLow-alloy steel | Excellent | 350 | 38 |
| 14 | MStainless steel | Good | 180 | 10 |
| 26 | NCopper, bronze and brass | Good | 110 | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
