DIN371/DIN376 Straight Flute TiCN (T0997-TIC)
Metric Straight Tap for Hardened Steel
Loading 3D model…

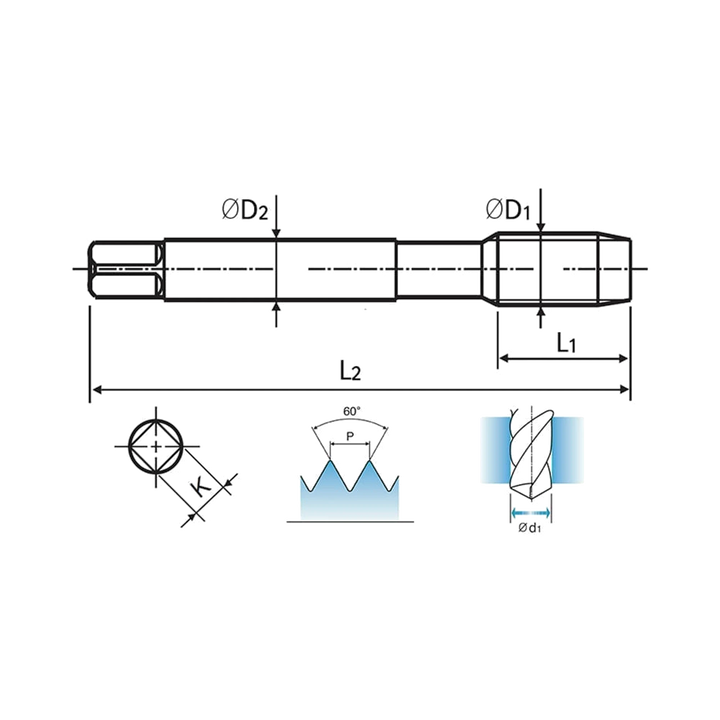

| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | CAD files | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T0997206TIC | M3 | 0.5 | 11.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 4 | 2.55 | STEP | 1-2 Weeks | $76.80 | ||
| T0997246TIC | M4 | 0.7 | 13.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 4 | 3.4 | – | 1-2 Weeks | $72.70 | ||
| T0997286TIC | M5 | 0.8 | 15.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 4 | 4.3 | – | 1-2 Weeks | $87.00 | ||
| T0997316TIC | M6 | 1.0 | 17.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 5 | 5.1 | – | 1-2 Weeks | $96.00 | ||
| T0997366TIC | M8 | 1.25 | 20.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 5 | 6.9 | – | 1-2 Weeks | $130.70 | ||
| T0997426TIC | M10 | 1.5 | 22.0 | 100.0 | 39.0 | 10.0 | 8.0 | 11.0 | 5 | 8.6 | – | 1-2 Weeks | $422.30 | ||
| T0997506TIC | M12 | 1.75 | 24.0 | 110.0 | - | 9.0 | 7.0 | 12.0 | 5 | 10.4 | – | 1-2 Weeks | $750.10 | ||
| T0997546TIC | M14 | 2.0 | 26.0 | 110.0 | - | 11.0 | 9.0 | 12.0 | 6 | 12.2 | – | 1-2 Weeks | $790.50 | ||
| T0997606TIC | M16 | 2.0 | 27.0 | 110.0 | - | 12.0 | 9.0 | 12.0 | 6 | 14.2 | – | 1-2 Weeks | $1,008.30 | ||
| T0997656TIC | M18 | 2.5 | 30.0 | 125.0 | - | 14.0 | 11.0 | 14.0 | 6 | 15.7 | – | 1-2 Weeks | $770.10 | ||
| T0997706TIC | M20 | 2.5 | 32.0 | 140.0 | - | 16.0 | 12.0 | 15.0 | 6 | 17.7 | DXF | 1-2 Weeks | $2,105.30 |
Add DIN371/DIN376 Straight Flute TiCN (T0997-TIC) to comparison
View Comparison- Overview
- Specifications
- Operation
- Work Material
- Reviews
- Carbide tap can increase tool life longer than HSS taps due to higher hardness.
- Suitable for hardened steels (HRc50~60)
| Workpiece Material | P H |
| Chamfer Lead | Form C |
| Operation | Blind Drilling, Through Drilling |
| Standard | DIN 371 / 376, DIN 371-376 |
| Surface Treatment | Titanium Carbon Nitride Coating |
| Thread Angle | 60 |
| Thread Class | 6HX |
| Thread Form | C |
| Thread Shape | M |
| Tool Material | Carbide |
| Tool Standard | DIN 371-376 |
Work materials
VDI 3323 recommendations for this tool.
Steel
1 gradeHardened materials
4 gradesVDI grade reference5 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 9 | PLow-alloy steel | Good | 350 | 38 |
| 38 | HHardened steel | Excellent | 550 | 55 |
| 39 | HHardened steel | Excellent | 630 | 60 |
| 40 | HChilled cast iron | Excellent | 400 | 42 |
| 41 | HHardened cast iron | Excellent | 550 | 55 |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
