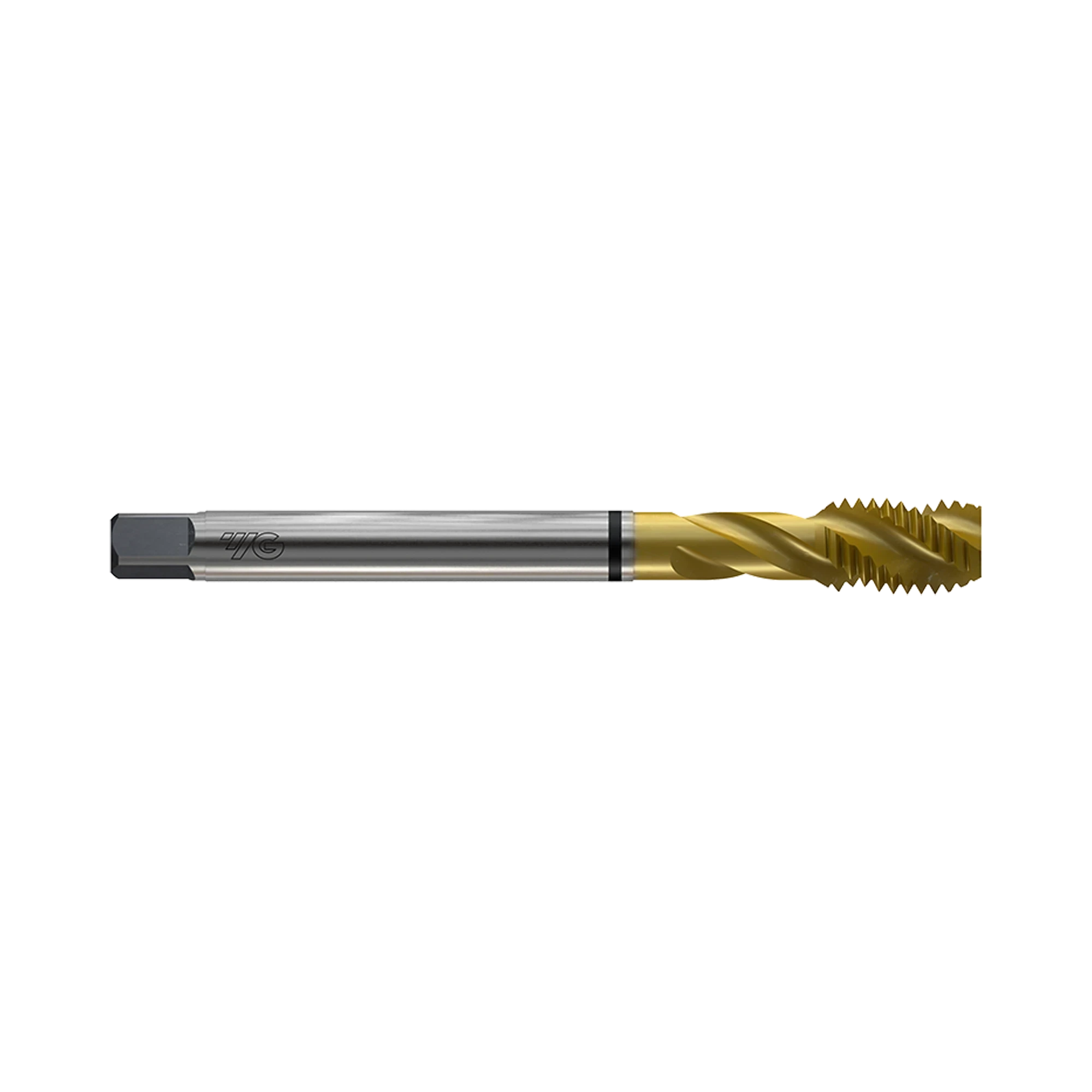

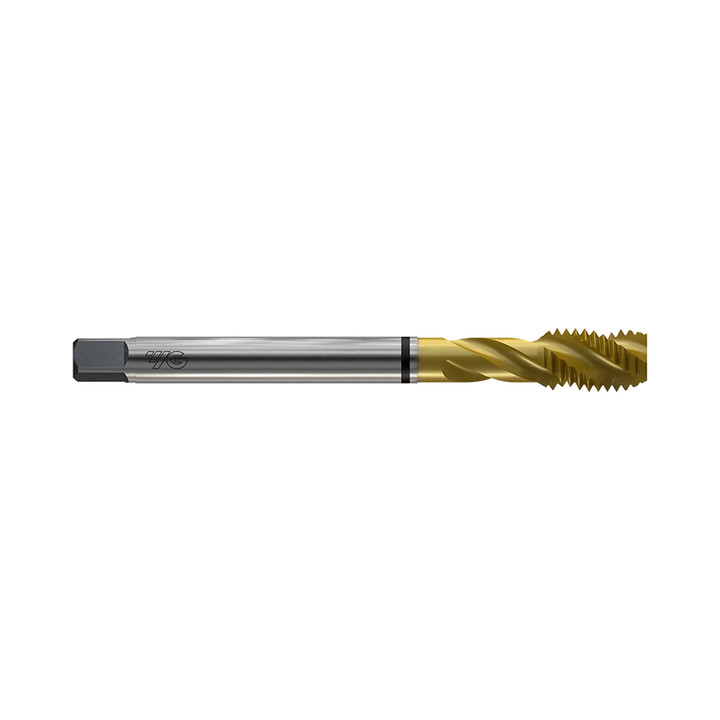

DIN374 COMBO Spiral Flute TiN (TD844)

DIN374 COMBO Spiral Flute TiN (TD844)
DIN374 COMBO Spiral Flute TiN (TD844)
New

DIN374 COMBO Spiral Flute TiN (TD844)

Product Code: TD844

YG-1 LEGEND 6H Thread Class: 6H YG-1 LEGEND FORM C Thread Form: C YG-1 LEGEND MF Thread Shape: MF YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND TiN Surface Treatment: Titanium Nitride Coating YG-1 LEGEND HSS-E Tool Material: HSS-E YG-1 LEGEND DIN 374 Tool Standard: DIN 374 YG-1 LEGEND HELIX SQUARE 40 Helix Angle: Square 40°
Buy Local
  • For using multi-purpose and correct thread profiles & long tool life due to special tap geometry.
  • YG-1 company has a patent.
Product Data
Workpiece Material P M K N
Helix Angle Square 40
Operation Blind Drilling
Surface Treatment Titanium Nitride Coating
Thread Angle 60
Thread Class 6H
Thread Form C
Thread Shape MF
Tool Material HSS-E
Tool Standard DIN 374
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add DIN374 COMBO Spiral Flute TiN (TD844) to comparison

View Comparison
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TD844256 M4 0.5 5 61 21 2.8 2.1 5 3 TD844296 M5 0.5 5 68 25 3.5 2.7 6 3 TD844326 M6 0.75 8 78 30 4.5 3.4 6 3 TD844336 M6 0.5 5 78 30 4.5 3.4 6 3 TD844356 M7 0.75 10 78 30 5.5 4.3 7 3 TD844376 M8 1 10 90 36 6 4.9 8 3 TD844386 M8 0.75 8 80 30 6 4.9 8 3 TD844436 M10 1.25 16 100 40 7 5.5 8 3 TD844446 M10 1 10 90 36 7 5.5 8 3 TD844456 M10 0.75 10 90 36 7 5.5 8 3 TD844516 M12 1.5 15 100 40 9 7 10 3 TD844526 M12 1.25 15 100 40 9 7 10 3 TD844536 M12 1 11 100 40 9 7 10 3 TD844556 M14 1.5 15 100 40 11 9 12 3 TD844566 M14 1.25 15 100 40 11 9 12 3 TD844576 M14 1 11 100 40 11 9 12 3 TD844616 M16 1.5 15 100 40 12 9 12 3 TD844626 M16 1 12 100 40 12 9 12 3 TD844676 M18 1.5 17 110 44 14 11 14 4 TD844686 M18 1 13 110 44 14 11 14 4 TD844726 M20 1.5 17 125 50 16 12 15 4 TD844736 M20 1 14 125 50 16 12 15 4 TD844766 M22 1.5 17 125 50 18 14.5 17 4 TD844776 M22 1 14 125 50 18 14.5 17 4 TD844796 M24 2 20 140 54 18 14.5 17 4 TD844806 M24 1.5 20 140 54 18 14.5 17 4 TD844856 M26 1.5 20 140 54 18 14.5 17 4 TD844876 M27 2 20 140 54 20 16 19 4 TD844886 M27 1.5 20 140 54 20 16 19 4 TD844916 M28 1.5 20 140 54 20 16 19 4 TD844966 M30 2 22 150 57 22 18 21 4 TD844976 M30 1.5 22 150 57 22 18 21 4

Operation

Blind Drilling

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
P High Alloyed

Great

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
N Aluminium

Great

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
N Plastic

Great

Good Great Excellent
