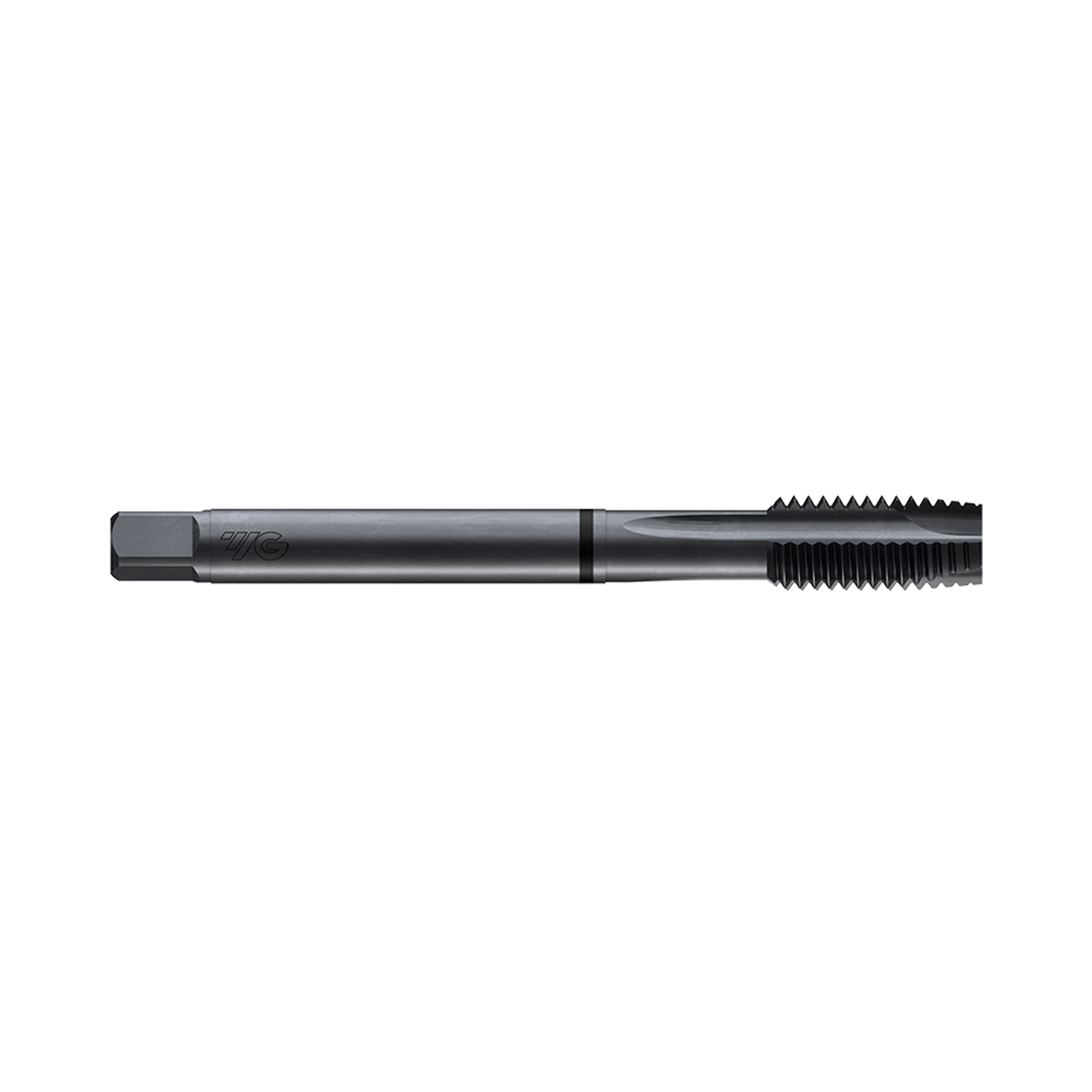

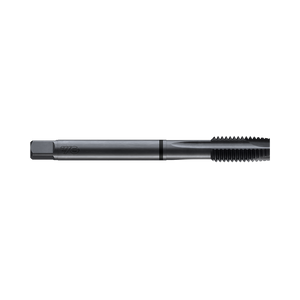

DIN374 COMBO Spiral Point Steam Homo (TB854)

  • $0.00INC GST $0.00 EX GST
DIN374 COMBO Spiral Point Steam Homo (TB854)
DIN374 COMBO Spiral Point Steam Homo (TB854)

DIN374 COMBO Spiral Point Steam Homo (TB854)

  • $0.00INC GST $0.00 EX GST Price available on request

Code: TB854966

P M K N
Loading stock…
Buy Local
Minimum order: $100.00
$100.00 to go
Spend $100.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUTitleThread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)Stock Price Qty Add
TB854966Default Title30.0150.057.022.018.021.0426.5 5 days -

Add DIN374 COMBO Spiral Point Steam Homo (TB854) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • For using multi-purpose and correct thread profiles & long tool life due to special tap geometry.
  • YG-1 company has a patent.
Product Data
Workpiece Material P M K N
Operation Blind Drilling
Surface Treatment Steam Oxide Coating
Thread Angle 60
Thread Class 6H
Thread Form B
Thread Shape MF
Tool Material HSS-E
Tool Standard DIN 374
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB854256 M4 0.5 10 61 21 2.8 2.1 5 3 TB854296 M5 0.5 11 68 25 3.5 2.7 6 3 TB854326 M6 0.75 13 78 30 4.5 3.4 6 3 TB854336 M6 0.5 13 78 30 4.5 3.4 6 3 TB854356 M7 0.75 14 78 30 5.5 4.3 7 3 TB854376 M8 1 17 90 36 6 4.9 8 3 TB854386 M8 0.75 14 80 36 6 4.9 8 3 TB854436 M10 1.25 22 100 40 7 5.5 8 3 TB854446 M10 1 18 90 40 7 5.5 8 3 TB854456 M10 0.75 18 90 40 7 5.5 8 3 TB854516 M12 1.5 22 100 40 9 7 10 3 TB854526 M12 1.25 22 100 40 9 7 10 3 TB854536 M12 1 18 100 40 9 7 10 3 TB854556 M14 1.5 22 100 40 11 9 12 3 TB854566 M14 1.25 22 100 40 11 9 12 3 TB854576 M14 1 22 100 40 11 9 12 3 TB854616 M16 1.5 22 100 40 12 9 12 3 TB854626 M16 1 18 100 40 12 9 12 3 TB854676 M18 1.5 25 110 44 14 11 14 4 TB854686 M18 1 20 110 44 14 11 14 4 TB854726 M20 1.5 25 125 50 16 12 15 4 TB854736 M20 1 20 125 50 16 12 15 4 TB854766 M22 1.5 25 125 50 18 14.5 17 4 TB854776 M22 1 20 125 50 18 14.5 17 4 TB854796 M24 2 27 140 54 18 14.5 17 4 TB854806 M24 1.5 27 140 54 18 14.5 17 4 TB854856 M26 1.5 28 140 54 18 14.5 17 4 TB854876 M27 2 28 140 54 20 16 19 4 TB854886 M27 1.5 28 140 54 20 16 19 4 TB854916 M28 1.5 28 140 54 20 16 19 4 TB854966 M30 2 30 150 57 22 18 21 4 TB854976 M30 1.5 30 150 57 22 18 21 4
Blind Drilling
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
P High Alloyed

Great

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
N Aluminium

Great

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
N Plastic

Great

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB854256 M4 0.5 10 61 21 2.8 2.1 5 3 TB854296 M5 0.5 11 68 25 3.5 2.7 6 3 TB854326 M6 0.75 13 78 30 4.5 3.4 6 3 TB854336 M6 0.5 13 78 30 4.5 3.4 6 3 TB854356 M7 0.75 14 78 30 5.5 4.3 7 3 TB854376 M8 1 17 90 36 6 4.9 8 3 TB854386 M8 0.75 14 80 36 6 4.9 8 3 TB854436 M10 1.25 22 100 40 7 5.5 8 3 TB854446 M10 1 18 90 40 7 5.5 8 3 TB854456 M10 0.75 18 90 40 7 5.5 8 3 TB854516 M12 1.5 22 100 40 9 7 10 3 TB854526 M12 1.25 22 100 40 9 7 10 3 TB854536 M12 1 18 100 40 9 7 10 3 TB854556 M14 1.5 22 100 40 11 9 12 3 TB854566 M14 1.25 22 100 40 11 9 12 3 TB854576 M14 1 22 100 40 11 9 12 3 TB854616 M16 1.5 22 100 40 12 9 12 3 TB854626 M16 1 18 100 40 12 9 12 3 TB854676 M18 1.5 25 110 44 14 11 14 4 TB854686 M18 1 20 110 44 14 11 14 4 TB854726 M20 1.5 25 125 50 16 12 15 4 TB854736 M20 1 20 125 50 16 12 15 4 TB854766 M22 1.5 25 125 50 18 14.5 17 4 TB854776 M22 1 20 125 50 18 14.5 17 4 TB854796 M24 2 27 140 54 18 14.5 17 4 TB854806 M24 1.5 27 140 54 18 14.5 17 4 TB854856 M26 1.5 28 140 54 18 14.5 17 4 TB854876 M27 2 28 140 54 20 16 19 4 TB854886 M27 1.5 28 140 54 20 16 19 4 TB854916 M28 1.5 28 140 54 20 16 19 4 TB854966 M30 2 30 150 57 22 18 21 4 TB854976 M30 1.5 30 150 57 22 18 21 4

Combo Tap
