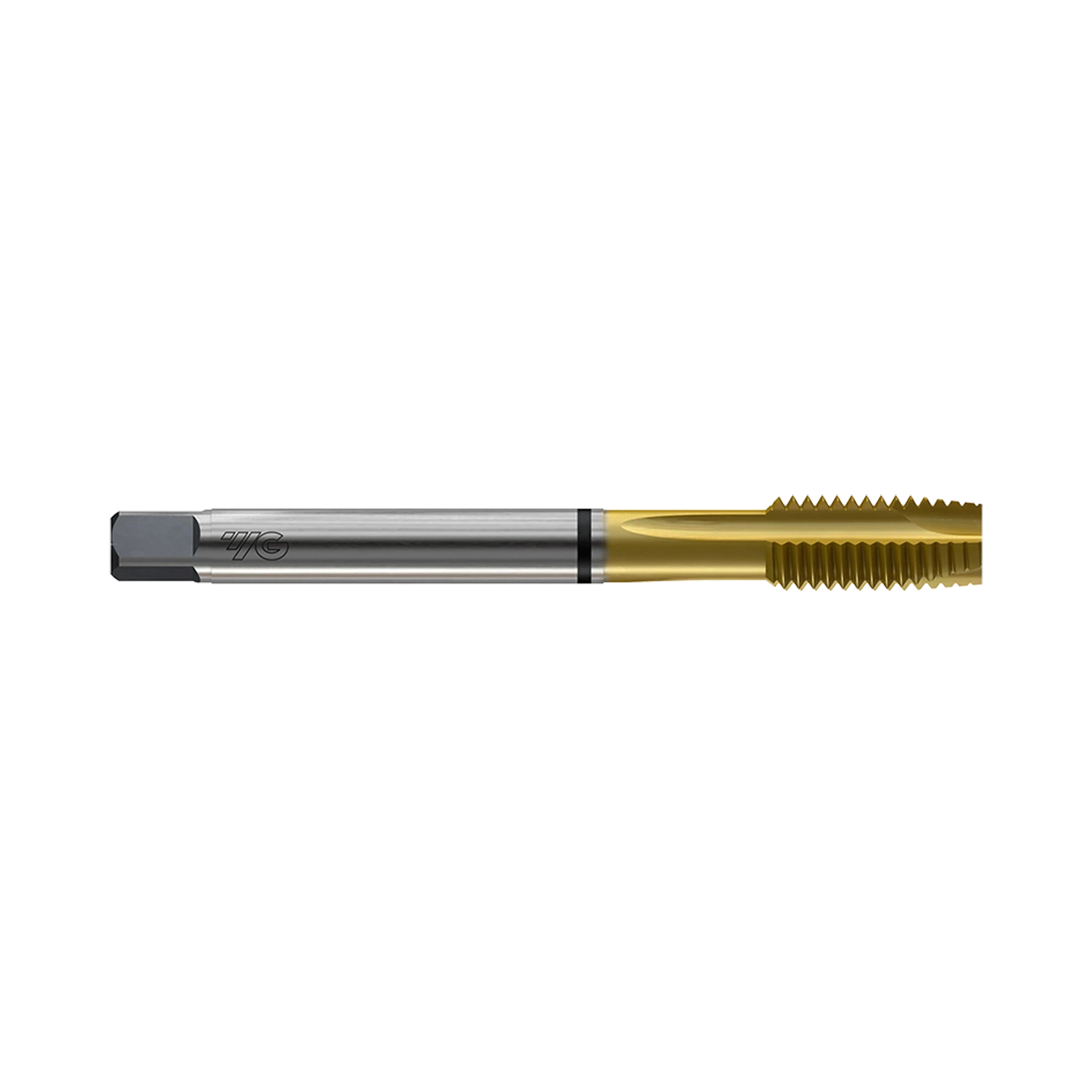

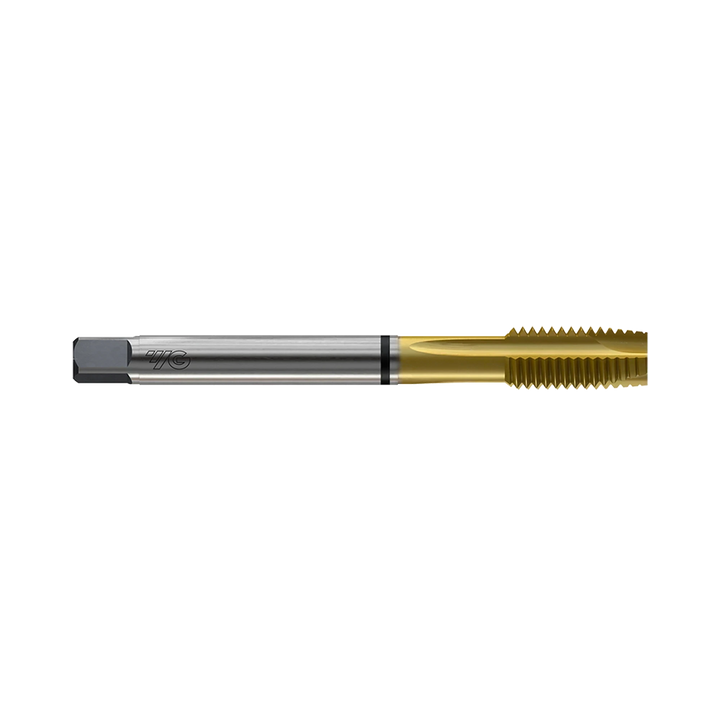

(TD854) HSS-E (M35) Metric Fine Gun Point Combo Tap for Multi Purpose (TiN Coated)
TiN-Coated Metric Fine Combo Tap for Through Holes
- SKU
- TD854296
Key features
- TiN-coated HSS-E M35 metric fine combo tap
- DIN 374 design with B chamfer
- Patented special geometry for correct thread profiles and long tool life
Made in South Korea
Patented thread geometry
Supports correct thread profiles and long tool life for multipurpose tapping work
Through-hole focus
Spiral point configuration is specified for through-hole depths up to 3.0×D
Metric fine coverage
Available from M5 × 0.5 through to M28 × 1.5 metric fine threads
| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TD854296 | M5 | 0.5 | 11.0 | 70.0 | 25.0 | 3.5 | 2.7 | 6.0 | 3 | 4.5 | 1-2 Weeks | $51.00 | ||
| TD854326 | M6 | 0.75 | 13.0 | 80.0 | 30.0 | 4.5 | 3.4 | 6.0 | 3 | 5.2 | 1-2 Weeks | $50.40 | ||
| TD854356 | M7 | 0.75 | 14.0 | 80.0 | 30.0 | 5.5 | 4.3 | 6.0 | 3 | 6.2 | 1-2 Weeks | $72.90 | ||
| TD854376 | M8 | 1 | 17.0 | 90.0 | 36.0 | 6.0 | 4.8 | 8.0 | 3 | 7.0 | 1-2 Weeks | $58.80 | ||
| TD854436 | M10 | 1.25 | 22.0 | 100.0 | 40.0 | 7.0 | 5.5 | 8.0 | 3 | 8.8 | 1-2 Weeks | $71.30 | ||
| TD854516 | M12 | 1.5 | 22.0 | 100.0 | 40.0 | 9.0 | 7.0 | 10.0 | 3 | 10.5 | 1-2 Weeks | $77.80 | ||
| TD854556 | M14 | 1.5 | 22.0 | 100.0 | 40.0 | 11.0 | 9.0 | 12.0 | 3 | 12.5 | 1-2 Weeks | $92.80 | ||
| TD854616 | M16 | 1.5 | 22.0 | 100.0 | 40.0 | 12.0 | 9.0 | 12.0 | 3 | 14.5 | 1-2 Weeks | $117.60 | ||
| TD854676 | M18 | 1.5 | 25.0 | 110.0 | 44.0 | 14.0 | 11.0 | 14.0 | 4 | 16.5 | 1-2 Weeks | $150.40 | ||
| TD854726 | M20 | 1.5 | 25.0 | 125.0 | 50.0 | 16.0 | 12.0 | 15.0 | 4 | 18.5 | 1-2 Weeks | $169.80 | ||
| TD854766 | M22 | 1.5 | 25.0 | 125.0 | 50.0 | 18.0 | 14.5 | 17.0 | 4 | 20.5 | 1-2 Weeks | $196.50 | ||
| TD854796 | M24 | 2 | 27.0 | 140.0 | 54.0 | 18.0 | 14.5 | 17.0 | 4 | 22.0 | 1-2 Weeks | $239.20 | ||
| TD854856 | M26 | 1.5 | 28.0 | 140.0 | 54.0 | 18.0 | 14.5 | 17.0 | 4 | 24.5 | 1-2 Weeks | $288.20 | ||
| TD854876 | M27 | 2 | 28.0 | 140.0 | 54.0 | 20.0 | 16.0 | 19.0 | 4 | 25.0 | 1-2 Weeks | $318.50 | ||
| TD854916 | M28 | 1.5 | 28.0 | 140.0 | 54.0 | 20.0 | 16.0 | 19.0 | 4 | 26.5 | 1-2 Weeks | $325.30 |
Add (TD854) HSS-E (M35) Metric Fine Gun Point Combo Tap for Multi Purpose (TiN Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 TD854 is a TiN-coated HSS-E M35 metric fine gun point combo tap for multipurpose machine threading. The patented special tap geometry supports correct thread profiles and long tool life in general workshop applications. Its DIN 374 form, B chamfer, 6H thread tolerance and 60° thread angle suit metric fine threads. A spiral point configuration directs this combo tap towards through-hole applications with depths up to 3.0×D. The family covers M5 × 0.5 through M28 × 1.5, including selected intermediate metric fine pitches. TiN coating provides the defining surface treatment for this TD854 series, while HSS-E construction supports routine machining work. It is designed for accurate metric fine threading where a multipurpose combo tap is required.
- TiN-coated HSS-E M35 metric fine combo tap
- DIN 374 design with B chamfer
- Patented special geometry for correct thread profiles and long tool life
- Spiral point design for through holes up to 3.0×D
- 6H thread tolerance with 60° thread angle
- M5 × 0.5 to M28 × 1.5 metric fine size range
No specifications available.
