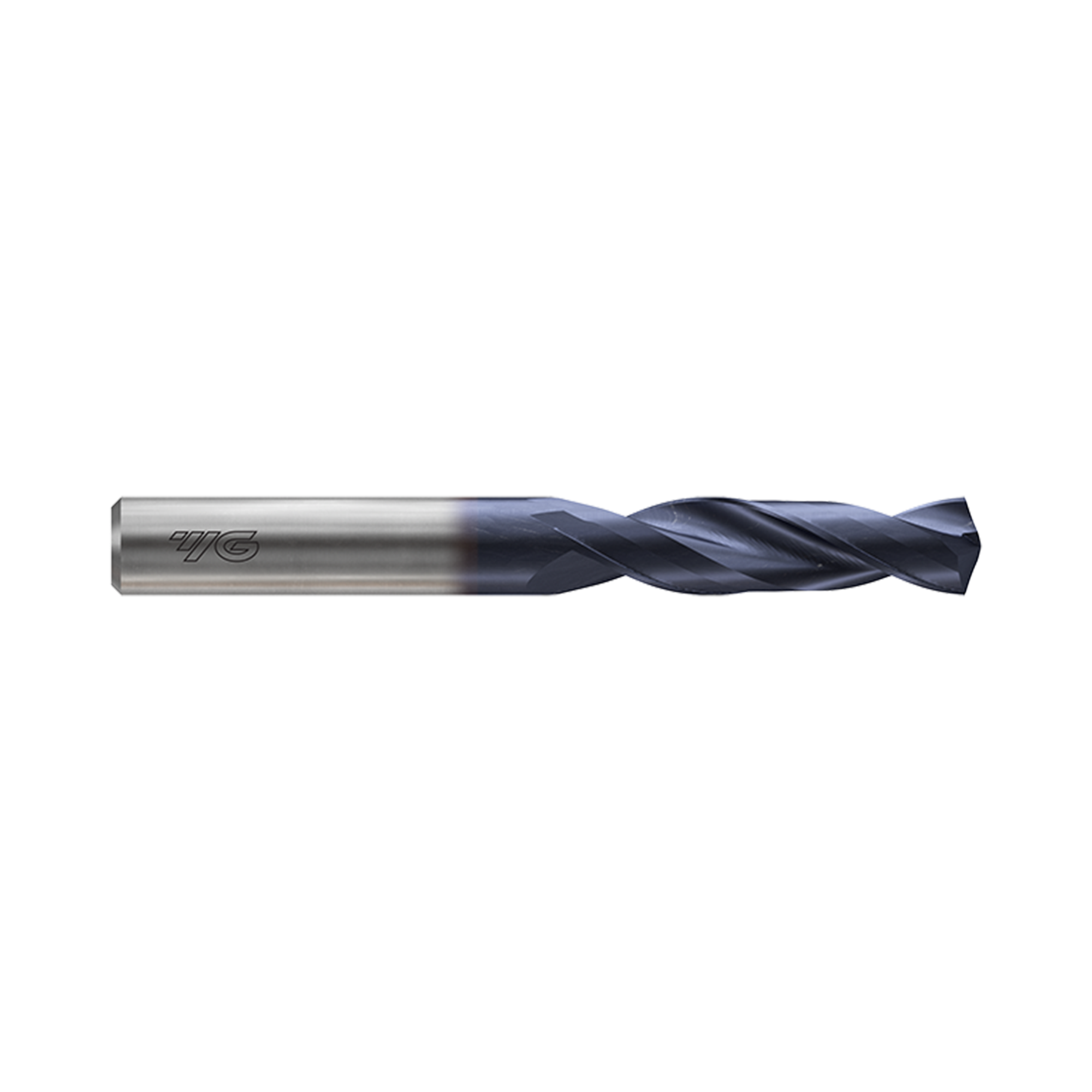

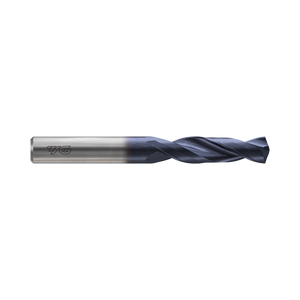

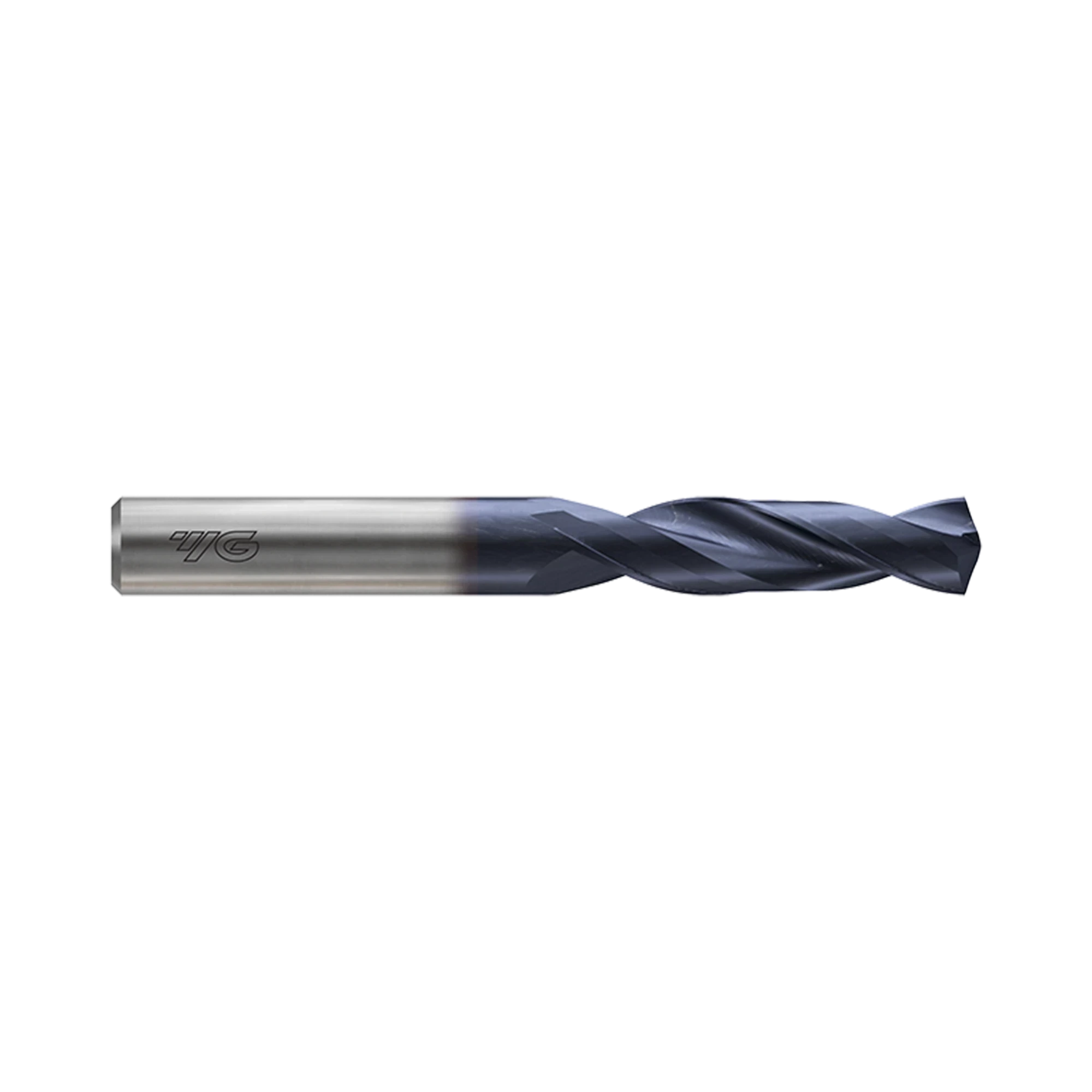

Dream Drill 3xD without Coolant Hole, Short, End Mill Shank Type (DH423)

New

Dream Drill 3xD without Coolant Hole, Short, End Mill Shank Type (DH423)

Product Code: DH423

Quantity

Buy Local

The YG-1 DH421 General Carbide Dream Drills are a stub length drill designed for high performance drilling of Steel up to HRc45 and Cast Iron. These self centering drills can drill to a h7 tolerance which eliminates any reaming operations. Diameters range from 3-20mm and they are supplied with parallel shanks.

Micrograin Carbide Substrate
TiAlN Coated High Performance Drill
3xD Stub Length
Self Centering with 140 degree Drill Point
High Performance Drilling on Steel
Eliminates Reaming Operations
Also Suitable for Stainless Steel Drilling

Specifications

Drilling Depth	3XD
Length	SHORT
Size Min	D3.0
Size Max	D20.0
Coating	TiAIN

Product Data

Workpiece Material	P M K
Helix Angle	30
Operation	Blind Drilling, Through Drilling
Shank Type	Plain H6
Surface Treatment	Titanium Aluminium Nitride Coating
Tool Material	MG
Tool Standard	DIN 6537
Toolholder Coolant	20-Bar

Made in South Korea

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add Dream Drill 3xD without Coolant Hole, Short, End Mill Shank Type (DH423) to comparison

View Comparison

Specifications Video Operation Work Material

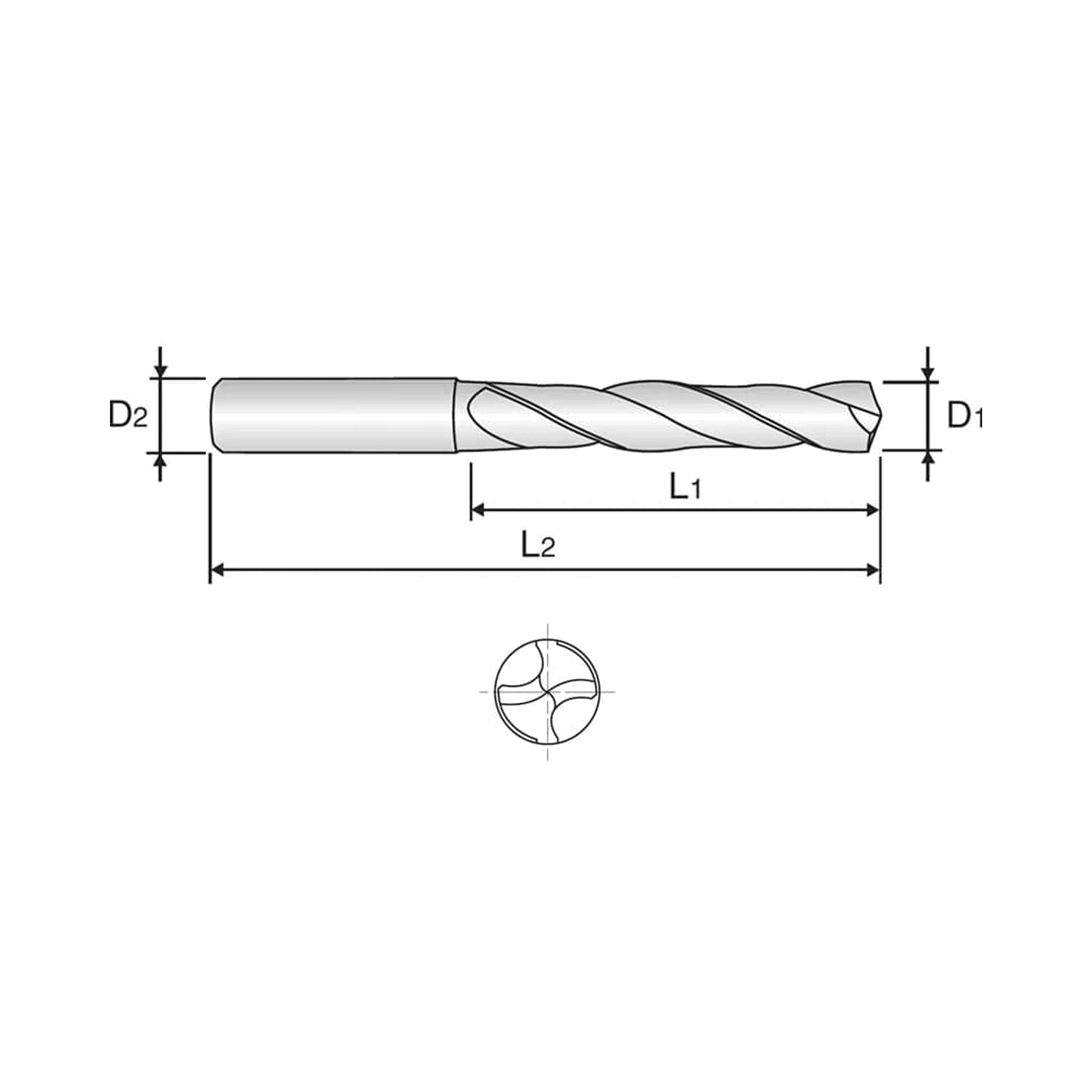

EDP No. OutsideDia Connection Size FluteLength OverAllLength DH423008F 3.175 6 20 62 DH423009F 3.572 6 20 62 DH423010 1 3 7 45 DH423010F 3.969 6 24 66 DH423011 1.1 3 7 45 DH423011F 4.366 6 24 66 DH423012 1.2 3 7 45 DH423012F 4.763 6 28 66 DH423013 1.3 3 7 45 DH423013F 5.159 6 28 66 DH423014 1.4 3 7 45 DH423014F 5.556 6 28 66 DH423015 1.5 3 14 55 DH423015F 5.953 6 28 66 DH423016 1.6 3 14 55 DH423016F 6.35 8 34 79 DH423017 1.7 3 14 55 DH423017F 6.747 8 34 79 DH423018 1.8 3 14 55 DH423018F 7.144 8 41 79 DH423019 1.9 3 14 55 DH423019F 7.541 8 41 79 DH423020 2 4 20 55 DH423020F 7.938 8 41 79 DH423021 2.1 4 20 55 DH423021F 8.334 10 47 89 DH423022 2.2 4 20 55 DH423022F 8.731 10 47 89 DH423023 2.3 4 20 55 DH423023F 9.128 10 47 89 DH423024 2.4 4 20 55 DH423024F 9.525 10 47 89 DH423025 2.5 4 20 55 DH423025F 9.922 10 47 89 DH423026 2.6 4 20 55 DH423026F 10.319 12 55 102 DH423027 2.7 4 20 55 DH423027F 10.716 12 55 102 DH423028 2.8 4 20 55 DH423028F 11.113 12 55 102 DH423029 2.9 4 20 55 DH423029F 11.509 12 55 102 DH423030 3 6 20 62 DH423030F 11.906 12 55 102 DH423030K 3 6 20 62 DH423031 3.1 6 20 62 DH423031F 12.303 14 60 107 DH423031K 3.1 6 20 62 DH423032 3.2 6 20 62 DH423032F 12.7 14 60 107 DH423032K 3.2 6 20 62 DH423033 3.3 6 20 62 DH423033K 3.3 6 20 62 DH423034 3.4 6 20 62 DH423034K 3.4 6 20 62 DH423035 3.5 6 20 62 DH423035K 3.5 6 20 62 DH423036 3.6 6 20 62 DH423036F 14.288 16 65 115 DH423036K 3.6 6 20 62 DH423037 3.7 6 20 62 DH423037K 3.7 6 20 62 DH423038 3.8 6 24 66 DH423038K 3.8 6 24 66 DH423039 3.9 6 24 66 DH423039K 3.9 6 24 66 DH423040 4 6 24 66 DH423040F 15.875 16 65 115 DH423040K 4 6 24 66 DH423041 4.1 6 24 66 DH423041K 4.1 6 24 66 DH423042 4.2 6 24 66 DH423042K 4.2 6 24 66 DH423043 4.3 6 24 66 DH423043K 4.3 6 24 66 DH423044 4.4 6 24 66 DH423044F 17.463 18 73 123 DH423044K 4.4 6 24 66 DH423045 4.5 6 24 66 DH423045K 4.5 6 24 66 DH423046 4.6 6 24 66 DH423046K 4.6 6 24 66 DH423047 4.7 6 24 66 DH423047K 4.7 6 24 66 DH423048 4.8 6 28 66 DH423048F 19.05 20 79 131 DH423048K 4.8 6 28 66 DH423049 4.9 6 28 66 DH423049K 4.9 6 28 66 DH423050 5 6 28 66 DH423050K 5 6 28 66 DH423051 5.1 6 28 66 DH423051K 5.1 6 28 66 DH423052 5.2 6 28 66 DH423052K 5.2 6 28 66 DH423053 5.3 6 28 66 DH423053K 5.3 6 28 66 DH423054 5.4 6 28 66 DH423054K 5.4 6 28 66 DH423055 5.5 6 28 66 DH423055K 5.5 6 28 66 DH423056 5.6 6 28 66 DH423056K 5.6 6 28 66 DH423057 5.7 6 28 66 DH423057K 5.7 6 28 66 DH423058 5.8 6 28 66 DH423058K 5.8 6 28 66 DH423059 5.9 6 28 66 DH423059K 5.9 6 28 66 DH423060 6 6 28 66 DH423060K 6 6 28 66 DH423061 6.1 8 34 79 DH423061K 6.1 8 34 79 DH423062 6.2 8 34 79 DH423062K 6.2 8 34 79 DH423063 6.3 8 34 79 DH423063K 6.3 8 34 79 DH423064 6.4 8 34 79 DH423064K 6.4 8 34 79 DH423065 6.5 8 34 79 DH423065K 6.5 8 34 79 DH423066 6.6 8 34 79 DH423066K 6.6 8 34 79 DH423067 6.7 8 34 79 DH423067K 6.7 8 34 79 DH423068 6.8 8 34 79 DH423068K 6.8 8 34 79 DH423069 6.9 8 34 79 DH423069K 6.9 8 34 79 DH423070 7 8 34 79 DH423070K 7 8 34 79 DH423071 7.1 8 41 79 DH423071K 7.1 8 41 79 DH423072 7.2 8 41 79 DH423072K 7.2 8 41 79 DH423073 7.3 8 41 79 DH423073K 7.3 8 41 79 DH423074 7.4 8 41 79 DH423074K 7.4 8 41 79 DH423075 7.5 8 41 79 DH423075K 7.5 8 41 79 DH423076 7.6 8 41 79 DH423076K 7.6 8 41 79 DH423077 7.7 8 41 79 DH423077K 7.7 8 41 79 DH423078 7.8 8 41 79 DH423078K 7.8 8 41 79 DH423079 7.9 8 41 79 DH423079K 7.9 8 41 79 DH423080 8 8 41 79 DH423080K 8 8 41 79 DH423081 8.1 10 47 89 DH423081K 8.1 10 47 89 DH423082 8.2 10 47 89 DH423082K 8.2 10 47 89 DH423083 8.3 10 47 89 DH423083K 8.3 10 47 89 DH423084 8.4 10 47 89 DH423084K 8.4 10 47 89 DH423085 8.5 10 47 89 DH423085K 8.5 10 47 89 DH423086 8.6 10 47 89 DH423086K 8.6 10 47 89 DH423087 8.7 10 47 89 DH423087K 8.7 10 47 89 DH423088 8.8 10 47 89 DH423088K 8.8 10 47 89 DH423089 8.9 10 47 89 DH423089K 8.9 10 47 89 DH423090 9 10 47 89 DH423090K 9 10 47 89 DH423091 9.1 10 47 89 DH423091K 9.1 10 47 89 DH423092 9.2 10 47 89 DH423092K 9.2 10 47 89 DH423093 9.3 10 47 89 DH423093K 9.3 10 47 89 DH423094 9.4 10 47 89 DH423094K 9.4 10 47 89 DH423095 9.5 10 47 89 DH423095K 9.5 10 47 89 DH423096 9.6 10 47 89 DH423096K 9.6 10 47 89 DH423097 9.7 10 47 89 DH423097K 9.7 10 47 89 DH423098 9.8 10 47 89 DH423098K 9.8 10 47 89 DH423099 9.9 10 47 89 DH423099K 9.9 10 47 89 DH423100 10 10 47 89 DH423100K 10 10 47 89 DH423101 10.1 12 55 102 DH423101 10.1 12 55 102 DH423102 10.2 12 55 102 DH423102K 10.2 12 55 102 DH423103 10.3 12 55 102 DH423103 10.3 12 55 102 DH423104 10.4 12 55 102 DH423104K 10.4 12 55 102 DH423105 10.5 12 55 102 DH423105K 10.5 12 55 102 DH423106 10.6 12 55 102 DH423106 10.6 12 55 102 DH423107 10.7 12 55 102 DH423107K 10.7 12 55 102 DH423108 10.8 12 55 102 DH423108K 10.8 12 55 102 DH423109 10.9 12 55 102 DH423109K 10.9 12 55 102 DH423110 11 12 55 102 DH423110K 11 12 55 102 DH423111 11.1 12 55 102 DH423111 11.1 12 55 102 DH423112 11.2 12 55 102 DH423112K 11.2 12 55 102 DH423113 11.3 12 55 102 DH423113 11.3 12 55 102 DH423114 11.4 12 55 102 DH423114 11.4 12 55 102 DH423115 11.5 12 55 102 DH423115K 11.5 12 55 102 DH423116 11.5 12 55 102 DH423116 11.5 12 55 102 DH423117 11.7 12 55 102 DH423117K 11.7 12 55 102 DH423118 11.8 12 55 102 DH423118K 11.8 12 55 102 DH423119 11.9 12 55 102 DH423119 11.9 12 55 102 DH423120 12 12 55 102 DH423120K 12 12 55 102 DH423121 12.1 14 60 107 DH423122 12.2 14 60 107 DH423123 12.3 14 60 107 DH423123K 12.3 14 60 107 DH423124 12.4 14 60 107 DH423125 12.5 14 60 107 DH423125K 12.5 14 60 107 DH423126 12.6 14 60 107 DH423127 12.7 14 60 107 DH423128 12.8 14 60 107 DH423128K 12.8 14 60 107 DH423129 12.9 14 60 107 DH423130 13 14 60 107 DH423130K 13 14 60 107 DH423131 13.1 14 60 107 DH423132 13.2 14 60 107 DH423133 13.3 14 60 107 DH423134 13.4 14 60 107 DH423135 13.5 14 60 107 DH423135K 13.5 14 60 107 DH423136 13.6 14 60 107 DH423137 13.7 14 60 107 DH423138 13.8 14 60 107 DH423138 13.8 14 60 107 DH423139 13.9 14 60 107 DH423140 14 14 60 107 DH423140K 14 14 60 107 DH423141 14.1 16 65 115 DH423142 14.2 16 65 115 DH423143 14.3 16 65 115 DH423144 14.4 16 65 115 DH423145 14.5 16 65 115 DH423145K 14.5 16 65 115 DH423146 14.6 16 65 115 DH423147 14.7 16 65 115 DH423148 14.8 16 65 115 DH423148K 14.8 16 65 115 DH423149 14.9 16 65 115 DH423150 15 16 65 115 DH423150K 15 16 65 115 DH423151 15.1 16 65 115 DH423152 15.2 16 65 115 DH423153 15.3 16 65 115 DH423154 15.4 16 65 115 DH423155 15.5 16 65 115 DH423155K 15.5 16 65 115 DH423156 15.6 16 65 115 DH423157 15.7 16 65 115 DH423158 15.8 16 65 115 DH423158K 15.8 16 65 115 DH423159 15.9 16 65 115 DH423160 16 16 65 115 DH423160K 16 16 65 115 DH423161 16.1 18 73 123 DH423162K 16.2 18 73 123 DH423163 16.3 18 73 123 DH423164 16.4 18 73 123 DH423165 16.5 18 73 123 DH423165K 16.5 18 73 123 DH423166 16.6 18 73 123 DH423167 16.7 18 73 123 DH423168 16.8 18 73 123 DH423168K 16.8 18 73 123 DH423169 16.9 18 73 123 DH423170 17 18 73 123 DH423170K 17 18 73 123 DH423171 17.1 18 73 123 DH423172 17.2 18 73 123 DH423173 17.3 18 73 123 DH423174 17.4 18 73 123 DH423175 17.5 18 73 123 DH423175K 17.5 18 73 123 DH423176 17.6 18 73 123 DH423177K 17.7 18 73 123 DH423178 17.8 18 73 123 DH423178K 17.8 18 73 123 DH423179 17.9 18 73 123 DH423180 18 18 73 123 DH423180K 18 18 73 123 DH423181 18.1 20 79 131 DH423182 18.2 20 79 131 DH423183 18.3 20 79 131 DH423184 18.4 20 79 131 DH423185 18.5 20 79 131 DH423185K 18.5 20 79 131 DH423186 18.6 20 79 131 DH423187 18.7 20 79 131 DH423188K 18.8 20 79 131 DH423189 18.9 20 79 131 DH423190 19 20 79 131 DH423190 19 20 79 131 DH423191 19.1 20 79 131 DH423192 19.2 20 79 131 DH423193 19.3 20 79 131 DH423194 19.4 20 79 131 DH423195 19.5 20 79 131 DH423195K 19.5 20 79 131 DH423196 19.6 20 79 131 DH423197 19.7 20 79 131 DH423198 19.8 20 79 131 DH423198K 19.8 20 79 131 DH423199 19.9 20 79 131 DH423200 20 20 79 131 DH423200K 20 20 79 131

Video

Operation

Blind Drilling

Through Drilling

Work Material

P Carbon Steels

Great

Good Great Excellent

P Alloy Steels

Excellent

Good Great Excellent

P Structural Steels

Excellent

Good Great Excellent

P Tool Steels

Excellent

Good Great Excellent

M Stainless Steels

Great

Good Great Excellent

K Cast Iron

Great

Good Great Excellent
