(DHM15) Dream Drill MQL Type With Coolant Hole 15XD

15xD MQL solid carbide drill with coolant holes

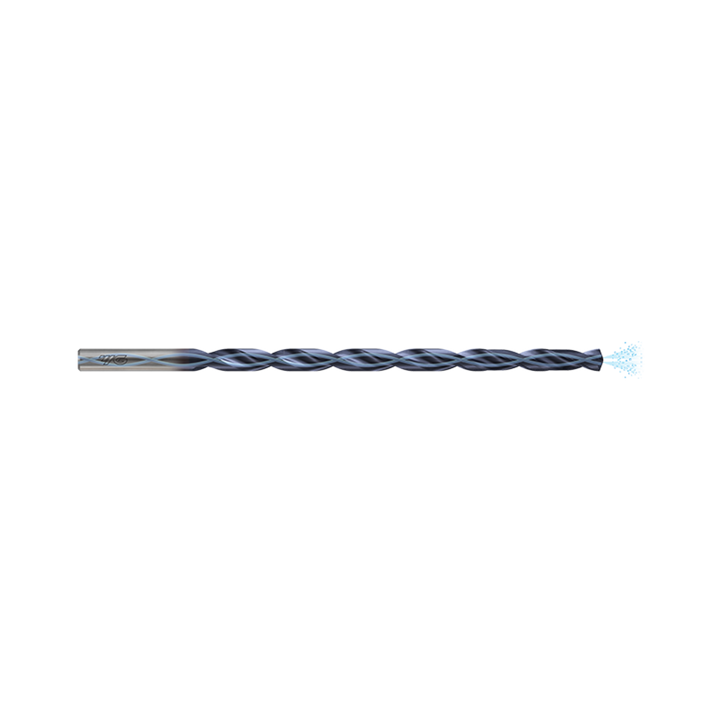

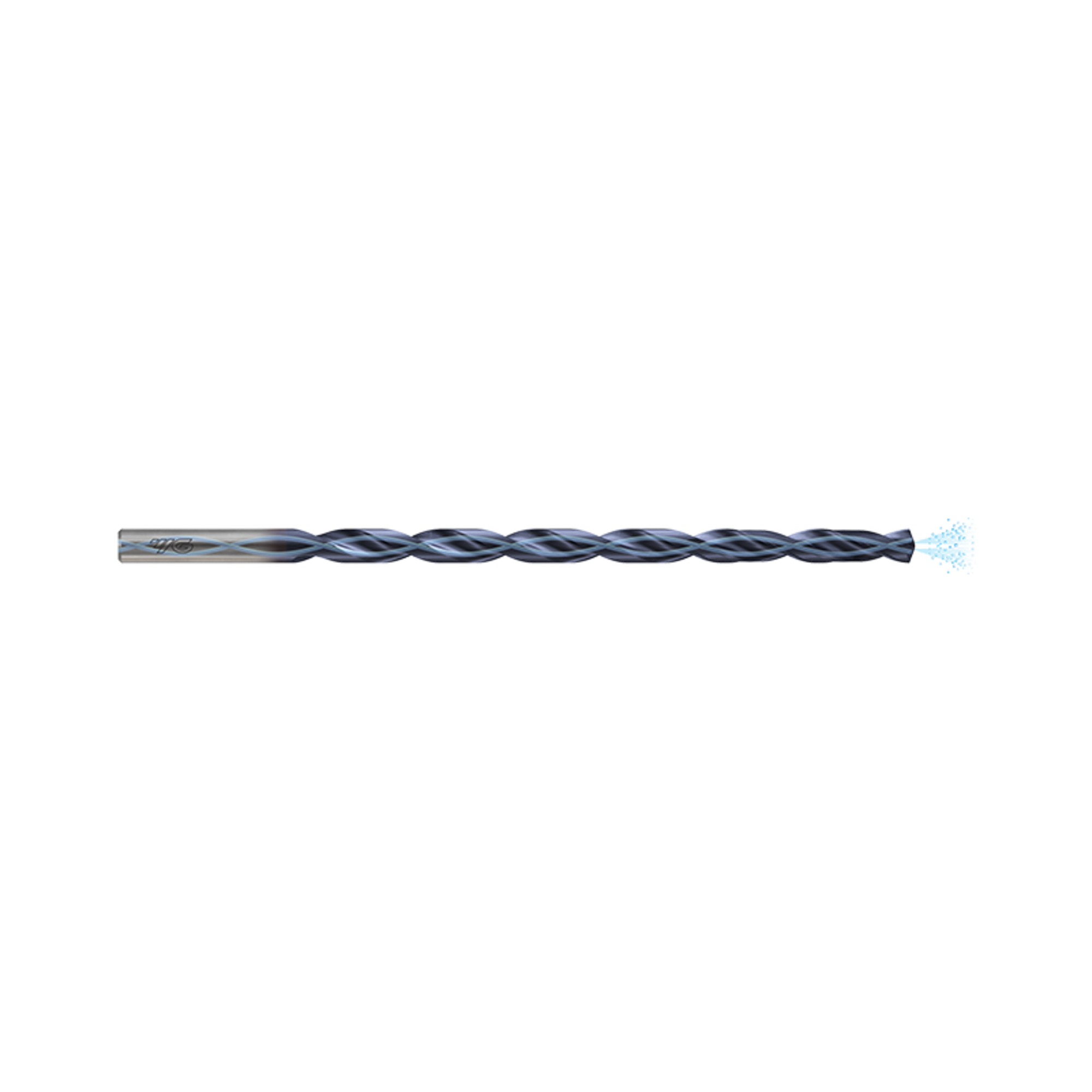

YG-1 DHM15 official product photograph · transparent
$405.79 INC GST $368.90 EX GST
SKU
DHM15030
Work materials
PK

Key features

  • 15xD solid carbide drill with coolant holes
  • TiAlN-coated construction for MQL drilling
  • 4-facet point for good centring capability
Tool material Carbide
Surface treatment Titanium Aluminium Nitride
Drill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Deep-hole capability

15xD drilling depth supports extra-long deep-hole machining applications.

MQL compatible design

Coolant holes, polished flutes and TiAlN coating support minimum quantity lubrication drilling.

Controlled hole entry

A 4-facet point provides good centring capability before deep drilling begins.

SKUDrill Diameter (mm)Overall length (mm)Shank dia. (mm)Flute length (mm)CAD filesStock Price Qty Add
DHM150303.095.06.055.0STEPDXF 1-2 Weeks $368.90
DHM150353.5104.06.064.0STEPDXF 1-2 Weeks $368.90
DHM150404.0113.06.073.0STEPDXF 1-2 Weeks $360.40
DHM150454.5122.06.082.0STEPDXF 1-2 Weeks $400.80
DHM150505.0131.06.091.0STEPDXF 1-2 Weeks $400.80
DHM150555.5140.06.0100.0STEPDXF 1-2 Weeks $400.80
DHM150606.0149.06.0109.0DXF 1-2 Weeks $400.80
DHM150707.0167.08.0127.0STEPDXF 1-2 Weeks $463.10
DHM150808.0185.08.0145.0STEPDXF 1-2 Weeks $463.10
DHM150909.0207.010.0163.0STEPDXF 1-2 Weeks $597.30
DHM1510010.0226.010.0182.0STEPDXF 1-2 Weeks $597.30
DHM1511011.0249.012.0200.0STEPDXF 1-2 Weeks $802.30
DHM1512012.0267.012.0218.0STEPDXF 1-2 Weeks $802.30

Add (DHM15) Dream Drill MQL Type With Coolant Hole 15XD to comparison

View Comparison
  • Overview
  • Work Material
  • Reviews
Product Description

YG-1 DHM15 Dream Drill MQL Type is a 15xD solid carbide drill with coolant holes for deep-hole machining. It has TiAlN coating, polished flutes and an end mill shank for MQL drilling. The 4-facet point supports good centring capability, while optimised special flutes help remove chips productively. Coolant holes and polished flutes are designed to enhance chip evacuation during deep-hole drilling. The DHM15 range covers 3.0 to 12.0 mm diameters, with 6 to 12 mm shanks. Recommended materials include non-alloy, low-alloy and high-alloy steels, tool steels and cast irons. This extra-long series suits applications requiring minimum quantity lubrication and extended drilling reach.

  • 15xD solid carbide drill with coolant holes
  • TiAlN-coated construction for MQL drilling
  • 4-facet point for good centring capability
  • Optimised special flutes support chip removal
  • Polished flutes enhance chip evacuation
  • 3.0 to 12.0 mm diameter range with end mill shanks
Product Data
Dimension Tolerance H7
Helix Angle 30­°
Hole Type Blind, Through
Point Angle 140°
Shank Diameter Tolerance
Surface Treatment Titanium Aluminium Nitride, Titanium Aluminium Nitride Coating
Tool Material Carbide

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

8 grades
Non-alloy steel
ExcellentVDI 1–2
GoodVDI 3
Low-alloy steel
ExcellentVDI 6
GoodVDI 7–8
High-alloy and tool steel
GoodVDI 10–11

Cast iron

6 grades
Grey cast iron
ExcellentVDI 15
GoodVDI 16
Nodular cast iron
ExcellentVDI 17
GoodVDI 18
Malleable cast iron
ExcellentVDI 19
GoodVDI 20
VDI grade reference14 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelGood25025
6PLow-alloy steelExcellent18010
7PLow-alloy steelGood27529
8PLow-alloy steelGood30032
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelGood32535
15KGrey cast ironExcellent18010
16KGrey cast ironGood26026
17KNodular cast ironExcellent1603
18KNodular cast ironGood25025
19KMalleable cast ironExcellent130-
20KMalleable cast ironGood23021

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
