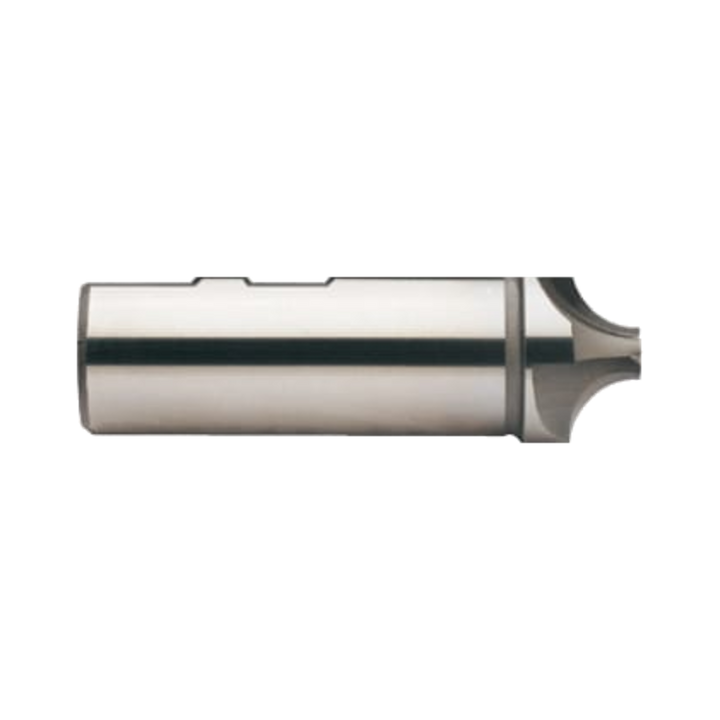

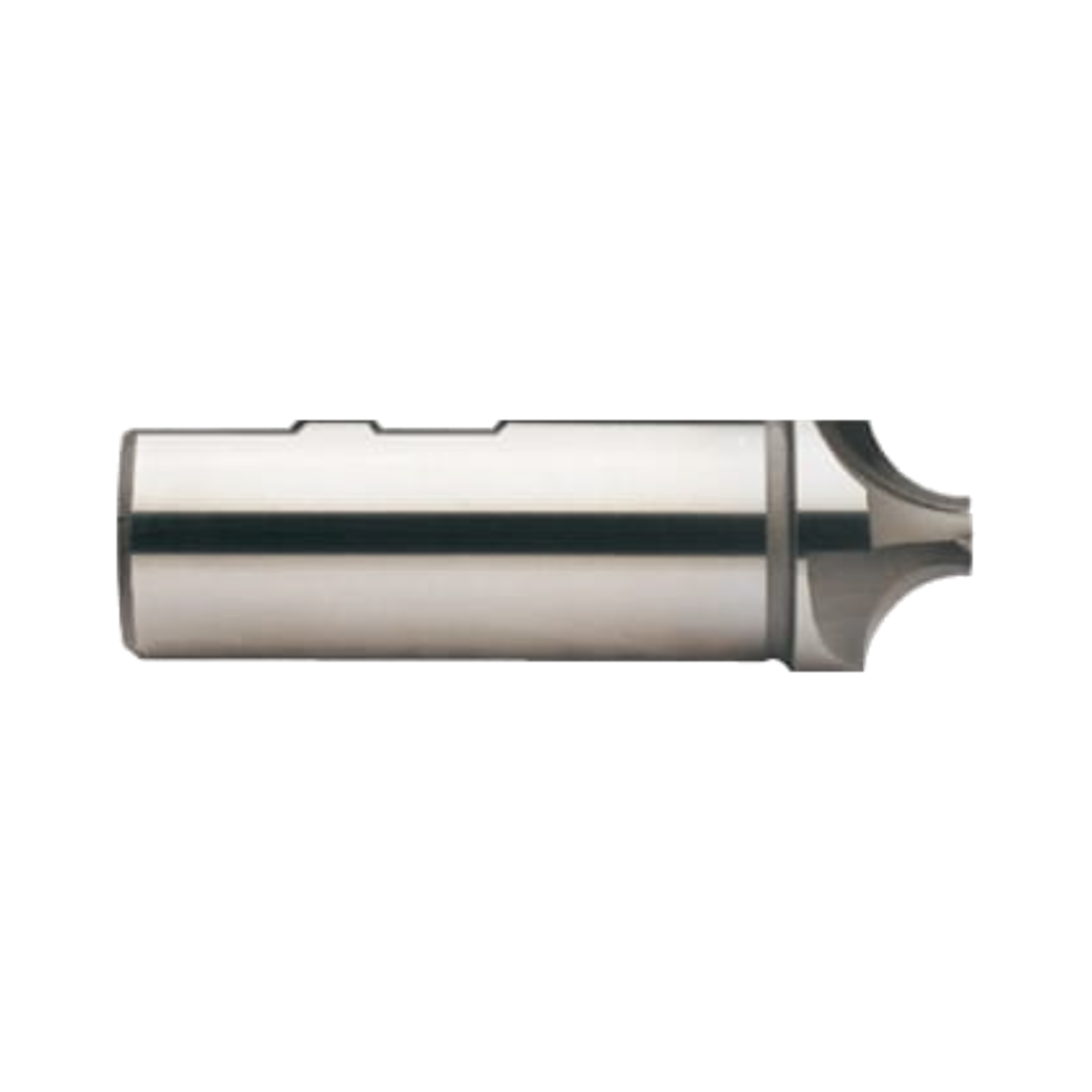

(E2498) HSSCo8% (M42) Corner Rounding Cutter
Four-Flute HSS Co8 Corner Rounding Cutter
- SKU
- E2498010
Key features
- HSS Co8 uncoated corner rounding cutter construction
- Four-flute E2498 cutter configuration
- Forms defined external radii on manufactured components
Made in South Korea
Defined radius forming
Forms a specific external radius for component end-forming work
Screw machine adaptable
Suited to screw machine applications as an end-forming tool
Useful size selection
Offers radius options from R1.0 to R20.0 mm
| SKU | Corner Radius (mm) | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| E2498010 | R1.0 | 8.0 | 60.0 | 10.0 | In stock | $70.80 | ||
| E2498015 | R1.5 | 9.0 | 60.0 | 10.0 | In stock | $70.80 | ||
| E2498020 | R2.0 | 10.0 | 60.0 | 10.0 | Low stock | $70.80 | ||
| E2498025 | R2.5 | 11.0 | 60.0 | 10.0 | Low stock | $81.50 | ||
| E2498030 | R3.0 | 12.0 | 60.0 | 12.0 | Low stock | $81.50 | ||
| E2498035 | R3.5 | 13.0 | 60.0 | 12.0 | In stock | $81.50 | ||
| E2498040 | R4.0 | 14.0 | 60.0 | 12.0 | In stock | $86.80 | ||
| E2498045 | R4.5 | 15.0 | 60.0 | 12.0 | Low stock | $91.40 | ||
| E2498050 | R5.0 | 16.0 | 60.0 | 12.0 | Low stock | $94.30 | ||
| E2498055 | R5.5 | 19.0 | 67.0 | 16.0 | In stock | $94.30 | ||
| E2498060 | R6.0 | 20.0 | 67.0 | 16.0 | In stock | $103.30 | ||
| E2498065 | R6.5 | 21.0 | 71.0 | 16.0 | Low stock | $121.40 | ||
| E2498070 | R7.0 | 22.0 | 71.0 | 16.0 | In stock | $121.40 | ||
| E2498075 | R7.5 | 23.0 | 71.0 | 16.0 | Low stock | $138.20 | ||
| E2498080 | R8.0 | 24.0 | 71.0 | 16.0 | In stock | $138.20 | ||
| E2498085 | R8.5 | 25.0 | 85.0 | 25.0 | In stock | $175.20 | ||
| E2498090 | R9.0 | 26.0 | 85.0 | 25.0 | Low stock | $175.20 | ||
| E2498100 | R10.0 | 28.0 | 85.0 | 25.0 | In stock | $175.20 | ||
| E2498105 | R10.5 | 31.0 | 90.0 | 25.0 | 1-2 Weeks | $260.10 | ||
| E2498110 | R11.0 | 32.0 | 90.0 | 25.0 | Low stock | $246.10 | ||
| E2498120 | R12.0 | 34.0 | 90.0 | 25.0 | Low stock | $246.10 | ||
| E2498125 | R12.5 | 41.0 | 100.0 | 25.0 | Low stock | $295.20 | ||
| E2498130 | R13.0 | 42.0 | 100.0 | 25.0 | Low stock | $318.80 | ||
| E2498140 | R14.0 | 44.0 | 100.0 | 25.0 | Low stock | $295.20 | ||
| E2498150 | R15.0 | 46.0 | 100.0 | 25.0 | In stock | $429.90 | ||
| E2498160 | R16.0 | 48.0 | 100.0 | 25.0 | Low stock | $429.90 | ||
| E2498180 | R18.0 | 52.0 | 112.0 | 32.0 | Low stock | $429.90 | ||
| E2498200 | R20.0 | 56.0 | 112.0 | 32.0 | Low stock | $611.90 |
Add (E2498) HSSCo8% (M42) Corner Rounding Cutter to comparison
View Comparison- Overview
- Specifications
- Work Material
- Reviews
YG-1 E2498 HSS Co8 corner rounding cutters are four-flute, uncoated tools for forming defined external radii. They adapt to screw machine end-forming applications requiring a specific radius on manufactured components. The HSS Co8 construction and four-flute configuration define the series corner-rounding cutter geometry. Select from radius sizes spanning R1.0 to R20.0 mm for varied component profiles. Outside diameters extend from 8 to 56 mm throughout the available family. Shank diameters range from 10 to 25 mm, matching the specified cutter size. Each option provides a defined radius profile for practical screw machine end-forming operations. Choose the required radius and outside diameter to suit the finished component detail.
- HSS Co8 uncoated corner rounding cutter construction
- Four-flute E2498 cutter configuration
- Forms defined external radii on manufactured components
- Adapted for screw machine end-forming applications
- Radius range from R1.0 to R20.0 mm
- Outside diameter range from 8 to 56 mm
No specifications available.
Work materials
VDI 3323 recommendations for this tool.
Steel
11 gradesNon-ferrous materials
5 gradesVDI grade reference16 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Excellent | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Good | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Good | 300 | 32 |
| 9 | PLow-alloy steel | Good | 350 | 38 |
| 10 | PHigh-alloy and tool steel | Excellent | 200 | 15 |
| 11 | PHigh-alloy and tool steel | Good | 325 | 35 |
| 21 | NWrought aluminium | Good | 60 | - |
| 22 | NWrought aluminium | Good | 100 | - |
| 23 | NCast aluminium | Good | 75 | - |
| 24 | NCast aluminium | Good | 90 | - |
| 25 | NCast aluminium | Good | 130 | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
