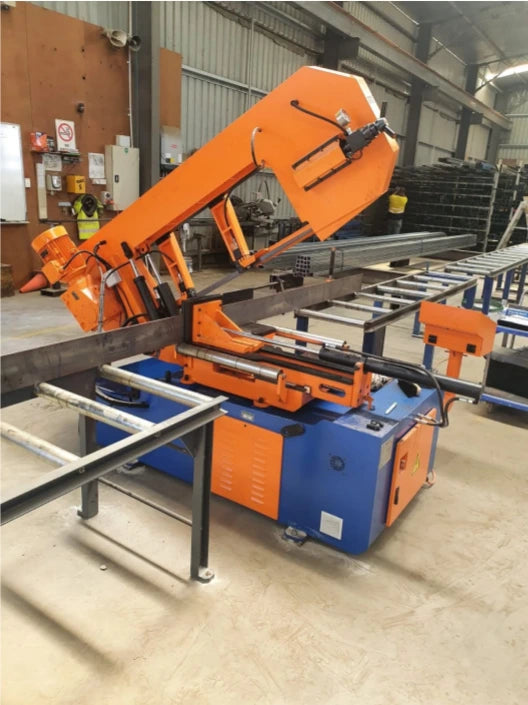

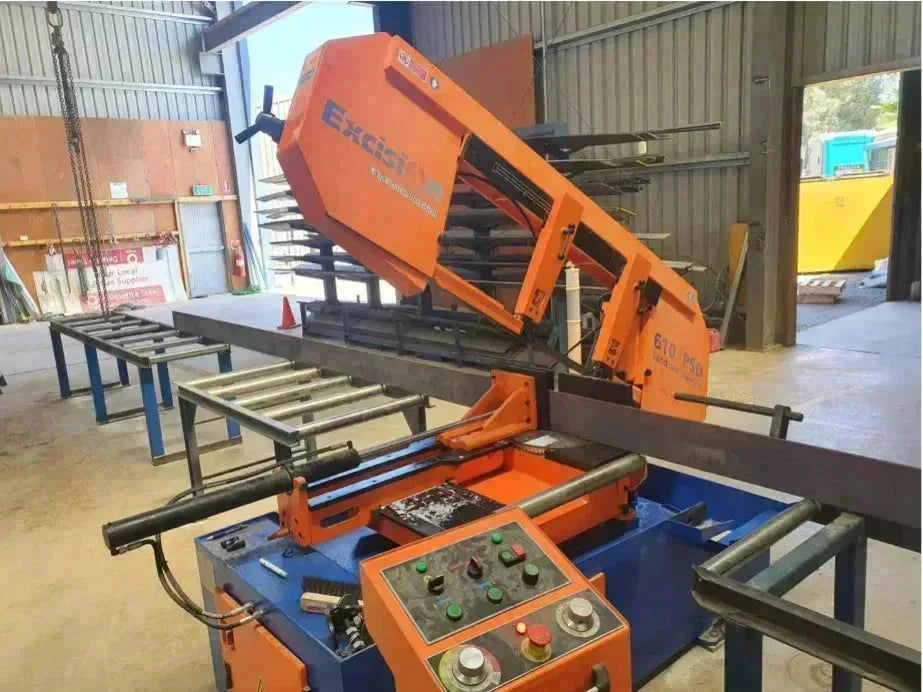

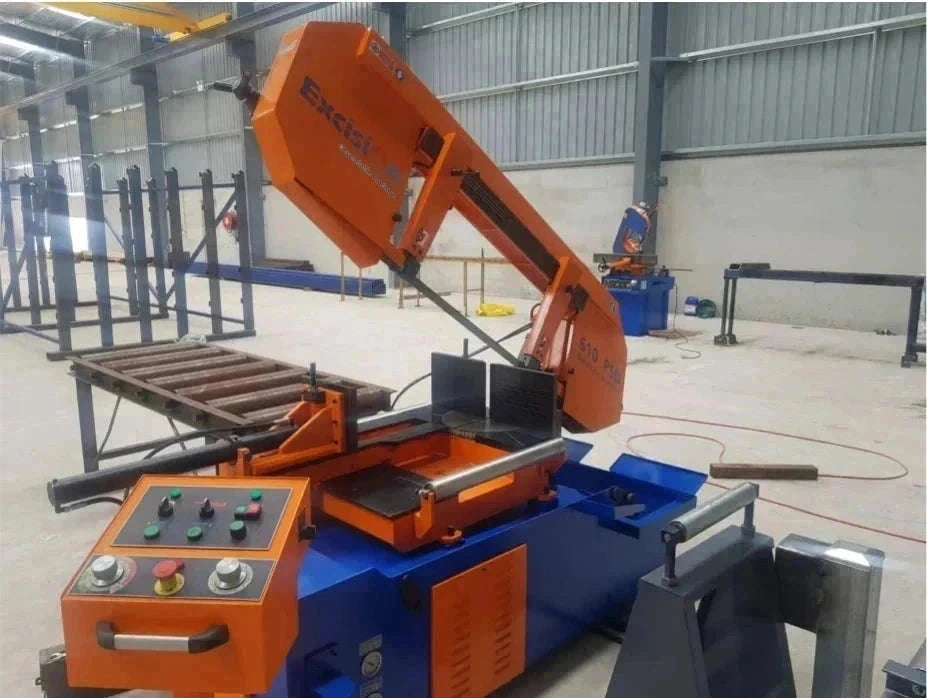

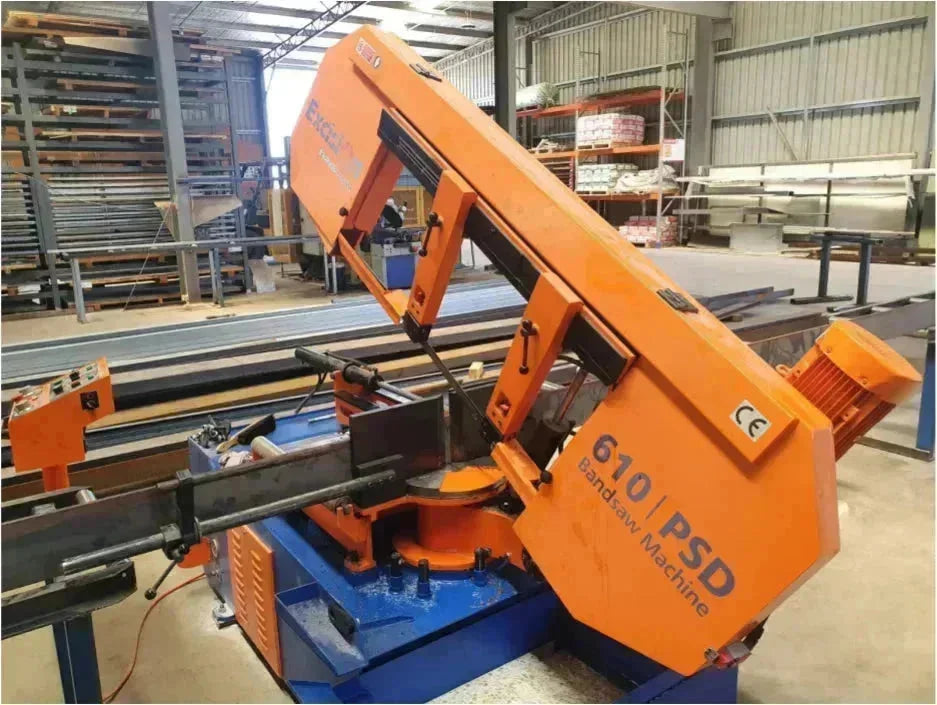

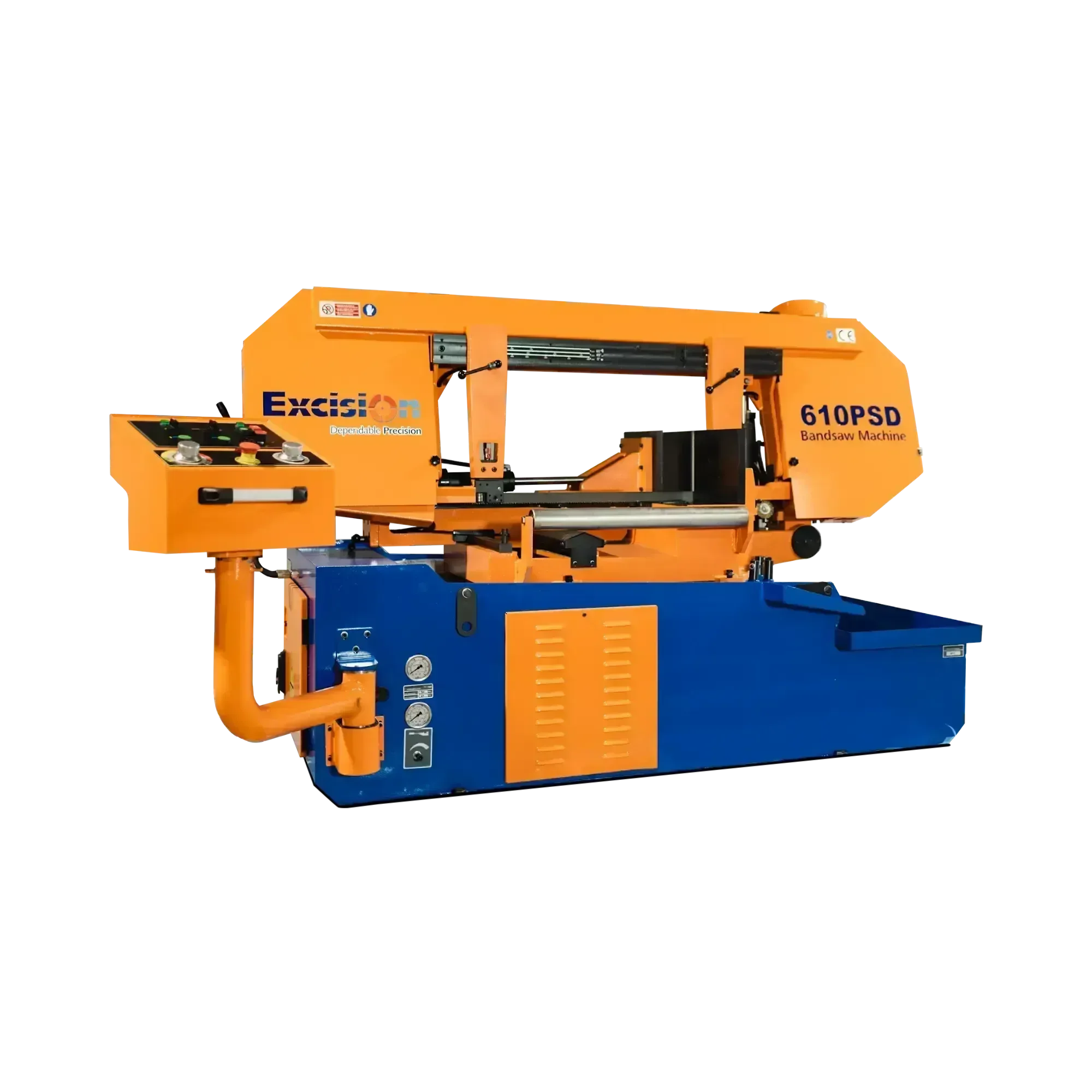

EXCISION 610 - PSD SEMI-AUTO BANDSAW MACHINE 3 PHASE
Product Code: 401610PSD3
Features:

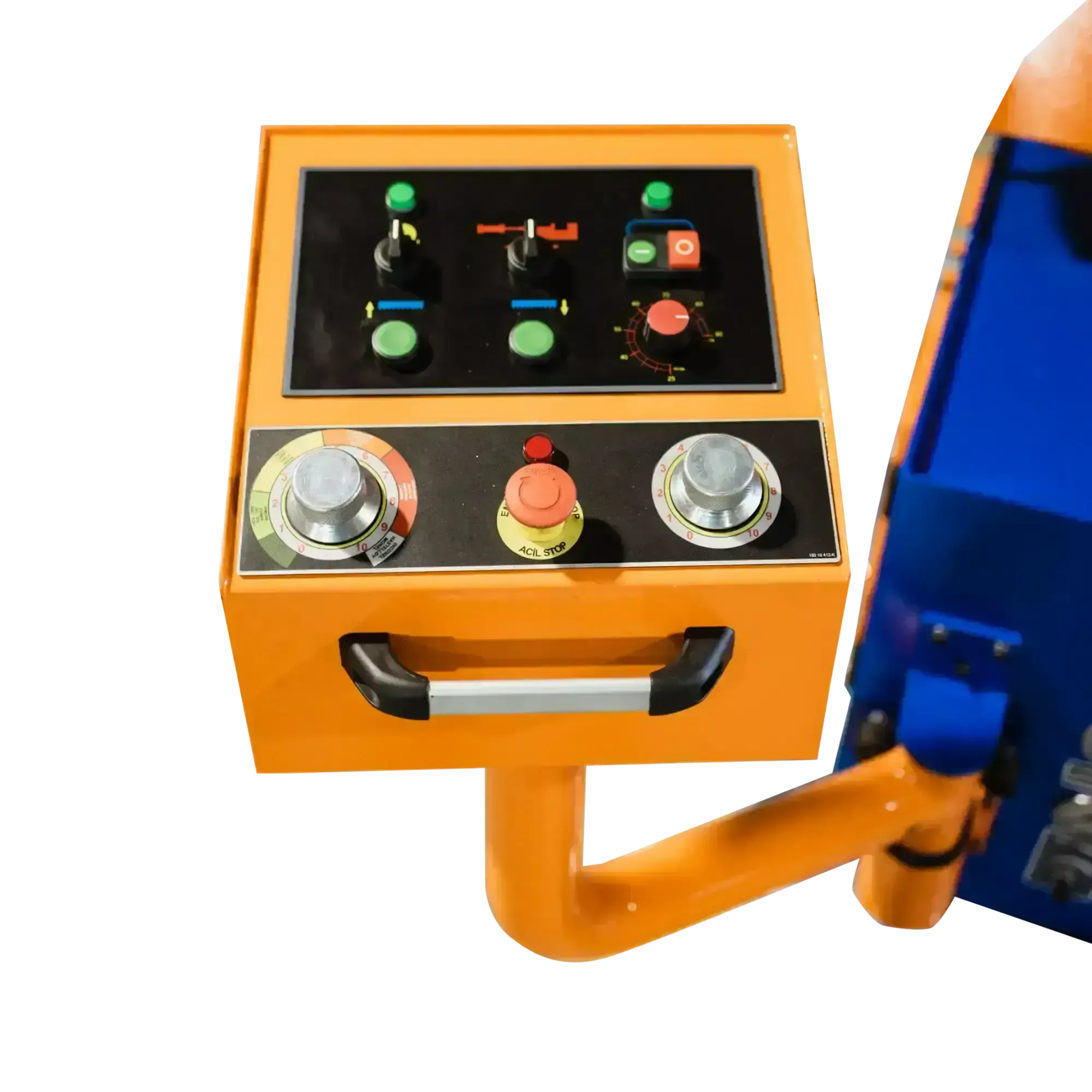

- Manual Control Panel - Only control panel with buttons.
- Inverter - Provides to adjust blade speed up to workpiece diameter, thickness and hardness.
- Hydraulic Vise - Pressure, clamping period and clamping time can be adjusted.
- Swarf Brush - Removes swarfs to keep clean the wheels and blade.
- Hydramechanical Blade Tensioning - Tensioning period and tensioning time can be adjusted. So blade does not relax and curve cutting gets prevented.
- Blade Bedding with Carbide and Bearings
- Rotating Table
- 60 cm Long Material Stopper System

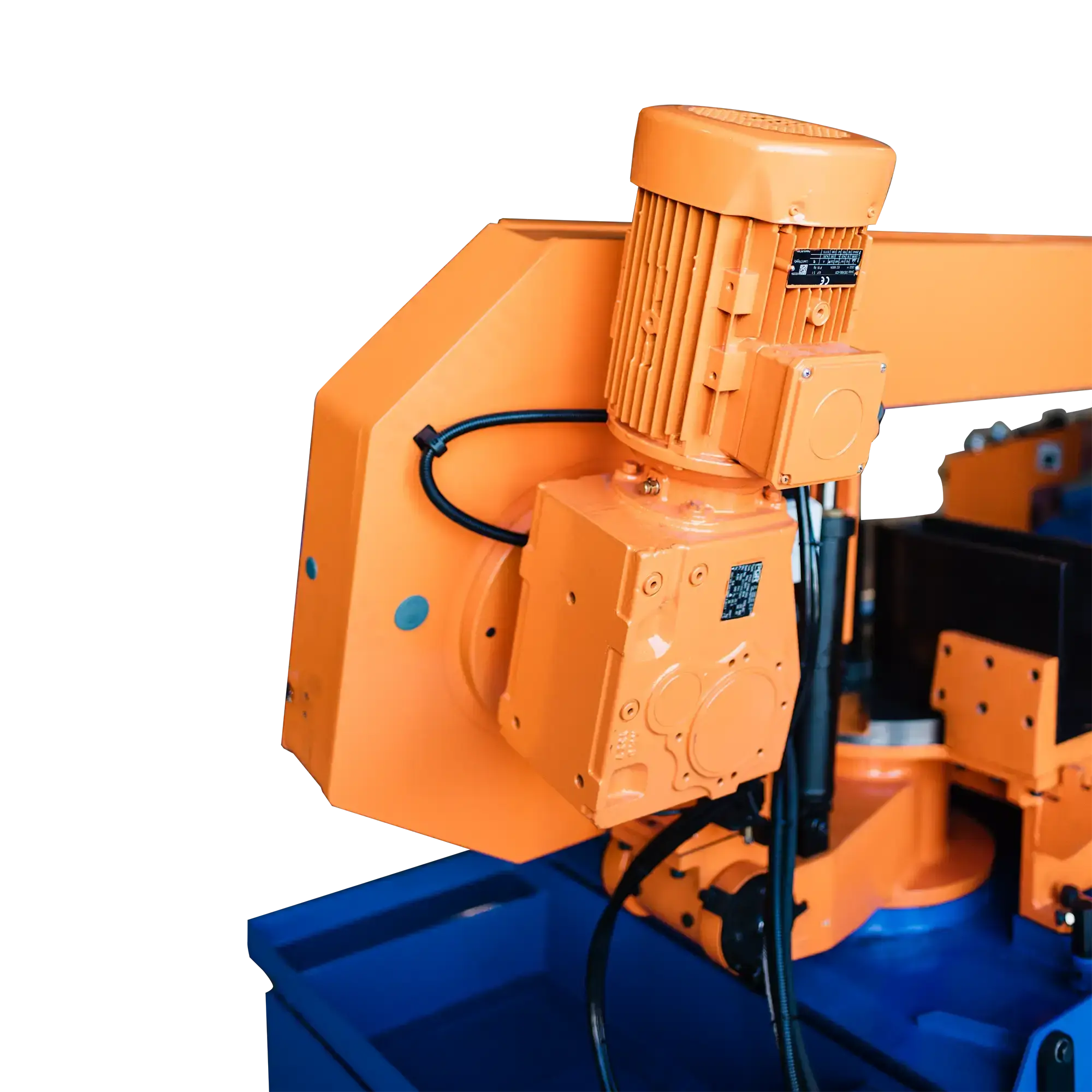

- Bevel Helical Gearbox
- Moveable Guide Arms
- Adjustable Bow Down Speed
- Adjustable vise Tension
- Easy Readable Angle Ruler
| Cutting Capacity | ||||
|---|---|---|---|---|
| 0° | 45° | 60° | -45° | |
| Round | 400 mm | 350 mm | 200 mm | 350 mm |
| Square | 400 mm | 350 mm | 200 mm | 350 mm |
| Rectangle | 400 x 610 mm | 350 x 400 mm | 200 x 400 mm | 350 x 400 mm |
| Product Specifications | |
| Blade Size | 34 x 1.1 x 4780mm |
| Blade Speed | Variable speed 25-90 m/min |
| Main Motor | 4 kW |
| Gearbox | Bevel Helical PKD 2390 High Efficiency |
| Hydraulic Motor | 0.37 kW |
| Hydraulic Tank Capacity | 8L |
| Coolant Motor | 0.12 kW |
| Coolant Tank Capacity | 30L |
| Table Height | 750mm |
| Machine Dimensions | 1400 x 2350 x 1500 mm |
| Weight | 1,350 kg |
| Power Supply | 415V |
Made in Turkey
3 Year Warranty
