(G8A46) X5070, 2Flute Ball Nose Rib Processing End Mill, for (HRc45 to HRc70)

Name: (G8A46) X5070, 2Flute Ball Nose Rib Processing End Mill, for (HRc45 to HRc70)
Brand: Excision Pty Ltd
SKU: G8A46805
Price: 163.70 AUD
Availability: InStock

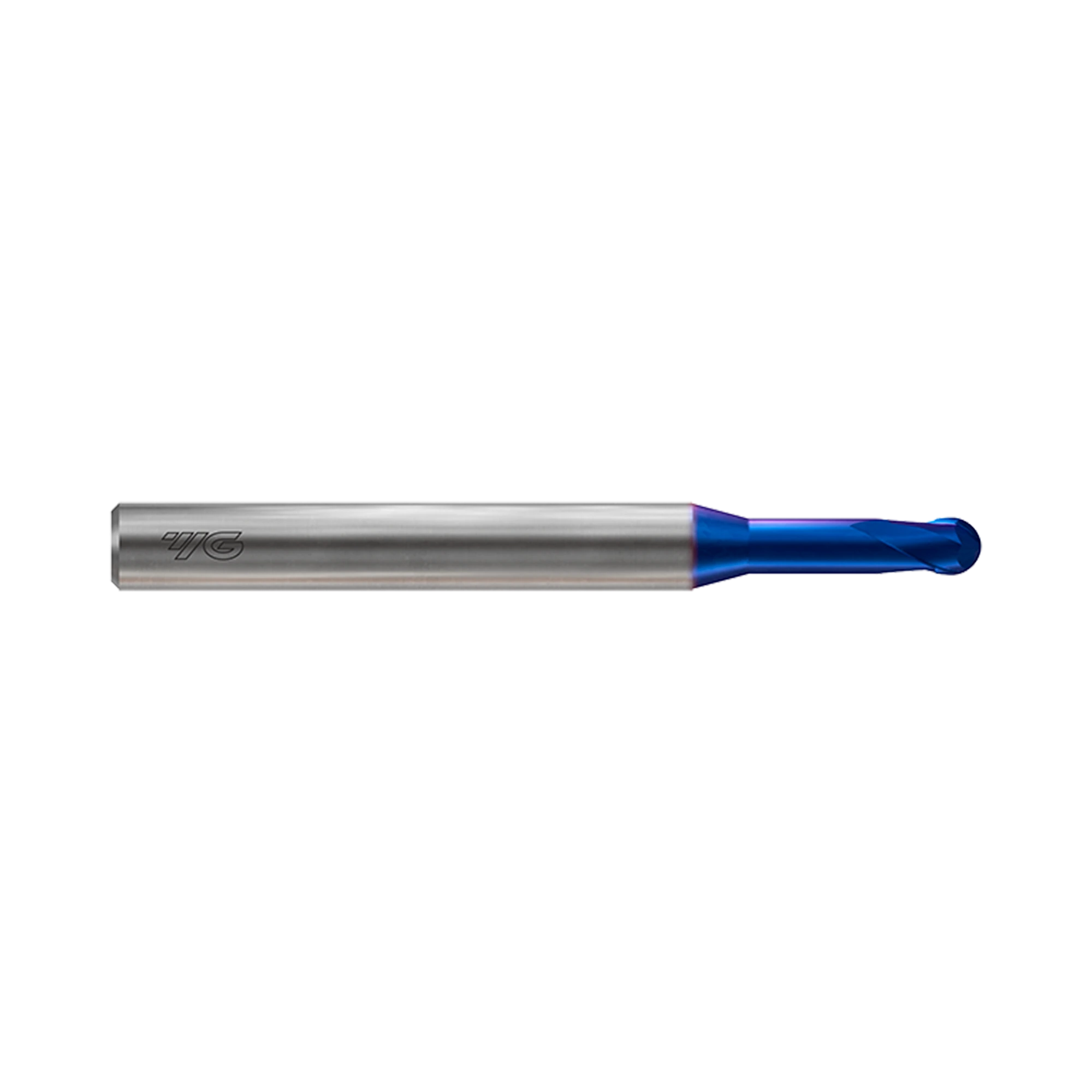

Two-flute ball nose end mill for precision rib processing

$180.07 INC GST $163.70 EX GST Price available on request

SKU: G8A46805

Work materials

P H

Key features

Solid carbide two-flute ball nose geometry for rib processing
Designed for high hardened steels from HRc45 to HRc70
Blue Coating with newly developed raw material

Tool material Carbide

Surface treatment Blue

Mill Diameter (mm)

Ball Nose Radius (mm)

Loading stock…

Made in South Korea

Free standard delivery on orders over $500.

!If you're not 100% happy with your purchase, we'll replace or refund.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Hardened steel focus

Designed for precision milling in high hardened steels from HRc45 to HRc70

Dry cutting capability

Newly developed raw material and Blue Coating support dry and high speed cutting

Rib milling precision

Two-flute ball nose geometry supports precise rib-processing operations and excellent workpiece finish

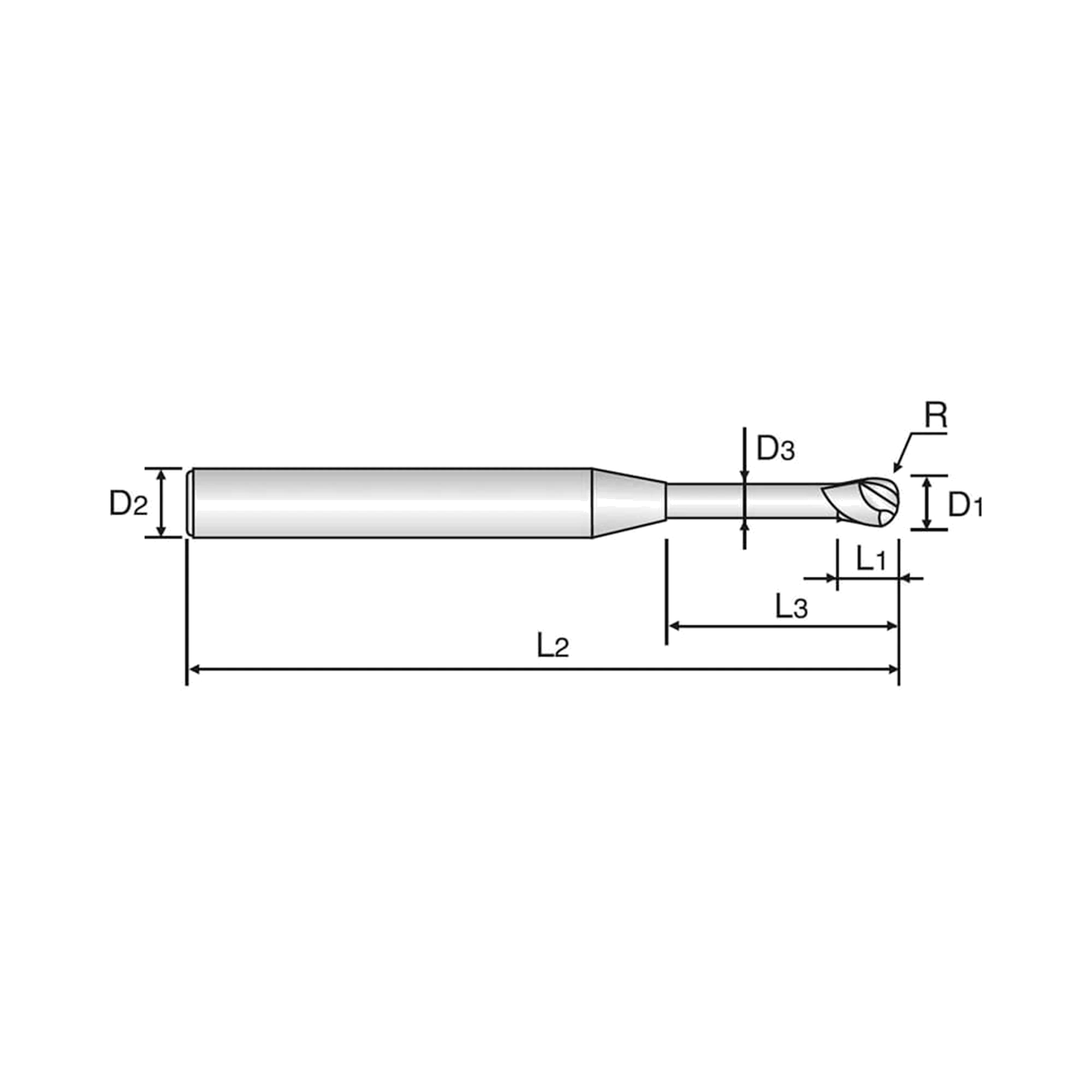

SKU	Mill Diameter (mm)	Ball Nose Radius (mm)	Overall length (mm)	Shank dia. (mm)	Length of cut (mm)	Length below shank (mm)	Neck dia. (mm)	CAD files	Stock	Price
G8A46805	0.1	R0.05	45.0	4.0	0.1	0.3	0.085	–	1-2 Weeks	$163.70
G8A46002	0.2	R0.1	45.0	4.0	0.2	0.5	0.17	STEP DXF	Low stock	$127.00
G8A46003	0.3	R0.15	45.0	4.0	0.3	1.0	0.27	STEP DXF	In stock	$118.80
G8A46004	0.4	R0.2	45.0	4.0	0.4	1.0	0.37	STEP DXF	In stock	$125.30
G8A46005	0.5	R0.25	45.0	4.0	0.4	2.0	0.45	STEP DXF	In stock	$98.00
G8A46957	0.6	R0.3	45.0	4.0	0.5	2.0	0.55	STEP DXF	In stock	$98.00
G8A46008	0.8	R0.4	45.0	4.0	0.6	6.0	0.75	STEP DXF	1-2 Weeks	$113.20
G8A46010	1.0	R0.5	45.0	4.0	0.8	6.0	0.95	–	In stock	$97.50
G8A46012	1.2	R0.6	45.0	4.0	1.0	8.0	1.15	–	1-2 Weeks	$97.50
G8A46015	1.5	R0.75	45.0	4.0	1.2	8.0	1.45	–	In stock	$97.50
G8A46020	2.0	R1.0	45.0	4.0	1.6	8.0	1.95	–	In stock	$69.00
G8A46030	3.0	R1.5	55.0	6.0	2.4	16.0	2.85	–	Low stock	$104.70
G8A46040	4.0	R2.0	60.0	6.0	3.2	16.0	3.85	–	In stock	$104.70

Add (G8A46) X5070, 2Flute Ball Nose Rib Processing End Mill, for (HRc45 to HRc70) to comparison

View Comparison

Application

Product Description

YG-1 X5070 G8A46 is a solid carbide two-flute ball nose rib-processing end mill with Blue Coating. It is designed for high-precision milling of high hardened steels from HRc45 to HRc70. Newly developed raw material and coating support dry cutting and high speed cutting operations. Its ball nose form supports high-precision rib-processing milling operations in hardened material. The G8A46 series uses a 30° helix angle for its two-flute ball nose cutting geometry. YG-1 specifies excellent workpiece finish and higher wear resistance for this end mill series. Available diameters span 0.1 to 4 mm, with ball nose radii from R0.05 to R2.0.

Solid carbide two-flute ball nose geometry for rib processing
Designed for high hardened steels from HRc45 to HRc70
Blue Coating with newly developed raw material
Suitable for dry cutting and high speed cutting
30° helix angle
0.1 to 4 mm diameters with R0.05 to R2.0 radii

Product Data

Ball Radius Tolerance	±0.005
Cutting Shape	Ball Nose
Helix Angle	30°
Length	Short
No. Flutes	2
Operation	Profiling, Side Milling, Small Part
Shank Type	Plain
Surface Treatment	Blue
Tool Material	Carbide

Profiling

Side Milling

Small Part

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

4 grades

Non-alloy steel

GoodVDI 5

Low-alloy steel

GoodVDI 8–9

High-alloy and tool steel

GoodVDI 11

Hardened materials

4 grades

Hardened steel

ExcellentVDI 38–39

Chilled cast iron

GoodVDI 40

Hardened cast iron

ExcellentVDI 41

VDI grade reference8 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDI	Work material	Recommendation	HB ref.	HRC ref.
5	PNon-alloy steel	Good	300	32
8	PLow-alloy steel	Good	300	32
9	PLow-alloy steel	Good	350	38
11	PHigh-alloy and tool steel	Good	325	35
38	HHardened steel	Excellent	550	55
39	HHardened steel	Excellent	630	60
40	HChilled cast iron	Good	400	42
41	HHardened cast iron	Excellent	550	55

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

ISO

VDI 3323

Material Description

Parameter

Diameter (Ø)

0.2

0.3

0.4

0.5

0.6

0.8

1.0

1.2

1.5

2.0

3.0

4.0

Non-Alloy Steel

45~47

60~63

50~55

50~56

50~55

48~55

45~53

47~54

50~55

0.003~0.004

0.005~0.005

0.007~0.008

0.006~0.013

0.007~0.015

0.010~0.020

0.012~0.024

0.016~0.027

0.020~0.035

0.027~0.047

0.045~0.088

0.055~0.115

RPM

50000

48000~50000

31900~35200

26400~29700

19800~22000

15400~17600

12000~14000

10000~11500

7900~8800

5300~5800

3950~4400

FEED

265~310

440~460

450~550

450~540

440~540

460~550

470~540

460~540

440~540

470~530

590~650

550~620

0.006~0.016

0.010~0.017

0.013~0.032

0.007~0.028

0.007~0.034

0.016~0.064

0.008~0.080

0.024~0.032

0.031~0.048

0.024~0.160

0.064~0.240

0.080~0.320

8-9

Low-Alloy Steel

45~47

60~63

54~78

54~77

55~77

55~76

54~70

52~67

53~69

54~77

54~78

0.003~0.004

0.005~0.005

0.007~0.008

0.006~0.013

0.007~0.015

0.010~0.020

0.012~0.024

0.016~0.027

0.020~0.035

0.027~0.047

0.045~0.088

0.055~0.115

RPM

50000

48000~50000

34100~49500

28600~40700

22000~30800

17600~24200

14300~18700

11000~14300

8500~11000

5700~8200

4300~6200

FEED

300~350

480~520

720~790

600~870

590~850

640~890

600~850

590~780

580~760

590~800

730~1000

680~990

0.006~0.016

0.010~0.017

0.013~0.032

0.007~0.028

0.007~0.034

0.016~0.064

0.008~0.080

0.024~0.032

0.031~0.048

0.024~0.160

0.064~0.240

0.080~0.320

11.1-11.2

High-Alloy Steel, and Tool Steel

45~47

60~63

54~78

54~77

55~77

55~76

54~70

52~67

53~69

54~77

54~78

0.003~0.004

0.005~0.005

0.007~0.008

0.006~0.013

0.007~0.015

0.010~0.020

0.012~0.024

0.016~0.027

0.020~0.035

0.027~0.047

0.045~0.088

0.055~0.115

RPM

50000

48000~50000

34100~49500

28600~40700

22000~30800

17600~24200

14300~18700

11000~14300

8500~11000

5700~8200

4300~6200

FEED

300~350

480~520

720~790

600~870

590~850

640~890

600~850

590~780

580~760

590~800

730~1000

680~990

0.006~0.016

0.010~0.017

0.013~0.032

0.007~0.028

0.007~0.034

0.016~0.064

0.008~0.080

0.024~0.032

0.031~0.048

0.024~0.160

0.064~0.240

0.080~0.320

38.1-38.2

Hardened Steel

45~47

60~63

50~55

50~56

50~55

48~55

45~53

47~54

50~55

0.003~0.003

0.004~0.005

0.005~0.006

0.006~0.008

0.007~0.010

0.010~0.014

0.013~0.018

0.016~0.023

0.019~0.027

0.027~0.034

0.051~0.061

0.063~0.078

RPM

50000

48000~50000

31900~35200

26400~29700

19800~22000

15400~17600

12000~14000

10000~11500

7900~8800

5300~5800

3950~4400

FEED

265~310

440~460

450~550

450~540

440~540

460~550

470~540

460~540

440~540

470~530

590~650

550~620

0.005~0.013

0.008~0.014

0.011~0.026

0.005~0.023

0.006~0.028

0.013~0.052

0.007~0.065

0.020~0.026

0.025~0.039

0.020~0.130

0.052~0.195

0.065~0.260

39.1

43~47

58~63

50~55

50~56

50~55

48~55

45~53

47~54

50~55

48~55

0.009~0.011

0.017~0.017

0.017~0.018

0.028~0.027

0.030~0.032

0.044~0.045

0.057~0.057

0.070~0.069

0.084~0.083

0.111~0.109

0.208~0.214

0.275~0.259

RPM

50000

46000~50000

31900~35200

26400~29700

19800~22000

15400~17600

12000~14000

10000~11500

7900~8800

5300~5800

3850~4400

FEED

225~265

390~420

400~460

440~480

400~480

440~500

420~480

440~480

550~620

530~570

0.005~0.012

0.007~0.013

0.010~0.024

0.005~0.021

0.006~0.025

0.012~0.048

0.006~0.060

0.018~0.024

0.023~0.036

0.018~0.120

0.048~0.120

0.060~0.240

39.2

43~47

58~63

50~55

50~56

50~55

48~55

45~53

47~54

50~55

48~55

0.009~0.011

0.017~0.017

0.017~0.018

0.028~0.027

0.030~0.032

0.044~0.045

0.057~0.057

0.070~0.069

0.084~0.083

0.111~0.109

0.208~0.214

0.275~0.259

RPM

50000

46000~50000

31900~35200

26400~29700

19800~22000

15400~17600

12000~14000

10000~11500

7900~8800

5300~5800

3850~4400

FEED

225~265

390~420

400~460

440~480

400~480

440~500

420~480

440~480

550~620

530~570

0.005~0.012

0.007~0.013

0.010~0.024

0.005~0.021

0.006~0.025

0.012~0.048

0.006~0.060

0.018~0.024

0.023~0.036

0.018~0.120

0.048~0.120

0.060~0.240

Chilled Cast Iron

45~47

60~63

54~78

54~77

55~77

55~76

54~70

52~67

53~69

54~77

54~78

0.003~0.004

0.005~0.005

0.007~0.008

0.006~0.013

0.007~0.015

0.010~0.020

0.012~0.024

0.016~0.027

0.020~0.035

0.027~0.047

0.045~0.088

0.055~0.115

RPM

50000

48000~50000

34100~49500

28600~40700

22000~30800

17600~24200

14300~18700

11000~14300

8500~11000

5700~8200

4300~6200

FEED

300~350

480~520

720~790

600~870

590~850

640~890

600~850

590~780

580~760

590~800

730~1000

680~990

0.006~0.016

0.010~0.017

0.013~0.032

0.007~0.028

0.007~0.034

0.016~0.064

0.008~0.080

0.024~0.032

0.031~0.048

0.024~0.160

0.064~0.240

0.080~0.320

Hardened Cast Iron

45~47

60~63

50~55

50~56

50~55

48~55

45~53

47~54

50~55

0.003~0.003

0.004~0.005

0.005~0.006

0.006~0.008

0.007~0.010

0.010~0.014

0.013~0.018

0.016~0.023

0.019~0.027

0.027~0.034

0.051~0.061

0.063~0.078

RPM

50000

48000~50000

31900~35200

26400~29700

19800~22000

15400~17600

12000~14000

10000~11500

7900~8800

5300~5800

3950~4400

FEED

265~310

440~460

450~550

450~540

440~540

460~550

470~540

460~540

440~540

470~530

590~650

550~620

0.005~0.013

0.008~0.014

0.011~0.026

0.005~0.023

0.006~0.028

0.013~0.052

0.007~0.065

0.020~0.026

0.025~0.039

0.020~0.130

0.052~0.195

0.065~0.260

Recommended parameters

Recommended cutting speeds and feeds
Parameter	Value	Unit
Spindle speed	–	rev/min
Feed rate	–	mm/min
Cutting speed (Vc)	–	m/min
Feed per tooth (fz)	–	mm/tooth

Choose your options and calculate the recommended parameters.

Video

Resources

Understanding the Basics of Endmills

Endmills are indispensable tools in machining, renowned for their versatility and precision. Whether you’re a seasoned operator or new to machining, understanding...

January 21, 2025

Connor Urquhart

Article

Service & Delivery

How do I purchase my items?

Excision products are available through 300+ local distributors around Australia. Some products may also have buy online options available for online purchase through our distributors.

Find your local distributor

What delivery services do we offer?

We freight out of Melbourne every day for 1-3 days delivery to your local distributor. We also offer upon request (for an extra charge):

Send direct
Air frieght for small urgent items

How do I return an item?

We offer lifetime returns. If you’re unhappy with your purchase, you can return unused items to us for free – no questions asked.

Have a question about this product?

Contact Sales

+61 (03) 5551 4555

Mon - Fri 7am - 5pm

Key features

Hardened steel focus

Dry cutting capability

Rib milling precision

Steel

Hardened materials

Cutting Speeds and Feeds

Video

You Might Also Like

Resources

Understanding the Basics of Endmills

Service & Delivery

How do I purchase my items?

What delivery services do we offer?

How do I return an item?

Have a question about this product?
