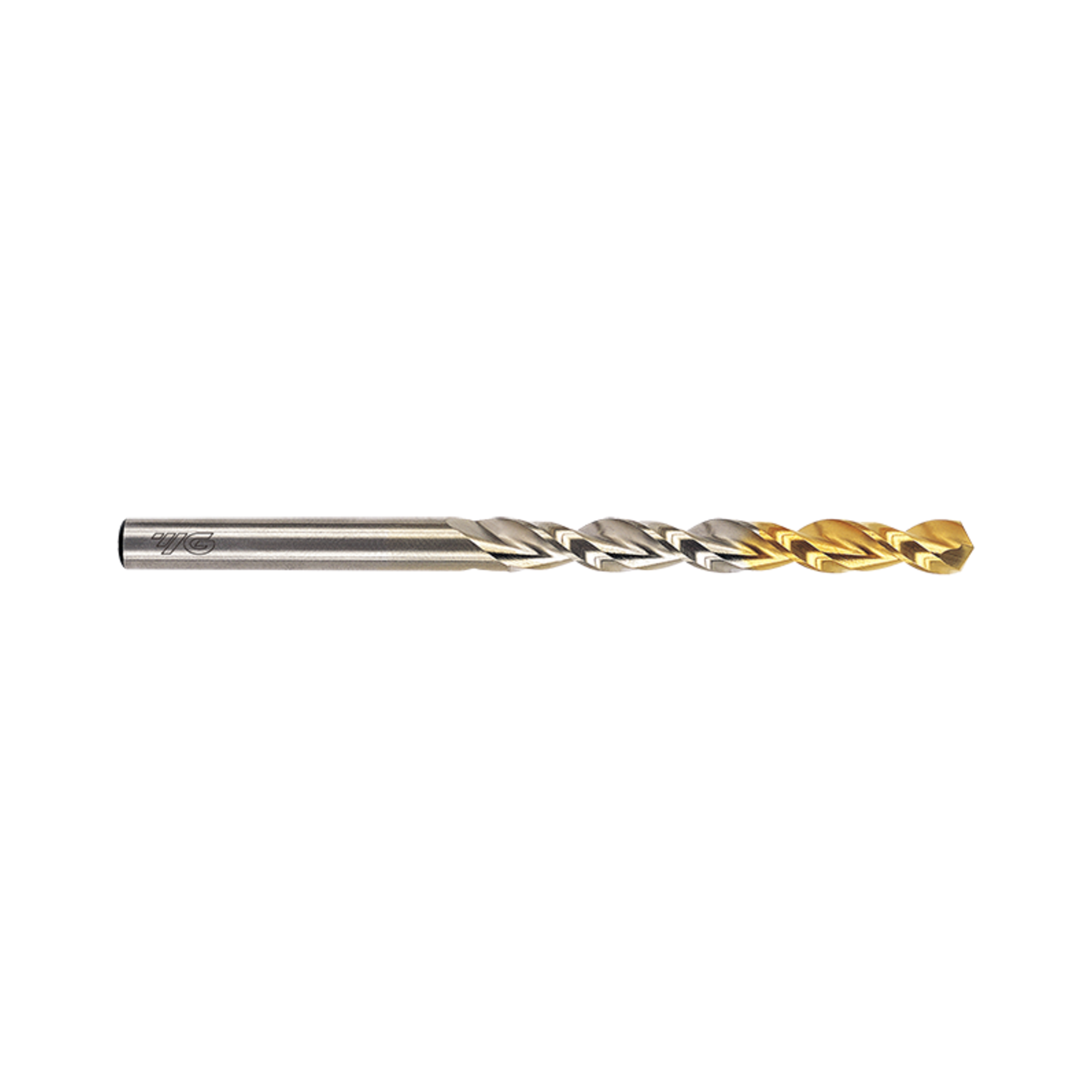

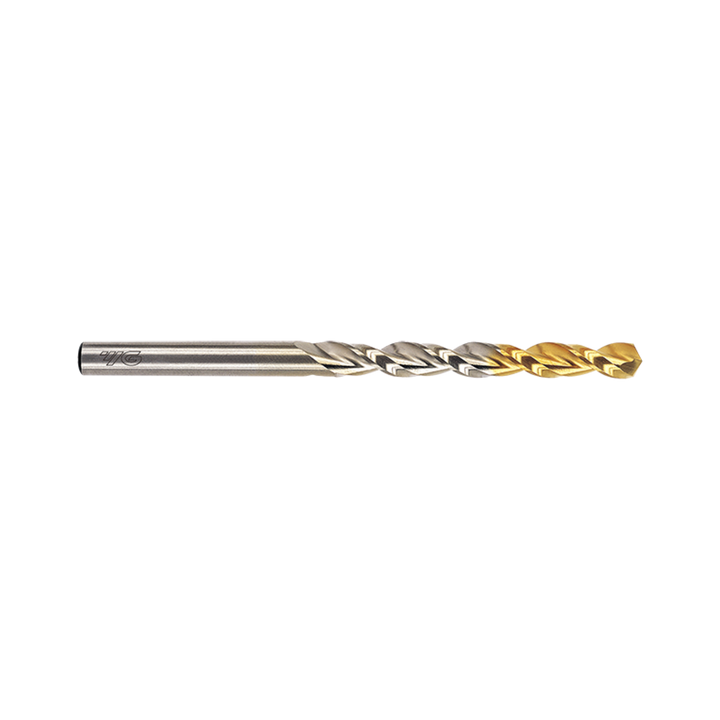

Gold-P DRILLS Jobber DIN338 (DLGP506)

$6.60 INC GST $6.00 EX GST
SKU
DLGP506050
P K N
Drill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUDrill Diameter (mm)Overall length (mm)Stock Price Qty Add
DLGP506050586.0 In stock $6.00
DLGP5060959.5125.0 1-2 Weeks $17.90
DLGP50612112.1151.0 1-2 Weeks $35.10
DLGP50613013151.0 1-2 Weeks $38.20

Add Gold-P DRILLS Jobber DIN338 (DLGP506) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

The DLGP506 series Gold-P worm pattern jobber drills are HSS 5 Percent cobalt drills with a TiN coating working area. The cobalt content reduces cost and increases tool life compared to standard HSS drills. The worm pattern helix with deep lute pockets prevent chip build up making them ideal for deep hole drilling of Steel, Grey & Malleable Cast Iron, Aluminium and Magnesium Alloys. Diameters range from 2-13mm.

  • TiN Coating on working area with 5% Cobalt content reduces cost and increases tool life compared to standard HSS drill
  • Right hand, 38° helix, worm pattern helix with deep flute pockets prevent chip build up, especially in soft or long chipping materials
  • General purpose drill for Steels, Grey & Malleable Cast Iron, Aluminium & Magnesium Alloys
Product Data
Workpiece Material P K N
Helix Angle 33N
Operation Blind Drilling, Through Drilling
Shank Type Plain YG-1 Standard
Surface Treatment Titanium Nitride Coating
Tolerance Grade H8
Tool Material HSS-E
Tool Standard DIN 338
Standard DIN338
Length JOBBER
Size Min D2.0
Size Max D13.0
SURFACE TREATMENT TiN

EDP No. OutsideDia (D1) Connection Size (D2) FluteLength (L1) Overall Length (L2) DLGP506020 2 2 24 49 DLGP506021 2.1 2.1 24 49 DLGP506022 2.2 2.2 27 53 DLGP506023 2.3 2.3 27 53 DLGP506024 2.4 2.4 30 57 DLGP506025 2.5 2.5 30 57 DLGP506026 2.6 2.6 30 57 DLGP506027 2.7 2.7 33 61 DLGP506028 2.8 2.8 33 61 DLGP506029 2.9 2.9 33 61 DLGP506030 3 3 33 61 DLGP506031 3.1 3.1 36 65 DLGP506032 3.2 3.2 36 65 DLGP506033 3.3 3.3 36 65 DLGP506034 3.4 3.4 39 70 DLGP506035 3.5 3.5 39 70 DLGP506036 3.6 3.6 39 70 DLGP506037 3.7 3.7 39 70 DLGP506038 3.8 3.8 43 75 DLGP506039 3.9 3.9 43 75 DLGP506040 4 4 43 75 DLGP506041 4.1 4.1 43 75 DLGP506042 4.2 4.2 43 75 DLGP506043 4.3 4.3 47 80 DLGP506044 4.4 4.4 47 80 DLGP506045 4.5 4.5 47 80 DLGP506046 4.6 4.6 47 80 DLGP506047 4.7 4.7 47 80 DLGP506048 4.8 4.8 52 86 DLGP506049 4.9 4.9 52 86 DLGP506050 5 5 52 86 DLGP506051 5.1 5.1 52 86 DLGP506052 5.2 5.2 52 86 DLGP506053 5.3 5.3 52 86 DLGP506054 5.4 5.4 57 93 DLGP506055 5.5 5.5 57 93 DLGP506056 5.6 5.6 57 93 DLGP506057 5.7 5.7 57 93 DLGP506058 5.8 5.8 57 93 DLGP506059 5.9 5.9 57 93 DLGP506060 6 6 57 93 DLGP506061 6.1 6.1 63 101 DLGP506062 6.2 6.2 63 101 DLGP506063 6.3 6.3 63 101 DLGP506064 6.4 6.4 63 101 DLGP506065 6.5 6.5 63 101 DLGP506066 6.6 6.6 63 101 DLGP506067 6.7 6.7 63 101 DLGP506068 6.8 6.8 69 109 DLGP506069 6.9 6.9 69 109 DLGP506070 7 7 69 109 DLGP506071 7.1 7.1 69 109 DLGP506072 7.2 7.2 69 109 DLGP506073 7.3 7.3 69 109 DLGP506074 7.4 7.4 69 109 DLGP506075 7.5 7.5 69 109 DLGP506076 7.6 7.6 75 117 DLGP506077 7.7 7.7 75 117 DLGP506078 7.8 7.8 75 117 DLGP506079 7.9 7.9 75 117 DLGP506080 8 8 75 117 DLGP506081 8.1 8.1 75 117 DLGP506082 8.2 8.2 75 117 DLGP506083 8.3 8.3 75 117 DLGP506084 8.4 8.4 75 117 DLGP506085 8.5 8.5 75 117 DLGP506086 8.6 8.6 81 125 DLGP506087 8.7 8.7 81 125 DLGP506088 8.8 8.8 81 125 DLGP506089 8.9 8.9 81 125 DLGP506090 9 9 81 125 DLGP506091 9.1 9.1 81 125 DLGP506092 9.2 9.2 81 125 DLGP506093 9.3 9.3 81 125 DLGP506094 9.4 9.4 81 125 DLGP506095 9.5 9.5 81 125 DLGP506096 9.6 9.6 87 133 DLGP506097 9.7 9.7 87 133 DLGP506098 9.8 9.8 87 133 DLGP506099 9.9 9.9 87 133 DLGP506100 10 10 87 133 DLGP506101 10.1 10.1 87 133 DLGP506102 10.2 10.2 87 133 DLGP506103 10.3 10.3 87 133 DLGP506104 10.4 10.4 87 133 DLGP506105 10.5 10.5 87 133 DLGP506106 10.6 10.6 87 133 DLGP506107 10.7 10.7 94 142 DLGP506108 10.8 10.8 94 142 DLGP506109 10.9 10.9 94 142 DLGP506110 11 11 94 142 DLGP506111 11.1 11.1 94 142 DLGP506112 11.2 11.2 94 142 DLGP506113 11.3 11.3 94 142 DLGP506114 11.4 11.4 94 142 DLGP506115 11.5 11.5 94 142 DLGP506116 11.6 11.5 94 142 DLGP506117 11.7 11.7 94 142 DLGP506118 11.8 11.8 94 142 DLGP506119 11.9 11.9 101 151 DLGP506120 12 12 101 151 DLGP506121 12.1 12.1 101 151 DLGP506122 12.2 12.2 101 151 DLGP506123 12.3 12.3 101 151 DLGP506124 12.4 12.4 101 151 DLGP506125 12.5 12.5 101 151 DLGP506126 12.6 12.6 101 151 DLGP506127 12.7 12.7 101 151 DLGP506128 12.8 12.8 101 151 DLGP506129 12.9 12.9 101 151 DLGP506130 13 13 101 151
Blind Drilling
Through Drilling
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Tool Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
N Aluminium

Great

Good Great Excellent

No VDI recommendations set for this product.

EDP No. OutsideDia (D1) Connection Size (D2) FluteLength (L1) Overall Length (L2) DLGP506020 2 2 24 49 DLGP506021 2.1 2.1 24 49 DLGP506022 2.2 2.2 27 53 DLGP506023 2.3 2.3 27 53 DLGP506024 2.4 2.4 30 57 DLGP506025 2.5 2.5 30 57 DLGP506026 2.6 2.6 30 57 DLGP506027 2.7 2.7 33 61 DLGP506028 2.8 2.8 33 61 DLGP506029 2.9 2.9 33 61 DLGP506030 3 3 33 61 DLGP506031 3.1 3.1 36 65 DLGP506032 3.2 3.2 36 65 DLGP506033 3.3 3.3 36 65 DLGP506034 3.4 3.4 39 70 DLGP506035 3.5 3.5 39 70 DLGP506036 3.6 3.6 39 70 DLGP506037 3.7 3.7 39 70 DLGP506038 3.8 3.8 43 75 DLGP506039 3.9 3.9 43 75 DLGP506040 4 4 43 75 DLGP506041 4.1 4.1 43 75 DLGP506042 4.2 4.2 43 75 DLGP506043 4.3 4.3 47 80 DLGP506044 4.4 4.4 47 80 DLGP506045 4.5 4.5 47 80 DLGP506046 4.6 4.6 47 80 DLGP506047 4.7 4.7 47 80 DLGP506048 4.8 4.8 52 86 DLGP506049 4.9 4.9 52 86 DLGP506050 5 5 52 86 DLGP506051 5.1 5.1 52 86 DLGP506052 5.2 5.2 52 86 DLGP506053 5.3 5.3 52 86 DLGP506054 5.4 5.4 57 93 DLGP506055 5.5 5.5 57 93 DLGP506056 5.6 5.6 57 93 DLGP506057 5.7 5.7 57 93 DLGP506058 5.8 5.8 57 93 DLGP506059 5.9 5.9 57 93 DLGP506060 6 6 57 93 DLGP506061 6.1 6.1 63 101 DLGP506062 6.2 6.2 63 101 DLGP506063 6.3 6.3 63 101 DLGP506064 6.4 6.4 63 101 DLGP506065 6.5 6.5 63 101 DLGP506066 6.6 6.6 63 101 DLGP506067 6.7 6.7 63 101 DLGP506068 6.8 6.8 69 109 DLGP506069 6.9 6.9 69 109 DLGP506070 7 7 69 109 DLGP506071 7.1 7.1 69 109 DLGP506072 7.2 7.2 69 109 DLGP506073 7.3 7.3 69 109 DLGP506074 7.4 7.4 69 109 DLGP506075 7.5 7.5 69 109 DLGP506076 7.6 7.6 75 117 DLGP506077 7.7 7.7 75 117 DLGP506078 7.8 7.8 75 117 DLGP506079 7.9 7.9 75 117 DLGP506080 8 8 75 117 DLGP506081 8.1 8.1 75 117 DLGP506082 8.2 8.2 75 117 DLGP506083 8.3 8.3 75 117 DLGP506084 8.4 8.4 75 117 DLGP506085 8.5 8.5 75 117 DLGP506086 8.6 8.6 81 125 DLGP506087 8.7 8.7 81 125 DLGP506088 8.8 8.8 81 125 DLGP506089 8.9 8.9 81 125 DLGP506090 9 9 81 125 DLGP506091 9.1 9.1 81 125 DLGP506092 9.2 9.2 81 125 DLGP506093 9.3 9.3 81 125 DLGP506094 9.4 9.4 81 125 DLGP506095 9.5 9.5 81 125 DLGP506096 9.6 9.6 87 133 DLGP506097 9.7 9.7 87 133 DLGP506098 9.8 9.8 87 133 DLGP506099 9.9 9.9 87 133 DLGP506100 10 10 87 133 DLGP506101 10.1 10.1 87 133 DLGP506102 10.2 10.2 87 133 DLGP506103 10.3 10.3 87 133 DLGP506104 10.4 10.4 87 133 DLGP506105 10.5 10.5 87 133 DLGP506106 10.6 10.6 87 133 DLGP506107 10.7 10.7 94 142 DLGP506108 10.8 10.8 94 142 DLGP506109 10.9 10.9 94 142 DLGP506110 11 11 94 142 DLGP506111 11.1 11.1 94 142 DLGP506112 11.2 11.2 94 142 DLGP506113 11.3 11.3 94 142 DLGP506114 11.4 11.4 94 142 DLGP506115 11.5 11.5 94 142 DLGP506116 11.6 11.5 94 142 DLGP506117 11.7 11.7 94 142 DLGP506118 11.8 11.8 94 142 DLGP506119 11.9 11.9 101 151 DLGP506120 12 12 101 151 DLGP506121 12.1 12.1 101 151 DLGP506122 12.2 12.2 101 151 DLGP506123 12.3 12.3 101 151 DLGP506124 12.4 12.4 101 151 DLGP506125 12.5 12.5 101 151 DLGP506126 12.6 12.6 101 151 DLGP506127 12.7 12.7 101 151 DLGP506128 12.8 12.8 101 151 DLGP506129 12.9 12.9 101 151 DLGP506130 13 13 101 151
