(DL109) HSS-E (M35) Jobber Drill for Heavy Duty (Gold Coloring)

HSS-E Heavy-Duty Jobber Twist Drill

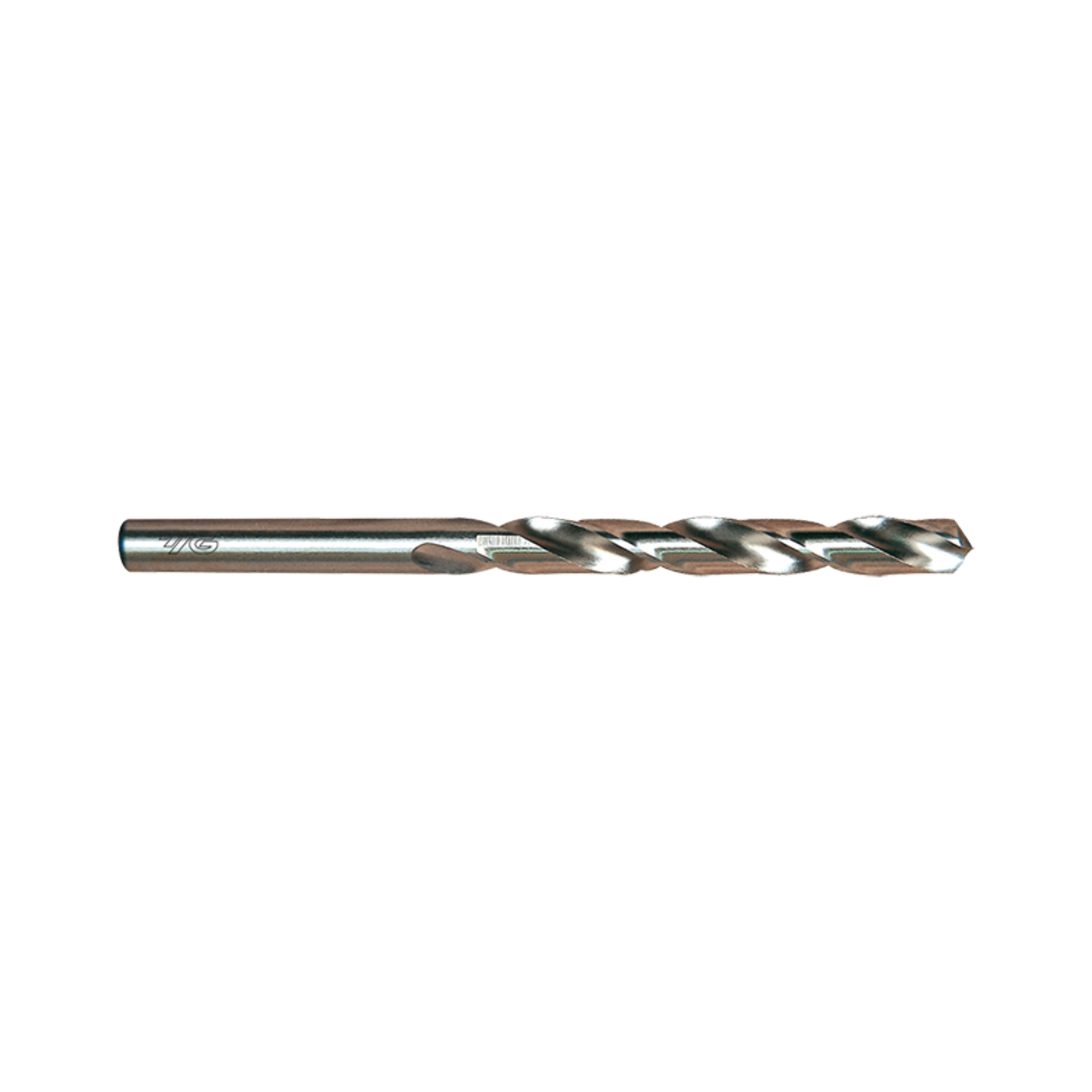

YG-1 DL109 official product photograph · transparent
$2.75 INC GST $2.50 EX GST
SKU
DL109917
Work materials
PMKNS

Key features

  • HSS-E straight-shank heavy-duty jobber twist drill
  • 118° point geometry
  • Bright surface finish
Drill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Built for ferrous drilling

Designed for steels, cast steels, grey cast iron, malleable cast iron and graphite.

Practical jobber format

Straight-shank jobber proportions suit general machine and workshop holemaking tasks.

Useful metric range

Select from 1.75 to 12.5 mm diameters for common metric drilling requirements.

SKUDrill Diameter (mm)Overall length (mm)Flute length (mm)Stock Price Qty Add
DL1090151.540.018.0 No stock $2.20
DL1099171.7546.022.0 1-2 Weeks $2.50
DL1090202.049.024.0 1-2 Weeks $2.40
DL1099222.2553.027.0 No stock $2.70
DL1090252.557.030.0 1-2 Weeks $2.40
DL1099272.7561.033.0 No stock $3.10
DL1090303.061.033.0 1-2 Weeks $3.60
DL1099323.2565.036.0 No stock $3.00
DL1090353.570.039.0 1-2 Weeks $3.10
DL1099373.7570.039.0 No stock $4.20
DL1090404.075.043.0 No stock $3.80
DL1099424.2575.043.0 1-2 Weeks $4.30
DL1090454.580.047.0 No stock $4.50
DL1099474.7580.047.0 1-2 Weeks $4.60
DL1090505.086.052.0 1-2 Weeks $4.30
DL1099525.2586.052.0 1-2 Weeks $6.10
DL1090555.593.057.0 1-2 Weeks $5.50
DL1099575.7593.057.0 No stock $6.60
DL1090606.093.057.0 1-2 Weeks $6.00
DL1099626.25101.063.0 1-2 Weeks $7.50
DL1090656.5101.063.0 1-2 Weeks $6.90
DL1099676.75109.069.0 No stock $8.10
DL1090707.0109.069.0 No stock $7.40
DL1099727.25109.069.0 No stock $9.80
DL1090757.5109.069.0 1-2 Weeks $8.90
DL1099777.75117.075.0 No stock $10.60
DL1090808.0117.075.0 1-2 Weeks $9.70
DL1099828.25117.075.0 No stock $11.80
DL1090858.5117.075.0 1-2 Weeks $10.80
DL1099878.75125.081.0 No stock $12.40
DL1090909.0125.081.0 1-2 Weeks $12.40
DL1099929.25125.081.0 No stock $15.80
DL1090959.5125.081.0 1-2 Weeks $15.80
DL1099979.75133.087.0 No stock $15.40
DL10910010.0133.087.0 No stock $15.40
DL10910510.5133.087.0 No stock $18.10
DL10911011.0142.094.0 No stock $18.30
DL10911511.5142.094.0 No stock $22.40
DL10912012.0151.0101.0 No stock $21.50
DL10912512.5151.0101.0 1-2 Weeks $25.00
DL10913013.0151.0101.0 No stock $25.20

Add (DL109) HSS-E (M35) Jobber Drill for Heavy Duty (Gold Coloring) to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

YG-1 DL109 is an HSS-E straight-shank heavy-duty jobber twist drill with a bright finish. Its 118° point supports drilling steels, cast steels, grey cast iron, malleable cast iron and graphite. The jobber format provides a practical option for general machine and workshop holemaking tasks. The available selection covers 1.75 to 12.5 mm diameters for common metric hole sizes. Listed drill lengths range from 46 to 151 mm, with flute lengths matched to diameter. It suits demanding ferrous drilling where a robust HSS-E tool is required.

  • HSS-E straight-shank heavy-duty jobber twist drill
  • 118° point geometry
  • Bright surface finish
  • Suitable for steels cast steels cast iron and graphite
  • Available in 1.75 to 12.5 mm diameters
  • Overall lengths from 46 to 151 mm
Product Data

No specifications available.

EDP No. OutsideDia (D1) Connection Size (D2) FluteLength (L1) Overall Length (L2) Drilling Depth DL109015 1.5 1.5 18 40 - DL109020 2 2 24 49 - DL109025 2.5 2.5 30 57 - DL109030 3 3 33 61 - DL109035 3.5 3.5 39 70 - DL109040 4 4 43 75 - DL109045 4.5 4.5 47 80 - DL109050 5 5 52 86 - DL109055 5.5 5.5 57 93 - DL109060 6 6 57 93 - DL109065 6.5 6.5 63 101 - DL109070 7 7 69 109 - DL109075 7.5 7.5 69 109 - DL109080 8 8 75 117 - DL109085 8.5 8.5 75 117 - DL109090 9 9 81 125 - DL109095 9.5 9.5 81 125 - DL109100 10 10 87 133 - DL109105 10.5 10.5 87 133 - DL109110 11 11 94 142 - DL109115 11.5 11.5 94 142 - DL109120 12 12 101 151 - DL109125 12.5 12.5 101 151 - DL109130 13 13 101 151 - DL109917 1.75 1.75 22 46 - DL109922 2.25 2.25 27 53 - DL109927 2.75 2.75 33 61 - DL109932 3.25 3.25 36 65 - DL109937 3.75 3.75 39 70 - DL109942 4.25 4.25 43 75 - DL109947 4.75 4.75 47 80 - DL109952 5.25 5.25 52 86 - DL109957 5.75 5.75 57 93 - DL109962 6.25 6.25 63 101 - DL109967 6.75 6.75 69 109 - DL109972 7.25 7.25 69 109 - DL109977 7.75 7.75 75 117 - DL109982 8.25 8.25 75 117 - DL109987 8.75 8.75 81 125 - DL109992 9.25 9.25 81 125 - DL109997 9.75 9.75 87 133 -

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

8 grades
Non-alloy steel
ExcellentVDI 1–3
GoodVDI 4
Low-alloy steel
ExcellentVDI 6
GoodVDI 7–8
High-alloy and tool steel
GoodVDI 10

Cast iron

4 grades
Grey cast iron
GoodVDI 15–16
Nodular cast iron
GoodVDI 17
Malleable cast iron
GoodVDI 19

Superalloys & titanium

1 grade
Titanium alloys
GoodVDI 36

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12
GoodVDI 13–14

Non-ferrous materials

4 grades
Wrought aluminium
GoodVDI 21–22
Cast aluminium
GoodVDI 23
Non-metallic materials
GoodVDI 29
VDI grade reference20 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelGood27028
6PLow-alloy steelExcellent18010
7PLow-alloy steelGood27529
8PLow-alloy steelGood30032
10PHigh-alloy and tool steelGood20015
12MStainless steelExcellent20015
13MStainless steelGood24023
14MStainless steelGood18010
15KGrey cast ironGood18010
16KGrey cast ironGood26026
17KNodular cast ironGood1603
19KMalleable cast ironGood130-
21NWrought aluminiumGood60-
22NWrought aluminiumGood100-
23NCast aluminiumGood75-
29NNon-metallic materialsGood--
36STitanium alloysGood--

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

EDP No. OutsideDia (D1) Connection Size (D2) FluteLength (L1) Overall Length (L2) Drilling Depth DL109015 1.5 1.5 18 40 - DL109020 2 2 24 49 - DL109025 2.5 2.5 30 57 - DL109030 3 3 33 61 - DL109035 3.5 3.5 39 70 - DL109040 4 4 43 75 - DL109045 4.5 4.5 47 80 - DL109050 5 5 52 86 - DL109055 5.5 5.5 57 93 - DL109060 6 6 57 93 - DL109065 6.5 6.5 63 101 - DL109070 7 7 69 109 - DL109075 7.5 7.5 69 109 - DL109080 8 8 75 117 - DL109085 8.5 8.5 75 117 - DL109090 9 9 81 125 - DL109095 9.5 9.5 81 125 - DL109100 10 10 87 133 - DL109105 10.5 10.5 87 133 - DL109110 11 11 94 142 - DL109115 11.5 11.5 94 142 - DL109120 12 12 101 151 - DL109125 12.5 12.5 101 151 - DL109130 13 13 101 151 - DL109917 1.75 1.75 22 46 - DL109922 2.25 2.25 27 53 - DL109927 2.75 2.75 33 61 - DL109932 3.25 3.25 36 65 - DL109937 3.75 3.75 39 70 - DL109942 4.25 4.25 43 75 - DL109947 4.75 4.75 47 80 - DL109952 5.25 5.25 52 86 - DL109957 5.75 5.75 57 93 - DL109962 6.25 6.25 63 101 - DL109967 6.75 6.75 69 109 - DL109972 7.25 7.25 69 109 - DL109977 7.75 7.75 75 117 - DL109982 8.25 8.25 75 117 - DL109987 8.75 8.75 81 125 - DL109992 9.25 9.25 81 125 - DL109997 9.75 9.75 87 133 -
