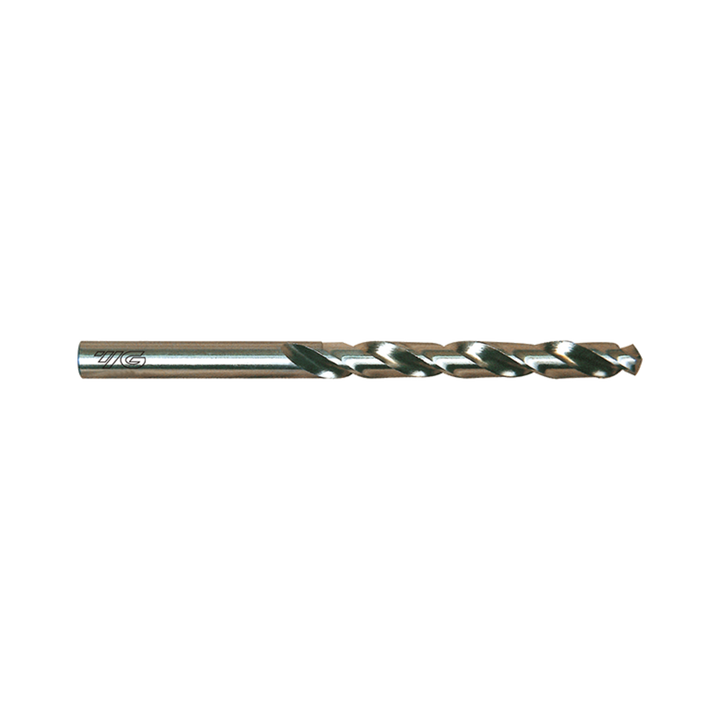

(DL105) HSS-E (M35) Jobber Drill (Gold Coloring)

  • $0.00INC GST $0.00 EX GST

(DL105) HSS-E (M35) Jobber Drill (Gold Coloring)

  • $0.00INC GST $0.00 EX GST Price available on request

Code: DL105

P M K N S
Code
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add (DL105) HSS-E (M35) Jobber Drill (Gold Coloring) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

Surface treatment: Coloring(Gold color)Application : Drilling stainless steels and difficult - to - cut materials such as titanium and inconel.

Product Data
Workpiece Material P M K N S
Helix Angle 33N
Operation Blind Drilling, Through Drilling
Tolerance Grade H8
Tool Material HSS-E
Tool Standard DIN 338
Standard DIN338
Length JOBBER
Size Min D1.0
Size Max D20.0
SURFACE TREATMENT Gold Coloring

EDP No. OutsideDia (D1) Connection Size (D2) FluteLength (L1) Overall Length (L2) Drilling Depth DL105010 1 1 12 34 - DL105011 1.1 1.1 14 36 - DL105012 1.2 1.2 16 38 - DL105013 1.3 1.3 16 38 - DL105014 1.4 1.4 18 40 - DL105015 1.5 1.5 18 40 - DL105016 1.6 1.6 20 43 - DL105017 1.7 1.7 20 43 - DL105018 1.8 1.8 22 46 - DL105019 1.9 1.9 22 46 - DL105020 2 2 24 49 - DL105021 2.1 2.1 24 49 - DL105022 2.2 2.2 27 53 - DL105023 2.3 2.3 27 53 - DL105024 2.4 2.4 30 57 - DL105025 2.5 2.5 30 57 - DL105026 2.6 2.6 30 57 - DL105027 2.7 2.7 33 61 - DL105028 2.8 2.8 33 61 - DL105029 2.9 2.9 33 61 - DL105030 3 3 33 61 - DL105031 3.1 3.1 36 65 - DL105032 3.2 3.2 36 65 - DL105033 3.3 3.3 36 65 - DL105034 3.4 3.4 39 70 - DL105035 3.5 3.5 39 70 - DL105036 3.6 3.6 39 70 - DL105037 3.7 3.7 39 70 - DL105038 3.8 3.8 43 75 - DL105039 3.9 3.9 43 75 - DL105040 4 4 43 75 - DL105041 4.1 4.1 43 75 - DL105042 4.2 4.2 43 75 - DL105043 4.3 4.3 47 80 - DL105044 4.4 4.4 47 80 - DL105045 4.5 4.5 47 80 - DL105046 4.6 4.6 47 80 - DL105047 4.7 4.7 47 80 - DL105048 4.8 4.8 52 86 - DL105049 4.9 4.9 52 86 - DL105050 5 5 52 86 - DL105051 5.1 5.1 52 86 - DL105052 5.2 5.2 52 86 - DL105053 5.3 5.3 52 86 - DL105054 5.4 5.4 57 93 - DL105055 5.5 5.5 57 93 - DL105056 5.6 5.6 57 93 - DL105057 5.7 5.7 57 93 - DL105058 5.8 5.8 57 93 - DL105059 5.9 5.9 57 93 - DL105060 6 6 57 93 - DL105061 6.1 6.1 63 101 - DL105062 6.2 6.2 63 101 - DL105063 6.3 6.3 63 101 - DL105064 6.4 6.4 63 101 - DL105065 6.5 6.5 63 101 - DL105066 6.6 6.6 63 101 - DL105067 6.7 6.7 63 101 - DL105068 6.8 6.8 69 109 - DL105069 6.9 6.9 69 109 - DL105070 7 7 69 109 - DL105071 7.1 7.1 69 109 - DL105072 7.2 7.2 69 109 - DL105073 7.3 7.3 69 109 - DL105074 7.4 7.4 69 109 - DL105075 7.5 7.5 69 109 - DL105076 7.6 7.6 75 117 - DL105077 7.7 7.7 75 117 - DL105078 7.8 7.8 75 117 - DL105079 7.9 7.9 75 117 - DL105080 8 8 75 117 - DL105081 8.1 8.1 75 117 - DL105082 8.2 8.2 75 117 - DL105083 8.3 8.3 75 117 - DL105084 8.4 8.4 75 117 - DL105085 8.5 8.5 75 117 - DL105086 8.6 8.6 81 125 - DL105087 8.7 8.7 81 125 - DL105088 8.8 8.8 81 125 - DL105089 8.9 8.9 81 125 - DL105090 9 9 81 125 - DL105091 9.1 9.1 81 125 - DL105092 9.2 9.2 81 125 - DL105093 9.3 9.3 81 125 - DL105094 9.4 9.4 81 125 - DL105095 9.5 9.5 81 125 - DL105096 9.6 9.6 87 133 - DL105097 9.7 9.7 87 133 - DL105098 9.8 9.8 87 133 - DL105099 9.9 9.9 87 133 - DL105100 10 10 87 133 - DL105102 10.2 10.2 87 133 - DL105105 10.5 10.5 87 133 - DL105110 11 11 94 142 - DL105115 11.5 11.5 94 142 - DL105120 12 12 101 151 - DL105125 12.5 12.5 101 151 - DL105130 13 13 101 151 - DL105135 13.5 13.5 108 160 - DL105140 14 14 108 160 - DL105145 14.5 14.5 114 169 - DL105150 15 15 114 169 - DL105155 15.5 15.5 120 178 - DL105160 16 16 120 178 - DL105165 16.5 16.5 125 184 - DL105170 17 17 125 184 - DL105175 17.5 17.5 130 191 - DL105180 18 18 130 191 - DL105185 18.5 18.5 135 198 - DL105190 19 19 135 198 - DL105195 19.5 19.5 140 205 - DL105200 20 20 140 205 - DL105912 1.25 1.25 16 38 - DL105917 1.75 1.75 22 46 - DL105922 2.25 2.25 27 53 - DL105927 2.75 2.75 33 61 - DL105932 3.25 3.25 36 65 - DL105937 3.75 3.75 39 70 - DL105942 4.25 4.25 43 75 - DL105947 4.75 4.75 47 80 - DL105952 5.25 5.25 52 86 - DL105957 5.75 5.75 57 93 - DL105962 6.25 6.25 63 101 - DL105967 6.75 6.75 69 109 - DL105972 7.25 7.25 69 109 - DL105977 7.75 7.75 75 117 - DL105982 8.25 8.25 75 117 - DL105987 8.75 8.75 81 125 - DL105992 9.25 9.25 81 125 - DL105997 9.75 9.75 87 133 -
Blind Drilling
Through Drilling
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Tool Steels

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
N Aluminium

Great

Good Great Excellent
S Titanium

Great

Good Great Excellent

No VDI recommendations set for this product.

EDP No. OutsideDia (D1) Connection Size (D2) FluteLength (L1) Overall Length (L2) Drilling Depth DL105010 1 1 12 34 - DL105011 1.1 1.1 14 36 - DL105012 1.2 1.2 16 38 - DL105013 1.3 1.3 16 38 - DL105014 1.4 1.4 18 40 - DL105015 1.5 1.5 18 40 - DL105016 1.6 1.6 20 43 - DL105017 1.7 1.7 20 43 - DL105018 1.8 1.8 22 46 - DL105019 1.9 1.9 22 46 - DL105020 2 2 24 49 - DL105021 2.1 2.1 24 49 - DL105022 2.2 2.2 27 53 - DL105023 2.3 2.3 27 53 - DL105024 2.4 2.4 30 57 - DL105025 2.5 2.5 30 57 - DL105026 2.6 2.6 30 57 - DL105027 2.7 2.7 33 61 - DL105028 2.8 2.8 33 61 - DL105029 2.9 2.9 33 61 - DL105030 3 3 33 61 - DL105031 3.1 3.1 36 65 - DL105032 3.2 3.2 36 65 - DL105033 3.3 3.3 36 65 - DL105034 3.4 3.4 39 70 - DL105035 3.5 3.5 39 70 - DL105036 3.6 3.6 39 70 - DL105037 3.7 3.7 39 70 - DL105038 3.8 3.8 43 75 - DL105039 3.9 3.9 43 75 - DL105040 4 4 43 75 - DL105041 4.1 4.1 43 75 - DL105042 4.2 4.2 43 75 - DL105043 4.3 4.3 47 80 - DL105044 4.4 4.4 47 80 - DL105045 4.5 4.5 47 80 - DL105046 4.6 4.6 47 80 - DL105047 4.7 4.7 47 80 - DL105048 4.8 4.8 52 86 - DL105049 4.9 4.9 52 86 - DL105050 5 5 52 86 - DL105051 5.1 5.1 52 86 - DL105052 5.2 5.2 52 86 - DL105053 5.3 5.3 52 86 - DL105054 5.4 5.4 57 93 - DL105055 5.5 5.5 57 93 - DL105056 5.6 5.6 57 93 - DL105057 5.7 5.7 57 93 - DL105058 5.8 5.8 57 93 - DL105059 5.9 5.9 57 93 - DL105060 6 6 57 93 - DL105061 6.1 6.1 63 101 - DL105062 6.2 6.2 63 101 - DL105063 6.3 6.3 63 101 - DL105064 6.4 6.4 63 101 - DL105065 6.5 6.5 63 101 - DL105066 6.6 6.6 63 101 - DL105067 6.7 6.7 63 101 - DL105068 6.8 6.8 69 109 - DL105069 6.9 6.9 69 109 - DL105070 7 7 69 109 - DL105071 7.1 7.1 69 109 - DL105072 7.2 7.2 69 109 - DL105073 7.3 7.3 69 109 - DL105074 7.4 7.4 69 109 - DL105075 7.5 7.5 69 109 - DL105076 7.6 7.6 75 117 - DL105077 7.7 7.7 75 117 - DL105078 7.8 7.8 75 117 - DL105079 7.9 7.9 75 117 - DL105080 8 8 75 117 - DL105081 8.1 8.1 75 117 - DL105082 8.2 8.2 75 117 - DL105083 8.3 8.3 75 117 - DL105084 8.4 8.4 75 117 - DL105085 8.5 8.5 75 117 - DL105086 8.6 8.6 81 125 - DL105087 8.7 8.7 81 125 - DL105088 8.8 8.8 81 125 - DL105089 8.9 8.9 81 125 - DL105090 9 9 81 125 - DL105091 9.1 9.1 81 125 - DL105092 9.2 9.2 81 125 - DL105093 9.3 9.3 81 125 - DL105094 9.4 9.4 81 125 - DL105095 9.5 9.5 81 125 - DL105096 9.6 9.6 87 133 - DL105097 9.7 9.7 87 133 - DL105098 9.8 9.8 87 133 - DL105099 9.9 9.9 87 133 - DL105100 10 10 87 133 - DL105102 10.2 10.2 87 133 - DL105105 10.5 10.5 87 133 - DL105110 11 11 94 142 - DL105115 11.5 11.5 94 142 - DL105120 12 12 101 151 - DL105125 12.5 12.5 101 151 - DL105130 13 13 101 151 - DL105135 13.5 13.5 108 160 - DL105140 14 14 108 160 - DL105145 14.5 14.5 114 169 - DL105150 15 15 114 169 - DL105155 15.5 15.5 120 178 - DL105160 16 16 120 178 - DL105165 16.5 16.5 125 184 - DL105170 17 17 125 184 - DL105175 17.5 17.5 130 191 - DL105180 18 18 130 191 - DL105185 18.5 18.5 135 198 - DL105190 19 19 135 198 - DL105195 19.5 19.5 140 205 - DL105200 20 20 140 205 - DL105912 1.25 1.25 16 38 - DL105917 1.75 1.75 22 46 - DL105922 2.25 2.25 27 53 - DL105927 2.75 2.75 33 61 - DL105932 3.25 3.25 36 65 - DL105937 3.75 3.75 39 70 - DL105942 4.25 4.25 43 75 - DL105947 4.75 4.75 47 80 - DL105952 5.25 5.25 52 86 - DL105957 5.75 5.75 57 93 - DL105962 6.25 6.25 63 101 - DL105967 6.75 6.75 69 109 - DL105972 7.25 7.25 69 109 - DL105977 7.75 7.75 75 117 - DL105982 8.25 8.25 75 117 - DL105987 8.75 8.75 81 125 - DL105992 9.25 9.25 81 125 - DL105997 9.75 9.75 87 133 -
