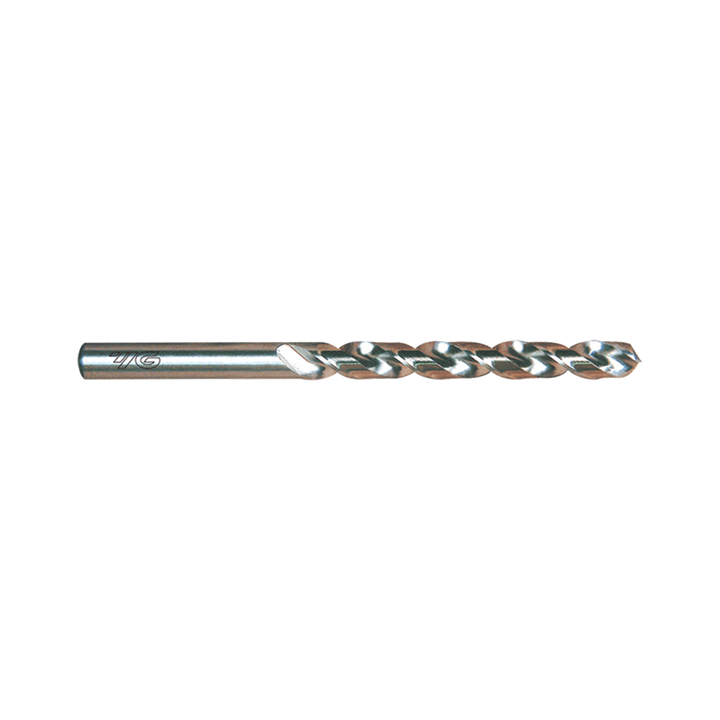

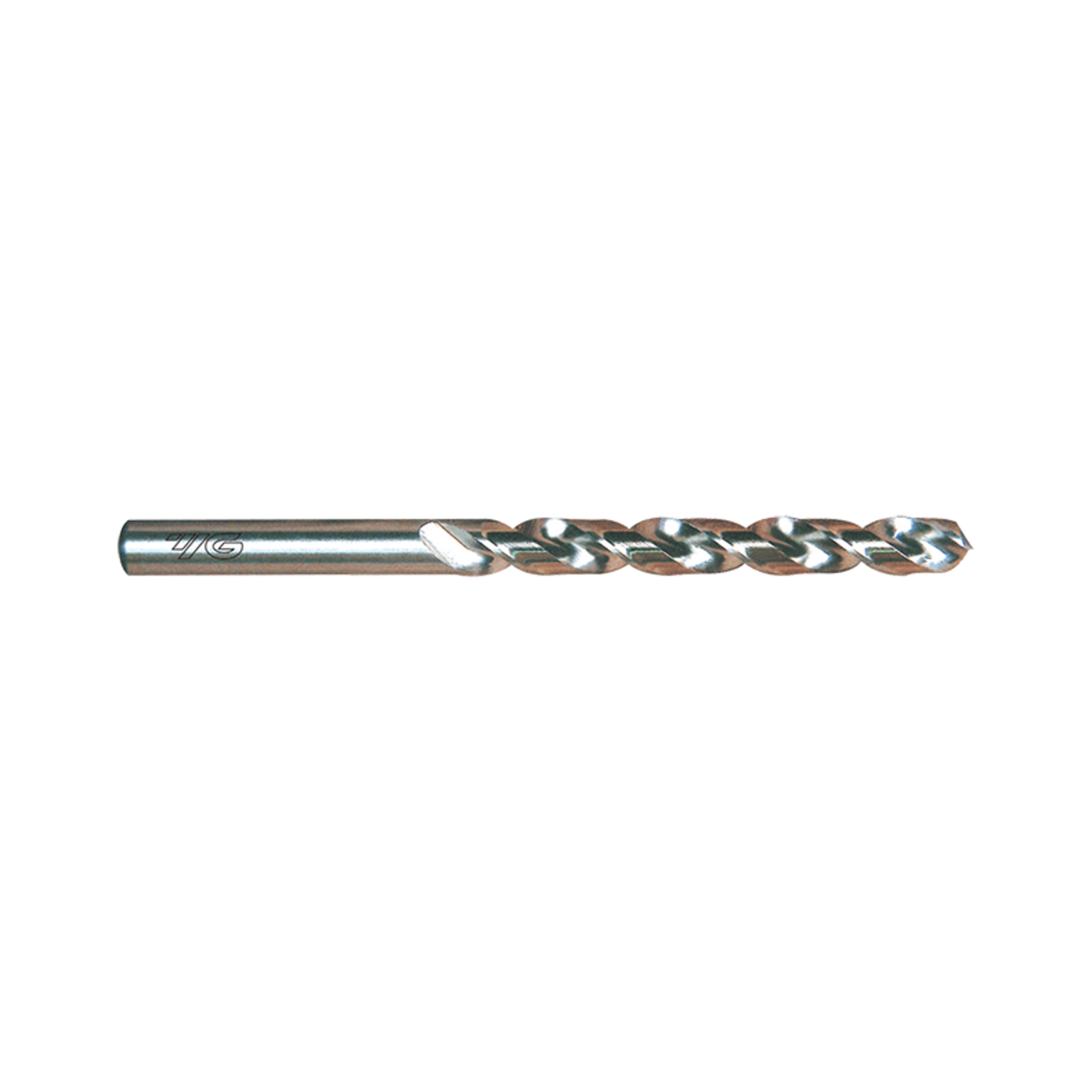

HSS JOBBER STRAIGHT SHANK TWIST DRILLS BRIGHT FINISH (D1106)

Jobber Drill for Aluminium
  • $3.52INC GST $3.20 EX GST
New

HSS JOBBER STRAIGHT SHANK TWIST DRILLS BRIGHT FINISH (D1106)

Jobber Drill for Aluminium
  • $3.52INC GST $3.20 EX GST

Code: D1106015

N
Diameter (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add HSS JOBBER STRAIGHT SHANK TWIST DRILLS BRIGHT FINISH (D1106) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

The D1106 series YG-1 HSS jobber drill has a special design with deep flute pockets for Aluminium drilling. These are also suitable for drilling brass, bronze and magnesium alloys. The bright finish prevents built up edge. They have a split point above 1.6mm. Diameters range from 1.5-13mm.

  • 5xD Jobber Drill.
  • Made from a HSS substrate.
  • Bright finish for aluminium drilling.
  • Suitable for machining Aluminium & Bronze.
  • Special design with deep flute pockets for aluminium drilling.
  • Also suitable for drilling brass, bronze, magnesium alloys.
  • Bright finish prevents built up edge.
  • Normal point up to 1.6mm, split point over 1.6mm for higher accuracy drilling.

Specifications

Standard DIN338
Length JOBBER
Size Min D1.5
Size Max D13.0
SURFACE TREATMENT Bright



Product Data
Workpiece Material N
Operation Blind Drilling, Through Drilling
Surface Treatment Bright
Tolerance Grade H8
Tool Standard DIN 338
EDP No. OutsideDia (D1) Connection Size (D2) FluteLength (L1) Overall Length (L2) Drilling Depth D1106015 1.5 1.5 18 40 - D1106015 1.5 1.5 18 40 0 D1106016 1.6 1.6 20 43 - D1106016 1.6 1.6 20 43 0 D1106017 1.7 1.7 20 43 - D1106017 1.7 1.7 20 43 0 D1106018 1.8 1.8 22 46 - D1106018 1.8 1.8 22 46 0 D1106019 1.9 1.9 22 46 - D1106019 1.9 1.9 22 46 0 D1106020 2 2 24 49 - D1106020 2 2 24 49 0 D1106021 2.1 2.1 24 49 - D1106021 2.1 2.1 24 49 0 D1106022 2.2 2.2 27 53 - D1106022 2.2 2.2 27 53 0 D1106023 2.3 2.3 27 53 - D1106023 2.3 2.3 27 53 0 D1106024 2.4 2.4 30 57 - D1106024 2.4 2.4 30 57 0 D1106025 2.5 2.5 30 57 - D1106025 2.5 2.5 30 57 0 D1106026 2.6 2.6 30 57 - D1106026 2.6 2.6 30 57 0 D1106027 2.7 2.7 33 61 - D1106027 2.7 2.7 33 61 0 D1106028 2.8 2.8 33 61 - D1106028 2.8 2.8 33 61 0 D1106029 2.9 2.9 33 61 - D1106029 2.9 2.9 33 61 0 D1106030 3 3 33 61 - D1106030 3 3 33 61 0 D1106031 3.1 3.1 36 65 - D1106031 3.1 3.1 36 65 0 D1106032 3.2 3.2 36 65 - D1106032 3.2 3.2 36 65 0 D1106033 3.3 3.3 36 65 - D1106033 3.3 3.3 36 65 0 D1106034 3.4 3.4 39 70 - D1106034 3.4 3.4 39 70 0 D1106035 3.5 3.5 39 70 - D1106035 3.5 3.5 39 70 0 D1106036 3.6 3.6 39 70 - D1106036 3.6 3.6 39 70 0 D1106037 3.7 3.7 39 70 - D1106037 3.7 3.7 39 70 0 D1106038 3.8 3.8 43 75 - D1106038 3.8 3.8 43 75 0 D1106039 3.9 3.9 43 75 - D1106039 3.9 3.9 43 75 0 D1106040 4 4 43 75 - D1106040 4 4 43 75 0 D1106041 4.1 4.1 43 75 - D1106041 4.1 4.1 43 75 0 D1106042 4.2 4.2 43 75 - D1106042 4.2 4.2 43 75 0 D1106043 4.3 4.3 47 80 - D1106043 4.3 4.3 47 80 0 D1106044 4.4 4.4 47 80 - D1106044 4.4 4.4 47 80 0 D1106045 4.5 4.5 47 80 - D1106045 4.5 4.5 47 80 0 D1106046 4.6 4.6 47 80 - D1106046 4.6 4.6 47 80 0 D1106047 4.7 4.7 47 80 - D1106047 4.7 4.7 47 80 0 D1106048 4.8 4.8 52 86 - D1106048 4.8 4.8 52 86 0 D1106049 4.9 4.9 52 86 - D1106049 4.9 4.9 52 86 0 D1106050 5 5 52 86 - D1106050 5 5 52 86 0 D1106051 5.1 5.1 52 86 - D1106051 5.1 5.1 52 86 0 D1106052 5.2 5.2 52 86 - D1106052 5.2 5.2 52 86 0 D1106053 5.3 5.3 52 86 - D1106053 5.3 5.3 52 86 0 D1106054 5.4 5.4 57 93 - D1106054 5.4 5.4 57 93 0 D1106055 5.5 5.5 57 93 - D1106055 5.5 5.5 57 93 0 D1106056 5.6 5.6 57 93 - D1106056 5.6 5.6 57 93 0 D1106057 5.7 5.7 57 93 - D1106057 5.7 5.7 57 93 0 D1106058 5.8 5.8 57 93 - D1106058 5.8 5.8 57 93 0 D1106059 5.9 5.9 57 93 - D1106059 5.9 5.9 57 93 0 D1106060 6 6 57 93 - D1106060 6 6 57 93 0 D1106061 6.1 6.1 63 101 - D1106061 6.1 6.1 63 101 0 D1106062 6.2 6.2 63 101 - D1106062 6.2 6.2 63 101 0 D1106063 6.3 6.3 63 101 - D1106063 6.3 6.3 63 101 0 D1106064 6.4 6.4 63 101 - D1106064 6.4 6.4 63 101 0 D1106065 6.5 6.5 63 101 - D1106065 6.5 6.5 63 101 0 D1106066 6.6 6.6 63 101 - D1106066 6.6 6.6 63 101 0 D1106067 6.7 6.7 63 101 - D1106067 6.7 6.7 63 101 0 D1106068 6.8 6.8 69 109 - D1106068 6.8 6.8 69 109 0 D1106069 6.9 6.9 69 109 - D1106069 6.9 6.9 69 109 0 D1106070 7 7 69 109 - D1106070 7 7 69 109 0 D1106071 7.1 7.1 69 109 - D1106071 7.1 7.1 69 109 0 D1106072 7.2 7.2 69 109 - D1106072 7.2 7.2 69 109 0 D1106073 7.3 7.3 69 109 - D1106073 7.3 7.3 69 109 0 D1106074 7.4 7.4 69 109 - D1106074 7.4 7.4 69 109 0 D1106075 7.5 7.5 69 109 - D1106075 7.5 7.5 69 109 0 D1106076 7.6 7.6 75 117 - D1106076 7.6 7.6 75 117 0 D1106077 7.7 7.7 75 117 - D1106077 7.7 7.7 75 117 0 D1106078 7.8 7.8 75 117 - D1106078 7.8 7.8 75 117 0 D1106079 7.9 7.9 75 117 - D1106079 7.9 7.9 75 117 0 D1106080 8 8 75 117 - D1106080 8 8 75 117 0 D1106081 8.1 8.1 75 117 - D1106081 8.1 8.1 75 117 0 D1106082 8.2 8.2 75 117 - D1106082 8.2 8.2 75 117 0 D1106083 8.3 8.3 75 117 - D1106083 8.3 8.3 75 117 0 D1106084 8.4 8.4 75 117 - D1106084 8.4 8.4 75 117 0 D1106085 8.5 8.5 75 117 - D1106085 8.5 8.5 75 117 0 D1106086 8.6 8.6 81 125 - D1106086 8.6 8.6 81 125 0 D1106087 8.7 8.7 81 125 - D1106087 8.7 8.7 81 125 0 D1106088 8.8 8.8 81 125 - D1106088 8.8 8.8 81 125 0 D1106089 8.9 8.9 81 125 - D1106089 8.9 8.9 81 125 0 D1106090 9 9 81 125 - D1106090 9 9 81 125 0 D1106091 9.1 9.1 81 125 - D1106091 9.1 9.1 81 125 0 D1106092 9.2 9.2 81 125 - D1106092 9.2 9.2 81 125 0 D1106093 9.3 9.3 81 125 - D1106093 9.3 9.3 81 125 0 D1106094 9.4 9.4 81 125 - D1106094 9.4 9.4 81 125 0 D1106095 9.5 9.5 81 125 - D1106095 9.5 9.5 81 125 0 D1106096 9.6 9.6 87 133 - D1106096 9.6 9.6 87 133 0 D1106097 9.7 9.7 87 133 - D1106097 9.7 9.7 87 133 0 D1106098 9.8 9.8 87 133 - D1106098 9.8 9.8 87 133 0 D1106099 9.9 9.9 87 133 - D1106099 9.9 9.9 87 133 0 D1106100 10 10 87 133 - D1106100 10 10 87 133 0 D1106102 10.2 10.2 98 133 0 D1106105 10.5 10.5 87 133 - D1106105 10.5 10.5 87 133 0 D1106110 11 11 94 142 - D1106110 11 11 94 142 0 D1106115 11.5 11.5 94 142 - D1106115 11.5 11.5 94 142 0 D1106120 12 12 101 151 - D1106120 12 12 101 151 0 D1106125 12.5 12.5 101 151 - D1106125 12.5 12.5 101 151 0 D1106130 13 13 101 151 - D1106130 13 13 101 151 0
Blind Drilling
Through Drilling
N Aluminium

Excellent

Good Great Excellent
EDP No. OutsideDia (D1) Connection Size (D2) FluteLength (L1) Overall Length (L2) Drilling Depth D1106015 1.5 1.5 18 40 - D1106015 1.5 1.5 18 40 0 D1106016 1.6 1.6 20 43 - D1106016 1.6 1.6 20 43 0 D1106017 1.7 1.7 20 43 - D1106017 1.7 1.7 20 43 0 D1106018 1.8 1.8 22 46 - D1106018 1.8 1.8 22 46 0 D1106019 1.9 1.9 22 46 - D1106019 1.9 1.9 22 46 0 D1106020 2 2 24 49 - D1106020 2 2 24 49 0 D1106021 2.1 2.1 24 49 - D1106021 2.1 2.1 24 49 0 D1106022 2.2 2.2 27 53 - D1106022 2.2 2.2 27 53 0 D1106023 2.3 2.3 27 53 - D1106023 2.3 2.3 27 53 0 D1106024 2.4 2.4 30 57 - D1106024 2.4 2.4 30 57 0 D1106025 2.5 2.5 30 57 - D1106025 2.5 2.5 30 57 0 D1106026 2.6 2.6 30 57 - D1106026 2.6 2.6 30 57 0 D1106027 2.7 2.7 33 61 - D1106027 2.7 2.7 33 61 0 D1106028 2.8 2.8 33 61 - D1106028 2.8 2.8 33 61 0 D1106029 2.9 2.9 33 61 - D1106029 2.9 2.9 33 61 0 D1106030 3 3 33 61 - D1106030 3 3 33 61 0 D1106031 3.1 3.1 36 65 - D1106031 3.1 3.1 36 65 0 D1106032 3.2 3.2 36 65 - D1106032 3.2 3.2 36 65 0 D1106033 3.3 3.3 36 65 - D1106033 3.3 3.3 36 65 0 D1106034 3.4 3.4 39 70 - D1106034 3.4 3.4 39 70 0 D1106035 3.5 3.5 39 70 - D1106035 3.5 3.5 39 70 0 D1106036 3.6 3.6 39 70 - D1106036 3.6 3.6 39 70 0 D1106037 3.7 3.7 39 70 - D1106037 3.7 3.7 39 70 0 D1106038 3.8 3.8 43 75 - D1106038 3.8 3.8 43 75 0 D1106039 3.9 3.9 43 75 - D1106039 3.9 3.9 43 75 0 D1106040 4 4 43 75 - D1106040 4 4 43 75 0 D1106041 4.1 4.1 43 75 - D1106041 4.1 4.1 43 75 0 D1106042 4.2 4.2 43 75 - D1106042 4.2 4.2 43 75 0 D1106043 4.3 4.3 47 80 - D1106043 4.3 4.3 47 80 0 D1106044 4.4 4.4 47 80 - D1106044 4.4 4.4 47 80 0 D1106045 4.5 4.5 47 80 - D1106045 4.5 4.5 47 80 0 D1106046 4.6 4.6 47 80 - D1106046 4.6 4.6 47 80 0 D1106047 4.7 4.7 47 80 - D1106047 4.7 4.7 47 80 0 D1106048 4.8 4.8 52 86 - D1106048 4.8 4.8 52 86 0 D1106049 4.9 4.9 52 86 - D1106049 4.9 4.9 52 86 0 D1106050 5 5 52 86 - D1106050 5 5 52 86 0 D1106051 5.1 5.1 52 86 - D1106051 5.1 5.1 52 86 0 D1106052 5.2 5.2 52 86 - D1106052 5.2 5.2 52 86 0 D1106053 5.3 5.3 52 86 - D1106053 5.3 5.3 52 86 0 D1106054 5.4 5.4 57 93 - D1106054 5.4 5.4 57 93 0 D1106055 5.5 5.5 57 93 - D1106055 5.5 5.5 57 93 0 D1106056 5.6 5.6 57 93 - D1106056 5.6 5.6 57 93 0 D1106057 5.7 5.7 57 93 - D1106057 5.7 5.7 57 93 0 D1106058 5.8 5.8 57 93 - D1106058 5.8 5.8 57 93 0 D1106059 5.9 5.9 57 93 - D1106059 5.9 5.9 57 93 0 D1106060 6 6 57 93 - D1106060 6 6 57 93 0 D1106061 6.1 6.1 63 101 - D1106061 6.1 6.1 63 101 0 D1106062 6.2 6.2 63 101 - D1106062 6.2 6.2 63 101 0 D1106063 6.3 6.3 63 101 - D1106063 6.3 6.3 63 101 0 D1106064 6.4 6.4 63 101 - D1106064 6.4 6.4 63 101 0 D1106065 6.5 6.5 63 101 - D1106065 6.5 6.5 63 101 0 D1106066 6.6 6.6 63 101 - D1106066 6.6 6.6 63 101 0 D1106067 6.7 6.7 63 101 - D1106067 6.7 6.7 63 101 0 D1106068 6.8 6.8 69 109 - D1106068 6.8 6.8 69 109 0 D1106069 6.9 6.9 69 109 - D1106069 6.9 6.9 69 109 0 D1106070 7 7 69 109 - D1106070 7 7 69 109 0 D1106071 7.1 7.1 69 109 - D1106071 7.1 7.1 69 109 0 D1106072 7.2 7.2 69 109 - D1106072 7.2 7.2 69 109 0 D1106073 7.3 7.3 69 109 - D1106073 7.3 7.3 69 109 0 D1106074 7.4 7.4 69 109 - D1106074 7.4 7.4 69 109 0 D1106075 7.5 7.5 69 109 - D1106075 7.5 7.5 69 109 0 D1106076 7.6 7.6 75 117 - D1106076 7.6 7.6 75 117 0 D1106077 7.7 7.7 75 117 - D1106077 7.7 7.7 75 117 0 D1106078 7.8 7.8 75 117 - D1106078 7.8 7.8 75 117 0 D1106079 7.9 7.9 75 117 - D1106079 7.9 7.9 75 117 0 D1106080 8 8 75 117 - D1106080 8 8 75 117 0 D1106081 8.1 8.1 75 117 - D1106081 8.1 8.1 75 117 0 D1106082 8.2 8.2 75 117 - D1106082 8.2 8.2 75 117 0 D1106083 8.3 8.3 75 117 - D1106083 8.3 8.3 75 117 0 D1106084 8.4 8.4 75 117 - D1106084 8.4 8.4 75 117 0 D1106085 8.5 8.5 75 117 - D1106085 8.5 8.5 75 117 0 D1106086 8.6 8.6 81 125 - D1106086 8.6 8.6 81 125 0 D1106087 8.7 8.7 81 125 - D1106087 8.7 8.7 81 125 0 D1106088 8.8 8.8 81 125 - D1106088 8.8 8.8 81 125 0 D1106089 8.9 8.9 81 125 - D1106089 8.9 8.9 81 125 0 D1106090 9 9 81 125 - D1106090 9 9 81 125 0 D1106091 9.1 9.1 81 125 - D1106091 9.1 9.1 81 125 0 D1106092 9.2 9.2 81 125 - D1106092 9.2 9.2 81 125 0 D1106093 9.3 9.3 81 125 - D1106093 9.3 9.3 81 125 0 D1106094 9.4 9.4 81 125 - D1106094 9.4 9.4 81 125 0 D1106095 9.5 9.5 81 125 - D1106095 9.5 9.5 81 125 0 D1106096 9.6 9.6 87 133 - D1106096 9.6 9.6 87 133 0 D1106097 9.7 9.7 87 133 - D1106097 9.7 9.7 87 133 0 D1106098 9.8 9.8 87 133 - D1106098 9.8 9.8 87 133 0 D1106099 9.9 9.9 87 133 - D1106099 9.9 9.9 87 133 0 D1106100 10 10 87 133 - D1106100 10 10 87 133 0 D1106102 10.2 10.2 98 133 0 D1106105 10.5 10.5 87 133 - D1106105 10.5 10.5 87 133 0 D1106110 11 11 94 142 - D1106110 11 11 94 142 0 D1106115 11.5 11.5 94 142 - D1106115 11.5 11.5 94 142 0 D1106120 12 12 101 151 - D1106120 12 12 101 151 0 D1106125 12.5 12.5 101 151 - D1106125 12.5 12.5 101 151 0 D1106130 13 13 101 151 - D1106130 13 13 101 151 0
