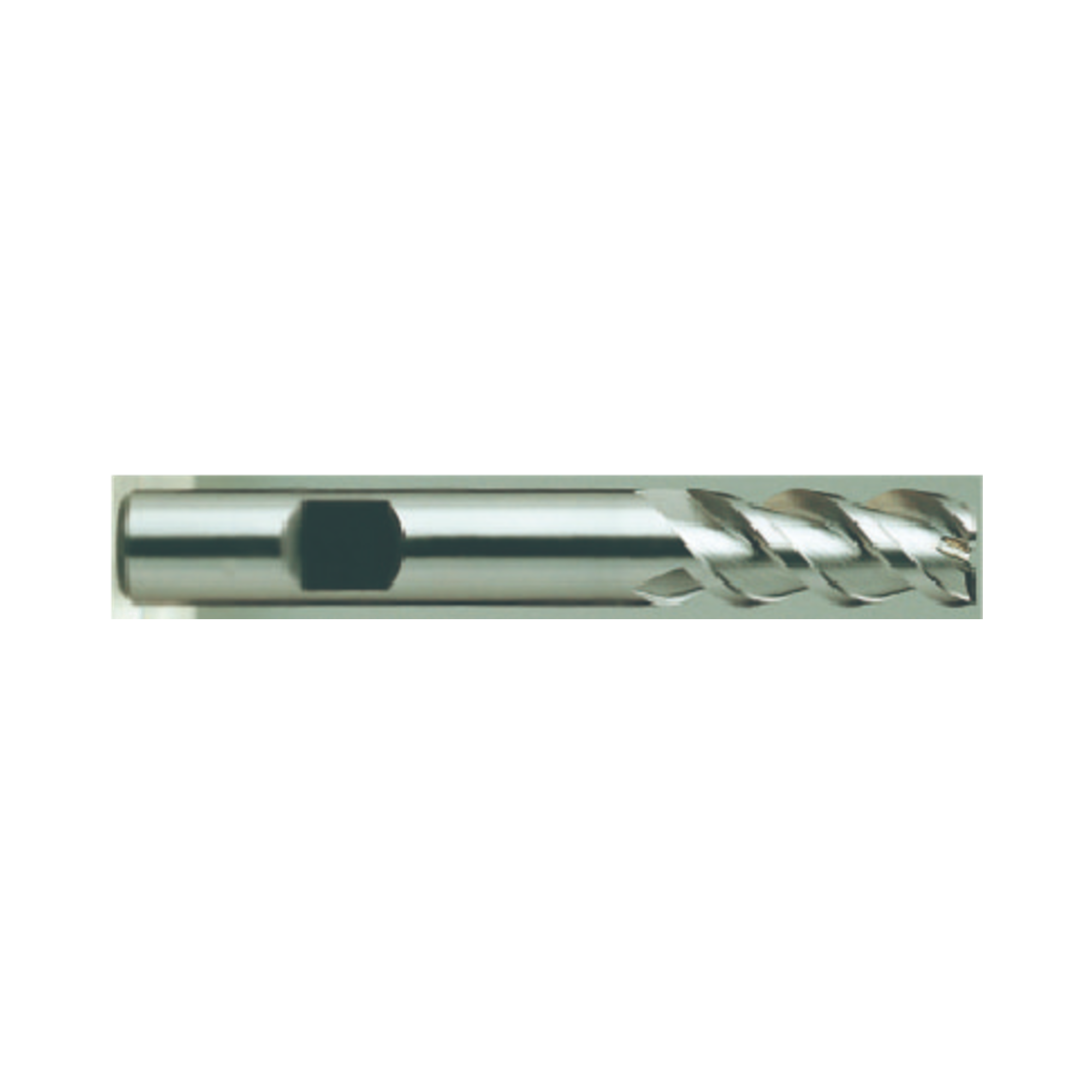

(E2463) HSSCo8% (M42) 4Flute End mill High Helix 50° Short length Flat Shank

  • $0.00INC GST $0.00 EX GST

(E2463) HSSCo8% (M42) 4Flute End mill High Helix 50° Short length Flat Shank

  • $0.00INC GST $0.00 EX GST Price available on request

Code: E2463

P
Code
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add (E2463) HSSCo8% (M42) 4Flute End mill High Helix 50° Short length Flat Shank to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description
Product Data
Workpiece Material P
Helix Angle Square 50
Length Short
No. Flutes 4
Shank Type 1835B
Surface Treatment Bright
Tool Material 8% Cobalt HSS
Tool Standard DIN 844
EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute C4ERH-220GF 22 25 45 121 0~+0.084 h6 4 C4ERH-250GF 25 25 45 121 0~+0.084 h6 4 C4ERH-300GF 30 25 45 121 0~+0.084 h6 4 E2463220 22 25 45 121 0~+0.084 h6 4 E2463220 22 25 45 121 0~+0.084 h6 4 E2463220 22 25 45 121 0~+0.084 h6 4 E2463250 25 25 45 121 0~+0.084 h6 4 E2463250 25 25 45 121 0~+0.084 h6 4 E2463250 25 25 45 121 0~+0.084 h6 4 E2463300 30 25 45 121 0~+0.084 h6 4 E2463300 30 25 45 121 0~+0.084 h6 4 E2463300 30 25 45 121 0~+0.084 h6 4 R4ERH-220GF 22 25 45 121 0~+0.084 h6 4 R4ERH-250GF 25 25 45 121 0~+0.084 h6 4 R4ERH-300GF 30 25 45 121 0~+0.084 h6 4
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Great

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute C4ERH-220GF 22 25 45 121 0~+0.084 h6 4 C4ERH-250GF 25 25 45 121 0~+0.084 h6 4 C4ERH-300GF 30 25 45 121 0~+0.084 h6 4 E2463220 22 25 45 121 0~+0.084 h6 4 E2463220 22 25 45 121 0~+0.084 h6 4 E2463220 22 25 45 121 0~+0.084 h6 4 E2463250 25 25 45 121 0~+0.084 h6 4 E2463250 25 25 45 121 0~+0.084 h6 4 E2463250 25 25 45 121 0~+0.084 h6 4 E2463300 30 25 45 121 0~+0.084 h6 4 E2463300 30 25 45 121 0~+0.084 h6 4 E2463300 30 25 45 121 0~+0.084 h6 4 R4ERH-220GF 22 25 45 121 0~+0.084 h6 4 R4ERH-250GF 25 25 45 121 0~+0.084 h6 4 R4ERH-300GF 30 25 45 121 0~+0.084 h6 4
