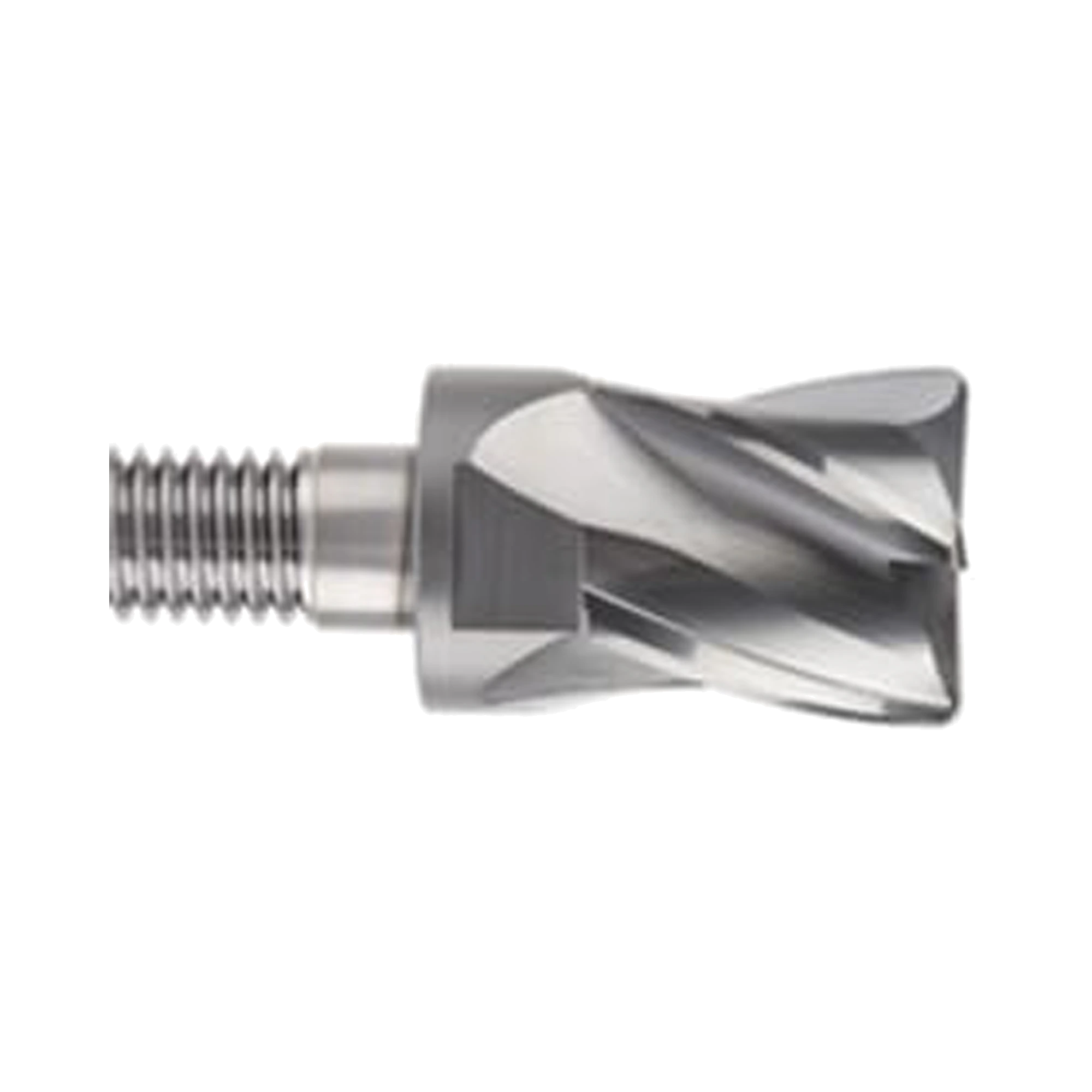

(XSEME01) i-Smart 4G Mill, Modular Head, 4Flute Multiple Helix Corner Radius End Mill

Y-Coated four-flute corner radius modular head
  • $0.00INC GST $0.00 EX GST
(XSEME01) i-Smart 4G Mill, Modular Head, 4Flute Multiple Helix Corner Radius End Mill
(XSEME01) i-Smart 4G Mill, Modular Head, 4Flute Multiple Helix Corner Radius End Mill
(XSEME01) i-Smart 4G Mill, Modular Head, 4Flute Multiple Helix Corner Radius End Mill
(XSEME01) i-Smart 4G Mill, Modular Head, 4Flute Multiple Helix Corner Radius End Mill

(XSEME01) i-Smart 4G Mill, Modular Head, 4Flute Multiple Helix Corner Radius End Mill

Y-Coated four-flute corner radius modular head
  • $0.00INC GST $0.00 EX GST Price available on request

Code: XSEME01100020

    Key Features
  • Y-Coated carbide modular head
  • Four flute multiple helix corner radius geometry
  • Compatible with i-Smart modular end mill assemblies
Mill Diameter (mm)
Corner Radius
Loading stock…
Buy Local
Minimum order: $100.00
$100.00 to go
Spend $100.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Modular cutting head

Provides an interchangeable carbide head for compatible i-Smart modular end mill assemblies.

Four-flute corner radius form

Combines four flutes, multiple helix geometry and a corner radius cutting profile.

Useful size selection

Offers 10 to 32 mm mill diameters and corner radii from R0.1 to R5.0.

SKUMill Diameter (mm)Corner RadiusLength of cut (mm)Length below shank (mm)Neck dia. (mm)Stock Price Qty Add
XSEME0110002010R0.210.017.59.2 5 days -
XSEME0110003010R0.310.017.59.2 5 days -
XSEME0110005010R0.510.017.59.2 5 days -
XSEME0110010010R1.010.017.59.2 5 days -
XSEME0110020010R2.010.017.59.2 5 days $154.20
XSEME0110025010R2.510.017.59.2 5 days -
XSEME0110030010R3.010.017.59.2 5 days -
XSEME0110040010R4.010.017.59.2 5 days -
XSEME0112001012R0.112.020.511.2 5 days -
XSEME0112002012R0.212.020.511.2 5 days -
XSEME0112005012R0.512.020.511.2 5 days $182.40
XSEME0112010012R1.012.020.511.2 5 days -
XSEME0112015012R1.512.020.511.2 5 days -
XSEME0112020012R2.012.020.511.2 5 days -
XSEME0112025012R2.512.020.511.2 5 days -
XSEME0112030012R3.012.020.511.2 5 days -
XSEME0112040012R4.012.020.511.2 5 days -
XSEME0112050012R5.012.020.511.2 5 days -
XSEME0116005016R0.516.025.515.0 5 days -
XSEME0116015016R1.516.025.515.0 5 days -
XSEME0116020016R2.016.025.515.0 5 days $256.50
XSEME0120005020R0.520.030.019.0 5 days -
XSEME0120010020R1.020.030.019.0 5 days -
XSEME0120015020R1.520.030.019.0 5 days -
XSEME0120020020R2.020.030.019.0 5 days -
XSEME0125005025R0.525.037.024.0 5 days -
XSEME0125010025R1.025.037.024.0 5 days -
XSEME0125015025R1.525.037.024.0 5 days -
XSEME0125020025R2.025.037.024.0 5 days $580.40
XSEME0113005030R0.530.043.029.0 5 days -
XSEME0113010030R1.030.043.029.0 5 days -
XSEME0113015030R1.530.043.029.0 5 days -
XSEME0113020030R2.030.043.029.0 5 days -
XSEME0132005032R0.532.045.031.0 5 days -
XSEME0132010032R1.032.045.031.0 5 days -
XSEME0132015032R1.532.045.031.0 5 days -
XSEME0132020032R2.032.045.031.0 5 days -

Add (XSEME01) i-Smart 4G Mill, Modular Head, 4Flute Multiple Helix Corner Radius End Mill to comparison

View Comparison
  • Overview
  • Specifications
  • Reviews
Product Description

YG-1 XSEME01 i-Smart 4G Mill is a Y-Coated carbide modular head with four flutes and multiple helix geometry. Its corner-radius cutting form provides an interchangeable milling head for compatible i-Smart modular end mill assemblies. The series combines a corner radius with four-flute cutting geometry for modular milling configurations. Available mill diameters run from 10 to 32 mm, with corner radii from R0.1 to R5.0. Coupling threads range from M6 to M16 across the listed head sizes. Listed heads have 10 to 32 mm lengths of cut and 17.5 to 45 mm lengths below shank. Wrench widths span 8 to 27 mm to suit the corresponding modular connections.

  • Y-Coated carbide modular head
  • Four flute multiple helix corner radius geometry
  • Compatible with i-Smart modular end mill assemblies
  • 10 to 32 mm mill diameter range
  • R0.1 to R5.0 corner radius range
  • M6 to M16 coupling thread range
Product Data

No specifications available.

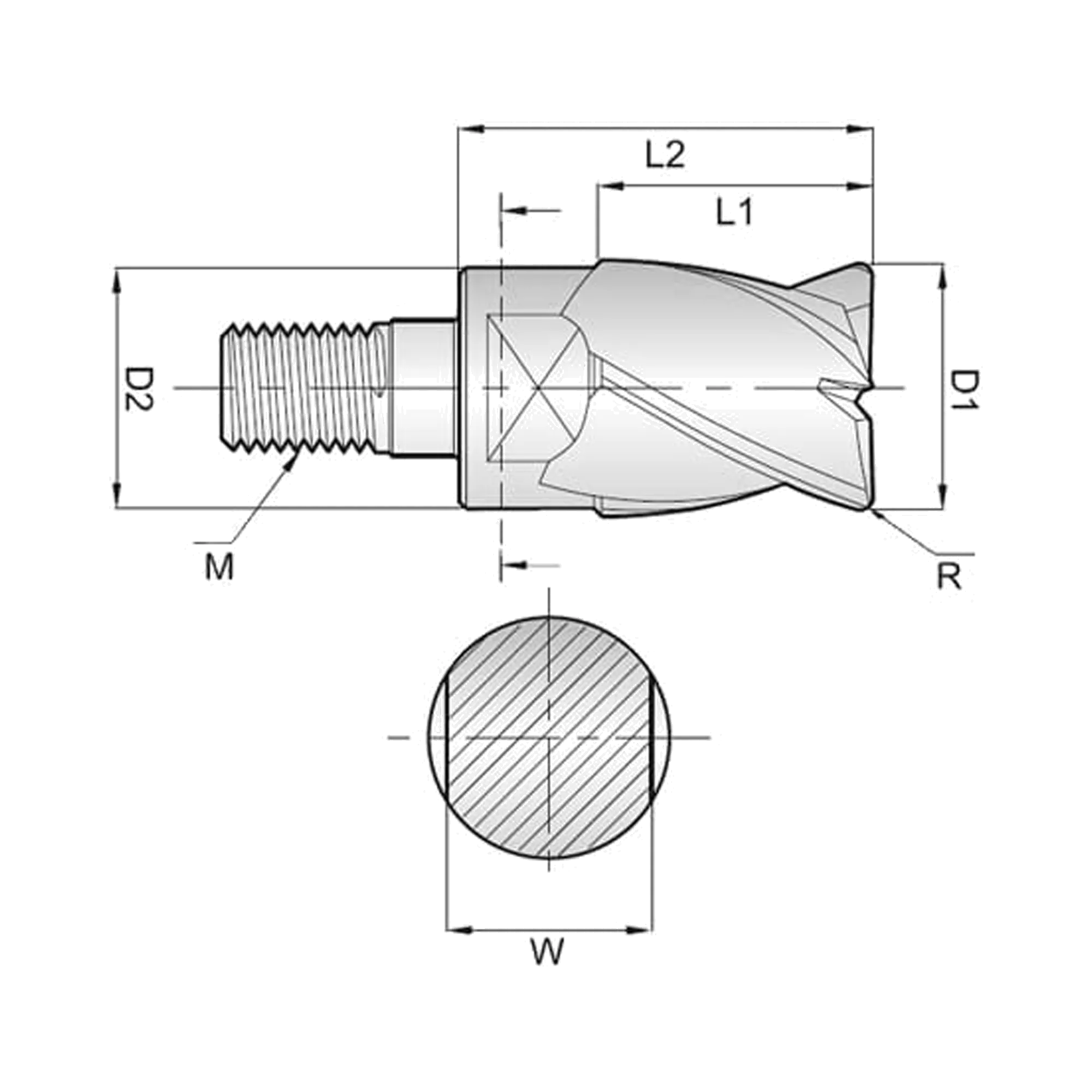

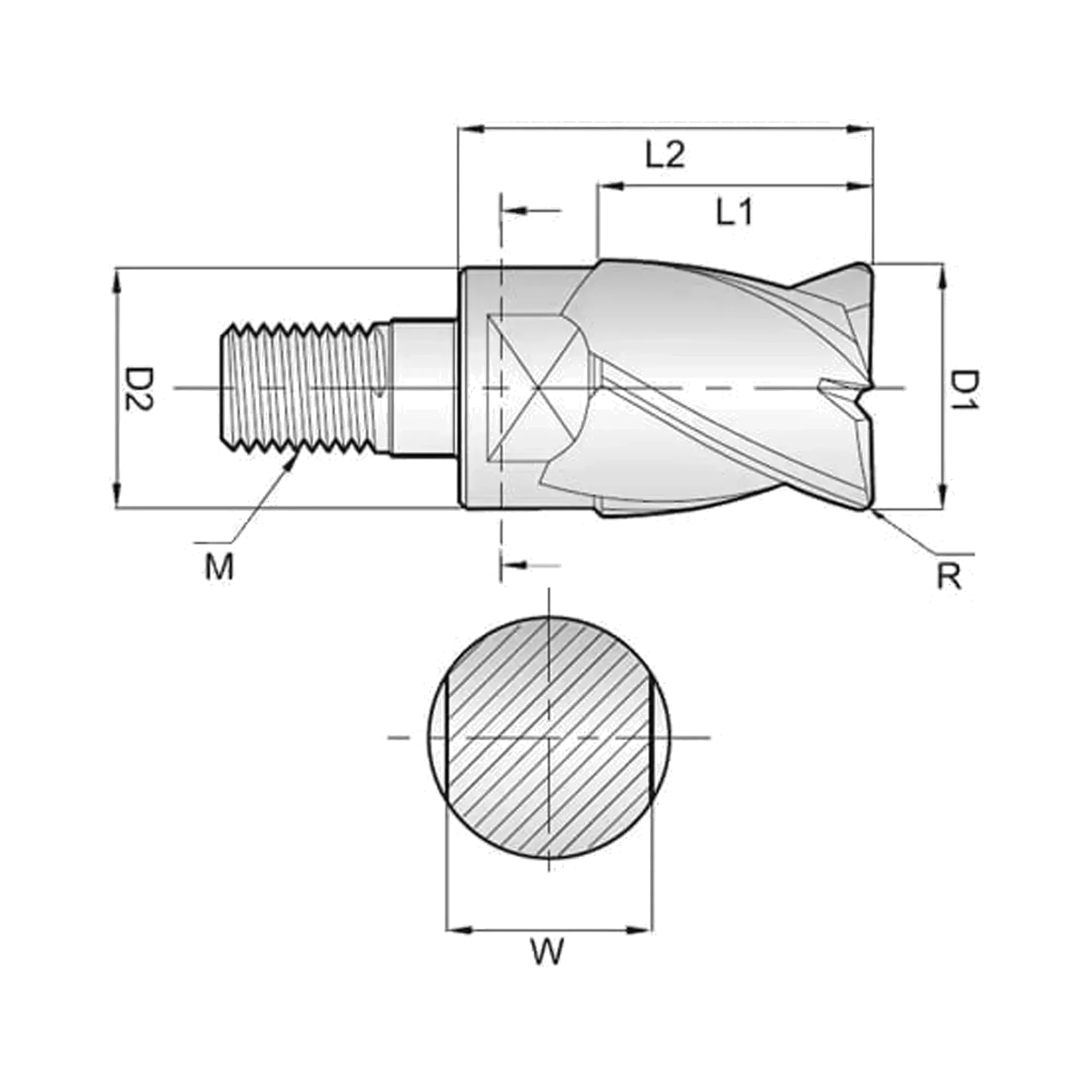

EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEME01100010 10 9 10 17.5 8 M6 4 XSEME01100020 10 9 10 17.5 8 M6 4 XSEME01100030 10 9 10 17.5 8 M6 4 XSEME01100050 10 9 10 17.5 8 M6 4 XSEME01100100 10 9 10 17.5 8 M6 4 XSEME01100150 10 9 10 17.5 8 M6 4 XSEME01100200 10 9 10 17.5 8 M6 4 XSEME01100250 10 9 10 17.5 8 M6 4 XSEME01100300 10 9 10 17.5 8 M6 4 XSEME01100400 10 9 10 17.5 8 M6 4 XSEME01120010 12 11 12 20.5 10 M6 4 XSEME01120020 12 11 12 20.5 10 M6 4 XSEME01120030 12 11 12 20.5 10 M6 4 XSEME01120050 12 11 12 20.5 10 M6 4 XSEME01120100 12 11 12 20.5 10 M6 4 XSEME01120150 12 11 12 20.5 10 M6 4 XSEME01120200 12 11 12 20.5 10 M6 4 XSEME01120250 12 11 12 20.5 10 M6 4 XSEME01120300 12 11 12 20.5 10 M6 4 XSEME01120400 12 11 12 20.5 10 M6 4 XSEME01120500 12 11 12 20.5 10 M6 4 XSEME01160050 16 15 16 25.5 13 M8 4 XSEME01160100 16 15 16 25.5 13 M8 4 XSEME01160150 16 15 16 25.5 13 M8 4 XSEME01160200 16 15 16 25.5 13 M8 4 XSEME01200050 20 19 20 30 17 M10 4 XSEME01200100 20 19 20 30 17 M10 4 XSEME01200150 20 19 20 30 17 M10 4 XSEME01200200 20 19 20 30 17 M10 4 XSEME01250050 25 24 25 37 22 M12 4 XSEME01250100 25 24 25 37 22 M12 4 XSEME01250150 25 24 25 37 22 M12 4 XSEME01250200 25 24 25 37 22 M12 4 XSEME01300050 30 29 30 43 27 M16 4 XSEME01300100 30 29 30 43 27 M16 4 XSEME01300150 30 29 30 43 27 M16 4 XSEME01300200 30 29 30 43 27 M16 4 XSEME01320050 32 31 32 45 27 M16 4 XSEME01320100 32 31 32 45 27 M16 4 XSEME01320150 32 31 32 45 27 M16 4 XSEME01320200 32 31 32 45 27 M16 4
EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEME01100010 10 9 10 17.5 8 M6 4 XSEME01100020 10 9 10 17.5 8 M6 4 XSEME01100030 10 9 10 17.5 8 M6 4 XSEME01100050 10 9 10 17.5 8 M6 4 XSEME01100100 10 9 10 17.5 8 M6 4 XSEME01100150 10 9 10 17.5 8 M6 4 XSEME01100200 10 9 10 17.5 8 M6 4 XSEME01100250 10 9 10 17.5 8 M6 4 XSEME01100300 10 9 10 17.5 8 M6 4 XSEME01100400 10 9 10 17.5 8 M6 4 XSEME01120010 12 11 12 20.5 10 M6 4 XSEME01120020 12 11 12 20.5 10 M6 4 XSEME01120030 12 11 12 20.5 10 M6 4 XSEME01120050 12 11 12 20.5 10 M6 4 XSEME01120100 12 11 12 20.5 10 M6 4 XSEME01120150 12 11 12 20.5 10 M6 4 XSEME01120200 12 11 12 20.5 10 M6 4 XSEME01120250 12 11 12 20.5 10 M6 4 XSEME01120300 12 11 12 20.5 10 M6 4 XSEME01120400 12 11 12 20.5 10 M6 4 XSEME01120500 12 11 12 20.5 10 M6 4 XSEME01160050 16 15 16 25.5 13 M8 4 XSEME01160100 16 15 16 25.5 13 M8 4 XSEME01160150 16 15 16 25.5 13 M8 4 XSEME01160200 16 15 16 25.5 13 M8 4 XSEME01200050 20 19 20 30 17 M10 4 XSEME01200100 20 19 20 30 17 M10 4 XSEME01200150 20 19 20 30 17 M10 4 XSEME01200200 20 19 20 30 17 M10 4 XSEME01250050 25 24 25 37 22 M12 4 XSEME01250100 25 24 25 37 22 M12 4 XSEME01250150 25 24 25 37 22 M12 4 XSEME01250200 25 24 25 37 22 M12 4 XSEME01300050 30 29 30 43 27 M16 4 XSEME01300100 30 29 30 43 27 M16 4 XSEME01300150 30 29 30 43 27 M16 4 XSEME01300200 30 29 30 43 27 M16 4 XSEME01320050 32 31 32 45 27 M16 4 XSEME01320100 32 31 32 45 27 M16 4 XSEME01320150 32 31 32 45 27 M16 4 XSEME01320200 32 31 32 45 27 M16 4
