(XSEME75) i-Smart 4G Mill, Modular Head, 6Flute End Mill

Y-coated six-flute modular square end mill head

(XSEME75) i-Smart 4G Mill, Modular Head, 6Flute End Mill
$0.00 INC GST $0.00 EX GST Price available on request
SKU
XSEME75100
Work materials
PKH

Key features

  • Y-coated carbide modular square end mill head
  • Six-flute cutting geometry with 45° helix
  • Suitable for steels stainless steel and cast irons
Surface treatment YG-1 Y Coating
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Modular cutting head

Threaded coupling options support use with compatible i-Smart modular holders.

Six-flute geometry

A six-flute, 45° helix configuration supports square-end milling applications.

Ferrous material focus

Recommended for specified steel, stainless steel and cast iron material groups.

Add (XSEME75) i-Smart 4G Mill, Modular Head, 6Flute End Mill to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

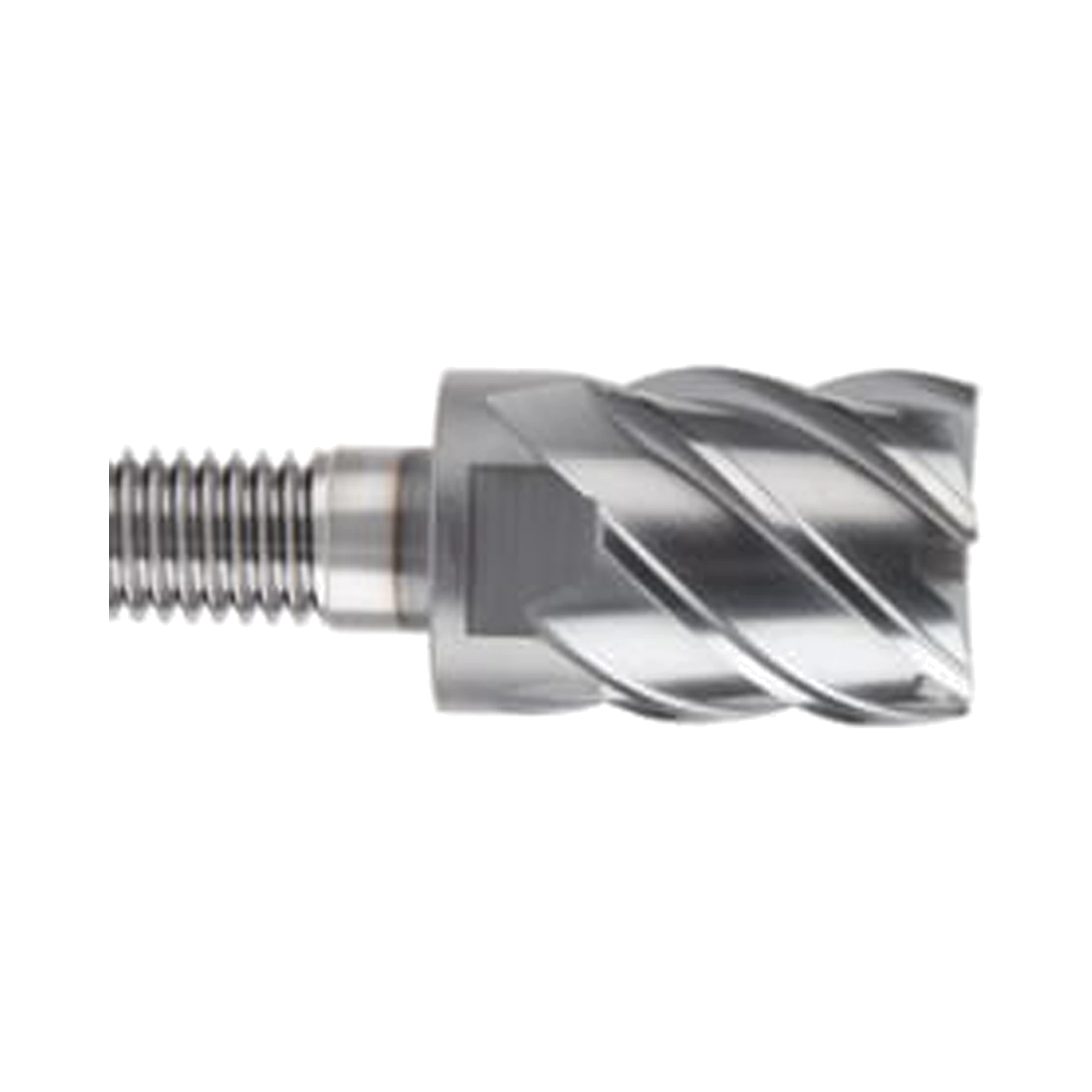

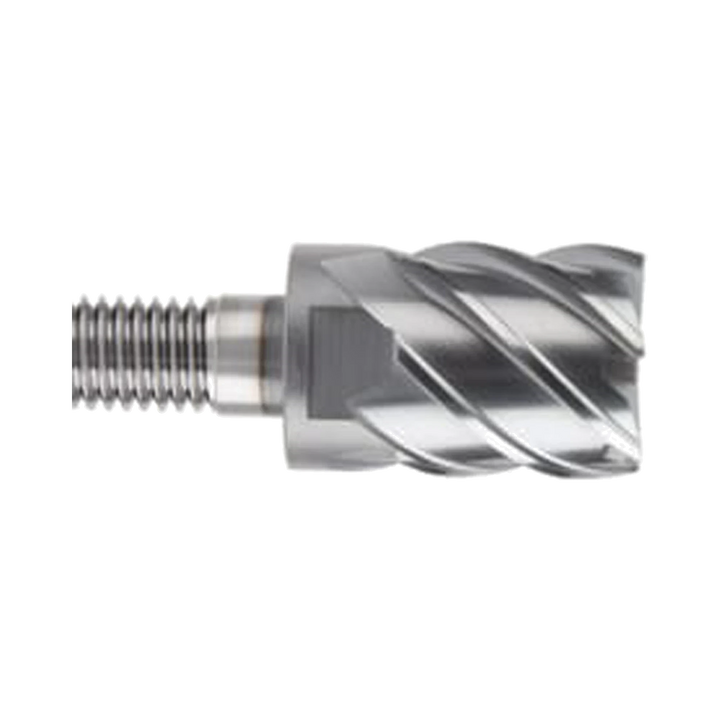

YG-1 XSEME75 is a Y-coated carbide modular square end mill head with six flutes and a 45° helix. It is designed for milling steel, stainless steel and cast iron using compatible modular tooling. Recommended materials include non-alloy, low-alloy, high-alloy and tool steels within the stated application range. The XSEME75 family covers 10 to 32 mm mill diameters with matched length-of-cut dimensions. Each variant has a zero to minus 0.03 mm mill diameter tolerance. Threaded coupling sizes progress from M6 through M16 to suit compatible modular holders. Its square-end geometry supports general machining operations within the i-Smart modular end mill system.

  • Y-coated carbide modular square end mill head
  • Six-flute cutting geometry with 45° helix
  • Suitable for steels stainless steel and cast irons
  • 10 to 32 mm mill diameter range
  • Mill diameter tolerance from zero to minus 0.03 mm
  • M6 to M16 threaded coupling options
Product Data
Surface Treatment YG-1 Y Coating

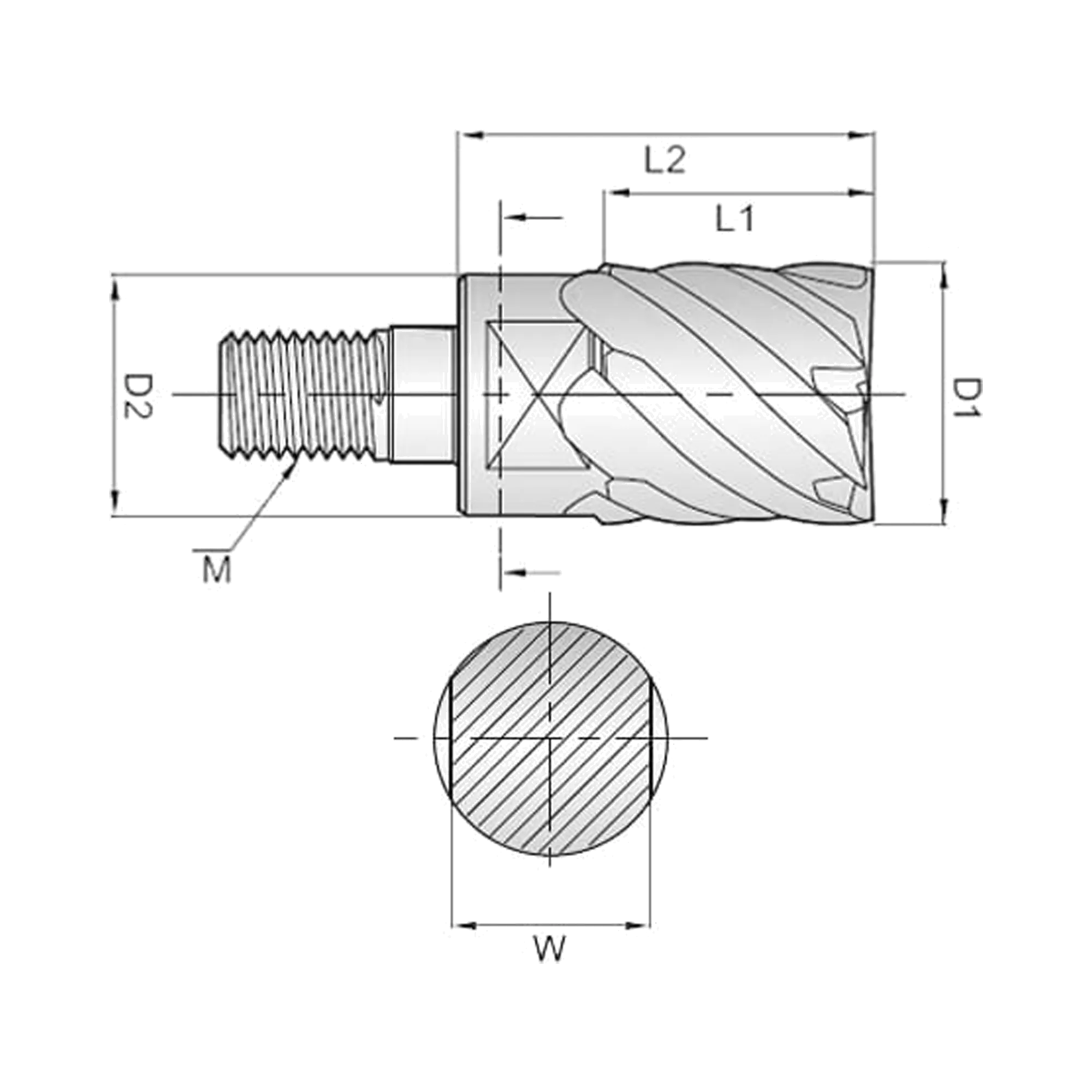

EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEME75100 10 9 10 17.5 8 M6 6 XSEME75120 12 11 12 20.5 10 M6 6 XSEME75160 16 15 16 25.5 13 M8 6 XSEME75200 20 19 20 30 17 M10 6 XSEME75250 25 24 25 37 22 M12 6 XSEME75300 30 29 30 43 27 M16 6 XSEME75320 32 31 32 45 27 M16 6

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 3–5
GoodVDI 1–2
Low-alloy steel
ExcellentVDI 7–9
GoodVDI 6
High-alloy and tool steel
ExcellentVDI 11
GoodVDI 10

Hardened materials

4 grades
Hardened steel
GoodVDI 38–39
Chilled cast iron
ExcellentVDI 40
Hardened cast iron
GoodVDI 41

Cast iron

6 grades
Grey cast iron
GoodVDI 15–16
Nodular cast iron
GoodVDI 17–18
Malleable cast iron
GoodVDI 19–20
VDI grade reference21 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelGood19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelGood18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelExcellent32535
15KGrey cast ironGood18010
16KGrey cast ironGood26026
17KNodular cast ironGood1603
18KNodular cast ironGood25025
19KMalleable cast ironGood130-
20KMalleable cast ironGood23021
38HHardened steelGood55055
39HHardened steelGood63060
40HChilled cast ironExcellent40042
41HHardened cast ironGood55055

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEME75100 10 9 10 17.5 8 M6 6 XSEME75120 12 11 12 20.5 10 M6 6 XSEME75160 16 15 16 25.5 13 M8 6 XSEME75200 20 19 20 30 17 M10 6 XSEME75250 25 24 25 37 22 M12 6 XSEME75300 30 29 30 43 27 M16 6 XSEME75320 32 31 32 45 27 M16 6
