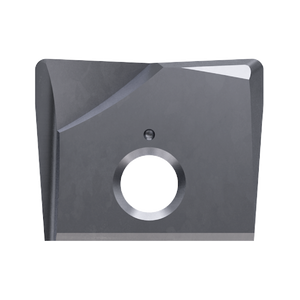

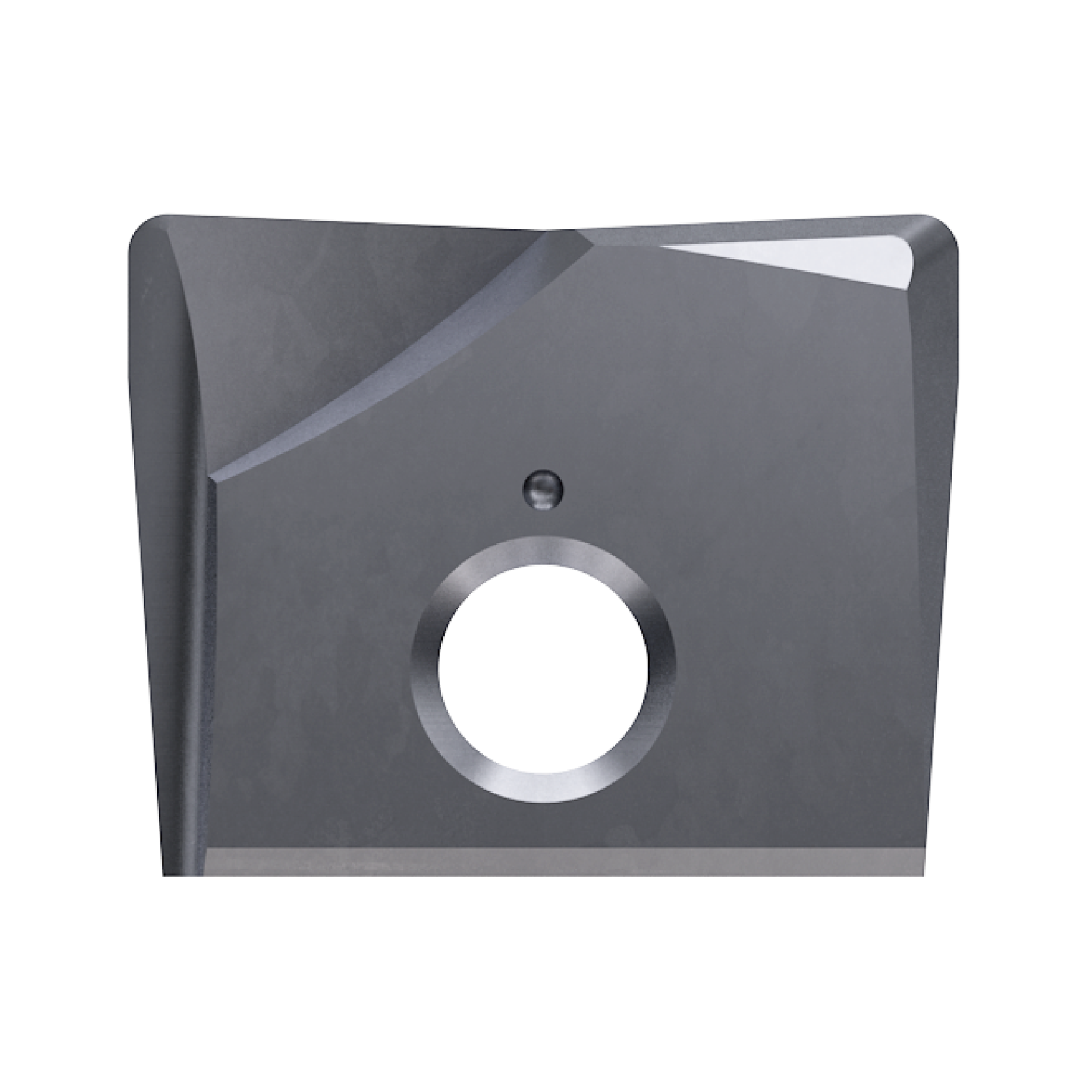

i-Xmill Corner Radius Insert for Graphite End Mill (XMR110D)

i-Xmill Corner Radius Insert for Graphite End Mill (XMR110D)
i-Xmill Corner Radius Insert for Graphite End Mill (XMR110D)
New

i-Xmill Corner Radius Insert for Graphite End Mill (XMR110D)

Product Code: XMR110D-1

Corner Radius Tolerance: 0.015 No. Flutes: 2 YG-1 LEGEND DIAMOND Surface Treatment: Diamond Coating YG-1 LEGEND NG HM Tool Material: NG HM
Buy Local
  • The optimum geometry of the tool to achieve the better reliability and less vibration and cutting load.
  • Interchangeability with i-Xmill ball holder, but the precise cutting is possible with i-Xmill corner radius holder due to higher stability and strength of tool.
  • The various and wide cutting range makes it possible to machine over the roughing and finishing.
  • Special coating makes high hardness with high thermal stability against oxidation.



Specifications

Flutes 2
Helix Angle -
Cutting Edge Shape CORNER RADIUS
Size Min D8.0
Size Max D33.0
Length -
Coating Diamond



Product Data
Corner Radius Tolerance 0.015
Graphite Excellent
No. Flutes 2
Operation Facing, Side Milling, Small Part
Surface Treatment Diamond Coating
Tool Material NG HM
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add i-Xmill Corner Radius Insert for Graphite End Mill (XMR110D) to comparison

View Comparison

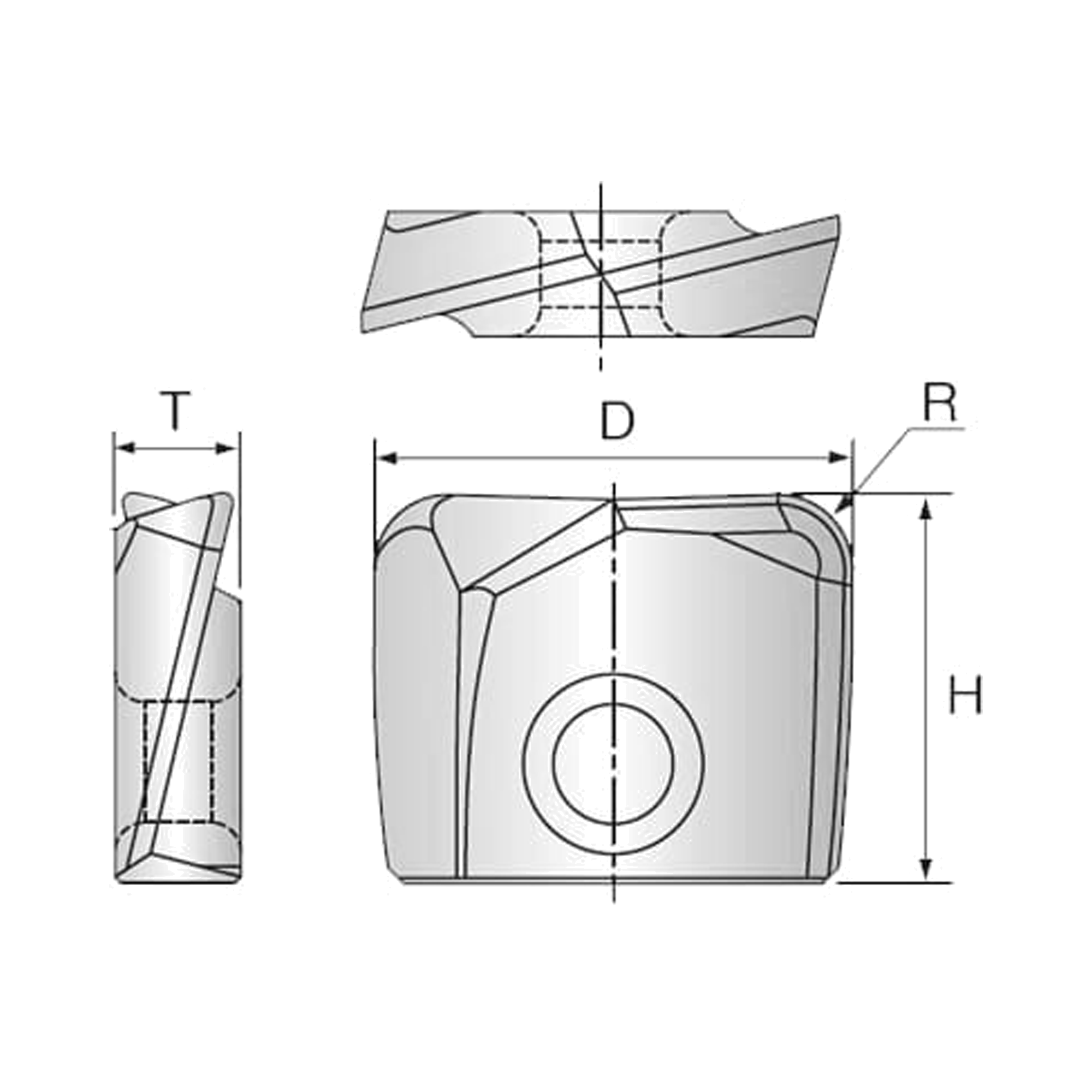

EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMR110D08005 8 R0.50 8 2.4 2 XMR110D08020 8 R2.0 2.4 2 XMR110D10003 10 R0.30 9.5 2.7 2 XMR110D10010 10 R1.0 9.5 2.7 2 XMR110D11003 11 R0.30 9.5 2.7 2 XMR110D11005 11 R0.50 9.5 2.7 2 XMR110D11010 11 R1.0 9.5 2.7 2 XMR110D11015 11 R1.5 9.5 2.7 2 XMR110D11020 11 R2.0 9.5 2.7 2 XMR110D12010 12 R1.0 11 3.2 2 XMR110D13003 13 R0.30 11.2 3.2 2 XMR110D13005 13 R0.50 11.2 3.2 2 XMR110D13010 13 R1.0 11.2 3.2 2 XMR110D13015 13 R1.5 11.2 3.2 2 XMR110D16003 16 R0.30 13 4.2 2 XMR110D16005 16 R0.50 13 4.2 2 XMR110D16010 16 R1.0 13 4.2 2 XMR110D16015 16 R1.5 13 4.2 2 XMR110D17005 17 R0.50 13 4.2 2 XMR110D17015 17 R1.5 13 4.2 2 XMR110D17020 17 R2.0 13 4.2 2 XMR110D17030 17 R3.0 13 4.2 2 XMR110D20003 20 R0.30 16 5.2 2 XMR110D20010 20 R1.0 16 5.2 2 XMR110D20015 20 R1.5 16 5.2 2 XMR110D20020 20 R2.0 16 5.2 2 XMR110D21015 21 R1.5 16 5.2 2 XMR110D21030 21 R3.0 16 5.2 2 XMR110D25003 25 R0.30 19.5 6.2 2 XMR110D25005 25 R0.50 19.5 6.2 2 XMR110D25015 25 R1.5 19.5 6.2 2 XMR110D25030 25 R3.0 19.5 6.2 2 XMR110D26003 26 R0.30 19.5 6.2 2 XMR110D26005 26 R0.50 19.5 6.2 2 XMR110D26010 26 R1.0 19.5 6.2 2 XMR110D26020 26 R2.0 19.5 6.2 2 XMR110D26030 26 R3.0 19.5 6.2 2 XMR110D30005 30 R0.50 23.5 7.2 2 XMR110D30015 30 R1.5 23.5 7.2 2 XMR110D30020 30 R2.0 23.5 7.2 2 XMR110D32005 32 R0.50 23.5 7.2 2 XMR110D32010 32 R1.0 23.5 7.2 2 XMR110D32032 32 R3.2 7.2 2 XMR110D33003 33 R0.30 23.5 7.2 2 XMR110D33030 33 R3.0 23.5 7.2 2 XMR110D33032 33 R3.2 7.2 2

Video

Operation

Side Milling
Small Part
Facing

Work Material
