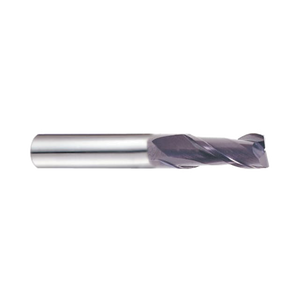

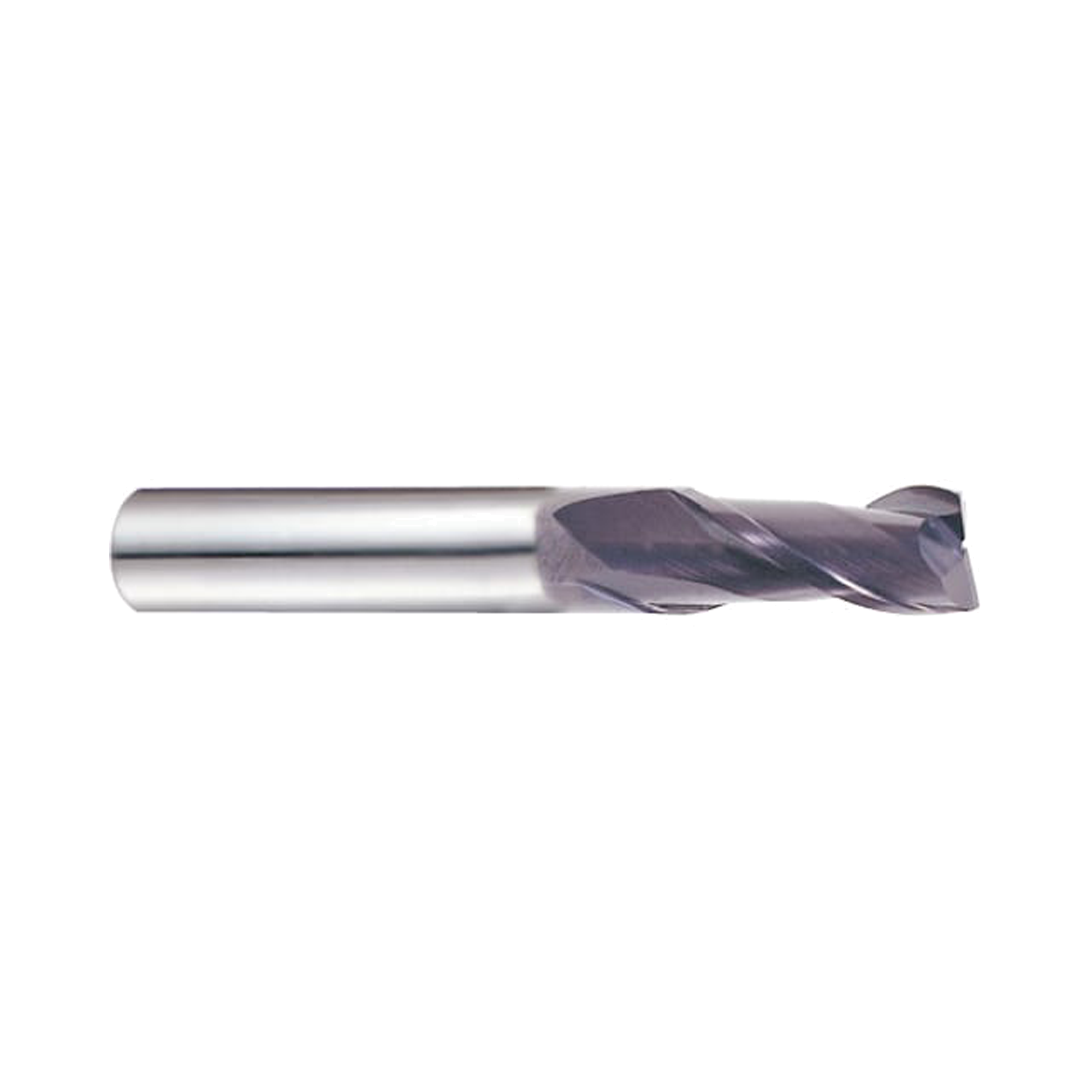

(EH911) Jet-Power Carbide 2Flute End Mill, Short Length for Stainless/Titanium, Plain Shank
2-Flute 35° Helix Short-Length Plain-Shank End Mill
- SKU
- EH911010
Key features
- Solid carbide construction with TiAlN coating
- Two-flute square cutting geometry for slotting
- 35° helix in a short-length configuration
Made in South Korea
Slotting-focused geometry
Two flutes and a 35° helix suit slotting and general milling applications.
Reduced edge chipping
Reinforced cutting edges are specified to reduce corner-edge chipping.
Materials capability
Suitable for stainless steels, titanium and steels below HRc45.

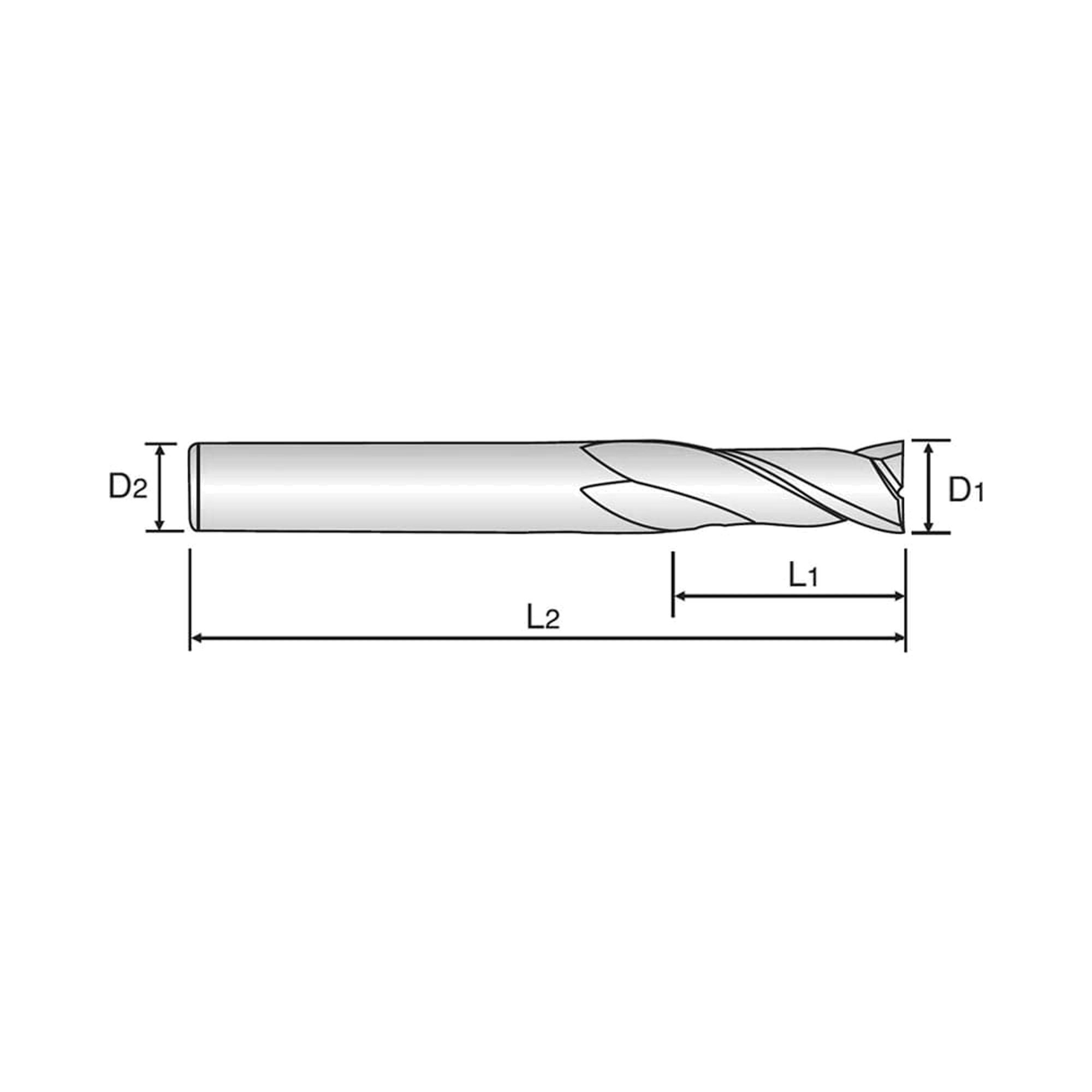

| SKU | Mill Diameter (mm) | Shank Diameter (mm) | Overall length (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| EH911010 | 1.0 | 4.0 | 40.0 | 2.5 | Low stock | $25.45 | ||
| EH911901 | 1.0 | 6.0 | 40.0 | 2.5 | 1-2 Weeks | $58.30 | ||
| EH911015 | 1.5 | 4.0 | 40.0 | 4.0 | 1-2 Weeks | $52.90 | ||
| EH911902 | 1.5 | 6.0 | 40.0 | 4.0 | 1-2 Weeks | $76.40 | ||
| EH911020 | 2.0 | 4.0 | 40.0 | 6.0 | In stock | $19.57 | ||
| EH911903 | 2.0 | 6.0 | 40.0 | 6.0 | In stock | $28.29 | ||
| EH911025 | 2.5 | 4.0 | 40.0 | 8.0 | 1-2 Weeks | $48.00 | ||
| EH911904 | 2.5 | 6.0 | 40.0 | 8.0 | 1-2 Weeks | $69.40 | ||
| EH911030 | 3.0 | 6.0 | 45.0 | 8.0 | In stock | $28.29 | ||
| EH911035 | 3.5 | 6.0 | 45.0 | 10.0 | 1-2 Weeks | $53.00 | ||
| EH911045 | 4.5 | 6.0 | 45.0 | 11.0 | 1-2 Weeks | $69.40 | ||
| EH911050 | 5.0 | 6.0 | 50.0 | 13.0 | In stock | $28.29 | ||
| EH911055 | 5.5 | 6.0 | 50.0 | 13.0 | 1-2 Weeks | $69.40 | ||
| EH911060 | 6.0 | 6.0 | 50.0 | 13.0 | In stock | $28.29 | ||
| EH911065 | 6.5 | 8.0 | 60.0 | 16.0 | 1-2 Weeks | $88.80 | ||
| EH911070 | 7.0 | 8.0 | 60.0 | 16.0 | 1-2 Weeks | $88.80 | ||
| EH911075 | 7.5 | 8.0 | 60.0 | 16.0 | 1-2 Weeks | $88.80 | ||
| EH911080 | 8.0 | 8.0 | 60.0 | 19.0 | In stock | $36.25 | ||
| EH911085 | 8.5 | 10.0 | 70.0 | 19.0 | 1-2 Weeks | $100.50 | ||
| EH911090 | 9.0 | 10.0 | 70.0 | 19.0 | 1-2 Weeks | $131.50 | ||
| EH911095 | 9.5 | 10.0 | 70.0 | 19.0 | Low stock | $53.63 | ||
| EH911100 | 10.0 | 10.0 | 70.0 | 22.0 | Low stock | $53.63 | ||
| EH911110 | 11.0 | 12.0 | 75.0 | 22.0 | 1-2 Weeks | $180.30 | ||
| EH911120 | 12.0 | 12.0 | 75.0 | 26.0 | Low stock | $73.56 | ||
| EH911140 | 14.0 | 16.0 | 85.0 | 26.0 | 1-2 Weeks | $298.90 | ||
| EH911160 | 16.0 | 16.0 | 100.0 | 32.0 | 1-2 Weeks | $245.00 | ||
| EH911180 | 18.0 | 16.0 | 100.0 | 32.0 | 1-2 Weeks | $397.20 | ||
| EH911250 | 25.0 | 25.0 | 120.0 | 45.0 | 1-2 Weeks | $792.80 |
Add (EH911) Jet-Power Carbide 2Flute End Mill, Short Length for Stainless/Titanium, Plain Shank to comparison
View Comparison- Overview
- Reviews
YG-1 Jet-Power EH911 is a TiAlN-coated solid carbide two-flute short-length square end mill. Plain-shank geometry and a 35° helix support slotting and milling in stainless steels, titanium, and steels below HRc45. Ultra micro grain carbide and reinforced cutting edges are specified to reduce corner-edge chipping. It is also suitable for alloy, tool, carbon, and prehardened steels. The mill diameter range runs from 1.0 to 25.0 mm. Available plain shank diameters run from 4.0 to 25.0 mm across the series. Square cutting geometry defines the cutting profile used by the EH911 series. EH911 is the plain-shank alternative within this paired short-length two-flute product family.
- Solid carbide construction with TiAlN coating
- Two-flute square cutting geometry for slotting
- 35° helix in a short-length configuration
- Plain-shank EH911 series
- Ultra micro grain carbide with reinforced cutting edges
- 1.0 to 25.0 mm mill diameter range
No specifications available.
