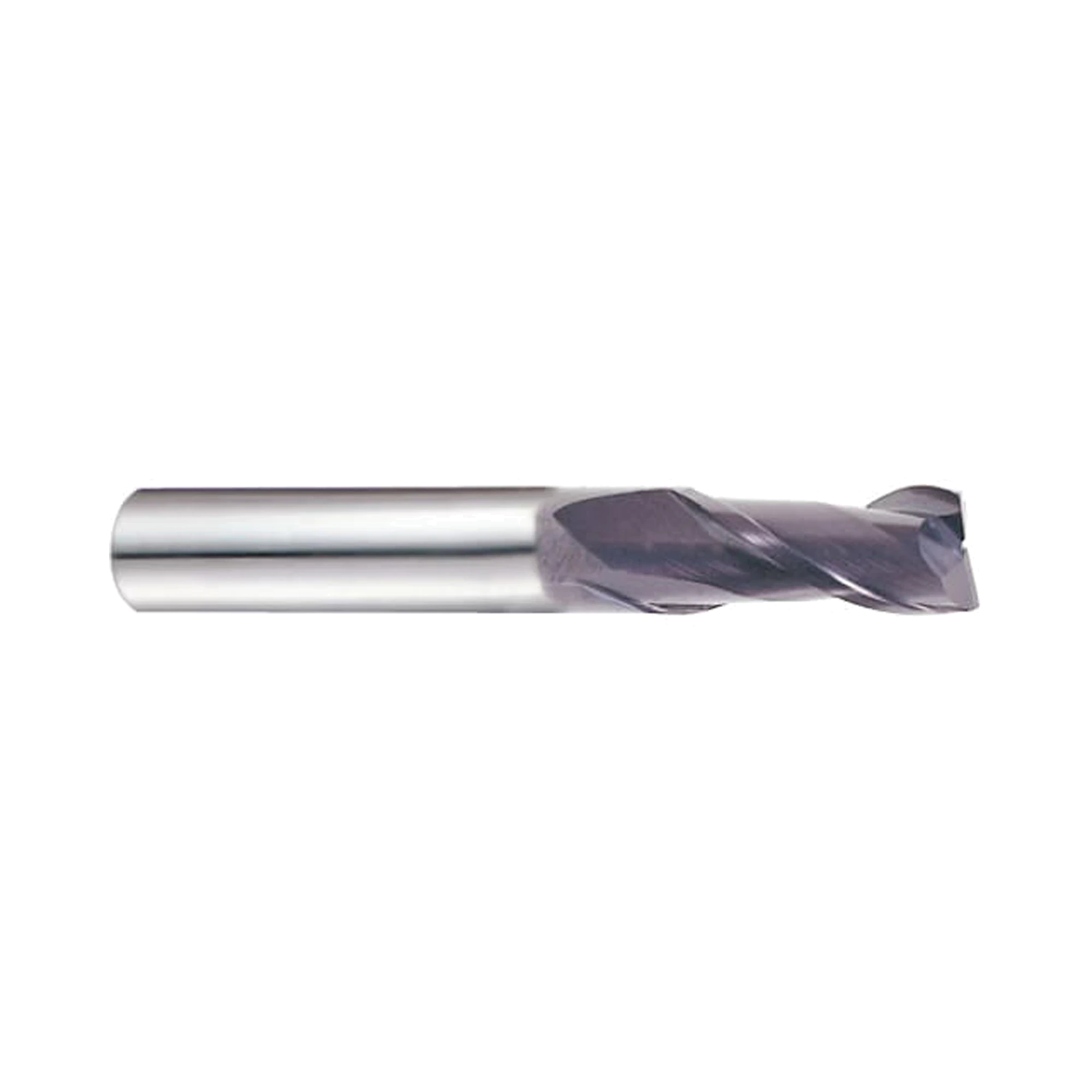

(EH912) Jet-Power Carbide 2Flute End Mill, Short Length for Stainless/Titanium, Flat Shank

Short-Length 2-Flute Carbide End Mill with Flat Shank

(EH912) Jet-Power Carbide 2Flute End Mill, Short Length for Stainless/Titanium, Flat Shank
$84.04 INC GST $76.40 EX GST
SKU
EH912901
Work materials
PMSH

Key features

  • Short-length two-flute carbide square end mill with flat shank
  • 35° helix supports milling in stainless steel titanium and nickel alloys
  • TiAlN coating for demanding milling applications
Tool material Carbide
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Built for difficult materials

Suitable for stainless steel, titanium and nickel alloys, plus steels under 45 HRc.

Chipping-resistant cutting edge

Ultra micro grain carbide and reinforced cutting edges support reliable milling performance.

Compact short-length range

Choose 4.0 to 11.0 mm diameters for short-reach milling applications.

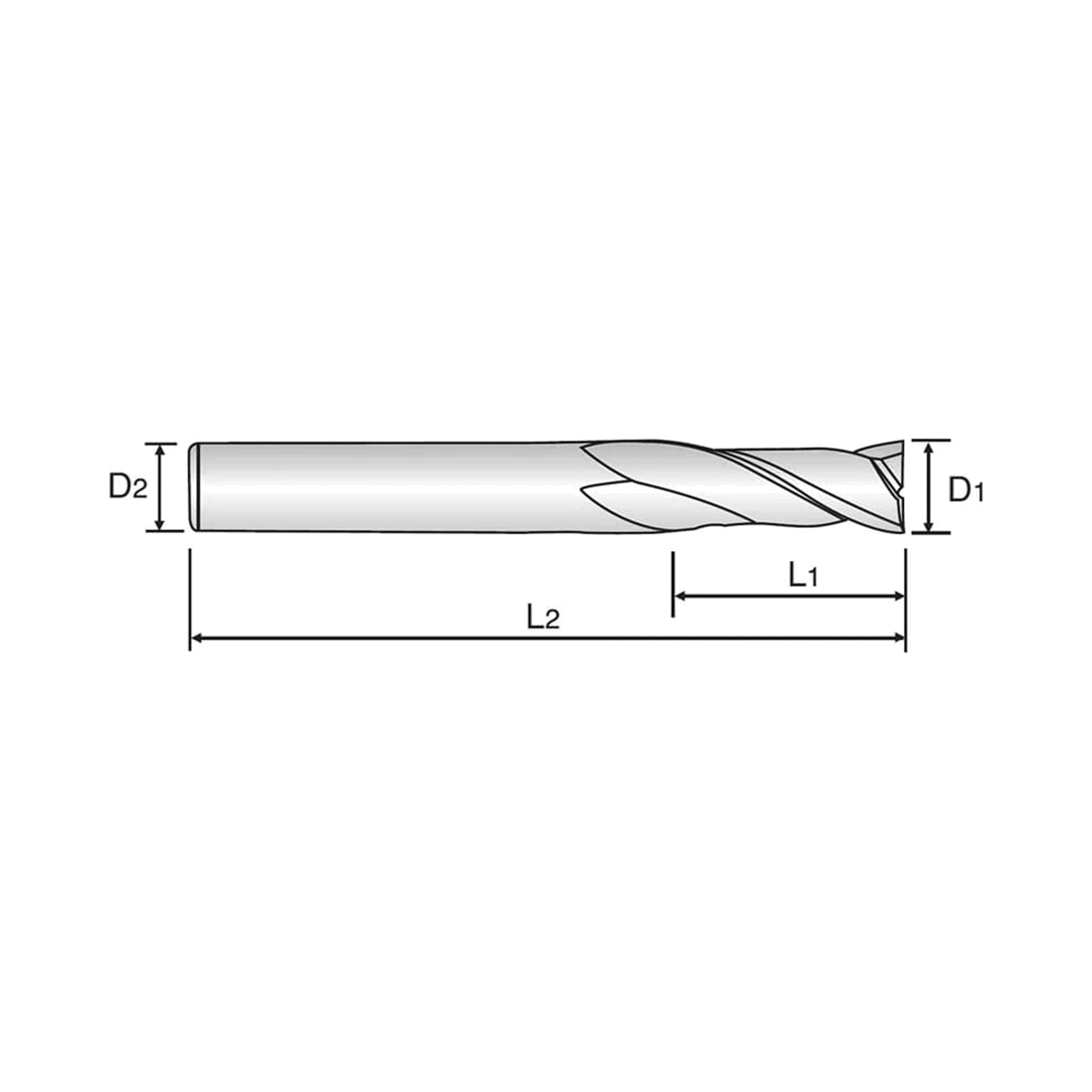

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)CAD filesStock Price Qty Add
EH9129011.040.06.02.5STEPDXF 1-2 Weeks $76.40
EH9129021.540.06.04.0STEPDXF 1-2 Weeks $76.40
EH9129032.040.06.06.0STEPDXF 1-2 Weeks $69.40
EH9129042.540.06.08.0STEPDXF 1-2 Weeks $69.40
EH9120303.045.06.08.0STEPDXF 1-2 Weeks $69.40
EH9120353.545.06.010.0STEPDXF 1-2 Weeks $69.40
EH9120404.045.06.011.0STEPDXF 1-2 Weeks $69.40
EH9120454.545.06.011.0STEPDXF 1-2 Weeks $69.40
EH9120505.050.06.013.0STEPDXF 1-2 Weeks $69.40
EH9120555.550.06.013.0STEPDXF 1-2 Weeks $69.40
EH9120606.050.06.013.0STEPDXF 1-2 Weeks $69.40
EH9120656.560.08.016.0STEPDXF 1-2 Weeks $88.80
EH9120707.060.08.016.0STEPDXF 1-2 Weeks $88.80
EH9120757.560.08.016.0STEPDXF 1-2 Weeks $88.80
EH9120808.060.08.019.0STEPDXF 1-2 Weeks $88.80
EH9120858.570.010.019.0STEPDXF 1-2 Weeks $131.50
EH9120909.070.010.019.0STEPDXF 1-2 Weeks $131.50
EH9120959.570.010.019.0STEPDXF 1-2 Weeks $131.50
EH91210010.070.010.022.0STEPDXF 1-2 Weeks $131.50
EH91211011.075.012.022.0STEPDXF 1-2 Weeks $180.30
EH91212012.075.012.026.0STEPDXF 1-2 Weeks $180.30
EH91214014.085.016.026.0STEPDXF 1-2 Weeks $298.90
EH91216016.0100.016.032.0STEPDXF 1-2 Weeks $298.90
EH91218018.0100.016.032.0STEPDXF 1-2 Weeks $397.20
EH91220020.0105.020.038.0STEPDXF 1-2 Weeks $495.60
EH91222022.0105.020.038.0STEPDXF 1-2 Weeks $644.30
EH91225025.0120.025.045.0STEPDXF 1-2 Weeks $792.80

Add (EH912) Jet-Power Carbide 2Flute End Mill, Short Length for Stainless/Titanium, Flat Shank to comparison

View Comparison
  • Overview
  • Work Material
  • Reviews
Product Description

YG-1 EH912 Jet-Power is a short-length, two-flute carbide square end mill with a flat shank. It combines a 35° helix and TiAlN coating for machining stainless steel, titanium and nickel alloys. Ultra micro grain carbide and reinforced cutting edges help reduce corner-edge chipping in demanding milling operations. Suitable materials include steels below 45 HRc, alloy steels, tool steels, carbon steels and prehardened steels. The two-flute geometry is paired with a 35° helix in this Jet-Power series. Available diameters cover 4.0 to 11.0 mm, with shank diameters from 6 to 12 mm. This short-length end mill provides a practical choice for compact milling operations.

  • Short-length two-flute carbide square end mill with flat shank
  • 35° helix supports milling in stainless steel titanium and nickel alloys
  • TiAlN coating for demanding milling applications
  • Ultra micro grain carbide construction
  • Reinforced cutting edges help reduce corner-edge chipping
  • Available in 4.0 to 11.0 mm cutting diameters
Product Data
Cutting Shape Square
Length Short
No. Flutes 2
Tool Material Carbide

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 3–5
GoodVDI 1–2
Low-alloy steel
ExcellentVDI 7–9
GoodVDI 6
High-alloy and tool steel
ExcellentVDI 11
GoodVDI 10

Superalloys & titanium

2 grades
Titanium alloys
ExcellentVDI 36–37

Stainless steel

3 grades
Stainless steel
ExcellentVDI 14
GoodVDI 12–13

Hardened materials

1 grade
Chilled cast iron
GoodVDI 40
VDI grade reference17 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelGood19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelGood18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelExcellent32535
12MStainless steelGood20015
13MStainless steelGood24023
14MStainless steelExcellent18010
36STitanium alloysExcellent--
37STitanium alloysExcellent--
40HChilled cast ironGood40042

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
