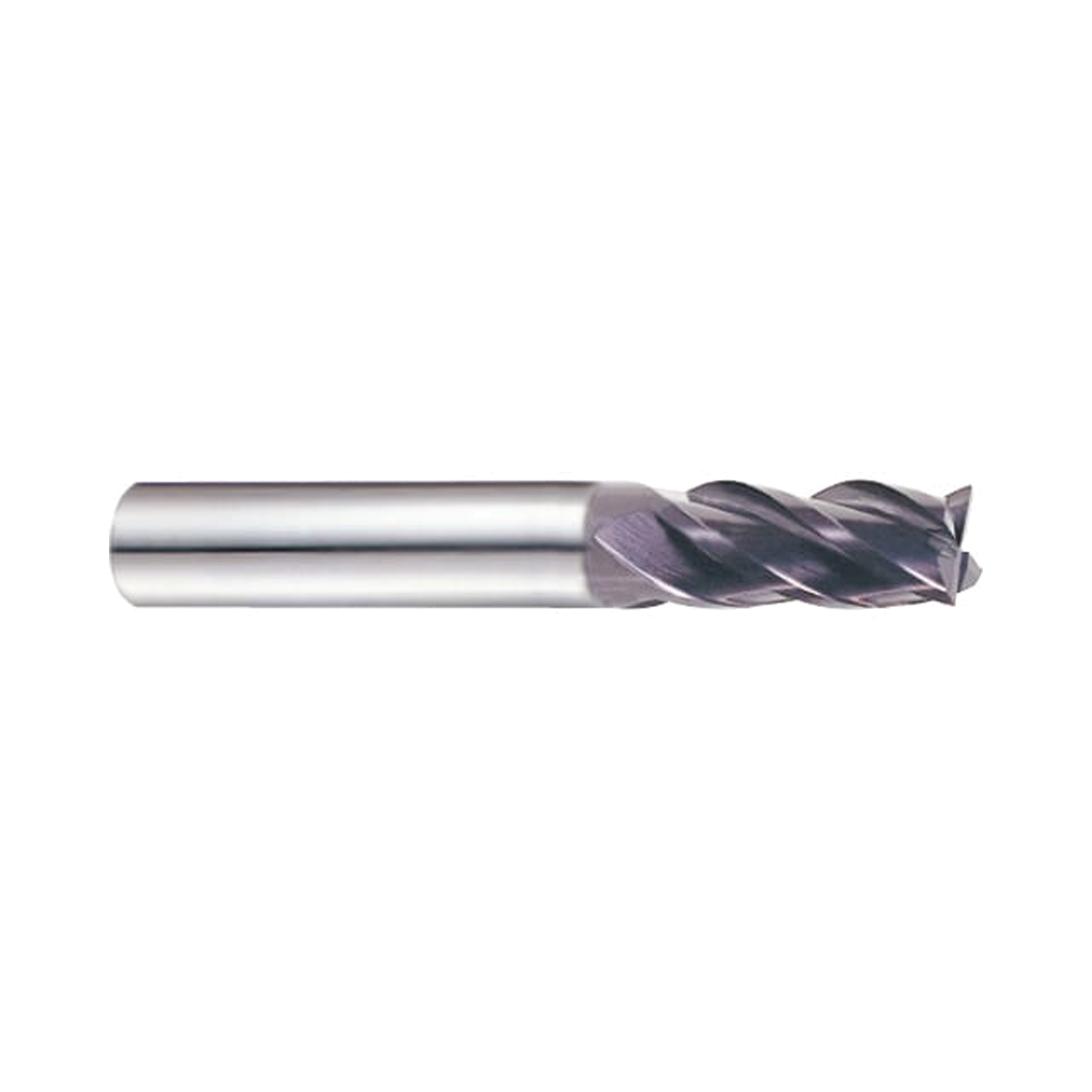

(EH914) Jet-Power Carbide 4Flute End Mill, Short Length for Stainless/Titanium, Flat Shank

Short-Length TiAlN-Coated Four-Flute Carbide End Mill

(EH914) Jet-Power Carbide 4Flute End Mill, Short Length for Stainless/Titanium, Flat Shank
$76.34 INC GST $69.40 EX GST
SKU
EH914901
Work materials
PMSH

Key features

  • Four-flute 35° helix short-length carbide end mill
  • TiAlN coating for the specified Jet-Power series
  • Ultra micro grain carbide substrate
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Built for demanding materials

Suitable for stainless steels, titanium, nickel alloys and materials below 45 HRc.

Protected cutting edges

Reinforced cutting edges are specified to reduce corner-edge chipping during machining.

Compact milling format

Short-length geometry and a flat shank suit compact tool setups and square-end milling.

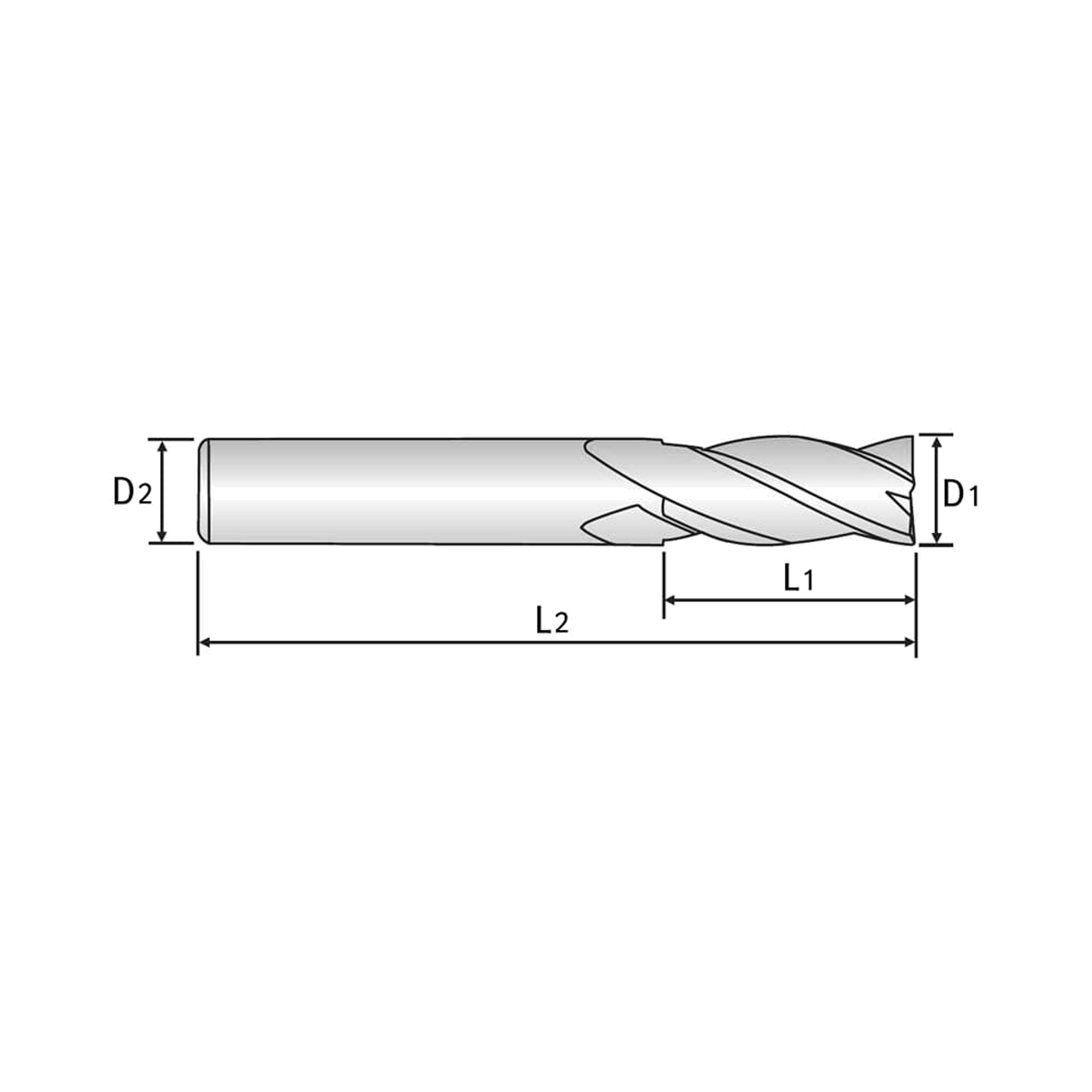

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)CAD filesStock Price Qty Add
EH9149012.040.06.06.0STEPDXF 1-2 Weeks $69.40
EH9149022.540.06.08.0STEPDXF 1-2 Weeks $69.40
EH9140303.045.06.08.0STEPDXF 1-2 Weeks $69.40
EH9140353.545.06.010.0STEPDXF 1-2 Weeks $69.40
EH9140404.045.06.011.0STEPDXF 1-2 Weeks $69.40
EH9140454.545.06.011.0STEPDXF 1-2 Weeks $69.40
EH9140505.050.06.013.0STEPDXF 1-2 Weeks $69.40
EH9140555.550.06.013.0STEPDXF 1-2 Weeks $69.40
EH9140606.050.06.013.0STEPDXF 1-2 Weeks $69.40
EH9140656.560.08.016.0STEPDXF 1-2 Weeks $88.80
EH9140707.060.08.016.0STEPDXF 1-2 Weeks $88.80
EH9140757.560.08.016.0STEPDXF 1-2 Weeks $88.80
EH9140808.060.08.019.0STEPDXF 1-2 Weeks $88.80
EH9140858.570.010.019.0STEPDXF 1-2 Weeks $131.50
EH9140909.070.010.019.0STEPDXF 1-2 Weeks $131.50
EH9140959.570.010.019.0STEPDXF 1-2 Weeks $131.50
EH91410010.070.010.022.0STEPDXF 1-2 Weeks $131.50
EH91411011.075.012.022.0STEPDXF 1-2 Weeks $180.30
EH91412012.075.012.026.0STEPDXF 1-2 Weeks $180.30
EH91414014.085.016.026.0STEPDXF 1-2 Weeks $228.60
EH91416016.0100.016.032.0STEPDXF 1-2 Weeks $245.00
EH91418018.0100.016.032.0STEPDXF 1-2 Weeks $397.20
EH91420020.0105.020.038.0STEPDXF 1-2 Weeks $495.60
EH91422022.0105.020.038.0STEPDXF 1-2 Weeks $644.30
EH91425025.0120.025.045.0STEPDXF 1-2 Weeks $792.80

Add (EH914) Jet-Power Carbide 4Flute End Mill, Short Length for Stainless/Titanium, Flat Shank to comparison

View Comparison
  • Overview
  • Work Material
  • Reviews
Product Description

YG-1 Jet-Power EH914 is a short-length four-flute carbide square end mill with flat shank and TiAlN coating. It is designed for milling stainless steels, titanium, nickel alloys, and material hardnesses below 45 HRc. Ultra micro grain carbide provides the specified substrate for alloy, tool, carbon and prehardened steels. Reinforced cutting edges reduce chipping at corner edges during machining. Available supplied variants cover 2.0 to 10.0 mm cutting diameters, with short lengths supporting compact tool setups. The square cutting end supports general milling operations requiring a flat-bottomed profile. Its flat shank identifies the EH914 variant family within the Jet-Power short-length range.

  • Four-flute 35° helix short-length carbide end mill
  • TiAlN coating for the specified Jet-Power series
  • Ultra micro grain carbide substrate
  • Reinforced cutting edges reduce corner-edge chipping
  • Suitable for stainless steels titanium and nickel alloys
  • 2.0 to 10.0 mm cutting-diameter options
Product Data
Cutting Shape Square
Length Short
No. Flutes 4

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 3–5
GoodVDI 1–2
Low-alloy steel
ExcellentVDI 7–9
GoodVDI 6
High-alloy and tool steel
ExcellentVDI 11
GoodVDI 10

Superalloys & titanium

2 grades
Titanium alloys
ExcellentVDI 36–37

Stainless steel

3 grades
Stainless steel
ExcellentVDI 14
GoodVDI 12–13

Hardened materials

1 grade
Chilled cast iron
GoodVDI 40
VDI grade reference17 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelGood19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelGood18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelExcellent32535
12MStainless steelGood20015
13MStainless steelGood24023
14MStainless steelExcellent18010
36STitanium alloysExcellent--
37STitanium alloysExcellent--
40HChilled cast ironGood40042

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
