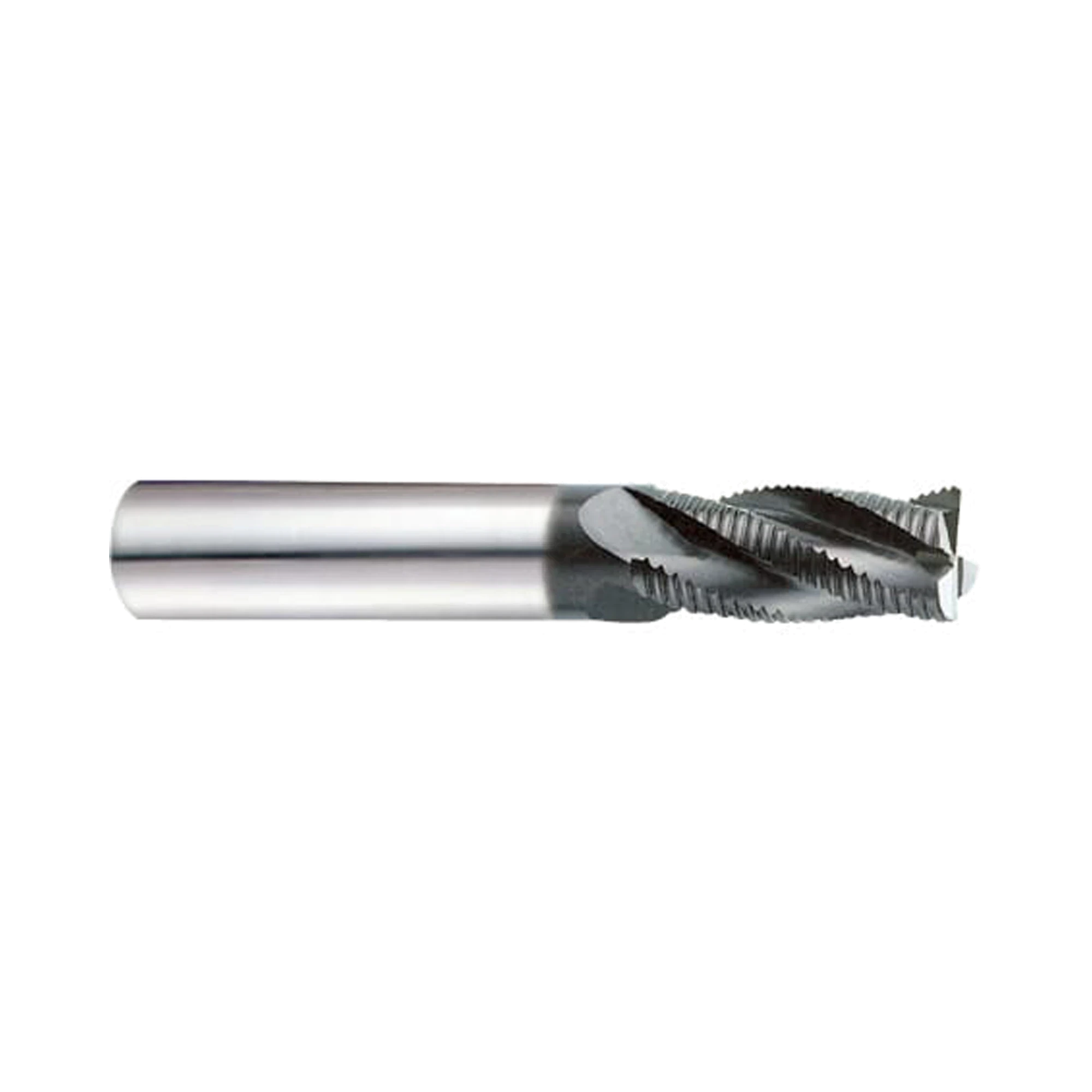

(EH831) Jet-Power Carbide Multi Flute Roughing End Mill, Long Length for Stainless/Titanium, Plain Shank
TiAlN-Coated Long-Length Roughing-Fine End Mill
- SKU
- EH831060
Key features
- TiAlN-coated carbide construction
- Multi-flute long-length roughing-fine geometry
- Plain shank configuration
Made in South Korea
Fast chip ejection
Supports high-velocity milling operations with efficient chip removal.
Material versatility
Suited to steels below 45 HRc, titanium alloys and heat-resistant super alloys.
Long-length coverage
Offers 6–20 mm diameters with cutting lengths from 16–38 mm.
| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| EH831060 | 6.0 | 0.38 | 57.0 | 6.0 | 3 | 16.0 | 1-2 Weeks | $69.30 | ||
| EH831070 | 7.0 | 0.38 | 63.0 | 8.0 | 3 | 16.0 | 1-2 Weeks | $81.10 | ||
| EH831080 | 8.0 | 0.38 | 63.0 | 8.0 | 3 | 16.0 | 1-2 Weeks | $81.10 | ||
| EH831090 | 9.0 | 0.38 | 72.0 | 10.0 | 4 | 19.0 | 1-2 Weeks | $121.10 | ||
| EH831100 | 10.0 | 0.38 | 72.0 | 10.0 | 4 | 22.0 | Low stock | $64.62 | ||
| EH831120 | 12.0 | 0.55 | 83.0 | 12.0 | 4 | 26.0 | 1-2 Weeks | $83.01 | ||
| EH831140 | 14.0 | 0.55 | 83.0 | 14.0 | 4 | 26.0 | 1-2 Weeks | $188.60 | ||
| EH831160 | 16.0 | 0.55 | 92.0 | 16.0 | 4 | 32.0 | 1-2 Weeks | $253.30 | ||
| EH831180 | 18.0 | 0.55 | 92.0 | 18.0 | 4 | 32.0 | 1-2 Weeks | $324.50 | ||
| EH831200 | 20.0 | 0.55 | 104.0 | 20.0 | 4 | 38.0 | 1-2 Weeks | $407.60 |
Add (EH831) Jet-Power Carbide Multi Flute Roughing End Mill, Long Length for Stainless/Titanium, Plain Shank to comparison
View Comparison- Overview
- Reviews
YG-1 EH831 is a TiAlN-coated carbide multi-flute long-length roughing-fine end mill with a plain shank. It is designed for high-velocity milling where fast chip ejection supports productive material removal. Suitable applications include alloy, tool, carbon, prehardened and stainless steels below 45 HRc. The series material guide also identifies titanium alloys and heat-resistant super alloys.
Plain-shank diameters run from 6 to 20 mm for long-length milling requirements. Smaller 6–8 mm tools use three flutes, while 9–20 mm tools use four. Chamfers are 0.38 mm through 10 mm and 0.55 mm from 12 mm upward. Cutting lengths span 16–38 mm, with overall lengths from 57–104 mm.
- TiAlN-coated carbide construction
- Multi-flute long-length roughing-fine geometry
- Plain shank configuration
- High-velocity milling with fast chip ejection
- Suitable for steels below 45 HRc titanium alloys and heat-resistant super alloys
- 6 to 20 mm diameter range with three or four flutes
No specifications available.
