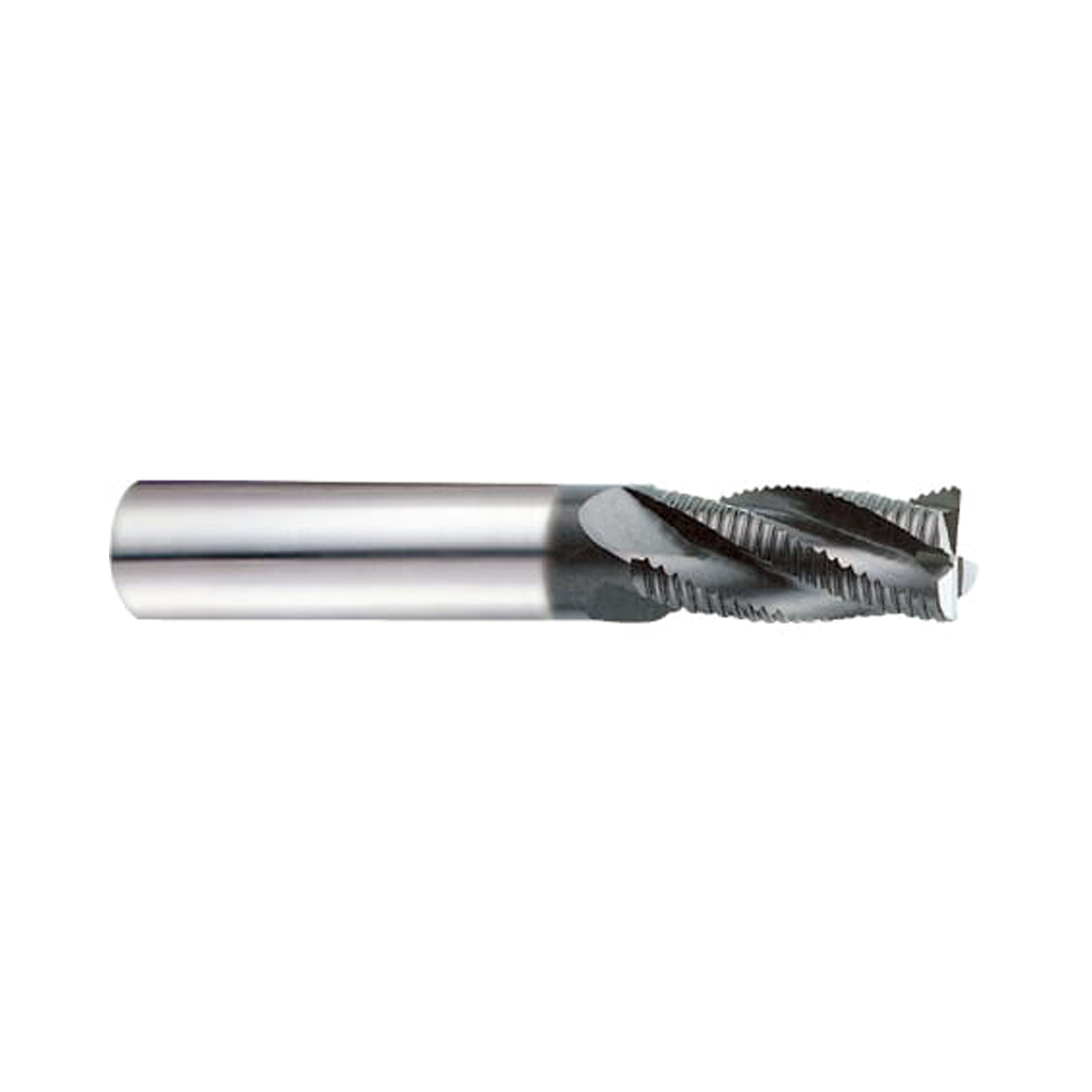

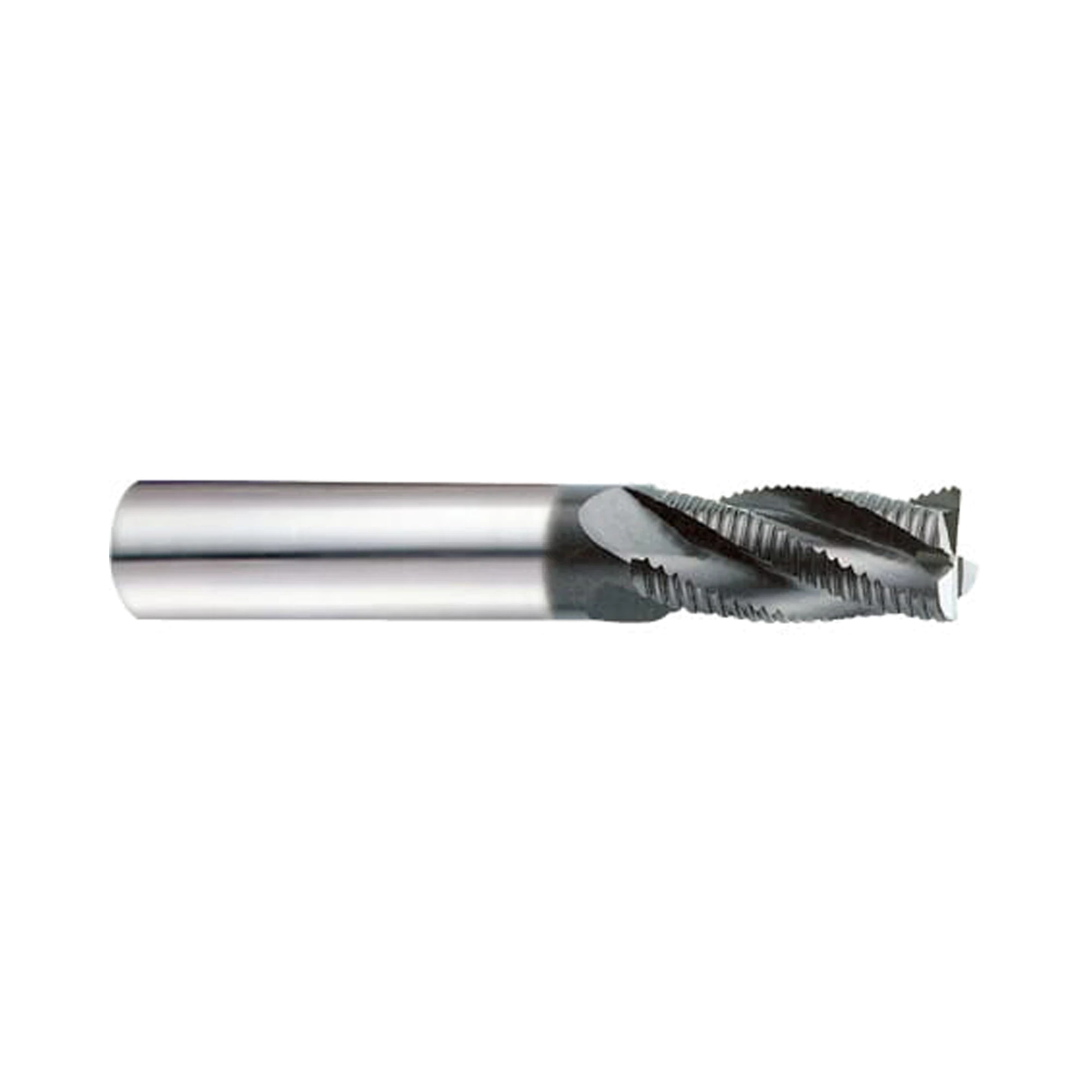

(EH841) Jet-Power Carbide Multi Flute Roughing End Mill, Long Length for Stainless/Titanium, Flat Shank
Long-length TiAlN-coated roughing-fine end mill
- SKU
- EH841060
Key features
- TiAlN-coated carbide construction
- Long-length roughing-fine geometry
- Flat shank configuration
Buy now from our online retailers:
Select your preferred distributor:
High-velocity milling
Designed for high-velocity milling with fast chip ejection
Broad material suitability
Suitable for steels below HRc45, stainless steels, titanium and nickel alloys
Useful long-length range
Flat-shank sizes span 6 to 20 mm with three or four flutes
| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| EH841060 | 6.0 | 0.38 | 57.0 | 6.0 | 3 | 16.0 | Order in | $92.30 | ||
| EH841070 | 7.0 | 0.38 | 63.0 | 8.0 | 3 | 16.0 | Order in | $108.00 | ||
| EH841080 | 8.0 | 0.38 | 63.0 | 8.0 | 3 | 16.0 | Order in | $108.00 | ||
| EH841100 | 10.0 | 0.38 | 72.0 | 10.0 | 4 | 22.0 | Order in | $161.30 | ||
| EH841120 | 12.0 | 0.55 | 83.0 | 12.0 | 4 | 26.0 | Order in | $155.50 | ||
| EH841140 | 14.0 | 0.55 | 83.0 | 14.0 | 4 | 26.0 | Order in | $188.60 | ||
| EH841160 | 16.0 | 0.55 | 92.0 | 16.0 | 4 | 32.0 | Order in | $337.20 | ||
| EH841180 | 18.0 | 0.55 | 92.0 | 18.0 | 4 | 32.0 | Order in | $431.90 | ||
| EH841200 | 20.0 | 0.55 | 104.0 | 20.0 | 4 | 38.0 | Order in | $542.70 |
Add (EH841) Jet-Power Carbide Multi Flute Roughing End Mill, Long Length for Stainless/Titanium, Flat Shank to comparison
View Comparison- Overview
- Reviews
YG-1 EH841 Jet-Power is a TiAlN-coated carbide multi-flute long-length roughing-fine end mill with a flat shank. It is designed for high-velocity milling and fast chip ejection in difficult machining operations. Suitable materials include stainless steels, titanium, nickel alloys, and steels with hardness below HRc45. It is also suitable for alloy steels, tool steels, carbon steels and prehardened steels. The EH841 range covers 6 to 20 mm mill diameters in three-flute and four-flute configurations. Smaller 6, 7 and 8 mm tools use three flutes, while larger sizes use four flutes. Available chamfer options are 0.38 mm and 0.55 mm, matched to the specified tool diameter.
- TiAlN-coated carbide construction
- Long-length roughing-fine geometry
- Flat shank configuration
- High-velocity milling capability
- Fast chip ejection
- 6 to 20 mm diameter range
No specifications available.
