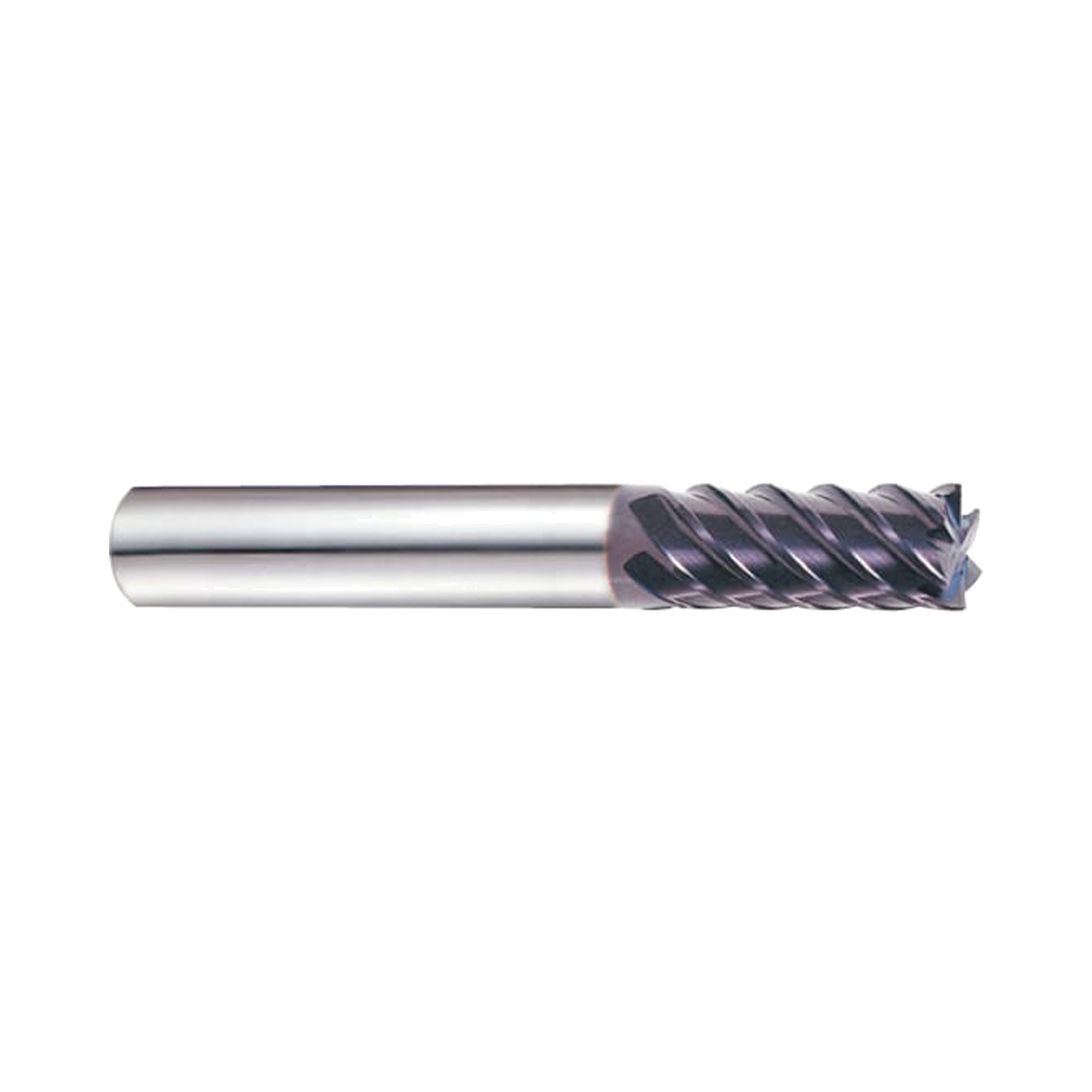

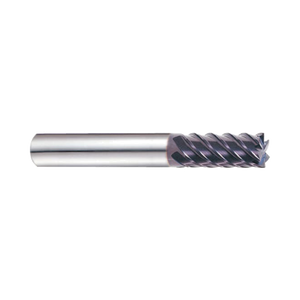

JET-POWER Multi Flute 45°Helix Long End Mill (EH916)

JET-POWER Multi Flute 45°Helix Long End Mill (EH916)
New

JET-POWER Multi Flute 45°Helix Long End Mill (EH916)

Product Code: EH916

YG-1 LEGEND 6 & 8 flutes No. Flutes: 6 & 8 YG-1 LEGEND TiAIN Surface Treatment: Titanium Aluminium Nitride Coating YG-1 LEGEND CARBIDE Tool Material: Carbide YG-1 LEGEND HELIX SQUARE 45 Helix Angle: Square 45° YG-1 LEGEND SHANK FLAT Shank Type: Flat
Buy Local

The EH916 series range from 6-25mm diameter. These 45° Helix, End Mills have 6 & 8 flutes and a flat shank. The Jet Power range from YG-1 have exceptional tool life suitable for high speed machining of Titanium, Hastelloy, Stainless Steel, Inconel and Steel (Under HRc45). The reinforced cutting edge reduces chipping of corner edges.

  • Extreme Machining of Titanium, Inconel, Hastelloy, Stainless Steel & Steels (Under HRc45)
  • HSC (Suitable for high speed machining)
  • Reinforced cutting edge reduces chipping of corner edges
  • TiALN coated ultrafine micrograin carbide substrate
  • Inox geometry flute design

Specifications

Flutes 6&8
Helix Angle 45°
Cutting Edge Shape SQUARE
Size Min D6.0
Size Max D25.0
Length

Long Length
Coating TiAIN



Product Data
Workpiece Material P M S
Hardened Steels(HRc40~45) Great
Helix Angle Square 45
No. Flutes 6 & 8
Operation Facing, Side Milling, Small Part, Trochoidal
Shank Type Flat
Surface Treatment Titanium Aluminium Nitride Coating
Tool Material Carbide
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add JET-POWER Multi Flute 45°Helix Long End Mill (EH916) to comparison

View Comparison
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute EH916060 6 6 13 57 0~-0.030 h5 6 EH916070 7 8 16 63 0~-0.030 h5 8 EH916080 8 8 19 63 0~-0.030 h5 6 EH916090 9 10 19 72 0~-0.030 h5 6 EH916100 10 10 22 72 0~-0.030 h5 6 EH916120 12 12 26 83 0~-0.030 h5 6 EH916140 14 14 26 83 0~-0.030 h5 6 EH916160 16 16 32 92 0~-0.030 h5 6 EH916180 18 18 32 92 0~-0.030 h5 8 EH916200 20 20 38 104 0~-0.030 h5 8 EH916250 25 25 44 104 0~-0.030 h5 8

Operation

Side Milling
Small Part
Facing
Trochoidal

Work Material

P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
S Inconel

Great

Good Great Excellent
S Titanium

Excellent

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
