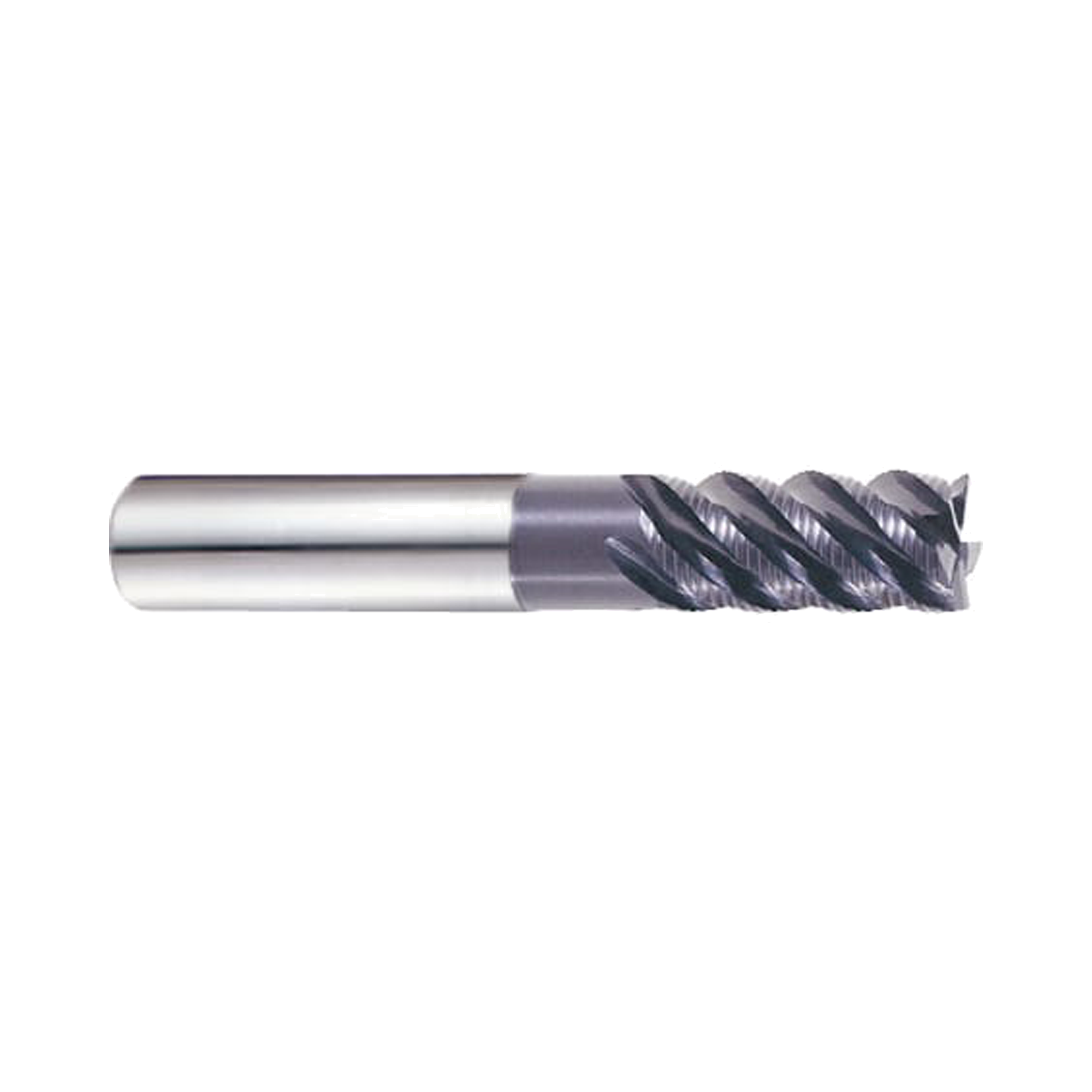

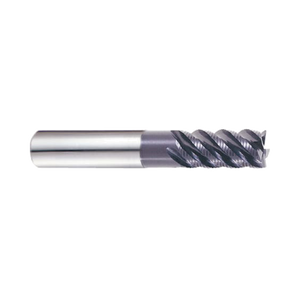

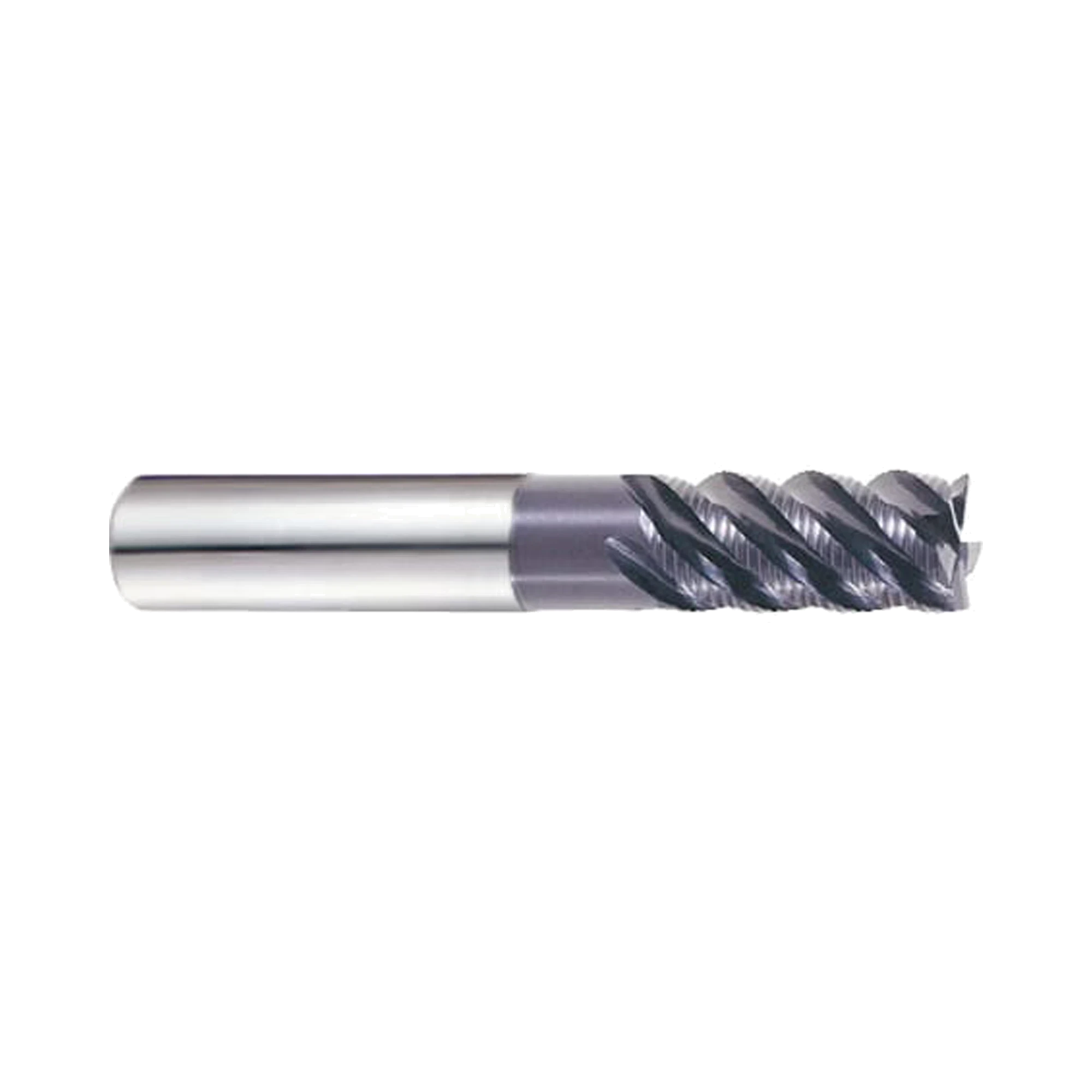

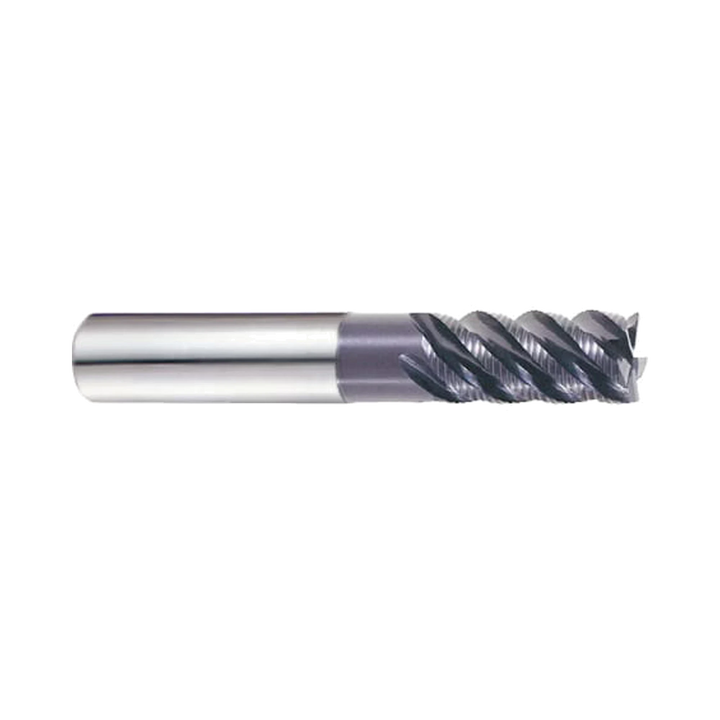

(EH921) Jet-Power Carbide Multi Flute Roughing End Mill, Long Length for Stainless/Titanium, Plain Shank
Long-Reach TiAlN Carbide Roughing End Mill
- SKU
- EH921060
Key features
- Long-reach roughing-fine cutting geometry
- 45° helix configuration
- TiAlN-coated ultra micro grain carbide
Made in South Korea
Roughing for demanding materials
Recommended for stainless steel, titanium alloys and heat-resistant super alloys.
Long-reach cutting profile
Long-reach proportions provide the specified reach across 6.0 to 20.0 mm mill diameters.
Fine roughing geometry
Multi-flute 45° helix geometry is paired with a roughing-fine cutting form.

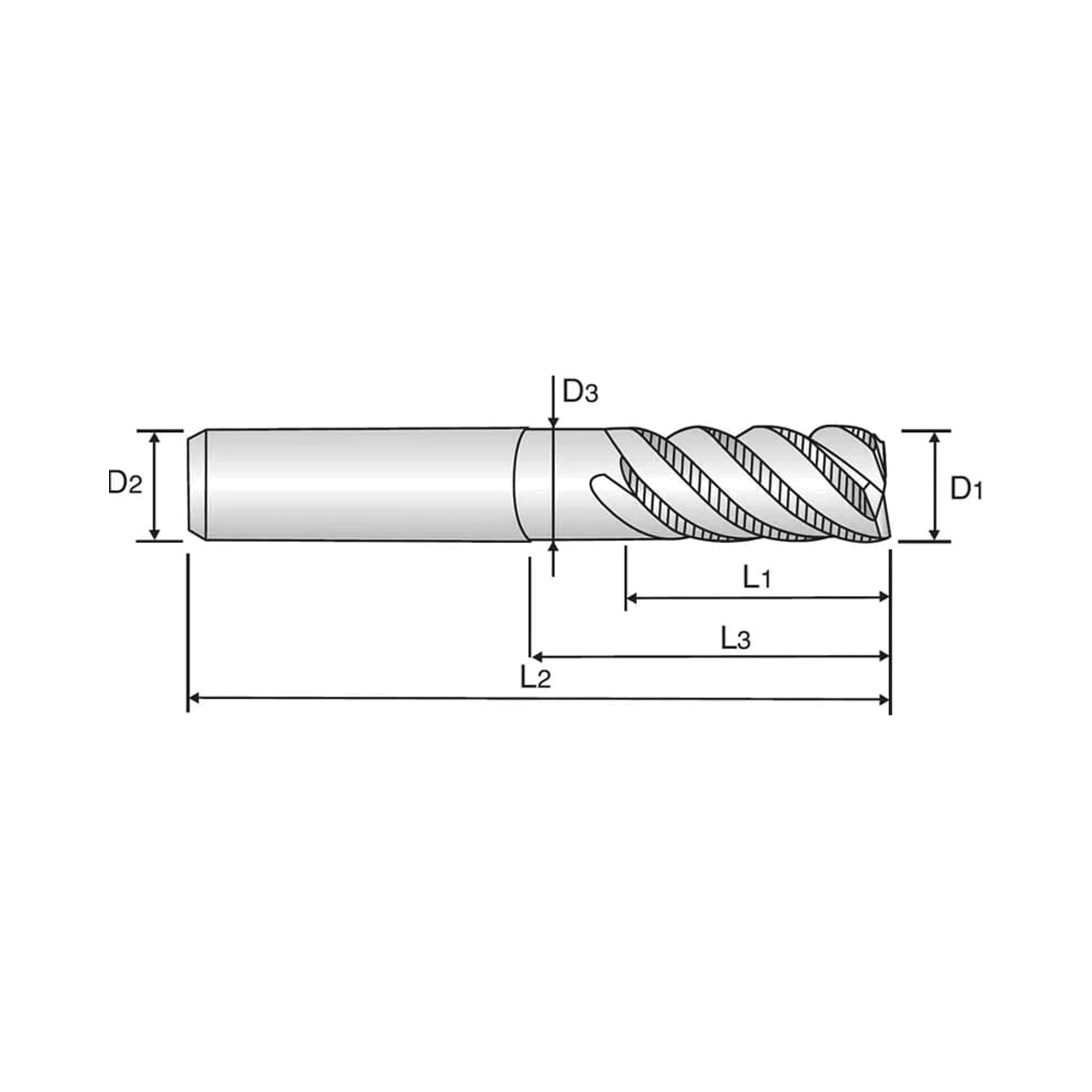

| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EH921060 | 6.0 | 0.15 | 57.0 | 6.0 | 4 | 16.0 | 20.0 | 5.5 | 1-2 Weeks | $90.80 | ||
| EH921080 | 8.0 | 0.18 | 63.0 | 8.0 | 4 | 16.0 | 26.0 | 7.5 | 1-2 Weeks | $98.90 | ||
| EH921100 | 10.0 | 0.2 | 72.0 | 10.0 | 4 | 22.0 | 31.0 | 9.5 | Low stock | $147.90 | ||
| EH921120 | 12.0 | 0.2 | 83.0 | 12.0 | 4 | 26.0 | 37.0 | 11.5 | Low stock | $189.90 | ||
| EH921160 | 16.0 | 0.2 | 100.0 | 16.0 | 5 | 32.0 | 51.0 | 15.5 | 1-2 Weeks | $309.40 | ||
| EH921200 | 20.0 | 0.2 | 110.0 | 20.0 | 6 | 38.0 | 59.0 | 19.2 | Low stock | $497.90 |
Add (EH921) Jet-Power Carbide Multi Flute Roughing End Mill, Long Length for Stainless/Titanium, Plain Shank to comparison
View Comparison- Overview
- Reviews
YG-1 Jet-Power EH921 is a carbide multi-flute roughing end mill with 45° helix and long reach. Its roughing-fine cutting geometry is designed for roughing stainless steel, titanium alloys and heat-resistant super alloys. The TiAlN-coated ultra micro grain carbide construction suits the series' recommended material groups. This plain-shank range spans 6.0 to 20.0 mm mill diameters with four to six flutes. Length of cut ranges from 16 to 38 mm, with overall lengths from 57 to 110 mm. Specified chamfers range from 0.15 to 0.20 mm throughout the available product sizes. Recommended material groups also include non-alloy, low-alloy, high-alloy and tool steels.
- Long-reach roughing-fine cutting geometry
- 45° helix configuration
- TiAlN-coated ultra micro grain carbide
- Plain shank design
- 6.0 to 20.0 mm mill diameter range
- Four to six flutes by size
No specifications available.
