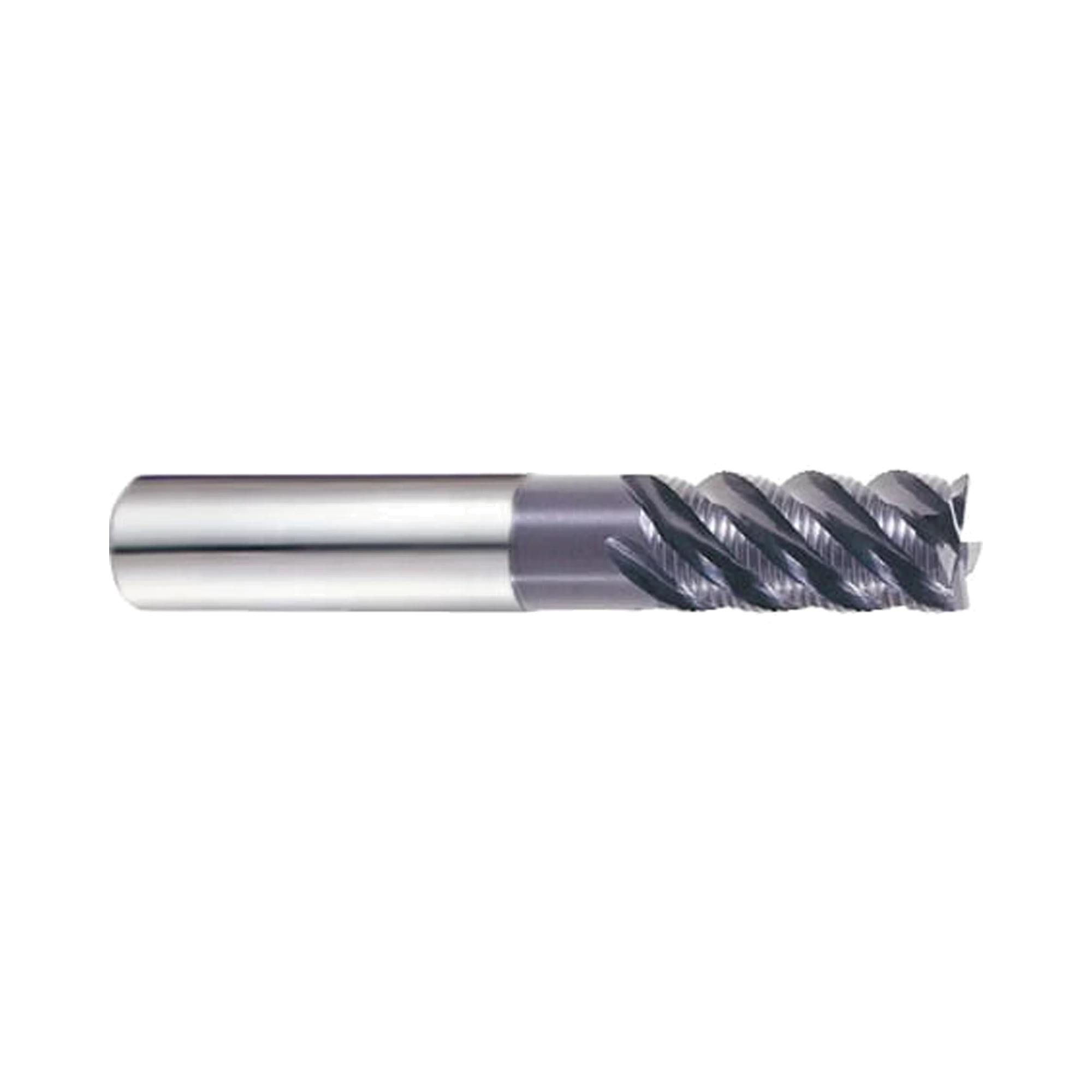

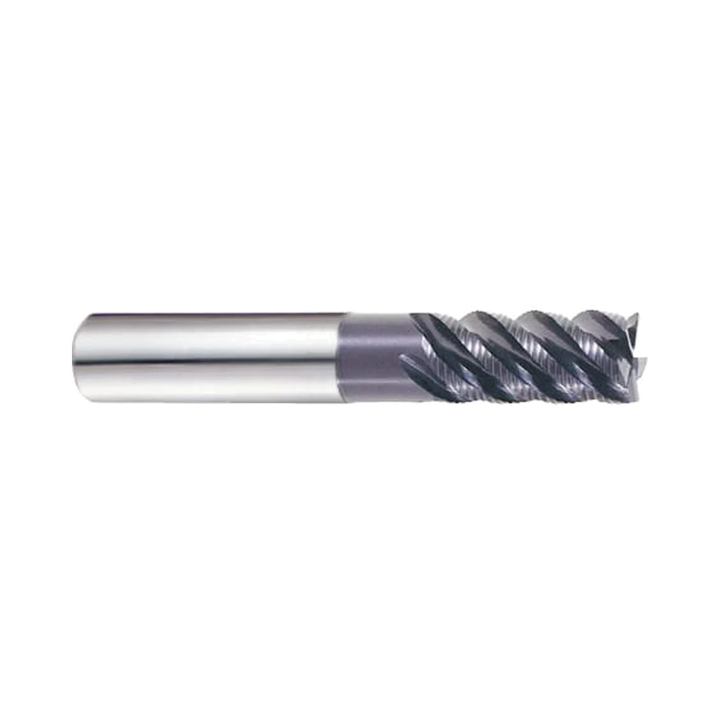

JET-POWER Multi Flute 45°Helix Long Reach Roughing(Fine) End Mill (EH942)
Product Code: EH942
No. Flutes: 4-6
Chamfer Angle: 45°
Surface Treatment: Titanium Aluminium Nitride Coating
Tool Material: Carbide
Helix Angle: Square 45°
Periphery Type: Roughing - Fine
Shank Type: Flat
The EH942 series range from 6-20mm diameter. These fine pitch roughers come with a weldon shank and have 4-6 flutes. The Jet Power range from YG-1 have exceptional tool life suitable for high speed machining of Titanium, Hastelloy, Stainless Steel, Inconel and Steel (Under HRc45).
- Extreme Machining of Titanium, Inconel, Hastelloy, Stainless Steel & Steels (Under HRc45)
- HSC (Suitable for high speed machining)
- TiALN coated ultrafine micrograin carbide substrate
- Ideal for lower power or older machines where high performance cutting is not possible
- High chip removal & minimising breakages of cutting edges
Specifications
| Flutes | Multi Flute |
| Helix Angle | 45° |
| Cutting Edge Shape | ROUGHING |
| Size Min | D6.0 |
| Size Max | D20.0 |
| Length |
Long Length |
| Coating | TiAIN |
| Workpiece Material | P M S |
| Chamfer Angle | 45 |
| Hardened Steels(HRc40~45) | Great |
| Helix Angle | Square 45 |
| No. Flutes | 4-6 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
| Periphery Type | Roughing - Fine |
| Shank Type | Flat |
| Surface Treatment | Titanium Aluminium Nitride Coating |
| Tool Material | Carbide |
Made in South Korea
Add JET-POWER Multi Flute 45°Helix Long Reach Roughing(Fine) End Mill (EH942) to comparison
View ComparisonOperation
Work Material
Great
Excellent
Excellent
Excellent
Great
Excellent
Great
