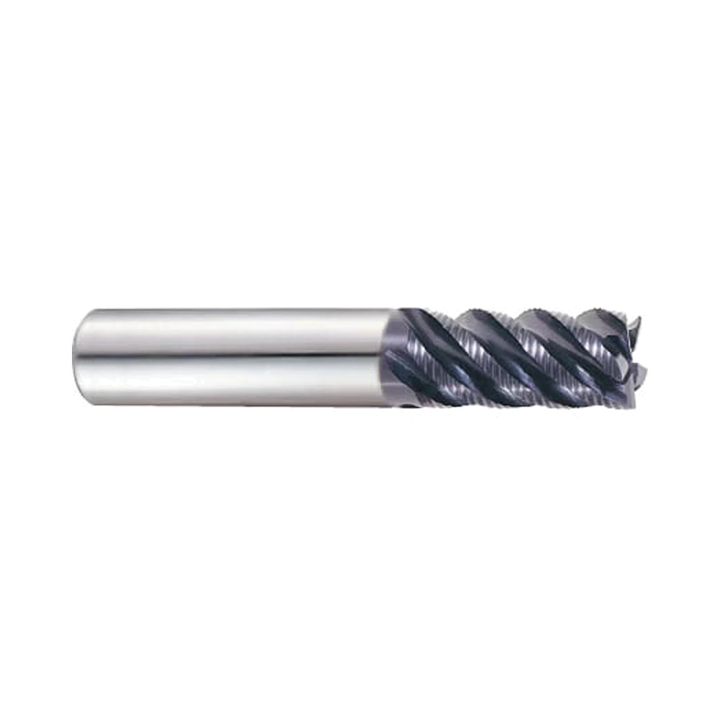

(EH919) Jet-Power Carbide Multi Flute Roughing End Mill, Long Length for Stainless/Titanium, Plain Shank

Long-length carbide fine roughing end mill

(EH919) Jet-Power Carbide Multi Flute Roughing End Mill, Long Length for Stainless/Titanium, Plain Shank
$77.55 INC GST $70.50 EX GST
SKU
EH919040
Work materials
PMSH

Key features

  • Carbide multi-flute roughing end mill with 45° helix
  • TiAlN coating with ultra micro grain carbide construction
  • Long-length plain-shank design
Mill Diameter (mm)
Chamfer (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Efficient roughing

Fine roughing geometry supports high chip removal while helping minimise cutting-edge breakages.

Built for demanding metals

Suitable for stainless steels, titanium alloys and selected steels below 45 HRc.

Useful size coverage

Plain-shank options cover 4.0–25.0 mm diameters for long-length roughing work.

SKUMill Diameter (mm)Chamfer (mm)Overall length (mm)Shank dia. (mm)FlutesLength of cut (mm)CAD filesStock Price Qty Add
EH9190404.00.157.06.0311.0STEPDXF Low stock $70.50
EH9190505.00.1357.06.0413.0STEPDXF Low stock $70.50
EH9190606.00.1557.06.0416.0STEPDXF In stock $70.50
EH9190707.00.1563.08.0416.0STEPDXF 1-2 Weeks $82.50
EH9190808.00.1863.08.0416.0STEPDXF 1-2 Weeks $82.50
EH9190909.00.1872.010.0419.0STEPDXF 1-2 Weeks $123.20
EH91910010.00.272.010.0422.0STEPDXF Low stock $123.20
EH91912012.00.283.012.0426.0STEPDXF Low stock $158.30
EH91914014.00.283.014.0526.0STEPDXF 1-2 Weeks $192.00
EH91916016.00.292.016.0532.0STEPDXF Low stock $257.80
EH91920020.00.2104.020.0638.0STEPDXF Low stock $414.90
EH91925025.00.2121.025.0645.0STEPDXF 1-2 Weeks $727.50

Add (EH919) Jet-Power Carbide Multi Flute Roughing End Mill, Long Length for Stainless/Titanium, Plain Shank to comparison

View Comparison
  • Overview
  • Work Material
  • Reviews
Product Description

YG-1 EH919 Jet-Power is a carbide multi-flute 45° helix long roughing end mill with a plain shank. It is designed for high chip removal when roughing stainless steels, titanium alloys and materials under 45 HRc. Its TiAlN coating and ultra micro grain carbide construction support demanding roughing applications.

The EH919 plain-shank range spans 4.0–25.0 mm diameters, with three to six flutes and 0.1–0.2 mm chamfers. Fine roughing geometry helps remove material efficiently while minimising cutting-edge breakages. Suitable materials include alloy, tool, carbon and prehardened steels alongside stainless steels. Use it for side cutting in steel, stainless steel and titanium alloy machining.

  • Carbide multi-flute roughing end mill with 45° helix
  • TiAlN coating with ultra micro grain carbide construction
  • Long-length plain-shank design
  • Fine roughing geometry for high chip removal
  • Suitable for materials under 45 HRc
  • 4.0–25.0 mm diameter range with three to six flutes
Product Data
Cutting Shape Rougher
Length Long, Short

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 3–5
GoodVDI 1–2
Low-alloy steel
ExcellentVDI 7–9
GoodVDI 6
High-alloy and tool steel
ExcellentVDI 11
GoodVDI 10

Superalloys & titanium

7 grades
Heat-resistant superalloys
GoodVDI 31–35
Titanium alloys
ExcellentVDI 36–37

Stainless steel

3 grades
Stainless steel
ExcellentVDI 14
GoodVDI 12–13

Hardened materials

1 grade
Chilled cast iron
GoodVDI 40
VDI grade reference22 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelGood19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelGood18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelExcellent32535
12MStainless steelGood20015
13MStainless steelGood24023
14MStainless steelExcellent18010
31SHeat-resistant superalloysGood20015
32SHeat-resistant superalloysGood28030
33SHeat-resistant superalloysGood25025
34SHeat-resistant superalloysGood35038
35SHeat-resistant superalloysGood32034
36STitanium alloysExcellent--
37STitanium alloysExcellent--
40HChilled cast ironGood40042

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
