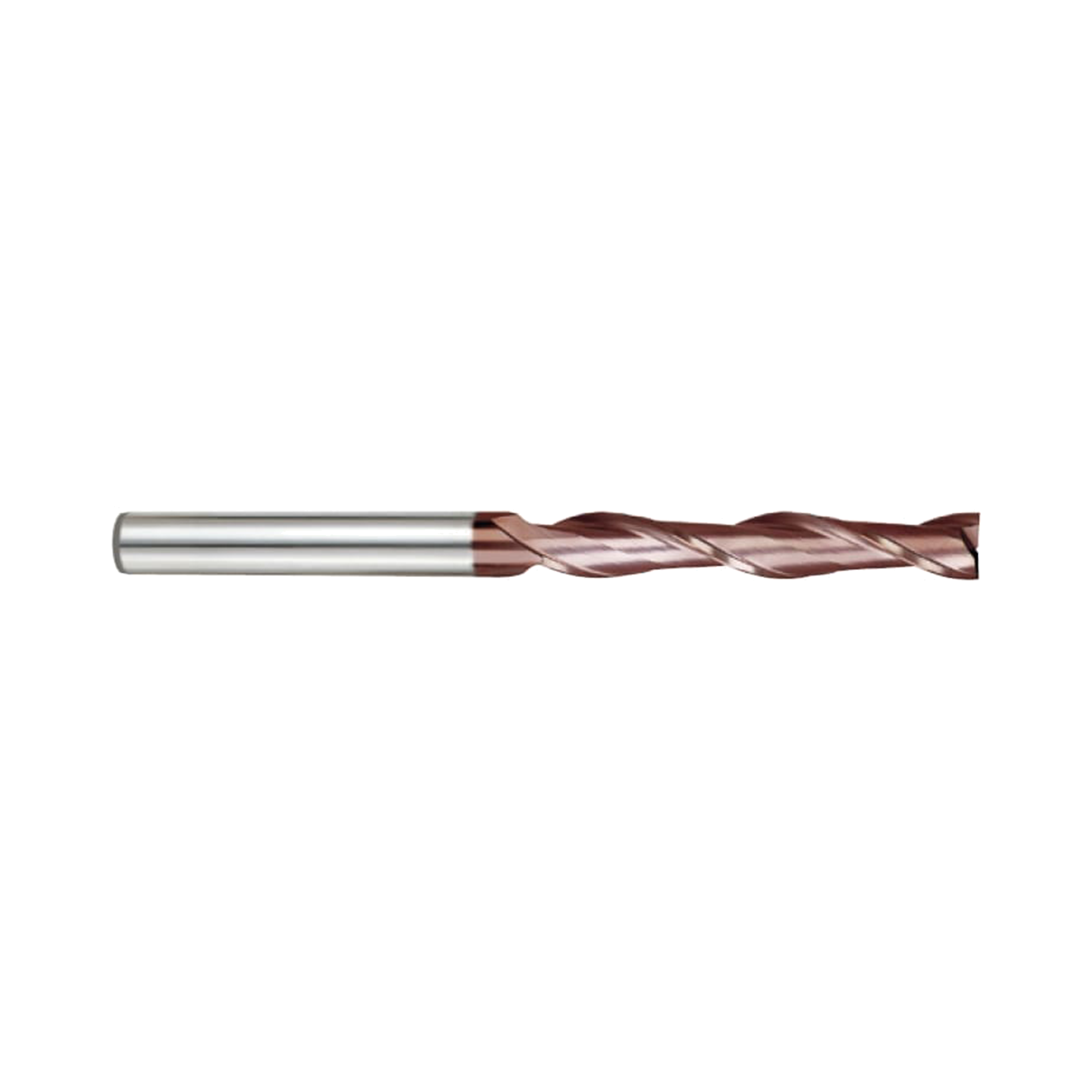

(G9452) K-2 Carbide, 2Flute End Mill, Extra Long Length
TiAlN-coated extra-long 2-flute carbide end mill
- SKU
- G9452030
Key features
- K-2 solid carbide construction with TiAlN coating
- Two-flute design for slotting applications
- 30° helix and square cutting geometry
Made in South Korea
Slotting-focused geometry
Two flutes and a 30° helix provide a practical configuration for slotting and general milling.
Extended reach options
Extra-long lengths support machining where additional reach is required while retaining a plain shank.
Versatile material coverage
Recommended across a broad range of steel, cast iron, non-ferrous and heat-resistant workpiece materials.

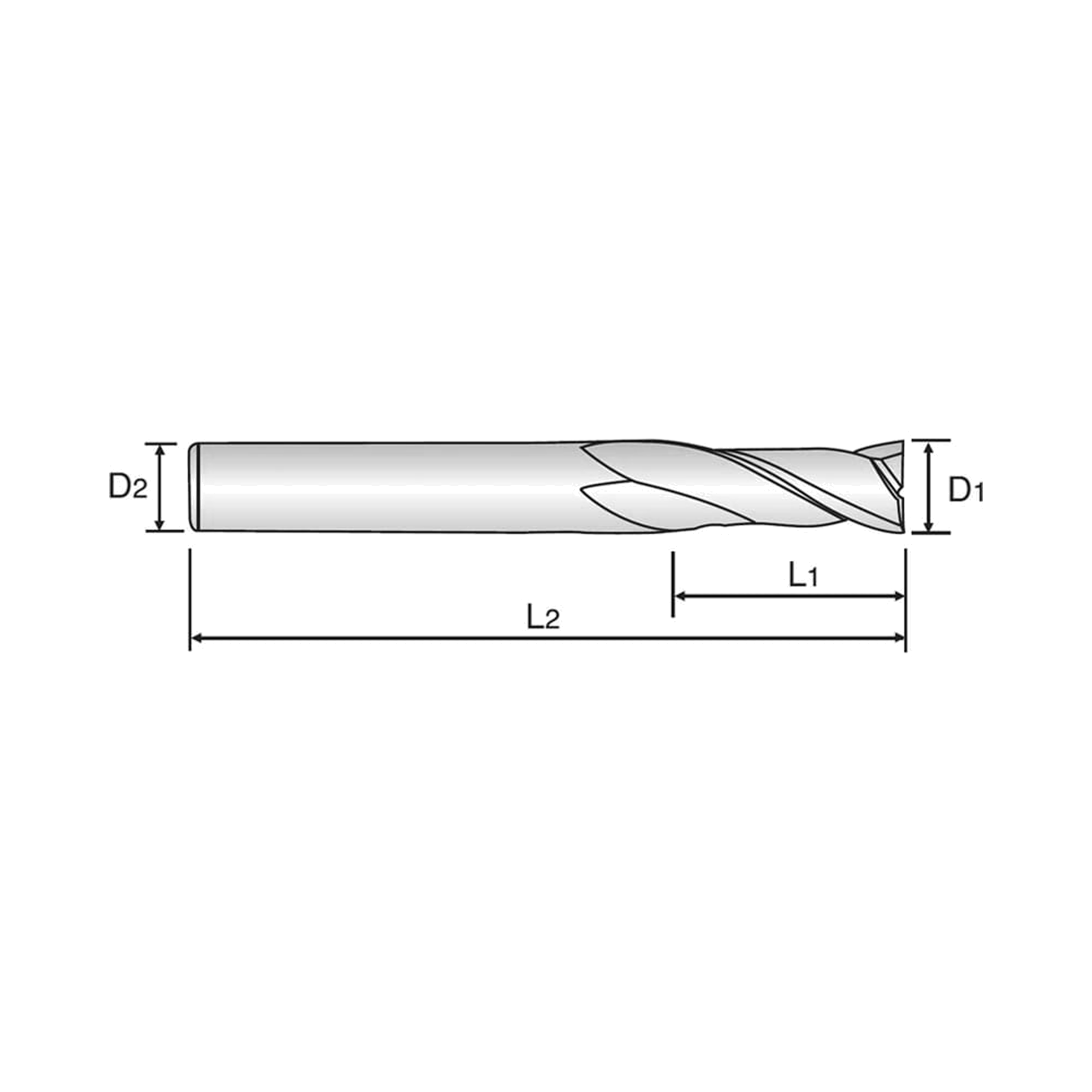

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| G9452030 | 3 | 75.0 | 3.0 | 30.0 | Low stock | $38.20 | ||
| G9452040 | 4 | 75.0 | 4.0 | 30.0 | Low stock | $40.80 | ||
| G9452050 | 5 | 100.0 | 5.0 | 40.0 | 1-2 Weeks | $65.50 | ||
| G9452060 | 6 | 150.0 | 6.0 | 50.0 | In stock | $66.00 | ||
| G9452908 | 8 | 75.0 | 8.0 | 30.0 | In stock | $61.80 | ||
| G9452100 | 10 | 150.0 | 10.0 | 60.0 | 1-2 Weeks | $135.30 | ||
| G9452120 | 12 | 150.0 | 12.0 | 75.0 | In stock | $221.50 | ||
| G9452140 | 14 | 150.0 | 14.0 | 65.0 | 1-2 Weeks | $247.10 | ||
| G9452160 | 16 | 150.0 | 16.0 | 65.0 | 1-2 Weeks | $383.60 | ||
| G9452200 | 20 | 150.0 | 20.0 | 65.0 | 1-2 Weeks | $492.90 |
Add (G9452) K-2 Carbide, 2Flute End Mill, Extra Long Length to comparison
View Comparison- Overview
- Specifications
- Speeds & Feeds
- Reviews
YG-1 G9452 K-2 carbide 2-flute extra-long end mill combines TiAlN coating with square cutting geometry. Its two-flute, 30° helix design supports slotting and general milling in recommended ferrous and non-ferrous materials. This plain-shank series covers 3 to 20 mm mill diameters, with selected cutting and overall lengths. The catalogue lists wet and dry cutting suitability for conventional and high-speed milling applications. Enforced cutting edges are specified for the series, supporting a robust tool design. TiAlN coating is presented as suitable for high-temperature dry milling applications. Material recommendations cover steel, stainless steel, cast iron, aluminium alloys, copper alloys, heat-resistant super alloys and titanium alloys.
- K-2 solid carbide construction with TiAlN coating
- Two-flute design for slotting applications
- 30° helix and square cutting geometry
- Extra-long-length plain-shank series
- Wet or dry cutting suitability
- 3 to 20 mm mill diameter range
No specifications available.
Cutting Speeds and Feeds
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
