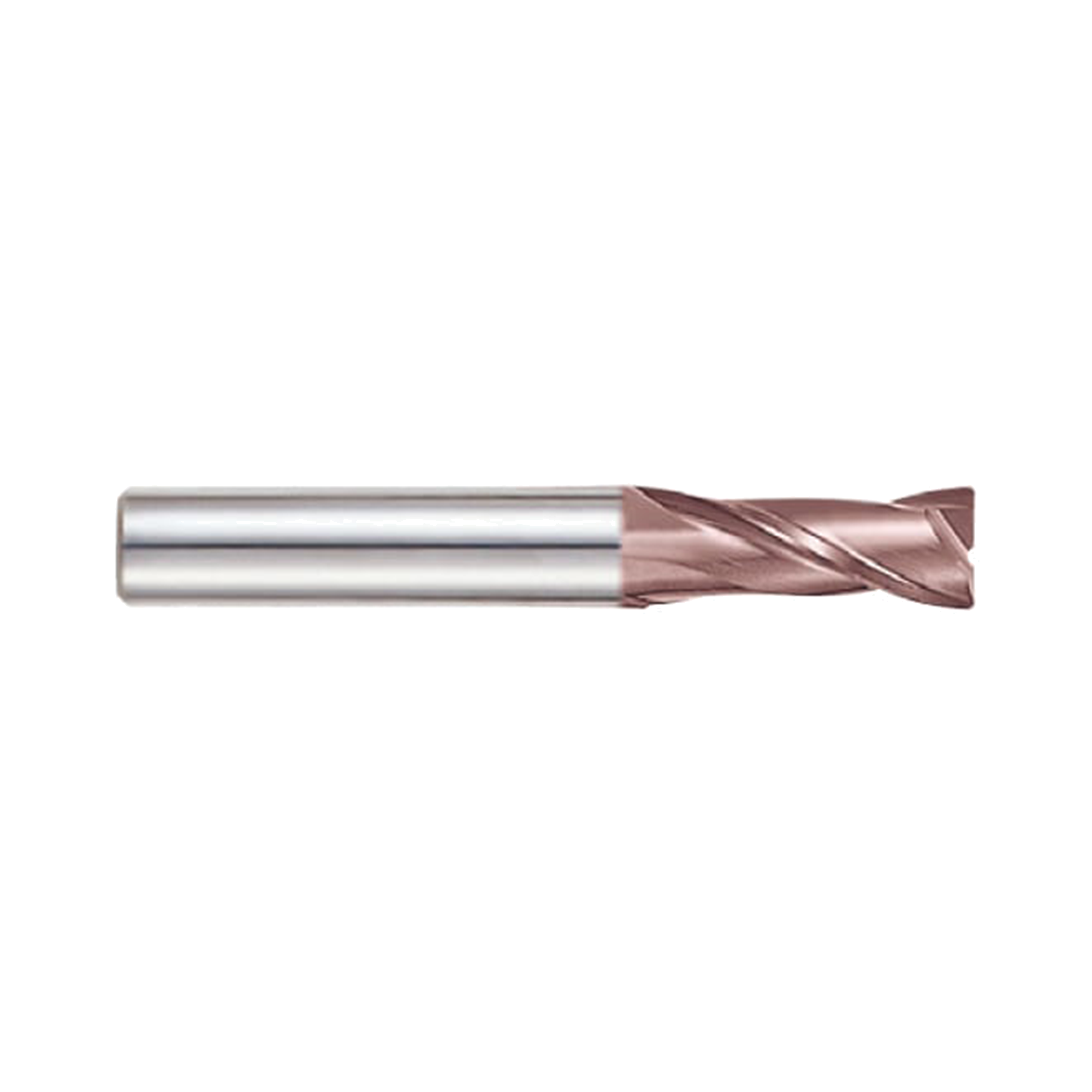

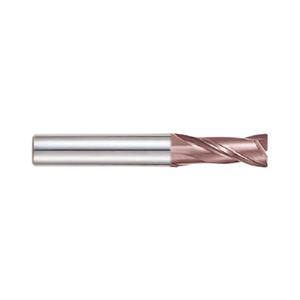

K-2 CARBIDE 2 Flute 30°Helix Long Corner Radius End Mill (G9B82)

K-2 CARBIDE 2 Flute 30°Helix Long Corner Radius End Mill (G9B82)
K-2 CARBIDE 2 Flute 30°Helix Long Corner Radius End Mill (G9B82)
New

K-2 CARBIDE 2 Flute 30°Helix Long Corner Radius End Mill (G9B82)

Product Code: G9B82

Corner Radius Tolerance: 0.02 No. Flutes: 2 YG-1 LEGEND TiAIN Surface Treatment: Titanium Aluminium Nitride Coating YG-1 LEGEND CARBIDE Tool Material: Carbide YG-1 LEGEND HELIX SQUARE 30 Helix Angle: Square 30° YG-1 LEGEND SHANK YG-1 STANDARD Shank Type: YG-1 Standard
Buy Local

The G9B82 series K2 coated carbide milling cutters feature a corner radius for reduced cutting forces and improved tool life. K2 carbide range from global market leaders YG-1 are the number 1 best selling tool for general purpose milling. Ideal for general milling steel <45HRc, stainless steel, cast iron, copper & aluminium.

  • Corner radius for reduced cutting forces and improved tool life
  • Special K2 coating for longer tool life, high heat and wear resistance
  • Dry cutting on steel can increase tool life up to 40%
  • Also suitable for general milling of steel, stainless steel, cast iron & non-ferrous
  • Consistent and reliable performance in general machining conditions
  • Made from high-quality micrograin carbide.
  • Manufactured by global market leader YG-1

Specifications

Flutes 2
Helix Angle 30°
Cutting Edge Shape CORNER RADIUS
Size Min D2.2
Size Max D12.0
Length

SHORT LENGTH
Coating TiAIN
Product Data
Workpiece Material P M K
Corner Radius Tolerance 0.02
Hardened Steels(HRc40~45) Great
Helix Angle Square 30
No. Flutes 2
Shank Type Plain YG-1 Standard
Surface Treatment Titanium Aluminium Nitride Coating
Tool Material Carbide
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add K-2 CARBIDE 2 Flute 30°Helix Long Corner Radius End Mill (G9B82) to comparison

View Comparison

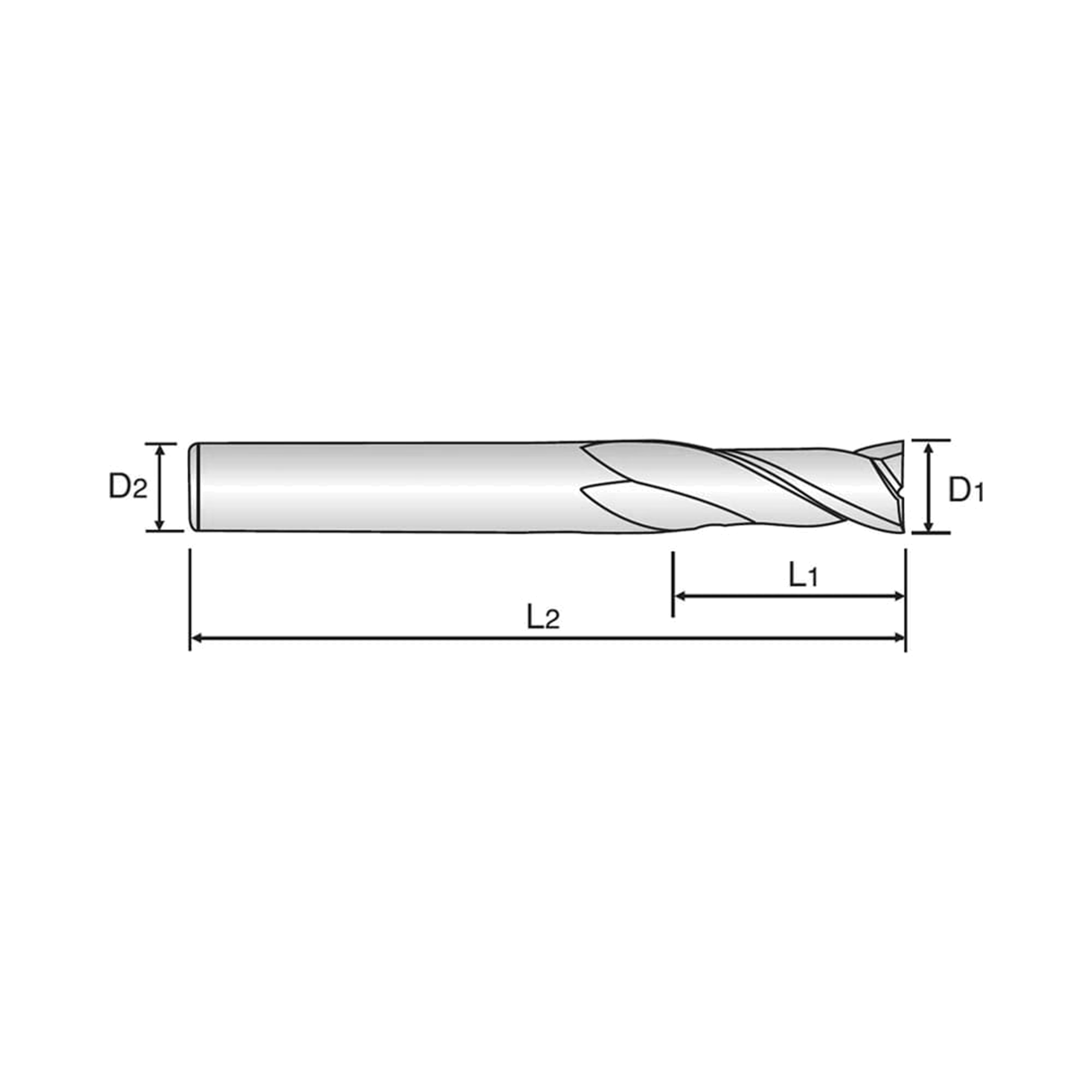

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9B82020 2 4 4 50 0~-0.030 h5 2 G9B82020 2 4 4 50 0~-0.030 h5 2 G9B82080 8 8 16 60 0~-0.030 h5 2 G9B82080 8 8 16 60 0~-0.030 h5 2 G9B82100 10 10 20 75 0~-0.030 h5 2 G9B82100 10 10 20 75 0~-0.030 h5 2 G9B82120 12 12 24 75 0~-0.030 h5 2 G9B82120 12 12 24 75 0~-0.030 h5 2 G9B82901 2 4 4 50 0~-0.030 h5 2 G9B82901 2 4 4 50 0~-0.030 h5 2 G9B82902 2 4 4 50 0~-0.030 h5 2 G9B82902 2 4 4 50 0~-0.030 h5 2 G9B82903 2.5 4 5 50 0~-0.030 h5 2 G9B82903 2.5 4 5 50 0~-0.030 h5 2 G9B82905 3 4 6 50 0~-0.030 h5 2 G9B82905 3 4 6 50 0~-0.030 h5 2 G9B82908 4 4 8 50 0~-0.030 h5 2 G9B82908 4 4 8 50 0~-0.030 h5 2 G9B82911 5 6 10 50 0~-0.030 h5 2 G9B82911 5 6 10 50 0~-0.030 h5 2 G9B82913 5 6 10 50 0~-0.030 h5 2 G9B82913 5 6 10 50 0~-0.030 h5 2 G9B82914 6 6 12 50 0~-0.030 h5 2 G9B82914 6 6 12 50 0~-0.030 h5 2 G9B82916 6 6 12 50 0~-0.030 h5 2 G9B82916 6 6 12 50 0~-0.030 h5 2 G9B82917 8 8 16 60 0~-0.030 h5 2 G9B82917 8 8 16 60 0~-0.030 h5 2 G9B82920 8 8 16 60 0~-0.030 h5 2 G9B82920 8 8 16 60 0~-0.030 h5 2 G9B82922 10 10 20 75 0~-0.030 h5 2 G9B82922 10 10 20 75 0~-0.030 h5 2 G9B82926 12 12 24 75 0~-0.030 h5 2 G9B82926 12 12 24 75 0~-0.030 h5 2

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
