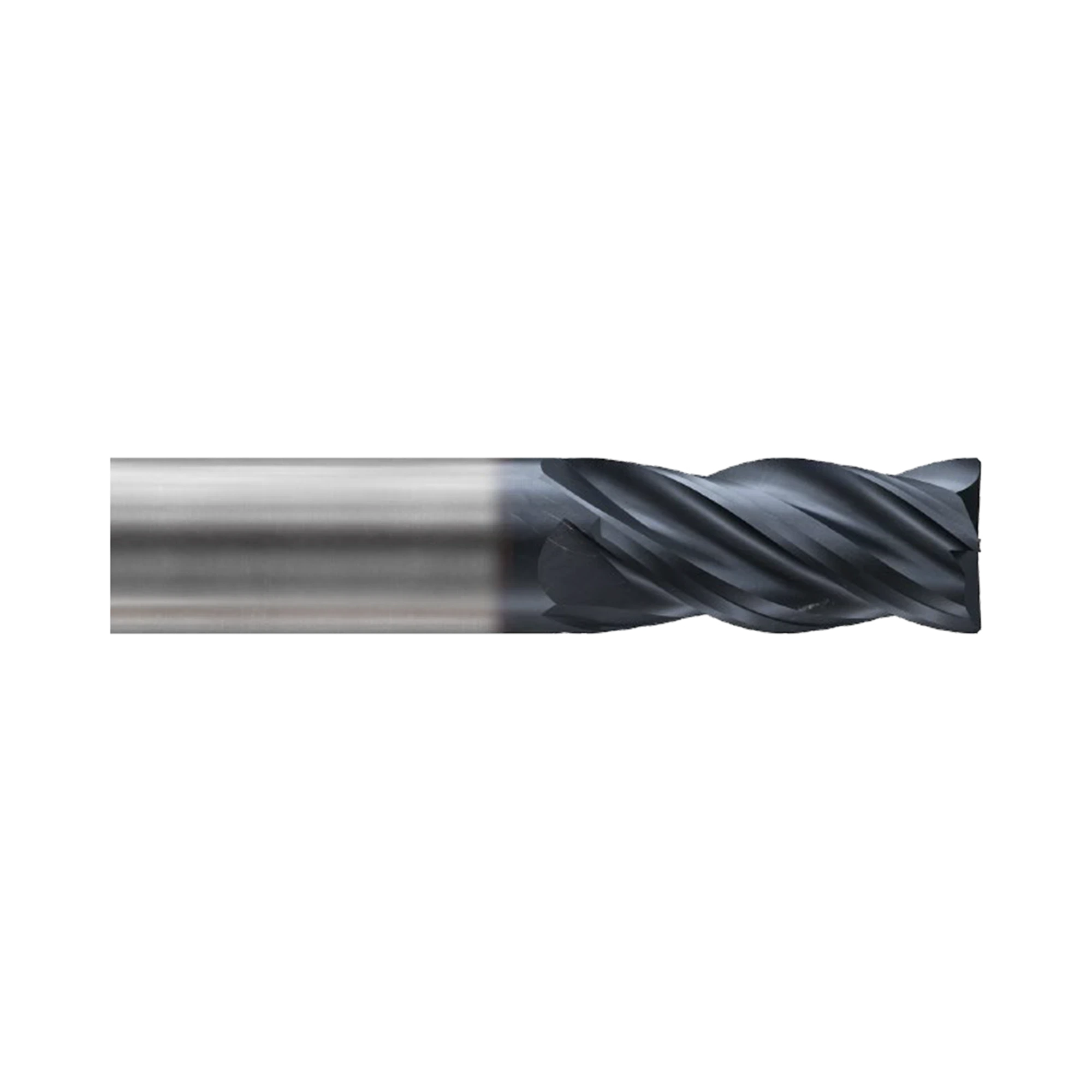

K-2 CARBIDE 4 Flute Multiple Helix Short End Mill (G9H73)
Product Code: G9H73
No. Flutes: 4
The G9H73 series K2 coated carbide milling cutters feature a multiple helix design for twice the tool life compared to conventional general purpose carbide milling cutters. Achieve higher productivity too with the ability to slot and profile using just one tool. The unique design also eliminates vibration whilst allowing for larger depths of cut up to 0.8xD when slotting & 0.3xD when side cutting. K2 carbide range from global market leaders YG-1 are the number 1 best selling tool for general purpose milling. Ideal for general milling steel <45HRc, stainless steel, cast iron, copper & aluminium.
- Multiple helix for double the tool life compared to conventional general purpose carbide
- Slot & end mill with the same tool for improved productivity
- Unequal helix for vibration free milling, even in larger cut depths up to 0.8xD when slotting & 0.3xD when side cutting
- Special x-coating provides excellent heat & oxidation resistance
- For next level general purpose milling steel, stainless steel & cast iron
- Consistent and reliable performance in general machining conditions
- Made from high quality micrograin carbide
- Manufactured by global market leader YG-1
Specifications
| Flutes | 4 |
| Helix Angle | Multiple |
| Cutting Edge Shape | SQUARE |
| Size Min | D3.0 |
| Size Max | D20.0 |
| Length |
SHORT LENGTH
|
| Coating | TiAIN |
| Workpiece Material | P M K |
| No. Flutes | 4 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
Made in South Korea
Add K-2 CARBIDE 4 Flute Multiple Helix Short End Mill (G9H73) to comparison
View ComparisonOperation
Work Material
Excellent
Excellent
Excellent
Excellent
Excellent
Excision is now the exclusive distributor of YG-1 in Australia & New Zealand
View the range
