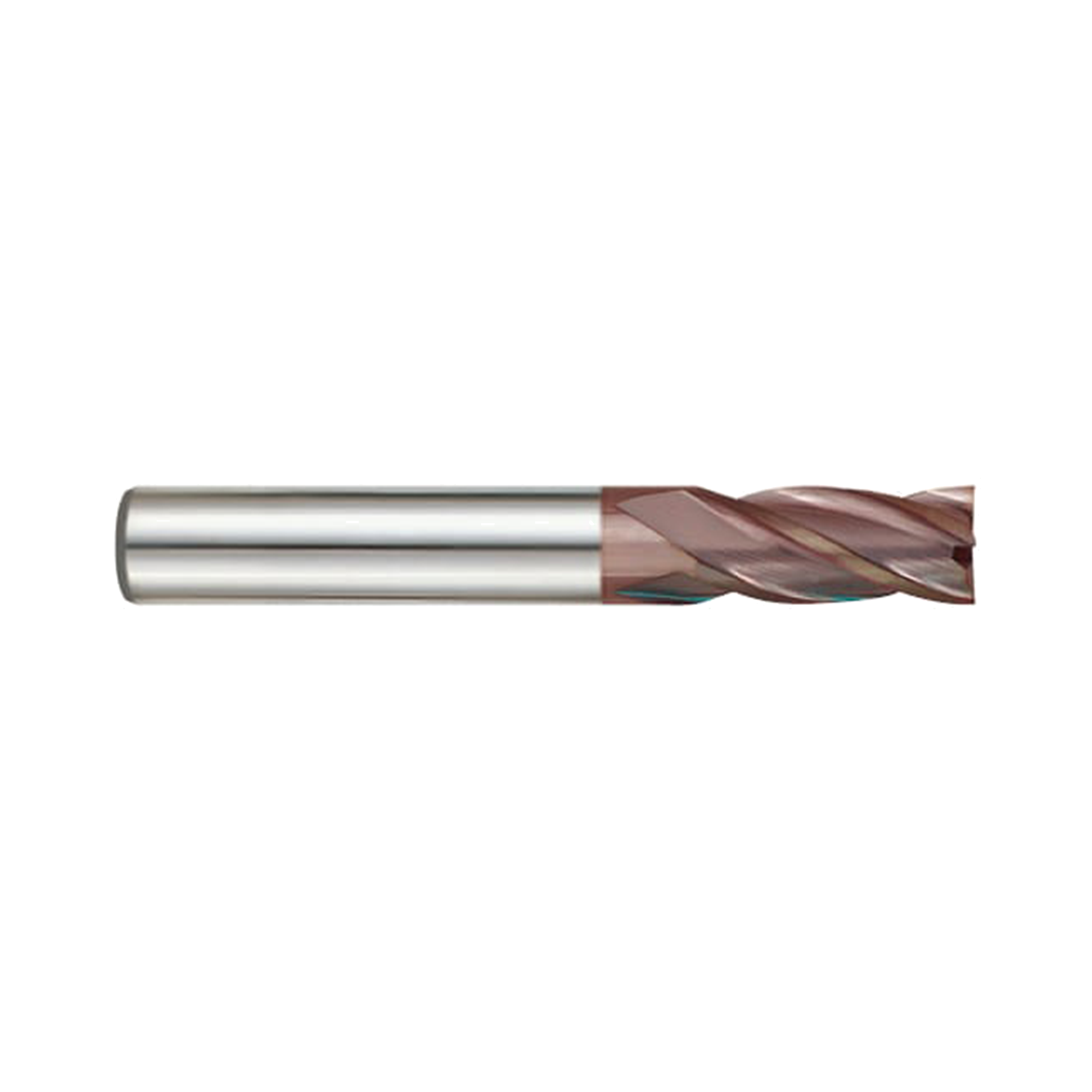

K-2 CARBIDE 4 Flute 30°Helix Short End Mill (G9G50)

K-2 CARBIDE 4 Flute 30°Helix Short End Mill (G9G50)
K-2 CARBIDE 4 Flute 30°Helix Short End Mill (G9G50)
New

K-2 CARBIDE 4 Flute 30°Helix Short End Mill (G9G50)

Product Code: G9G50

No. Flutes: 3 YG-1 LEGEND TiAIN Surface Treatment: Titanium Aluminium Nitride Coating YG-1 LEGEND CARBIDE Tool Material: Carbide YG-1 LEGEND HELIX SQUARE 45 Helix Angle: Square 45° YG-1 LEGEND SHANK 6535HA Shank Type: 6535HA
Buy Local

The G9G50 series K2 coated carbide milling cutters feature a chamfer prep for additional cutting edge protection. K2 carbide range from global market leaders YG-1 are the number 1 best selling tool for general purpose milling. Ideal for general milling steel <45HRc, stainless steel, cast iron, copper & aluminium.

  • Chamfer prep for additional cutting edge protection
  • Special K2 coating for longer tool life, high heat and wear resistance
  • Dry cutting on steel can increase tool life up to 40%
  • Also suitable for general milling of steel, stainless steel, cast iron & non-ferrous
  • Consistent and reliable performance in general machining conditions
  • Made from high-quality micrograin carbide.
  • Manufactured by global market leader YG-1

Specifications

Flutes 4
Helix Angle 30°
Cutting Edge Shape SQUARE
Size Min D3.0
Size Max D20.0
Length

SHORT LENGTH

with CHAMFER


Coating TiAIN
Product Data
Workpiece Material P M K S
Helix Angle Square 45
No. Flutes 3
Shank Type 6535HA
Surface Treatment Titanium Aluminium Nitride Coating
Tool Material Carbide
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add K-2 CARBIDE 4 Flute 30°Helix Short End Mill (G9G50) to comparison

View Comparison

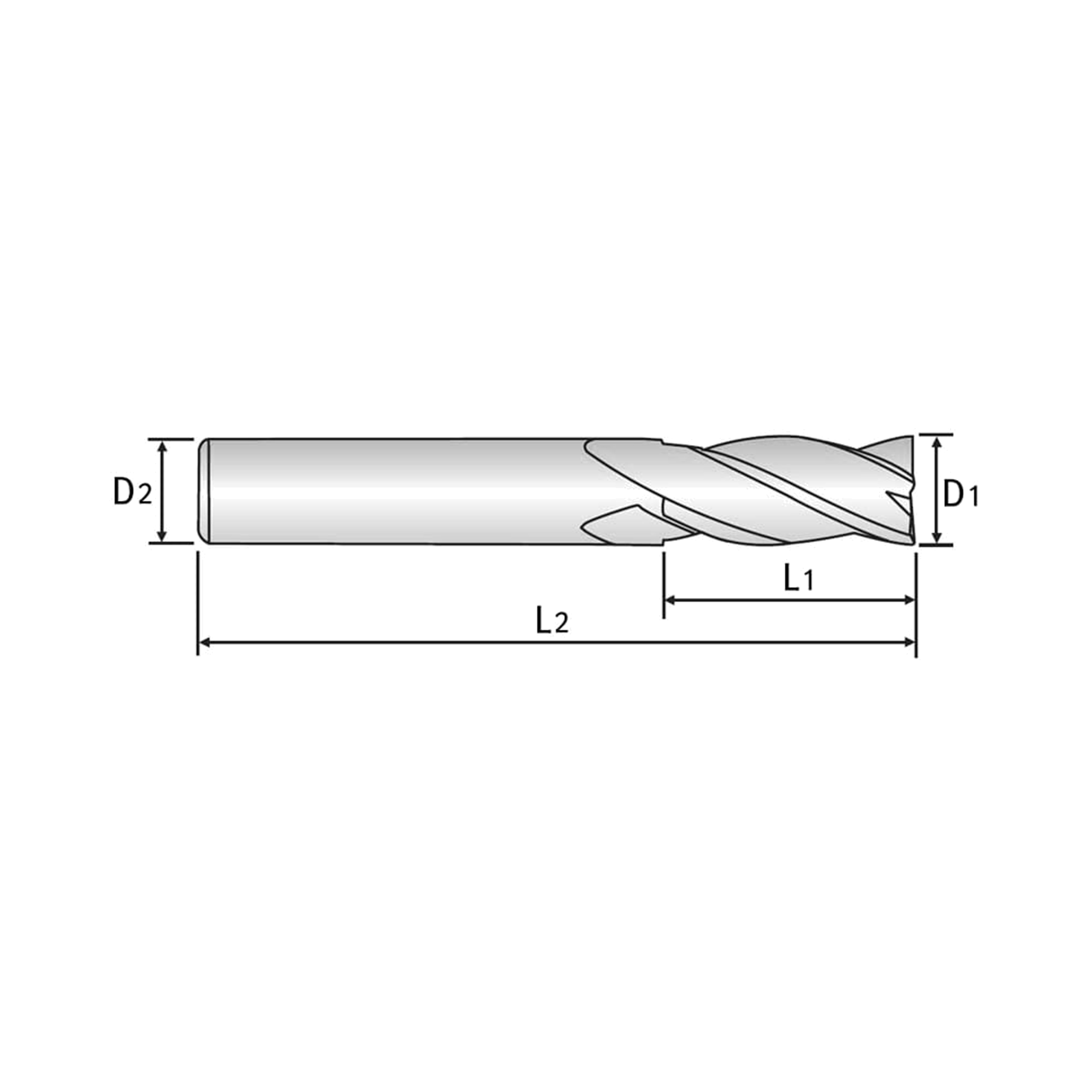

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9G50030 3 3 12 32 0~-0.030 h5 4 G9G50040 4 4 12 40 0~-0.030 h5 4 G9G50050 5 5 14 50 0~-0.030 h5 4 G9G50060 6 6 16 50 0~-0.030 h5 4 G9G50080 8 8 20 60 0~-0.030 h5 4 G9G50100 10 10 22 70 0~-0.030 h5 4 G9G50120 12 12 22 70 0~-0.030 h5 4 G9G50140 14 14 25 75 0~-0.030 h5 4 G9G50160 16 16 25 75 0~-0.030 h5 4 G9G50200 20 20 32 100 0~-0.030 h5 4

Speeds & Feeds

ISO VDI 3323  Material Description Ae Ap Parameter Diameter (Ø)
1.0 1.5 2.0 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0 20.0
P 1-4 Non-Alloy Steel 0.1D 1.0D Vc 55 55 60 70 80 85 90 90 85 90 90 95 90
fz 0.002 0.005 0.006 0.009 0.019 0.024 0.029 0.043 0.047 0.047 0.047 0.047 0.047
RPM 17507 11671 9549 7427 6366 5411 4775 3581 2706 2387 2046 1890 1432
FEED 140 233 229 267 484 519 554 616 509 449 385 355 269
5 0.1D 1.0D Vc 30 35 40 45 50 50 55 55 55 55 55 60 65
fz 0.002 0.004 0.006 0.009 0.019 0.024 0.031 0.038 0.038 0.037 0.038 0.037 0.038
RPM 9549 7427 6366 4775 3979 3183 2918 2188 1751 1459 1251 1194 875
FEED 76 119 153 172 302 306 362 333 266 216 190 177 133
6-7 Low-Alloy Steel 0.1D 1.0D Vc 55 55 60 70 80 85 90 90 85 90 90 95 90
fz 0.002 0.005 0.006 0.009 0.019 0.024 0.029 0.043 0.047 0.047 0.047 0.047 0.047
RPM 17507 11671 9549 7427 6366 5411 4775 3581 2706 2387 2046 1890 1432
FEED 140 233 229 267 484 519 554 616 509 449 385 355 269
8-9 0.1D 1.0D Vc 30 35 40 45 50 50 55 55 55 55 55 60 65
fz 0.002 0.004 0.006 0.009 0.019 0.024 0.031 0.038 0.038 0.037 0.038 0.037 0.038
RPM 9549 7427 6366 4775 3979 3183 2918 2188 1751 1459 1251 1194 875
FEED 76 119 153 172 302 306 362 333 266 216 190 177 133
10 High-Alloyed Steel, and Tool Steel 0.1D 1.0D Vc 55 55 60 70 80 85 90 90 85 90 90 95 90
fz 0.002 0.005 0.006 0.009 0.019 0.024 0.029 0.043 0.047 0.047 0.047 0.047 0.047
RPM 17507 11671 9549 7427 6366 5411 4775 3581 2706 2387 2046 1890 1432
FEED 140 233 229 267 484 519 554 616 509 449 385 355 269
11.1-11.2 0.1D 1.0D Vc 30 35 40 45 50 50 55 55 55 55 55 60 65
fz 0.002 0.004 0.006 0.009 0.019 0.024 0.031 0.038 0.038 0.037 0.038 0.037 0.038
RPM 9549 7427 6366 4775 3979 3183 2918 2188 1751 1459 1251 1194 875
FEED 76 119 153 172 302 306 362 333 266 216 190 177 133
M 14.1 Stainless steel 0.1D 1.0D Vc 25 35 35 35 40 40 45 45 45 45 45 50 45
fz 0.002 0.004 0.006 0.009 0.018 0.024 0.020 0.042 0.044 0.045 0.045 0.045 0.046
RPM 7958 7427 5570 3714 3183 2546 2387 1790 1432 1194 1023 895 716
FEED 64 119 134 134 229 244 277 301 252 215 184 179 132
K 15-20 Grey cast iron Nodular cast iron Malleable cast iron 0.1D 1.5D Vc 60 55 60 55 60 55 55 55 60 55 55 55 55
fz 0.008 0.013 0.017 0.026 0.035 0.044 0.065 0.093 0.116 0.155 0.182 0.22 0.288
RPM 19099 11671 9549 5836 4775 3501 2918 2188 1910 1459 1251 1094 875
FEED 611 607 649 607 668 616 759 814 886 905 910 963 1008
N 21~22 Aluminum-wrought alloy 0.1D 1.5D Vc 140 130 140 145 140 145 145 145 145 140 145 145 140
fz 0.006 0.011 0.015 0.021 0.03 0.036 0.047 0.063 0.078 0.095 0.108 0.125 0.163
RPM 44563 27587 22282 15385 11141 9231 7692 5769 4615 3714 3297 2885 2228
FEED 1070 1214 1337 1292 1337 1329 1446 1454 1440 1411 1424 1442 1453
23~25 Aluminum-cast,alloyed 0.1D 1.5D Vc 140 130 140 145 140 145 145 145 145 140 145 145 140
fz 0.006 0.011 0.015 0.021 0.03 0.036 0.047 0.063 0.078 0.095 0.108 0.125 0.163
RPM 44563 27587 22282 15385 11141 9231 7692 5769 4615 3714 3297 2885 2228
FEED 1070 1214 1337 1292 1337 1329 1446 1454 1440 1411 1424 1442 1453
26-28 Copper Alloys (Bronze / Brass) 0.1D 1.5D Vc 80 95 105 105 110 105 105 110 105 105 105 110 105
fz 0.006 0.011 0.016 0.024 0.029 0.038 0.048 0.063 0.081 0.096 0.115 0.125 0.162
RPM 25465 20160 16711 11141 8754 6685 5570 4377 3342 2785 2387 2188 1671
FEED 611 887 1070 1070 1015 1016 1070 1103 1083 1070 1098 1094 1083
29.1 Non Metallic Materials 1.0D 1.5D Vc 80 95 105 105 110 105 105 110 105 105 105 110 105
fz 0.006 0.011 0.016 0.024 0.029 0.038 0.048 0.063 0.081 0.096 0.115 0.125 0.162
RPM 25465 20160 16711 11141 8754 6685 5570 4377 3342 2785 2387 2188 1671
FEED 611 887 1070 1070 1015 1016 1070 1103 1083 1070 1098 1094 1083
H 40 Chilled Cast Iron 0.1D 1.0D Vc 30 35 40 45 50 50 55 55 55 55 55 60 65
fz 0.002 0.004 0.006 0.009 0.019 0.024 0.031 0.038 0.038 0.037 0.038 0.037 0.038
RPM 9549 7427 6366 4775 3979 3183 2918 2188 1751 1459 1251 1194 875
FEED 76 119 153 172 302 306 362 333 266 216 190 177 133
RPM: – rev/min
FEED: – mm/min
Vc: – m/min
Fz: – mm/tooth

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
S Inconel

Great

Good Great Excellent
S Titanium

Great

Good Great Excellent
