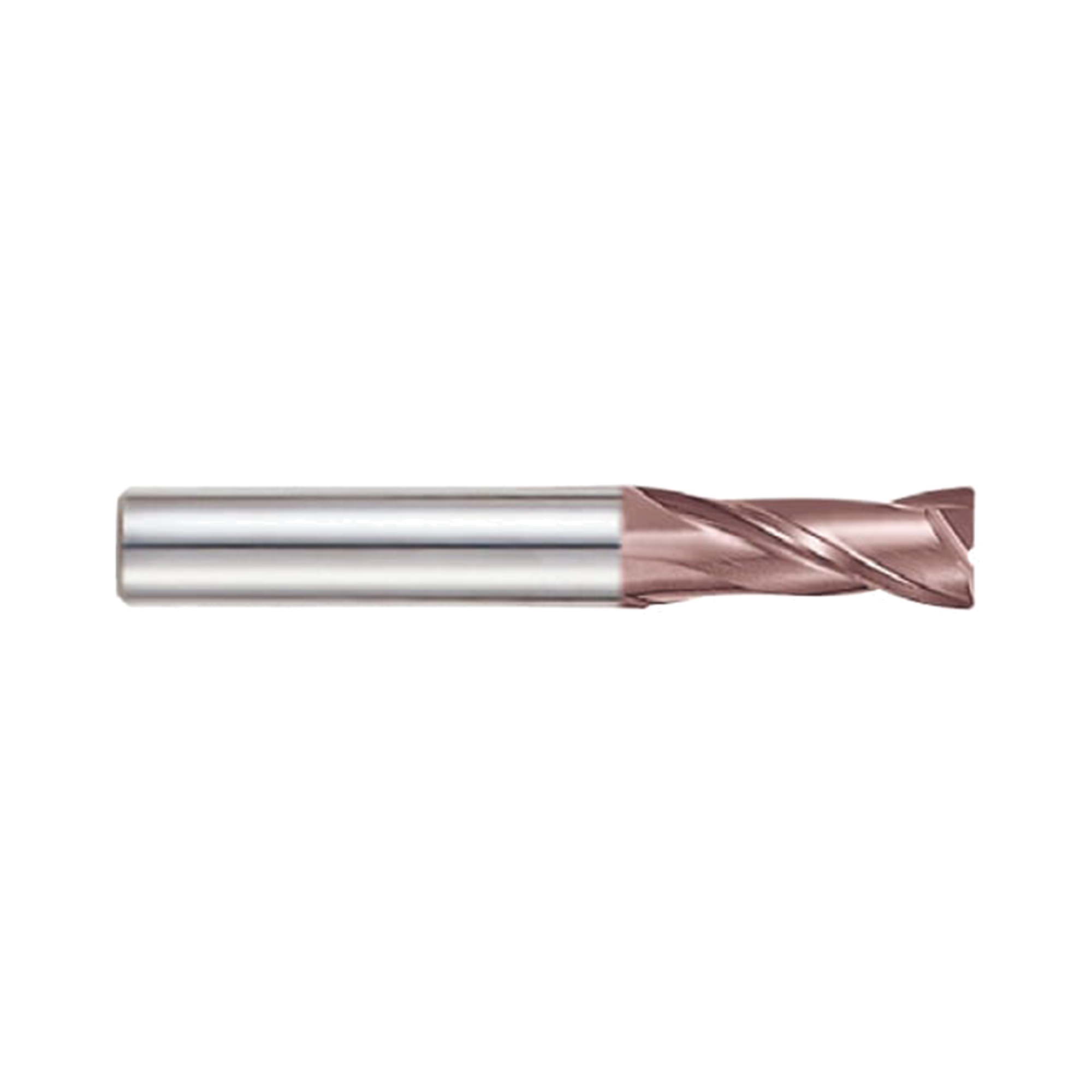

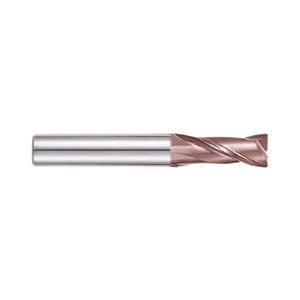

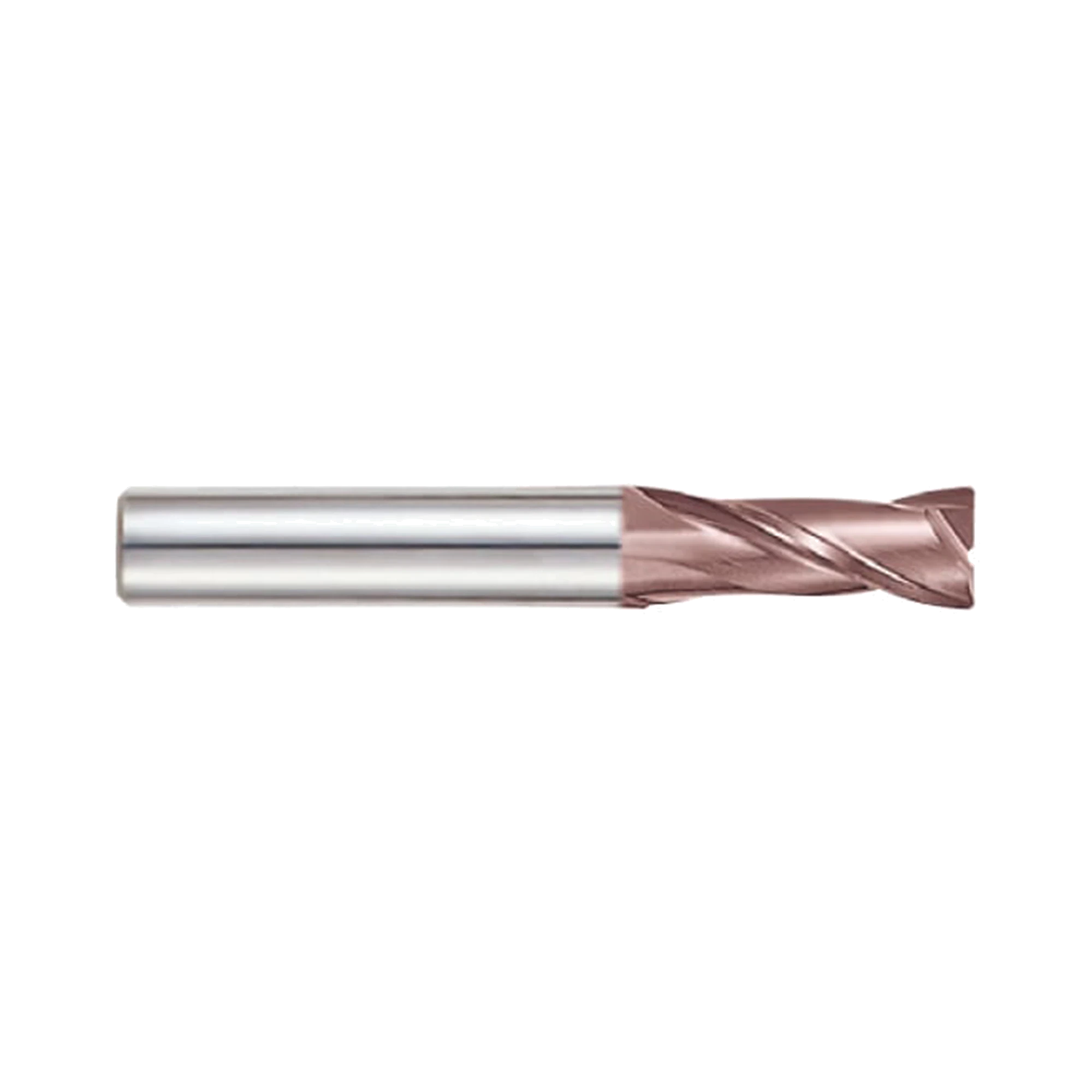

(G9B82) K-2 Carbide, 2Flute Corner Radius End Mill, Short Length

TiAlN-Coated Two-Flute Short-Length Corner Radius End Mill

(G9B82) K-2 Carbide, 2Flute Corner Radius End Mill, Short Length
$35.42 INC GST $32.20 EX GST
SKU
G9B82020
Work materials
PMKNH

Key features

  • TiAlN-coated solid carbide construction
  • Two-flute geometry for slotting
  • 30° helix angle
Surface treatment Titanium Aluminium Nitride Coating
Mill Diameter (mm)
Corner Radius (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Built for slotting

Two cutting edges provide the supported geometry for slotting operations.

Dry milling capability

TiAlN coating supports dry milling applications at high temperatures.

Useful radius selection

Choose from 2 to 12 mm diameters and R0.2 to R2.5 corner radii.

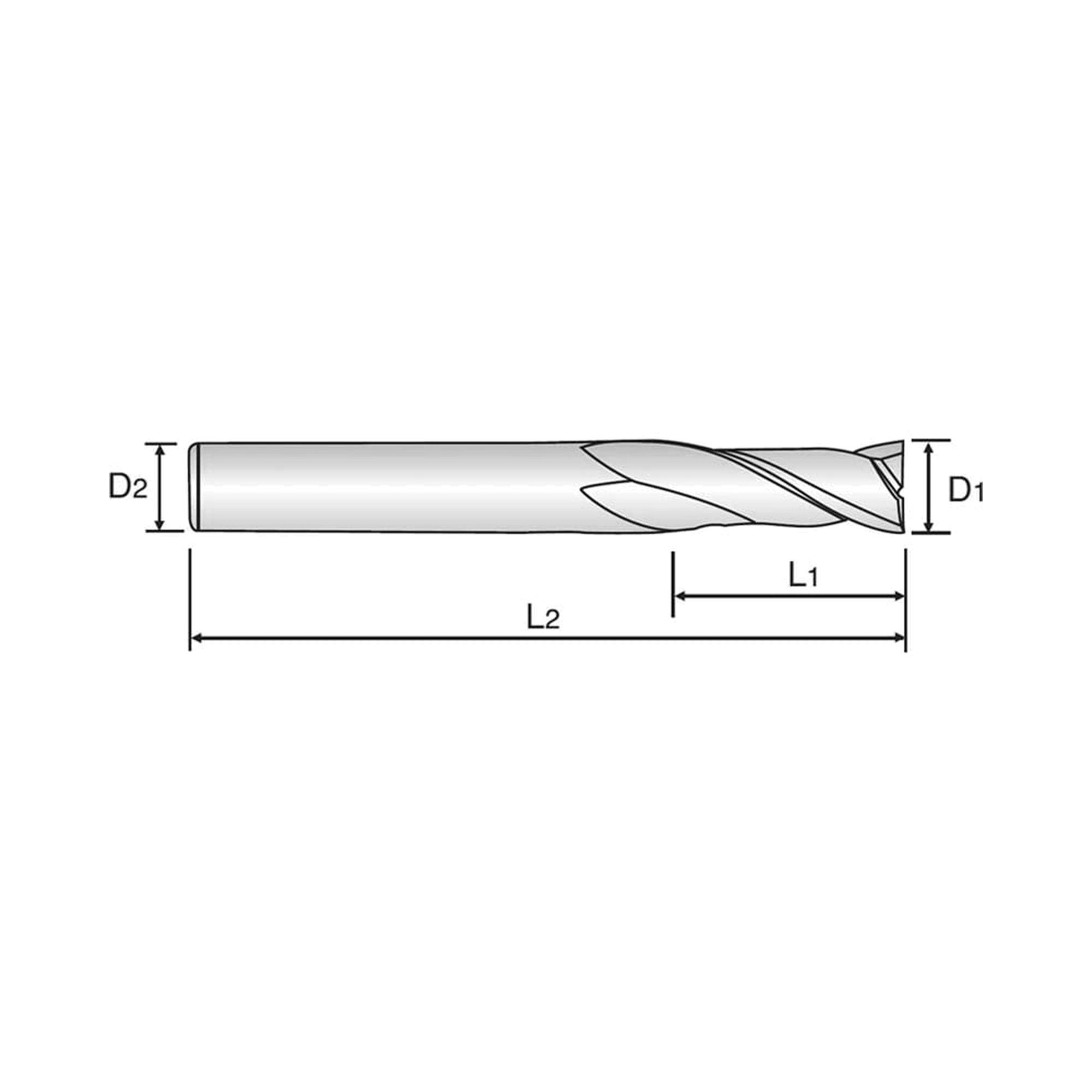

SKUMill Diameter (mm)Corner Radius (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)CAD filesStock Price Qty Add
G9B820202.0R0.250.04.04.0STEPDXF In stock $32.20
G9B829012.0R0.350.04.04.0STEPDXF In stock $32.20
G9B829022.0R0.550.04.04.0STEPDXF 1-2 Weeks $32.20
G9B820252.5R0.250.04.05.0STEPDXF In stock $32.20
G9B829032.5R0.350.04.05.0STEPDXF In stock $32.20
G9B829042.5R0.550.04.05.0STEPDXF 1-2 Weeks $32.20
G9B820303.0R0.250.04.06.0STEPDXF Low stock $32.20
G9B829053.0R0.350.04.06.0STEPDXF Low stock $32.20
G9B829063.0R0.550.04.06.0STEPDXF In stock $32.20
G9B829073.0R1.050.04.06.0STEPDXF Low stock $32.20
G9B820404.0R0.250.04.08.0STEPDXF Low stock $32.20
G9B829084.0R0.350.04.08.0STEPDXF Low stock $32.20
G9B829094.0R0.550.04.08.0STEPDXF Low stock $32.20
G9B829104.0R1.050.04.08.0STEPDXF In stock $32.20
G9B820505.0R0.250.06.010.0STEPDXF 1-2 Weeks $35.00
G9B829115.0R0.350.06.010.0STEPDXF Low stock $35.00
G9B829125.0R0.550.06.010.0STEPDXF In stock $35.00
G9B829135.0R1.050.06.010.0STEPDXF In stock $35.00
G9B820606.0R0.250.06.012.0STEPDXF 1-2 Weeks $35.00
G9B829146.0R0.350.06.012.0STEPDXF 1-2 Weeks $35.00
G9B829156.0R0.550.06.012.0STEPDXF In stock $35.00
G9B829166.0R1.050.07.012.0STEPDXF Low stock $35.00
G9B820808.0R0.560.08.016.0STEPDXF 1-2 Weeks $50.30
G9B829178.0R1.060.08.016.0STEPDXF 1-2 Weeks $50.30
G9B829188.0R1.560.08.016.0STEPDXF 1-2 Weeks $52.40
G9B829198.0R2.060.08.016.0STEPDXF 1-2 Weeks $52.40
G9B829208.0R2.560.08.016.0STEPDXF 1-2 Weeks $52.40
G9B8210010.0R0.575.010.020.0STEPDXF Low stock $76.10
G9B8292110.0R1.075.010.020.0STEPDXF 1-2 Weeks $76.10
G9B8292210.0R1.575.010.020.0STEPDXF 1-2 Weeks $79.10
G9B8292310.0R2.075.010.020.0STEPDXF 1-2 Weeks $79.10
G9B8292410.0R2.575.010.020.0STEPDXF 1-2 Weeks $79.10
G9B8212012.0R0.575.012.024.0STEPDXF Low stock $105.40
G9B8292512.0R1.075.012.024.0STEPDXF Low stock $105.40
G9B8292612.0R1.575.012.024.0STEPDXF 1-2 Weeks $109.50
G9B8292712.0R2.075.012.024.0STEPDXF Low stock $109.50
G9B8292812.0R2.575.012.024.0STEPDXF 1-2 Weeks $109.50

Add (G9B82) K-2 Carbide, 2Flute Corner Radius End Mill, Short Length to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Speeds & Feeds
  • Reviews
Application
Product Description

YG-1 K-2 G9B82 is a TiAlN-coated solid-carbide, two-flute short-length corner radius end mill for slotting. Designed for dry milling at high temperatures, it supports slotting in ISO P, M and K materials. Its 30° helix and corner-radius geometry support practical milling applications requiring a short cutting length. The plain-shank family covers 2 to 12 mm cutting diameters and R0.2 to R2.5 corner radii. Two cutting edges support slotting, while the TiAlN coating defines the K-2 cutter construction. Selected diameters use matching shanks, with cutting and overall lengths specified by individual SKU. This short-length format suits compact milling setups requiring a solid carbide corner radius cutter.

  • TiAlN-coated solid carbide construction
  • Two-flute geometry for slotting
  • 30° helix angle
  • Suitable for dry milling at high temperatures
  • Short-length corner radius design
  • 2 to 12 mm diameters with R0.2 to R2.5 radii
Product Data
Cutting Shape Corner Radius
Length Short
No. Flutes 2
Surface Treatment Titanium Aluminium Nitride Coating
EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9B82025 2.5 4 5 50 0~-0.030 h5 2 G9B82025 2.5 4 5 50 0~-0.030 h5 2 G9B82030 3 4 6 50 0~-0.030 h5 2 G9B82030 3 4 6 50 0~-0.030 h5 2 G9B82040 4 4 8 50 0~-0.030 h5 2 G9B82040 4 4 8 50 0~-0.030 h5 2 G9B82050 5 6 10 50 0~-0.030 h5 2 G9B82050 5 6 10 50 0~-0.030 h5 2 G9B82060 6 6 12 50 0~-0.030 h5 2 G9B82060 6 6 12 50 0~-0.030 h5 2 G9B82904 2.5 4 5 50 0~-0.030 h5 2 G9B82904 2.5 4 5 50 0~-0.030 h5 2 G9B82906 3 4 6 50 0~-0.030 h5 2 G9B82906 3 4 6 50 0~-0.030 h5 2 G9B82907 3 4 6 50 0~-0.030 h5 2 G9B82907 3 4 6 50 0~-0.030 h5 2 G9B82909 4 4 8 50 0~-0.030 h5 2 G9B82909 4 4 8 50 0~-0.030 h5 2 G9B82910 4 4 8 50 0~-0.030 h5 2 G9B82910 4 4 8 50 0~-0.030 h5 2 G9B82912 5 6 10 50 0~-0.030 h5 2 G9B82912 5 6 10 50 0~-0.030 h5 2 G9B82915 6 6 12 50 0~-0.030 h5 2 G9B82915 6 6 12 50 0~-0.030 h5 2 G9B82918 8 8 16 60 0~-0.030 h5 2 G9B82918 8 8 16 60 0~-0.030 h5 2 G9B82919 8 8 16 60 0~-0.030 h5 2 G9B82919 8 8 16 60 0~-0.030 h5 2 G9B82921 10 10 20 75 0~-0.030 h5 2 G9B82921 10 10 20 75 0~-0.030 h5 2 G9B82923 10 10 20 75 0~-0.030 h5 2 G9B82923 10 10 20 75 0~-0.030 h5 2 G9B82924 10 10 20 75 0~-0.030 h5 2 G9B82924 10 10 20 75 0~-0.030 h5 2 G9B82925 12 12 24 75 0~-0.030 h5 2 G9B82925 12 12 24 75 0~-0.030 h5 2 G9B82927 12 12 24 75 0~-0.030 h5 2 G9B82927 12 12 24 75 0~-0.030 h5 2 G9B82928 12 12 24 75 0~-0.030 h5 2 G9B82928 12 12 24 75 0~-0.030 h5 2

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 1–5
Low-alloy steel
ExcellentVDI 6–9
High-alloy and tool steel
ExcellentVDI 10–11

Cast iron

6 grades
Grey cast iron
GoodVDI 15–16
Nodular cast iron
GoodVDI 17–18
Malleable cast iron
GoodVDI 19–20

Hardened materials

1 grade
Chilled cast iron
GoodVDI 40

Stainless steel

3 grades
Stainless steel
GoodVDI 12–14

Non-ferrous materials

9 grades
Wrought aluminium
GoodVDI 21–22
Cast aluminium
GoodVDI 23–25
Copper, bronze and brass
GoodVDI 26–28
Non-metallic materials
GoodVDI 29
VDI grade reference30 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelExcellent20015
11PHigh-alloy and tool steelExcellent32535
12MStainless steelGood20015
13MStainless steelGood24023
14MStainless steelGood18010
15KGrey cast ironGood18010
16KGrey cast ironGood26026
17KNodular cast ironGood1603
18KNodular cast ironGood25025
19KMalleable cast ironGood130-
20KMalleable cast ironGood23021
21NWrought aluminiumGood60-
22NWrought aluminiumGood100-
23NCast aluminiumGood75-
24NCast aluminiumGood90-
25NCast aluminiumGood130-
26NCopper, bronze and brassGood110-
27NCopper, bronze and brassGood90-
28NCopper, bronze and brassGood100-
29NNon-metallic materialsGood--
40HChilled cast ironGood40042

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Machining calculator

Cutting speeds and feeds for (G9B82) K-2 Carbide, 2Flute Corner Radius End Mill, Short Length

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Recommended parameters

Parameter Value Unit
Spindle speed – rev/min
Feed rate – mm/min
Cutting speed (Vc) – m/min
Feed per tooth (fz) – mm/tooth

Choose your options and calculate the recommended parameters.

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9B82025 2.5 4 5 50 0~-0.030 h5 2 G9B82025 2.5 4 5 50 0~-0.030 h5 2 G9B82030 3 4 6 50 0~-0.030 h5 2 G9B82030 3 4 6 50 0~-0.030 h5 2 G9B82040 4 4 8 50 0~-0.030 h5 2 G9B82040 4 4 8 50 0~-0.030 h5 2 G9B82050 5 6 10 50 0~-0.030 h5 2 G9B82050 5 6 10 50 0~-0.030 h5 2 G9B82060 6 6 12 50 0~-0.030 h5 2 G9B82060 6 6 12 50 0~-0.030 h5 2 G9B82904 2.5 4 5 50 0~-0.030 h5 2 G9B82904 2.5 4 5 50 0~-0.030 h5 2 G9B82906 3 4 6 50 0~-0.030 h5 2 G9B82906 3 4 6 50 0~-0.030 h5 2 G9B82907 3 4 6 50 0~-0.030 h5 2 G9B82907 3 4 6 50 0~-0.030 h5 2 G9B82909 4 4 8 50 0~-0.030 h5 2 G9B82909 4 4 8 50 0~-0.030 h5 2 G9B82910 4 4 8 50 0~-0.030 h5 2 G9B82910 4 4 8 50 0~-0.030 h5 2 G9B82912 5 6 10 50 0~-0.030 h5 2 G9B82912 5 6 10 50 0~-0.030 h5 2 G9B82915 6 6 12 50 0~-0.030 h5 2 G9B82915 6 6 12 50 0~-0.030 h5 2 G9B82918 8 8 16 60 0~-0.030 h5 2 G9B82918 8 8 16 60 0~-0.030 h5 2 G9B82919 8 8 16 60 0~-0.030 h5 2 G9B82919 8 8 16 60 0~-0.030 h5 2 G9B82921 10 10 20 75 0~-0.030 h5 2 G9B82921 10 10 20 75 0~-0.030 h5 2 G9B82923 10 10 20 75 0~-0.030 h5 2 G9B82923 10 10 20 75 0~-0.030 h5 2 G9B82924 10 10 20 75 0~-0.030 h5 2 G9B82924 10 10 20 75 0~-0.030 h5 2 G9B82925 12 12 24 75 0~-0.030 h5 2 G9B82925 12 12 24 75 0~-0.030 h5 2 G9B82927 12 12 24 75 0~-0.030 h5 2 G9B82927 12 12 24 75 0~-0.030 h5 2 G9B82928 12 12 24 75 0~-0.030 h5 2 G9B82928 12 12 24 75 0~-0.030 h5 2
