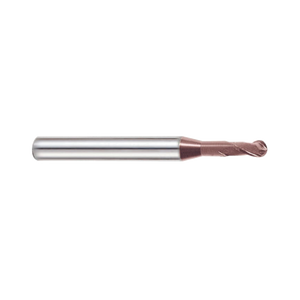

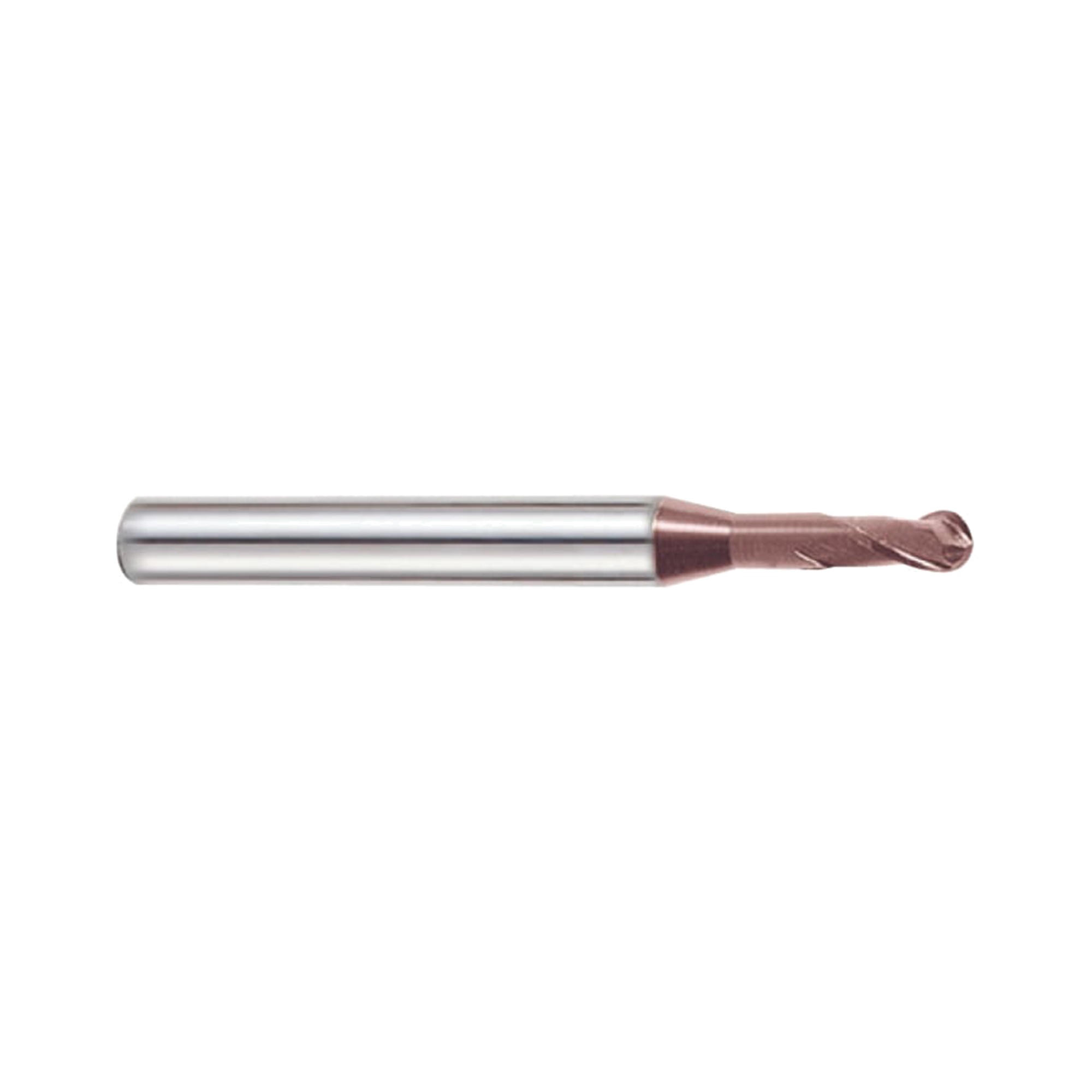

(G9B81) K-2 Carbide, 2Flute Ball Nose Rib Processing End Mill

Name: (G9B81) K-2 Carbide, 2Flute Ball Nose Rib Processing End Mill
Brand: Excision Pty Ltd
SKU: G9B81004
Price: 69.40 AUD
Availability: InStock

TiAlN-Coated 2 Flute Ball Nose End Mill for Rib Processing

$76.34 INC GST $69.40 EX GST Price available on request

SKU: G9B81004

Key features

TiAlN-coated solid carbide construction
Two-flute ball nose geometry for rib processing
30° helix suited to dry milling at high temperatures

Mill Diameter (mm)

Ball Nose Radius (mm)

Loading stock…

Made in South Korea

Free standard delivery on orders over $500.

!If you're not 100% happy with your purchase, we'll replace or refund.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Contour milling focus

Ball nose geometry is designed for radius-bottom slots, fillets and special contours

Dry milling suitability

30° helix geometry suits dry milling applications at high temperatures

Compact size range

Mill diameters from 0.4 to 4 mm cover small rib-processing requirements

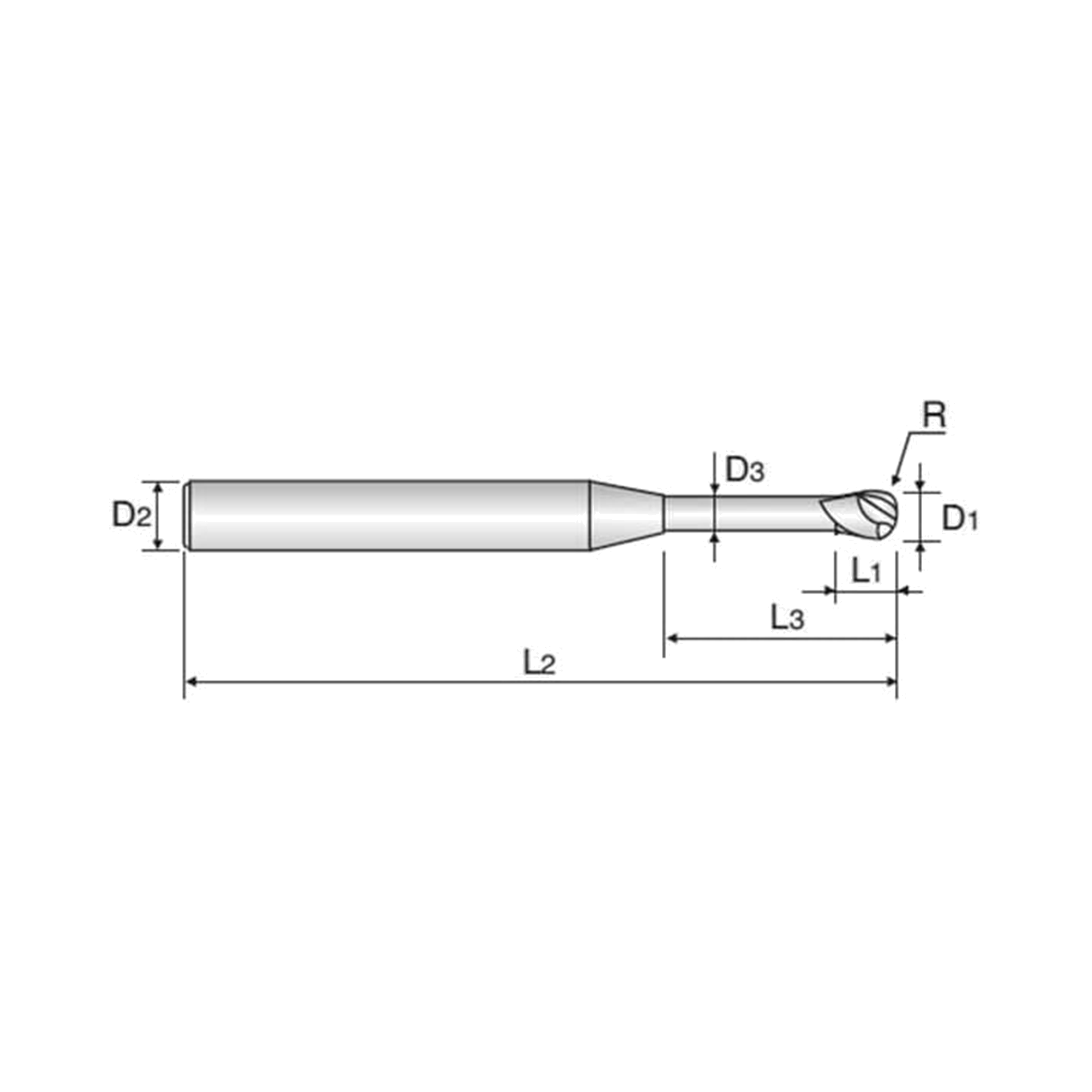

SKU	Mill Diameter (mm)	Ball Nose Radius (mm)	Overall length (mm)	Shank dia. (mm)	Length of cut (mm)	Length below shank (mm)	Neck dia. (mm)	Stock	Price
G9B81004	0.4	R0.2	50.0	4.0	0.7	2.0	0.37	1-2 Weeks	$69.40
G9B81005	0.5	R0.25	50.0	4.0	0.75	2.0	0.45	In stock	$60.10
G9B81006	0.6	R0.3	50.0	4.0	0.9	2.0	0.55	1-2 Weeks	$60.10
G9B81008	0.8	R0.4	50.0	4.0	1.2	4.0	0.75	1-2 Weeks	$46.60
G9B81010	1	R0.5	50.0	4.0	1.5	6.0	0.95	In stock	$42.80
G9B81012	1.2	R0.6	50.0	4.0	1.8	8.0	1.15	1-2 Weeks	$42.80
G9B81014	1.4	R0.7	50.0	4.0	2.1	16.0	1.35	1-2 Weeks	$48.30
G9B81015	1.5	R0.75	50.0	4.0	2.3	6.0	1.45	Low stock	$42.80
G9B81016	1.6	R0.8	50.0	4.0	2.4	8.0	1.55	1-2 Weeks	$42.80
G9B81020	2	R1.0	50.0	4.0	3.0	8.0	1.95	In stock	$40.10
G9B81030	3	R1.5	50.0	6.0	4.5	10.0	2.85	Low stock	$48.30
G9B81040	4	R2.0	50.0	6.0	6.0	12.0	3.85	1-2 Weeks	$46.70

Add (G9B81) K-2 Carbide, 2Flute Ball Nose Rib Processing End Mill to comparison

View Comparison

Overview
Specifications
Speeds & Feeds
Reviews

Application

Product Description

YG-1 G9B81 K-2 is a TiAlN-coated solid carbide two-flute ball nose end mill for rib processing. It mills radius-bottom slots, fillets and special contours in detailed rib-processing applications. Its 30° helix geometry suits dry milling applications at high temperatures. Plain-shank variants cover 0.4–4 mm mill diameters with R0.2–R2.0 ball-nose radii. All listed variants have a 50 mm overall length for compact profiling operations. The ball-nose radius tolerance is ±0.02 mm for accurately defined profiles. The series is classified for ISO P, M and K material groups. Its compact diameter range supports machining narrow rib-processing features and detailed contours. Diameter and radius options suit small, detailed contour milling requirements.

TiAlN-coated solid carbide construction
Two-flute ball nose geometry for rib processing
30° helix suited to dry milling at high temperatures
Designed for radius-bottom slots fillets and special contours
0.4–4 mm mill diameter range with R0.2–R2.0 radii
±0.02 mm ball-nose radius tolerance

Product Data

No specifications available.

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9B81004 0.4 4 0.7 50 0~-0.030 h5 2 G9B81004 0.4 4 0.7 50 0~-0.030 h5 2 G9B81005 0.5 4 0.75 50 0~-0.030 h5 2 G9B81005 0.5 4 0.75 50 0~-0.030 h5 2 G9B81006 0.6 4 0.9 50 0~-0.030 h5 2 G9B81006 0.6 4 0.9 50 0~-0.030 h5 2 G9B81008 0.8 4 1.2 50 0~-0.030 h5 2 G9B81008 0.8 4 1.2 50 0~-0.030 h5 2 G9B81010 1 4 1.5 50 0~-0.030 h5 2 G9B81010 1 4 1.5 50 0~-0.030 h5 2 G9B81014 1.4 4 2.1 50 0~-0.030 h5 2 G9B81014 1.4 4 2.1 50 0~-0.030 h5 2 G9B81015 1.5 4 2.3 50 0~-0.030 h5 2 G9B81015 1.5 4 2.3 50 0~-0.030 h5 2 G9B81016 1.6 4 2.4 50 0~-0.030 h5 2 G9B81016 1.6 4 2.4 50 0~-0.030 h5 2 G9B81020 2 4 3 50 0~-0.030 h5 2 G9B81020 2 4 3 50 0~-0.030 h5 2 G9B81030 3 6 4.5 50 0~-0.030 h5 2 G9B81030 3 6 4.5 50 0~-0.030 h5 2 G9B81040 4 6 6 50 0~-0.030 h5 2 G9B81040 4 6 6 50 0~-0.030 h5 2 G9B81901 0.5 4 0.75 50 0~-0.030 h5 2 G9B81901 0.5 4 0.75 50 0~-0.030 h5 2 G9B81903 0.6 4 0.9 50 0~-0.030 h5 2 G9B81903 0.6 4 0.9 50 0~-0.030 h5 2 G9B81904 0.6 4 0.9 50 0~-0.030 h5 2 G9B81904 0.6 4 0.9 50 0~-0.030 h5 2 G9B81905 0.8 4 1.2 50 0~-0.030 h5 2 G9B81905 0.8 4 1.2 50 0~-0.030 h5 2 G9B81907 1 4 1.5 50 0~-0.030 h5 2 G9B81907 1 4 1.5 50 0~-0.030 h5 2 G9B81909 1 4 1.5 50 0~-0.030 h5 2 G9B81909 1 4 1.5 50 0~-0.030 h5 2 G9B81910 1.2 4 1.8 50 0~-0.030 h5 2 G9B81910 1.2 4 1.8 50 0~-0.030 h5 2 G9B81911 1.5 4 2.3 50 0~-0.030 h5 2 G9B81911 1.5 4 2.3 50 0~-0.030 h5 2 G9B81912 1.5 4 2.3 50 0~-0.030 h5 2 G9B81912 1.5 4 2.3 50 0~-0.030 h5 2 G9B81914 1.5 4 2.3 50 0~-0.030 h5 2 G9B81914 1.5 4 2.3 50 0~-0.030 h5 2 G9B81915 1.5 4 2.3 50 0~-0.030 h5 2 G9B81915 1.5 4 2.3 50 0~-0.030 h5 2 G9B81916 1.6 4 2.4 50 0~-0.030 h5 2 G9B81916 1.6 4 2.4 50 0~-0.030 h5 2 G9B81917 1.6 4 2.4 50 0~-0.030 h5 2 G9B81917 1.6 4 2.4 50 0~-0.030 h5 2 G9B81918 1.6 4 2.4 50 0~-0.030 h5 2 G9B81918 1.6 4 2.4 50 0~-0.030 h5 2 G9B81919 2 4 3 50 0~-0.030 h5 2 G9B81919 2 4 3 50 0~-0.030 h5 2 G9B81920 2 4 3 50 0~-0.030 h5 2 G9B81920 2 4 3 50 0~-0.030 h5 2 G9B81921 2 4 3 50 0~-0.030 h5 2 G9B81921 2 4 3 50 0~-0.030 h5 2 G9B81922 2 4 3 50 0~-0.030 h5 2 G9B81922 2 4 3 50 0~-0.030 h5 2 G9B81923 2 4 3 50 0~-0.030 h5 2 G9B81923 2 4 3 50 0~-0.030 h5 2 G9B81924 3 6 4.5 50 0~-0.030 h5 2 G9B81924 3 6 4.5 50 0~-0.030 h5 2 G9B81925 3 6 4.5 60 0~-0.030 h5 2 G9B81925 3 6 4.5 60 0~-0.030 h5 2 G9B81926 3 6 4.5 60 0~-0.030 h5 2 G9B81926 3 6 4.5 60 0~-0.030 h5 2 G9B81927 3 6 4.5 75 0~-0.030 h5 2 G9B81927 3 6 4.5 75 0~-0.030 h5 2 G9B81928 4 6 6 60 0~-0.030 h5 2 G9B81928 4 6 6 60 0~-0.030 h5 2 G9B81929 4 6 6 75 0~-0.030 h5 2 G9B81929 4 6 6 75 0~-0.030 h5 2 G9B81930 4 6 6 75 0~-0.030 h5 2 G9B81930 4 6 6 75 0~-0.030 h5 2 G9B81931 4 6 6 75 0~-0.030 h5 2 G9B81931 4 6 6 75 0~-0.030 h5 2

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Mill Diameter (Ø)	Vc	fz	RPM	FEED	Ap
0.4	33~43	0.003~0.006	26350~34000	150~415	0.018~0.036
0.5	41~53	0.003~0.006	26350~34000	150~415	0.023~0.045
0.6	50~64	0.004~0.008	26350~34000	190~535	0.027~0.054
0.8	66~85	0.004~0.008	26350~34000	190~535	0.036~0.072
1.0	77~97	0.004~0.010	24650~31000	210~595	0.045~0.090
1.2	77~98	0.005~0.013	20500~26000	210~665	0.055~0.100
1.4	79~97	0.006~0.015	18000~22000	210~665	0.062~0.125
1.5	75~97	0.007~0.016	16000~20500	210~665	0.070~0.135
1.6	78~101	0.007~0.017	15500~20000	210~665	0.075~0.145
1.8	82~103	0.007~0.018	14500~18200	210~665	0.080~0.160
2.0	82~101	0.008~0.021	13000~16000	210~665	0.090~0.180
3.0	85~104	0.012~0.030	9000~11000	210~665	0.135~0.270
4.0	90~117	0.015~0.036	7200~9350	210~665	0.180~0.360

Mill Diameter (Ø)	Vc	fz	RPM	FEED	Ap
0.4	24~30	0.002~0.005	19100~24200	75~230	0.018~0.036
0.5	30~38	0.002~0.005	19100~24200	75~230	0.023~0.045
0.6	36~46	0.002~0.006	19100~24200	95~300	0.027~0.054
0.8	48~61	0.002~0.006	19100~24200	95~300	0.036~0.072
1.0	55~69	0.003~0.007	17400~22100	105~330	0.045~0.090
1.2	55~69	0.004~0.009	14500~18300	105~330	0.055~0.100
1.4	56~67	0.004~0.011	12800~15300	105~330	0.062~0.125
1.5	54~70	0.005~0.011	11500~14900	105~330	0.070~0.135
1.6	56~70	0.005~0.012	11200~14000	105~330	0.075~0.145
1.8	58~72	0.005~0.013	10200~12800	105~330	0.080~0.160
2.0	59~72	0.006~0.014	9400~11500	105~330	0.090~0.180
3.0	57~108	0.009~0.014	6000~11500	105~330	0.135~0.270
4.0	63~83	0.011~0.025	5000~6600	105~330	0.180~0.360

Mill Diameter (Ø)	Vc	fz	RPM	FEED	Ap
0.4	33~43	0.003~0.006	26350~34000	150~415	0.018~0.036
0.5	41~53	0.003~0.006	26350~34000	150~415	0.023~0.045
0.6	50~64	0.004~0.008	26350~34000	190~535	0.027~0.054
0.8	66~85	0.004~0.008	26350~34000	190~535	0.036~0.072
1.0	77~97	0.004~0.010	24650~31000	210~595	0.045~0.090
1.2	77~98	0.005~0.013	20500~26000	210~665	0.055~0.100
1.4	79~97	0.006~0.015	18000~22000	210~665	0.062~0.125
1.5	75~97	0.007~0.016	16000~20500	210~665	0.070~0.135
1.6	78~101	0.007~0.017	15500~20000	210~665	0.075~0.145
1.8	82~103	0.007~0.018	14500~18200	210~665	0.080~0.160
2.0	82~101	0.008~0.021	13000~16000	210~665	0.090~0.180
3.0	85~104	0.012~0.030	9000~11000	210~665	0.135~0.270
4.0	90~117	0.015~0.036	7200~9350	210~665	0.180~0.360

Mill Diameter (Ø)	Vc	fz	RPM	FEED	Ap
0.4	24~30	0.002~0.005	19100~24200	75~230	0.018~0.036
0.5	30~38	0.002~0.005	19100~24200	75~230	0.023~0.045
0.6	36~46	0.002~0.006	19100~24200	95~300	0.027~0.054
0.8	48~61	0.002~0.006	19100~24200	95~300	0.036~0.072
1.0	55~69	0.003~0.007	17400~22100	105~330	0.045~0.090
1.2	55~69	0.004~0.009	14500~18300	105~330	0.055~0.100
1.4	56~67	0.004~0.011	12800~15300	105~330	0.062~0.125
1.5	54~70	0.005~0.011	11500~14900	105~330	0.070~0.135
1.6	56~70	0.005~0.012	11200~14000	105~330	0.075~0.145
1.8	58~72	0.005~0.013	10200~12800	105~330	0.080~0.160
2.0	59~72	0.006~0.014	9400~11500	105~330	0.090~0.180
3.0	57~108	0.009~0.014	6000~11500	105~330	0.135~0.270
4.0	63~83	0.011~0.025	5000~6600	105~330	0.180~0.360

Mill Diameter (Ø)	Vc	fz	RPM	FEED	Ap
0.4	33~43	0.003~0.006	26350~34000	150~415	0.018~0.036
0.5	41~53	0.003~0.006	26350~34000	150~415	0.023~0.045
0.6	50~64	0.004~0.008	26350~34000	190~535	0.027~0.054
0.8	66~85	0.004~0.008	26350~34000	190~535	0.036~0.072
1.0	77~97	0.004~0.010	24650~31000	210~595	0.045~0.090
1.2	77~98	0.005~0.013	20500~26000	210~665	0.055~0.100
1.4	79~97	0.006~0.015	18000~22000	210~665	0.062~0.125
1.5	75~97	0.007~0.016	16000~20500	210~665	0.070~0.135
1.6	78~101	0.007~0.017	15500~20000	210~665	0.075~0.145
1.8	82~103	0.007~0.018	14500~18200	210~665	0.080~0.160
2.0	82~101	0.008~0.021	13000~16000	210~665	0.090~0.180
3.0	85~104	0.012~0.030	9000~11000	210~665	0.135~0.270
4.0	90~117	0.015~0.036	7200~9350	210~665	0.180~0.360

Mill Diameter (Ø)	Vc	fz	RPM	FEED	Ap
0.4	24~30	0.002~0.005	19100~24200	75~230	0.018~0.036
0.5	30~38	0.002~0.005	19100~24200	75~230	0.023~0.045
0.6	36~46	0.002~0.006	19100~24200	95~300	0.027~0.054
0.8	48~61	0.002~0.006	19100~24200	95~300	0.036~0.072
1.0	55~69	0.003~0.007	17400~22100	105~330	0.045~0.090
1.2	55~69	0.004~0.009	14500~18300	105~330	0.055~0.100
1.4	56~67	0.004~0.011	12800~15300	105~330	0.062~0.125
1.5	54~70	0.005~0.011	11500~14900	105~330	0.070~0.135
1.6	56~70	0.005~0.012	11200~14000	105~330	0.075~0.145
1.8	58~72	0.005~0.013	10200~12800	105~330	0.080~0.160
2.0	59~72	0.006~0.014	9400~11500	105~330	0.090~0.180
3.0	57~108	0.009~0.014	6000~11500	105~330	0.135~0.270
4.0	63~83	0.011~0.025	5000~6600	105~330	0.180~0.360

Recommended parameters

Recommended cutting speeds and feeds
Parameter	Value	Unit
Spindle speed	–	rev/min
Feed rate	–	mm/min
Cutting speed (Vc)	–	m/min
Feed per tooth (Fz)	–	mm/tooth

Choose your options and calculate the recommended parameters.
