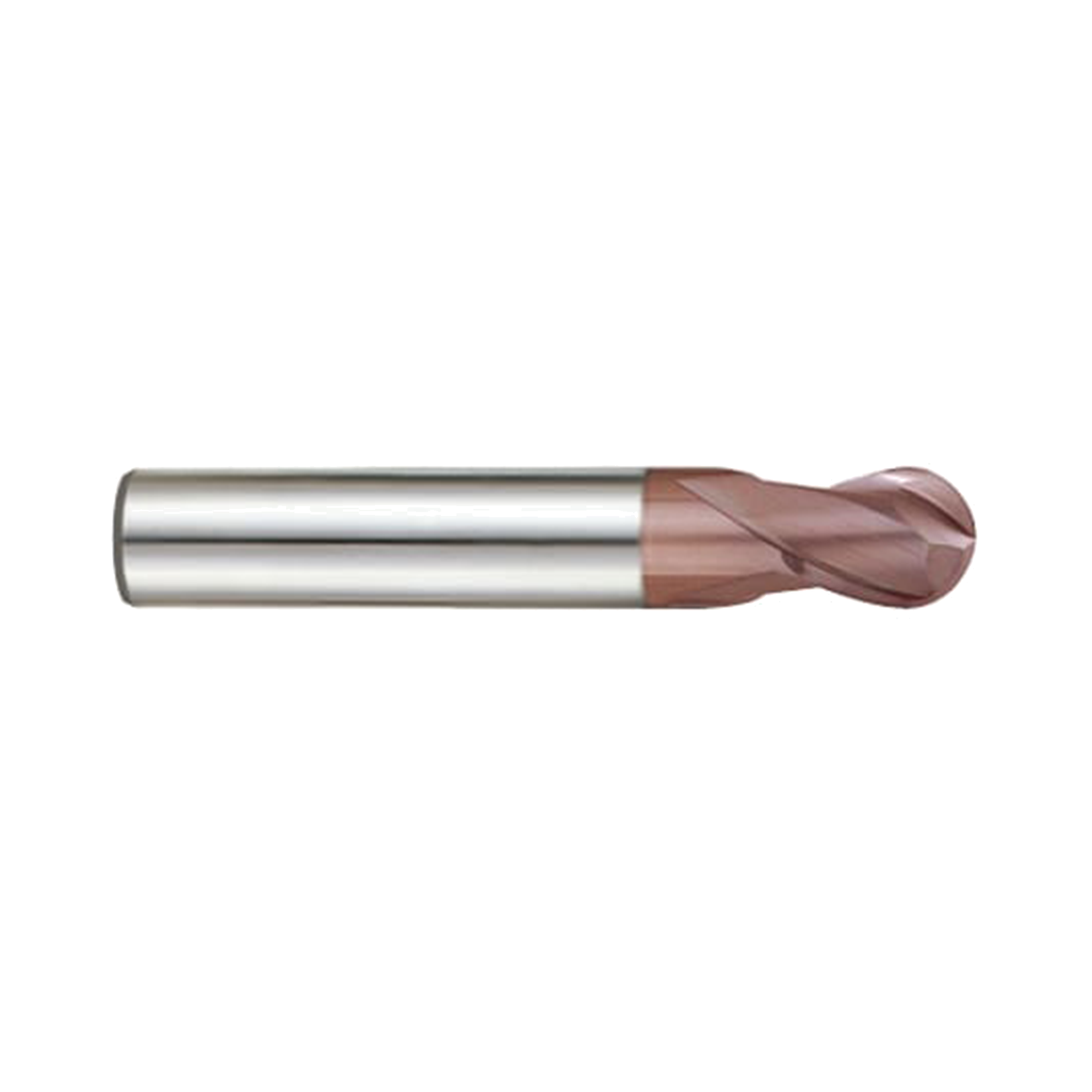

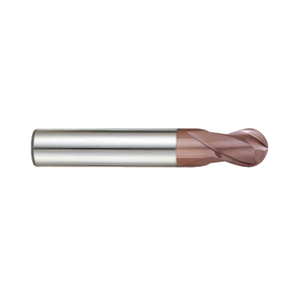

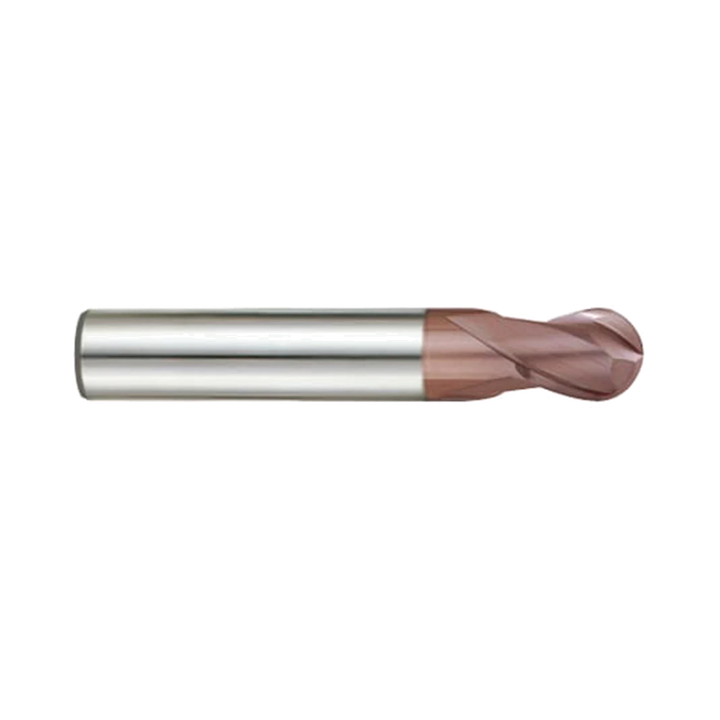

(G9624) K-2 Carbide, 2Flute Ball Nose End Mill, Short Length
TiAlN-Coated Short-Length 2 Flute Ball Nose End Mill
- SKU
- G9624020
Key features
- TiAlN-coated carbide construction for dry milling at high temperatures
- Two-flute short-length ball nose design
- Designed for radius-bottom slots fillets and special contours
Made in South Korea
Precise contour work
Ball nose geometry is designed for radius-bottom slots, fillets and special contours
Dry milling capability
TiAlN coating is suitable for dry milling applications at high temperatures
Useful size selection
The series covers 2 to 20 mm diameters with R1.0 to R10.0 ball radii

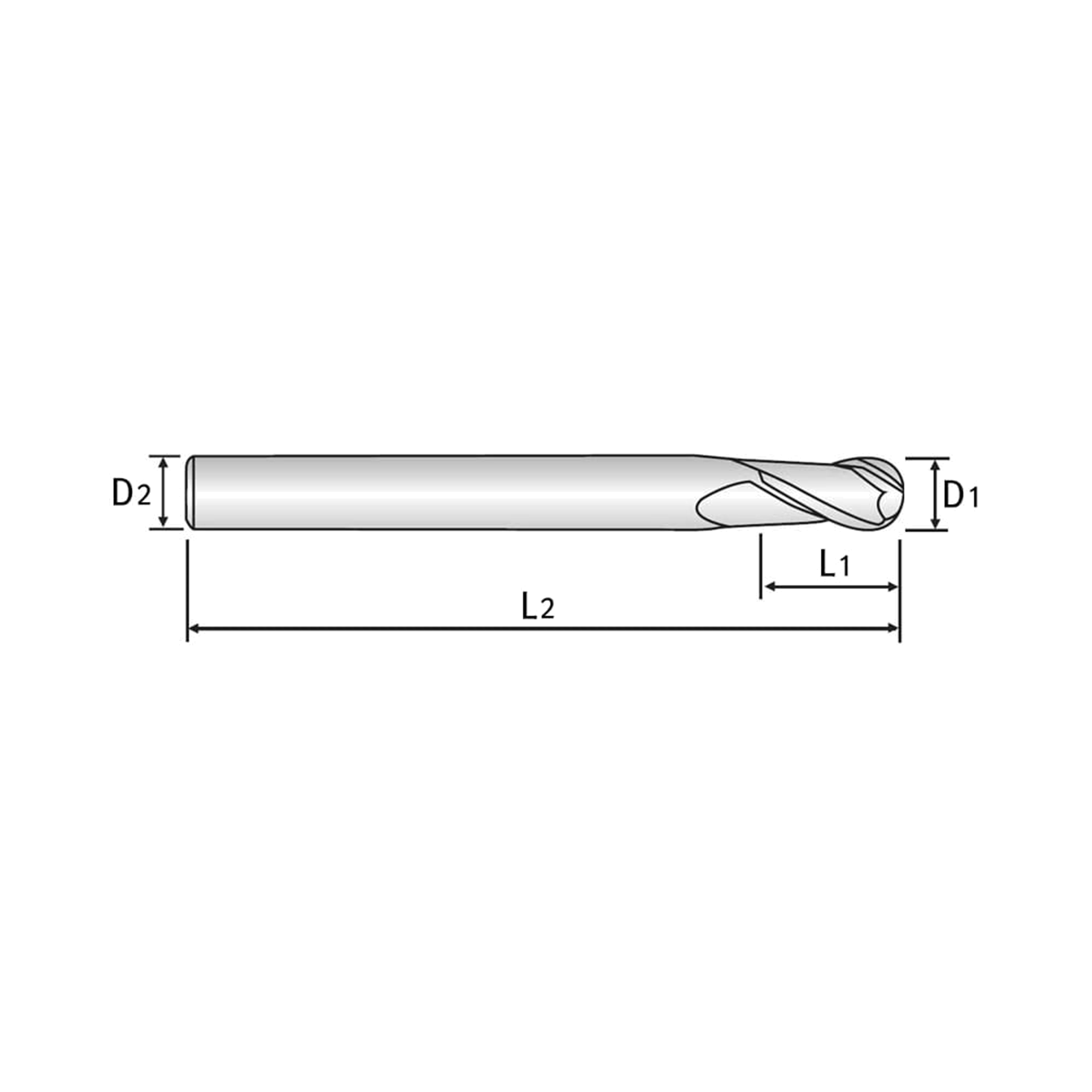

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| G9624020 | 2 | 48.0 | 6.0 | 4.0 | In stock | $20.79 | ||
| G9624025 | 2.5 | 48.0 | 6.0 | 4.0 | In stock | $18.10 | ||
| G9624030 | 3 | 48.0 | 6.0 | 4.0 | In stock | $17.60 | ||
| G9624040 | 4 | 50.0 | 6.0 | 6.0 | In stock | $18.58 | ||
| G9624050 | 5 | 51.0 | 6.0 | 7.0 | Low stock | $18.93 | ||
| G9624060 | 6 | 51.0 | 6.0 | 7.0 | In stock | $23.11 | ||
| G9624080 | 8 | 59.0 | 8.0 | 9.0 | 1-2 Weeks | $54.30 | ||
| G9624100 | 10 | 60.0 | 10.0 | 10.0 | Low stock | $60.53 | ||
| G9624120 | 12 | 71.0 | 12.0 | 14.0 | In stock | $58.41 | ||
| G9624140 | 14 | 71.0 | 14.0 | 14.0 | 1-2 Weeks | $144.00 | ||
| G9624160 | 16 | 76.0 | 16.0 | 16.0 | 1-2 Weeks | $137.70 | ||
| G9624180 | 18 | 76.0 | 18.0 | 18.0 | 1-2 Weeks | $209.60 | ||
| G9624200 | 20 | 82.0 | 20.0 | 20.0 | Low stock | $122.99 |
Add (G9624) K-2 Carbide, 2Flute Ball Nose End Mill, Short Length to comparison
View Comparison- Overview
- Specifications
- Speeds & Feeds
- Reviews
YG-1 G9624 is a TiAlN-coated carbide, two-flute short-length ball nose end mill for precision contour milling. Designed for radius-bottom slots, fillets and special contours, it provides controlled profiling in dry, high-temperature milling applications. Plain-shank tools span 2 to 20 mm diameters, providing ball radii from R1.0 to R10.0. Every listed standard variant has a ball-radius tolerance of ±0.02 mm for accurate form machining. The short-length geometry supports detailed work where close control of the ball profile is required. The TiAlN coating is suitable for dry milling at high temperatures, supporting demanding machining conditions. This high-performance end mill suits machining tasks requiring precise radiused features and special contour forms.
- TiAlN-coated carbide construction for dry milling at high temperatures
- Two-flute short-length ball nose design
- Designed for radius-bottom slots fillets and special contours
- Plain-shank diameters from 2 to 20 mm
- Ball radii from R1.0 to R10.0
- ±0.02 mm ball-radius tolerance on listed standard variants
No specifications available.
Cutting Speeds and Feeds
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
